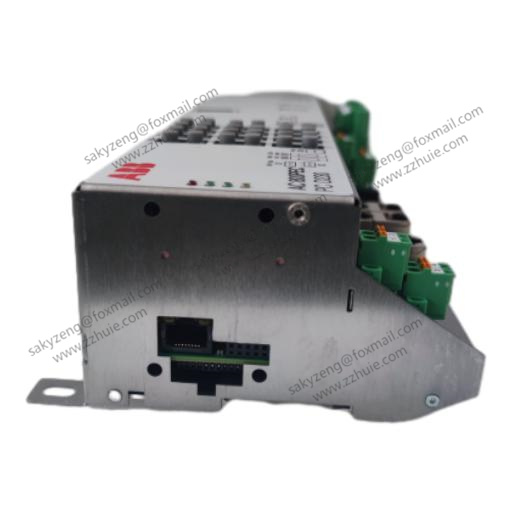

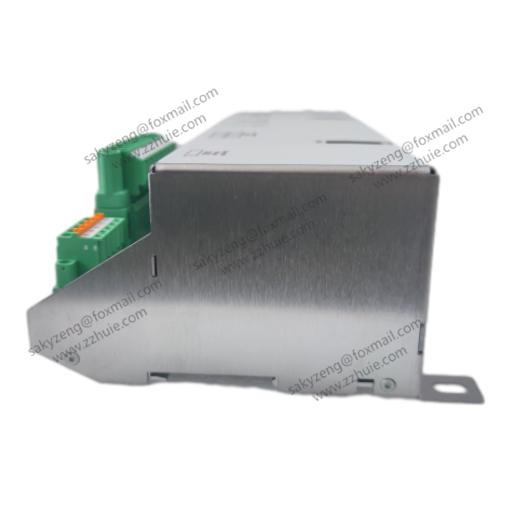

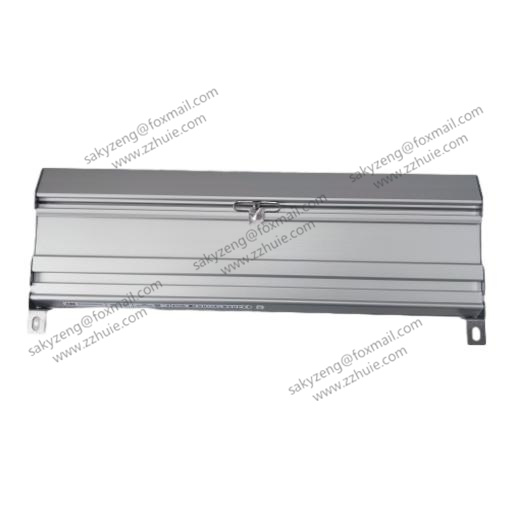

ABB PCD230A101 3BHE022291R0101 Controller module

ABB PCD230A101 3BHE022291R0101 Product Name, Datasheet, and Description

Product Name

• PCD230A101：ABB AC800PEC Programmable Electronic Controller (PEC) System Communication Control and Measurement Module
• 3BHE022291R0101：Hardware model of ABB PCD230A series controller module (same product as PCD230A101 with different part number)

Core Function

1. Real-time control and data processing: Executes logic control, sequential control, and closed-loop control algorithms, suitable for power system excitation control, motor drives, and industrial production line automation.
2. Multi-protocol communication: Integrates Ethernet, PROFIBUS, and MODBUS interfaces for data interaction with host systems (e.g., SCADA) and field devices (e.g., PLCs, sensors)1116.
3. Modular expansion: Connects to AC800PEC I/O modules via fiber optic links for flexible distributed control system configurations313.

Technical Specifications

Product Features

1. High Reliability Design：
• Dual power supply redundancy ensures continuous operation during single power failure, supporting hot-swappable maintenance616.
• Industrial-grade EMI/RFI immunity, certified to IEC 61000-6-2 (industrial environment)16.
2. Flexible Expandability：
• Supports fiber optic connection to up to 6 AC800PEC I/O modules for distributed control topologies313.
• Modular design allows expansion of digital, analog, or specialized function modules (e.g., high-speed counting, PID control).
3. Advanced Communication Capabilities：
• PROFIBUS-DP interface supports Device-Level Redundancy (DLR) for real-time and reliable data transmission in critical processes14.
• Built-in Web server enables parameter configuration, status monitoring, and diagnostic log download via browser16.

Application Areas

• Power Systems: Generator excitation control, substation automation, grid stability monitoring1014.
• Industrial Automation: Chemical reactor control, metallurgical production line logic control, robot motion trajectory planning416.
• Energy Management: Renewable energy (wind, solar) inverter control, energy storage system coordination
