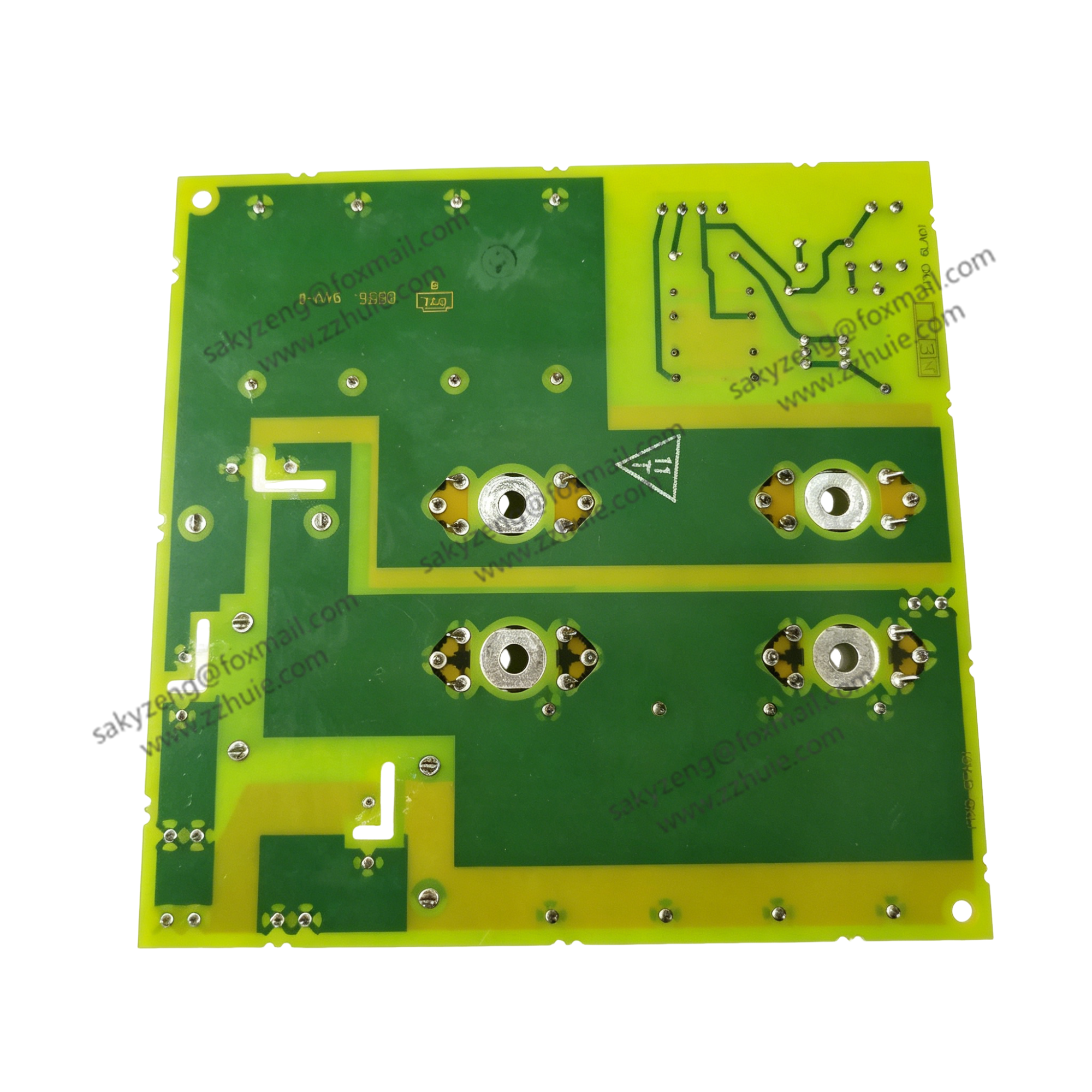

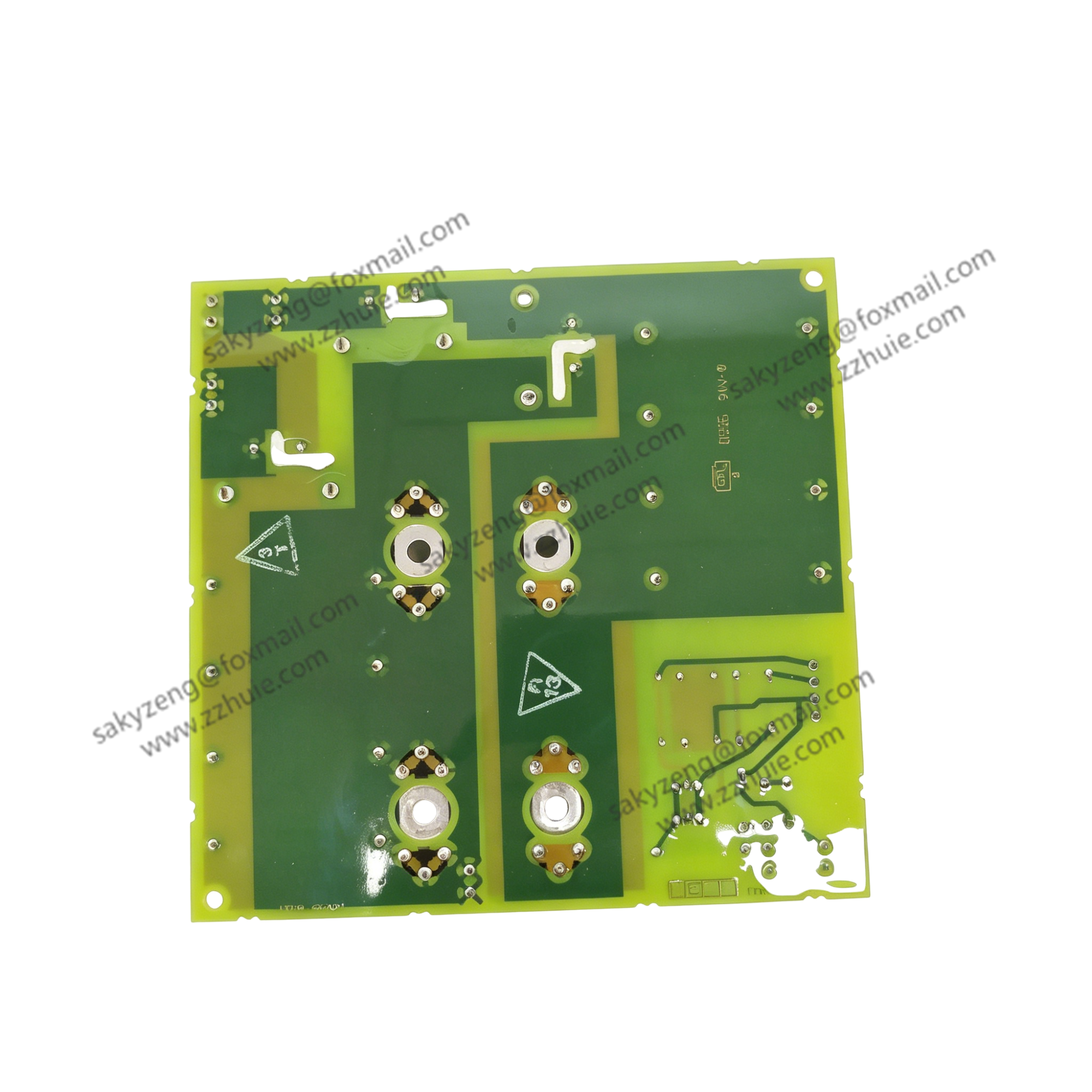

GE DS200ITXDG1ABA ITXD IGBT Snubber Board

GE DS200ITXDG1ABA is a professional IGBT snubber and dynamic braking board belonging to GE DS200 series,

specially designed for Mark V Speedtronic turbine control systems. It is mainly used to suppress voltage spikes and transient surges during the switching process of IGBT power devices,

providing effective overvoltage protection. This board works with dynamic braking circuits and matches with related power interface boards,

ensuring stable operation of high-power drive units. It is widely applied in power generation,

oil & gas and other heavy industrial fields as an essential replacement component for turbine control equipment.

3. Technical Specifications

• Part Number: DS200ITXDG1ABA
• Manufacturer: General Electric (GE)
• Series: DS200 / Mark V Speedtronic
• Product Type: IGBT Snubber & Dynamic Braking Board
• Abbreviation: ITXD
• Rated Current: 500ARMS
• Connectors: 4-pin DBPL connector, busbar I/O and pin headers
• Operating Temperature: -20°C to +60°C
• Humidity: 5%–95% non-condensing
• Weight: Approximately 1.5 kg
• Mounting: External installation, matched with IMCP board
• Certification: CE, UL
