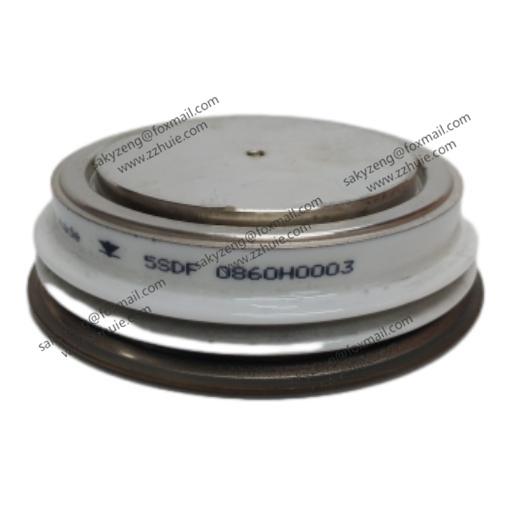

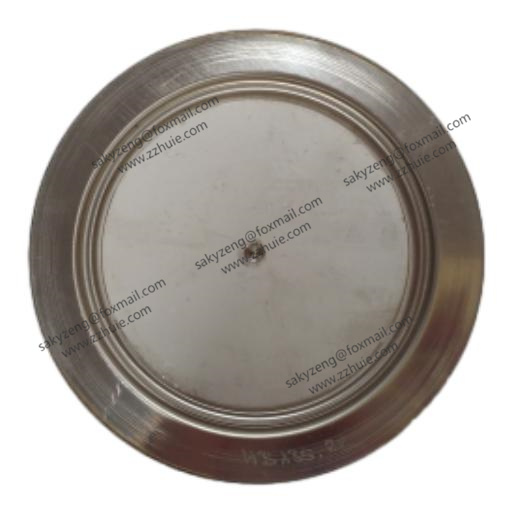

ABB 5SDF0860H0003 High voltage diode module

Product Name

Data Sheet & Key Parameters

1. Rated Current (If): Approximately 800A (the "08" in the model likely indicates an 800A rating).
2. Rated Voltage (Vrrm): Approximately 6000V (the "60" in the model likely denotes a 6000V voltage withstand capability).
3. Packaging Type: "H0003" likely corresponds to a specific package structure (e.g., planar package, suitable for high-power applications).
4. Application Fields: Primarily used in rectification stages of industrial frequency converters, power converters, high-voltage direct current (HVDC) transmission, renewable energy systems (such as wind and solar inverters), and other high-power scenarios.

• Electrical characteristics (forward voltage drop, reverse leakage current, switching losses, etc.);
• Mechanical dimensions and installation guidelines;
• Thermal characteristics (thermal resistance, cooling requirements);
• Reliability parameters (certifications, service life, etc.).

Product Description

The ABB 5SDF0860H0003 High-Voltage Diode Module is a rectifier device designed for high-power power electronic systems. Utilizing ABB's advanced semiconductor technology, it features high voltage withstand capability, large current-carrying capacity, and low-loss characteristics. Its design is suitable for high-voltage scenarios requiring efficient rectification, such as rectifier bridges in medium-voltage frequency converters, energy storage system converters, or industrial motor drive systems. The module has a compact design and supports water or air cooling, meeting the requirements of high-reliability and long-life industrial applications.
