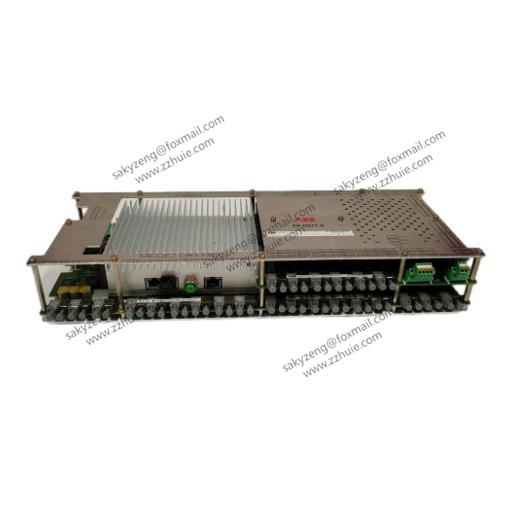

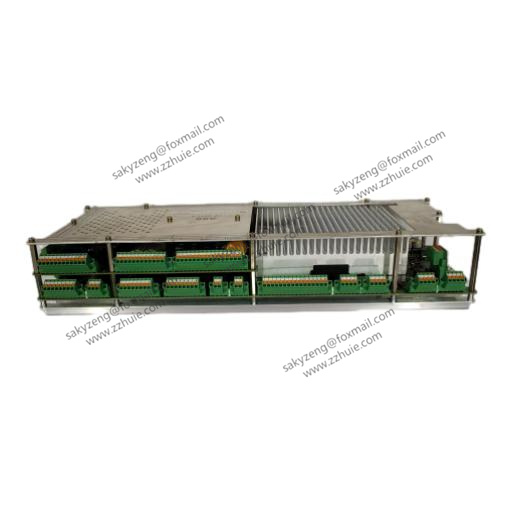

The ABB PPD517A3011 (order code: 3BHE041576R3011) is a high-reliability redundant power supply module designed for ABB’s industrial automation systems, particularly compatible with S800 I/O racks, AC800M controllers, and Symphony Plus DCS. Its primary function is to provide stable, uninterrupted 24 VDC power to I/O modules, communication modules (e.g., PFVO143), and other critical components in distributed control systems (DCS).
Unlike standard power supplies, this module features 1:1 redundancy—two independent power channels operate in parallel, with automatic failover (<5 ms) if one channel fails. This ensures zero downtime in mission-critical applications such as chemical processing, power generation, and oil refineries.
The PPD517A3011 integrates advanced protection mechanisms (overcurrent, overvoltage, short-circuit) and wide input voltage tolerance, making it suitable for harsh industrial environments with fluctuating power grids. Its compact design fits seamlessly into S800 I/O racks, supporting modular system expansion.
Power Performance:
- Input Voltage: 100–240 VAC (50/60 Hz) or 110–300 VDC, with wide-range tolerance (±15%) to handle grid fluctuations.
- Output Voltage: 24 VDC ±2% (adjustable), with rated current up to 10 A (total for both channels) to support multiple I/O modules.
- Efficiency: ≥85% at full load, reducing energy loss and heat generation.
Redundancy & Reliability:
- Dual Channels: Two independent power paths with automatic load sharing; if one channel fails, the other assumes full load without interruption.
- Protection Mechanisms: Overcurrent (12 A trip), overvoltage (28 VDC cutoff), short-circuit, and overtemperature (70°C shutdown) protection.
- Diagnostics: Real-time status monitoring via LEDs (power on, channel active, fault) and digital output signals (for integration with DCS alarms).
Integration & Compatibility:
- Mounting: Designed for S800 I/O racks (e.g., CR301, CR310) and ABB controller enclosures, with front-panel installation for easy access.
- Hot-Swappable: Supports module replacement without powering down the system, minimizing maintenance downtime.
- System Compatibility: Works with ABB S800 I/O modules (e.g., PFXA401F), Profibus interfaces (PFVO143), and AC800M controllers.
| Parameter | Description |
|---|
| Input Voltage | 100–240 VAC (50/60 Hz) or 110–300 VDC |
| Output Voltage | 24 VDC ±2% (adjustable via trim pot) |
| Output Current | 10 A total (5 A per channel, load-shared) |
| Efficiency | ≥85% @ full load (240 VAC input) |
| Isolation | 3 kVAC (input to output) for protection against electrical noise |
| Operating Temperature | -25°C to +70°C (ambient); -40°C to +85°C (storage) |
| Physical Dimensions | 120 mm × 150 mm × 40 mm (W × H × D) |
| Weight | ~500 g |
| Certifications | CE, UL 508, IEC 61010-1, ATEX (Ex II 3G Ex nA IIC T4) |
Industrial Durability:
- Rugged Housing: Metal enclosure with IP20 protection, resistant to dust and vibration (2.5 G RMS per IEC 60068-2-6).
- Wide Temperature Range: Operates in extreme climates (-25°C to +70°C), suitable for outdoor or unconditioned cabinets.
Safety Enhancements:
- Reverse Polarity Protection: Prevents damage from incorrect DC input wiring.
- Thermal Management: Built-in heat sinks and convection cooling to maintain stable operation under full load.
![]()
