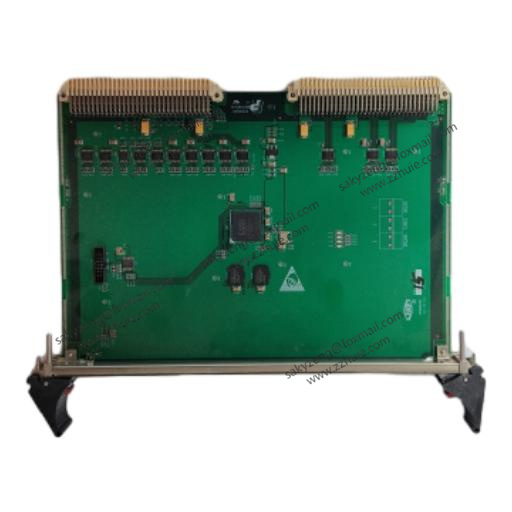

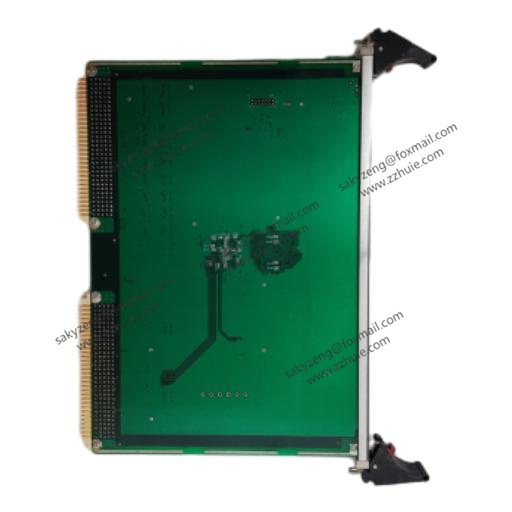

GE ESM10A Industrial Ethernet Switch Module

Core Functions & Technical Specifications

Functionality

Technical Specifications (English)

Key Features

1. Industrial-Grade Robustness:
• Wide temperature tolerance and vibration resistance (compliant with IEC 60068-2-6).
• Redundant power inputs with reverse polarity protection.
2. High-Speed Redundancy:
• Sub-20ms ring network recovery time via ERPS/MRP, minimizing data transmission interruptions.
3. Flexible Networking:
• Mixed copper/fiber ports support long-distance transmission (up to 20 km via single-mode fiber).
• VLAN segmentation and QoS (Quality of Service) for prioritizing critical control traffic.
4. Intuitive Management:
• Plug-and-play functionality with optional advanced configuration via GE Proficy software.

Application Scenarios

1. Manufacturing Automation:
• Connecting robotic arms, CNC machines, and conveyor systems in smart factories.
• Building redundant ring networks for assembly lines with real-time OEE (Overall Equipment Effectiveness) monitoring.
2. Energy & Utilities:
• Substation automation and SCADA networks for power distribution.
• Remote monitoring of wind turbines and solar farm inverters.
3. Transportation & Logistics:
• Railway signaling systems and depot management networks (compliant with EN 50155).
• Warehouse automation via Ethernet-connected AGVs (Automated Guided Vehicles).
4. Process Industries:
• Chemical plant control systems with explosion-proof zone deployments (optional hazardous area certification).
