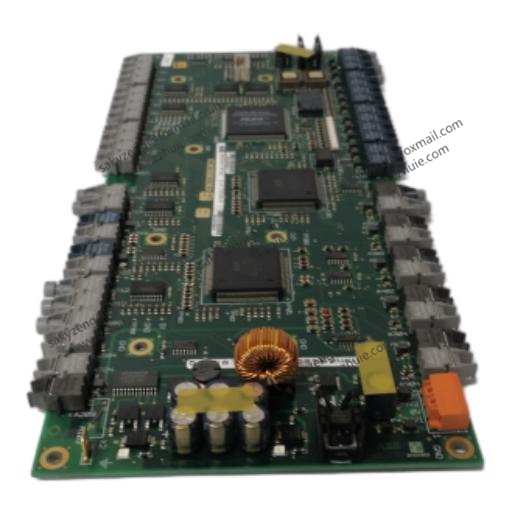

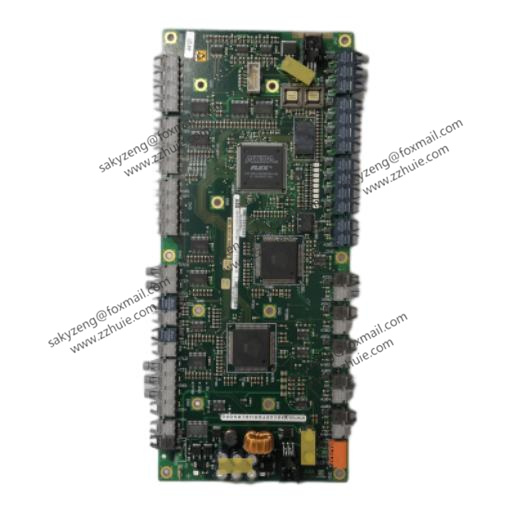

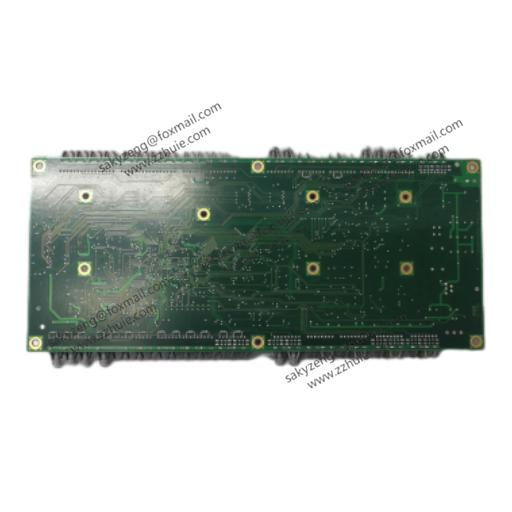

ABB UFC760BE42 3BHE004573R1042​ High-Performance Interface Board

Core Function & Technical Overview

Functionality

• Multi-Protocol Connectivity: Supports EtherCAT, Modbus RTU, and Profibus DP for seamless integration with PLCs, HMIs, and field devices 23.
• Flexible I/O Expansion: Provides configurable digital/analog input/output channels for sensor/actuator interfacing, with support for up to 32 I/O points per module 23.
• Real-Time Processing: Executes control logic at sub-millisecond intervals, ensuring precise regulation of processes like speed, temperature, and pressure.

Technical Specifications

Key Design Features

1. EtherCAT Master/Slave Capability:
• Supports EtherCAT as both a master and slave device, enabling high-speed synchronization of multi-axis motion control systems (e.g., robotic arms, conveyor belts) 2324.
• Achieves cycle times as low as 125 μs for real-time data exchange.
2. Modular I/O Configuration:
• Digital inputs/outputs with optical isolation (2.5kV) for noise immunity in industrial environments.
• Analog channels feature programmable filtering (10-1000 Hz) to reduce signal interference.
3. Advanced Diagnostics:
• Built-in LED indicators for power status, communication activity, and fault codes (e.g., over-temperature, bus error).
• Remote monitoring via ABB’s System 800xA for predictive maintenance.
4. Rugged Industrial Design:
• Shock-resistant housing (15G vibration, 2G shock) and EMC shielding to withstand electromagnetic interference.
• Supports hot-swap functionality for module replacement without system downtime.
