Bently Nevada 3500/15 Redundant AC/DC Power Supply Module for 3500 Machinery Protection Rack

 Product Description

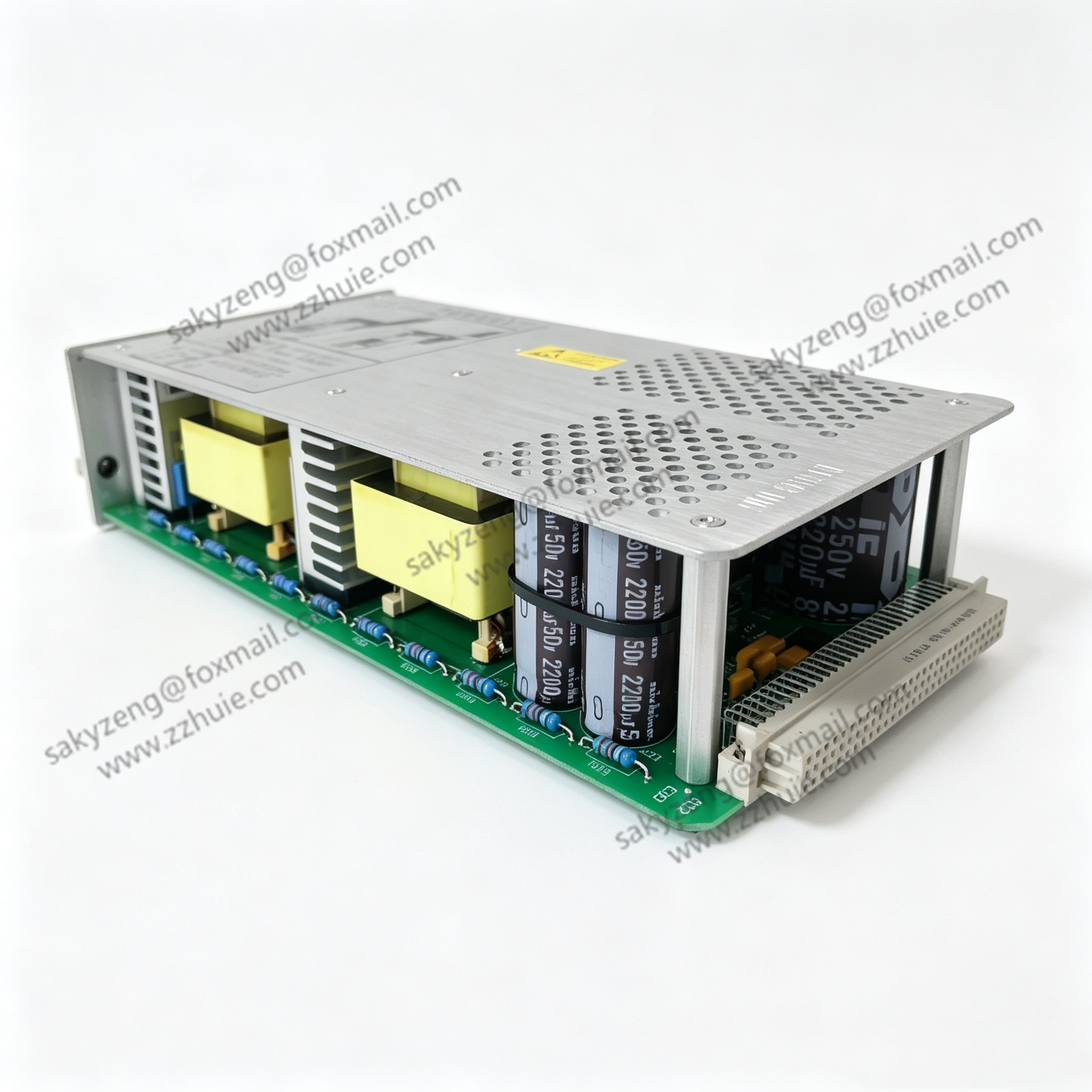

3500/15 is a half-height dedicated power supply module for Bently 3500 series turbomachinery monitoring racks, manufactured in USA. It converts wide-range AC/DC input into stable internal bus voltage to power all monitor, I/O and communication cards inside the rackBaker Hugh....

It supports single or dual redundant installation: lower slot as primary power, upper slot as hot backup. With two modules installed, either can fully drive the whole rack, and hot-swap replacement is allowed without system shutdown. Multiple input variants are available: universal AC, high voltage DC and low voltage DC to fit different plant power conditions. All boards adopt conformal coating to adapt to high-vibration turbine and compressor rooms.

Technical Specifications

PN: 3500/15, Brand: Bently Nevada, USA

Installation: Half-height module, fixed left rack dedicated slots

Input Options:

Universal AC: 85–264 Vac, 47–63Hz

High Voltage DC: 88–140 Vdc

Low Voltage DC: 20–30 Vdc

Redundancy: Dual hot backup design, seamless switchover

Hot-swap: Supported under dual power redundant configuration

Indicator: Front panel SUPPLY OK status LED

Operating Temp: -30℃ ~ +65℃; Storage: -40℃ ~ +85℃

Humidity: 5%–95% non-condensing, conformal coated PCB

Compatibility: Full match with 3500/05 rack, all 3500 series monitor modules

Key Features

Redundant dual power design eliminates single power failure risk for critical turbine protection systems.

Wide AC/DC input range adapts to various power supply environments in power plants and oil & gas stations.

Hot-swappable structure supports online maintenance without stopping machinery monitoring.

Independent overvoltage, overcurrent and short-circuit protection for stable rack power output.

Clear front LED indicator for quick power status judgment during on-site inspection.

Half-height compact design saves rack space for multi-module expansion.

Fully compatible with all vibration, temperature and communication modules of 3500 system.

Industrial anti-corrosion PCB coating for long-term continuous operation in harsh workshop environments.
