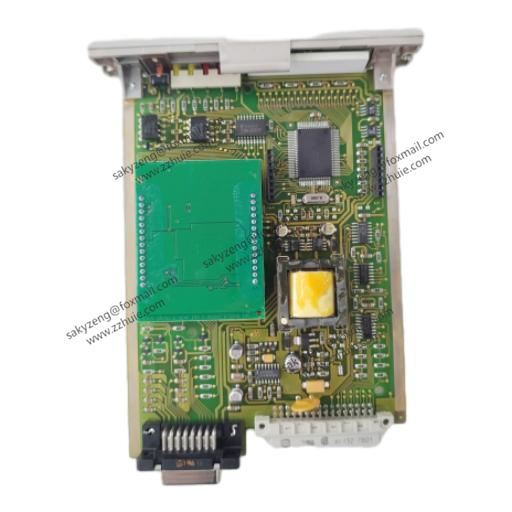

Honeywell 51109456-200 16-channel analog input/output (I/O) module

Honeywell 51109456-200 Product Name, Data Sheet Description

Product Name and Classification

Core Functions and Technical Features

1. Signal Handling Capability
• Dual-purpose Channels: Configurable as 16 analog inputs (AI) or 16 analog outputs (AO), or a mix of both (e.g., 8 AI + 8 AO).
• Input Types: Supports 4-20 mA, 0-10 VDC, thermocouples (J, K, T, E, R, S, B), RTDs (PT100, PT1000), and millivolt signals.
• Output Types: 4-20 mA (sink/source) or 0-10 VDC (source), with fault protection (open/short circuit detection).
2. Performance Specifications
• Resolution: 16-bit analog-to-digital (A/D) and digital-to-analog (D/A) conversion, ensuring ±0.05% full-scale accuracy.
• Update Rate: ≤50 ms per channel for simultaneous sampling, suitable for fast-response processes (e.g., flow or pressure control).
• Isolation: Channel-to-channel and channel-to-system galvanic isolation (250 VAC/DC), minimizing noise interference.
3. Hazardous Area Compliance
• Certifications: ATEX/IECEx (non-incendive) for Zone 2 hazardous areas, ensuring safe operation in environments with explosive gas mixtures 5.
• IP Rating: IP54-rated housing for dust and splash protection, suitable for harsh industrial settings.
4. Physical and Electrical Details
• Form Factor: 3U rack-mountable card (140 mm × 100 mm × 75 mm), compatible with Experion PKS I/O chassis (e.g., 51402629-100).
• Power Supply: 24 VDC (±10%), typical power consumption: 5.8 W (AI-only) / 7.2 W (AO-only).
• Communication: High-speed serial link to C300 control processor via the Universal I/O (UIO) bus, supporting hot-swappable replacement.

Technical Specifications Table

Application Scenarios

1. Oil and Gas Processing
• Refinery Units: Monitors temperature/pressure in distillation columns and controls valve positions via 4-20 mA signals in hazardous areas.
• Offshore Platforms: Integrates with emergency shutdown systems (ESD) to trigger alarms based on gas concentration inputs 5.
2. Chemical and Petrochemical Plants
• Reactor Control: Reads thermocouple inputs from reactor vessels and adjusts cooling water flow via AO outputs to maintain setpoints in explosive environments.
• Batch Processes: Controls feed rates of raw materials (e.g., pumps, valves) based on AI feedback from level sensors.
3. Power Generation
• Coal-Fired Plants: Monitors CO levels in boiler rooms using RTD inputs and controls ventilation systems via AO outputs.
• Biogas Facilities: Ensures methane concentration remains below LEL limits in digesters and pipelines.
4. Mining and Metals
• Underground Mines: Continuously monitors methane (CH₄) and carbon monoxide (CO) in tunnels using catalytic sensors, enabling timely evacuation if thresholds are exceeded.
