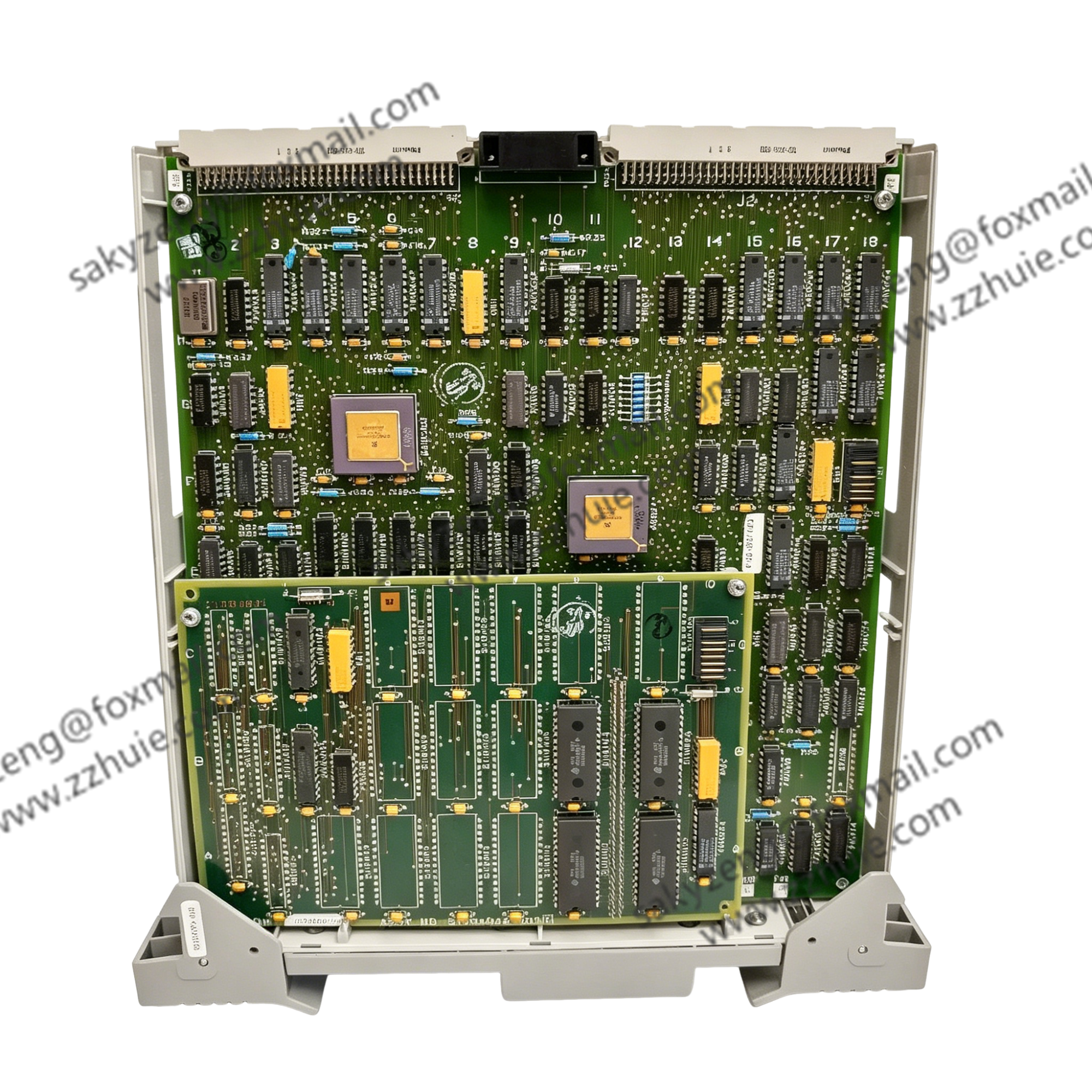

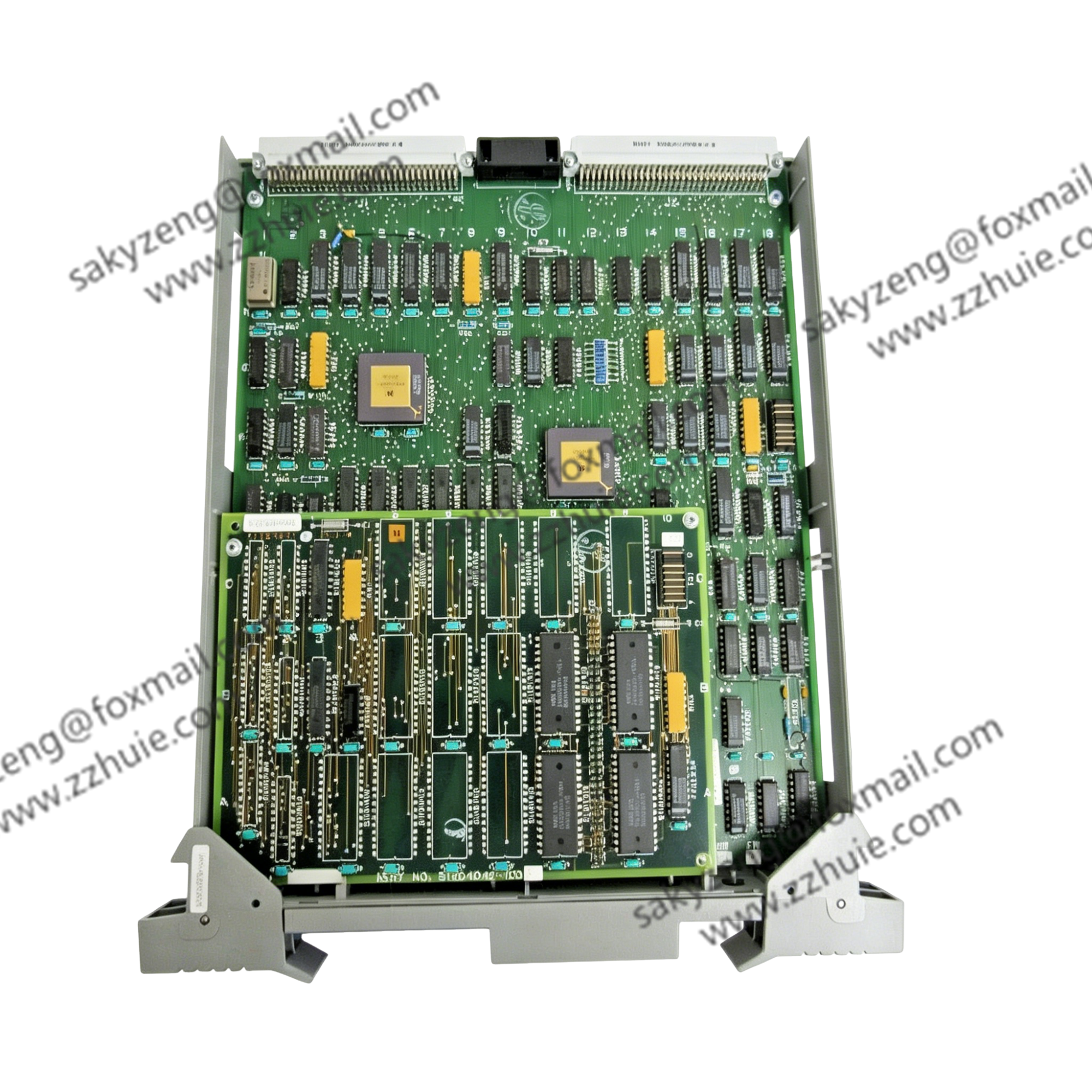

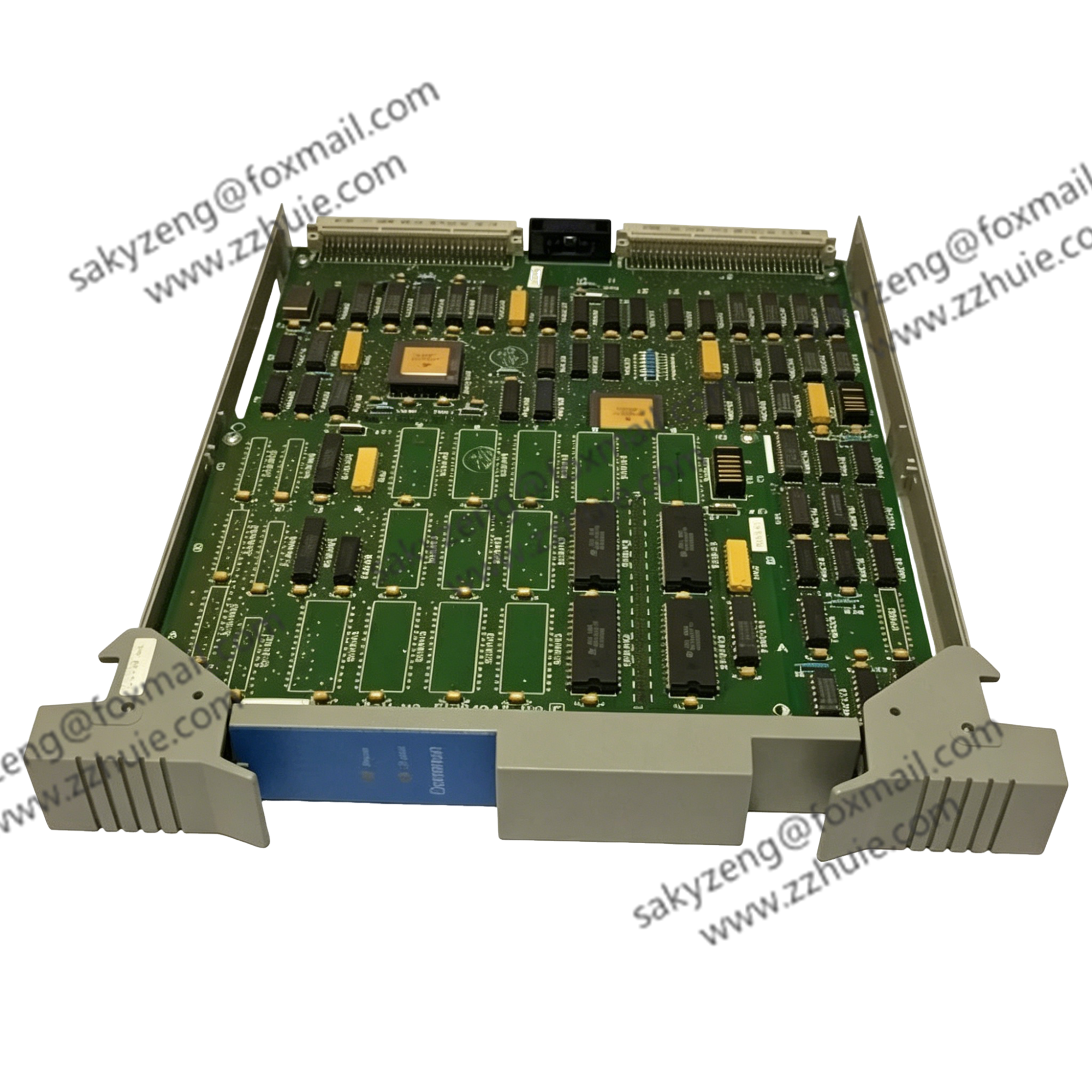

Honeywell 51303979-200 UCN I/O Link Interface Module

Honeywell 51303979-200 is a dedicated I/O communication interface card for Honeywell TDC3000 / TPS distributed control system, used for HPM/APM process manager controller.

It serves as the data bridge between UCN control network and IOP input/output processor modules, completing signal encoding, decoding, bus signal matching,

data forwarding and fault diagnosis transmission. It realizes real-time interaction between controller logic calculation and field analog/digital I/O signals, solves communication delay,

packet loss, link offline caused by bus impedance mismatch and electromagnetic interference, ensures stable closed-loop regulation of pressure, flow, temperature and other process loops.

It is a core maintenance spare part for overhaul and troubleshooting of petrochemical, thermal power legacy Honeywell DCS systems.

Technical Specifications

Part Number: 51303979-200

Manufacturer: Honeywell (USA)

Full Function Name: UCN I/O Link Interface Assembly

Applicable System: TDC3000, TPS, Experion PKS migration system

Matching Controller: HPM High Performance Manager, APM Advanced Process Manager

Onboard Indicators: Power, Status LED diagnostic lights

Power Supply: Rack internal 5VDC / 24VDC power supply

Installation: Standard slot plug-in for HPM/APM chassis

Operating Temperature: -20°C ~ +60°C

Humidity: 5%–95% non-condensing

Protection Grade: IP20 (cabinet internal installation)

Net Weight: Approx. 0.42 kg

Certification: CE, UL

Revision version: 200 version derivative of 51303979 series

Key Features

Professional UCN-IOP bus signal conditioning circuit, restrains signal reflection, attenuation and cabinet EMI interference to improve I/O communication stability.

Real-time LED status diagnosis, quick on-site judgment of module running, link abnormal and communication failure state.

Standard rack plug-in structure, direct plug-and-play replacement, compatible with all revision HPM/APM cabinets to shorten system maintenance downtime.

Conformal coated PCB design, shock, vibration and dust resistant, adapting long-term continuous operation in harsh control room environment.

Supports redundant configuration for critical control cabinets, improving overall system operation reliability.
