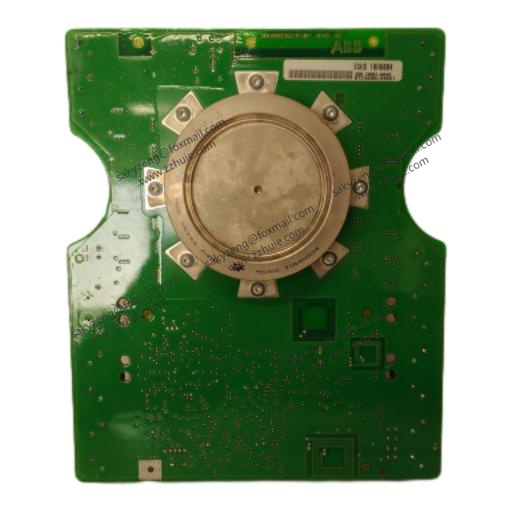

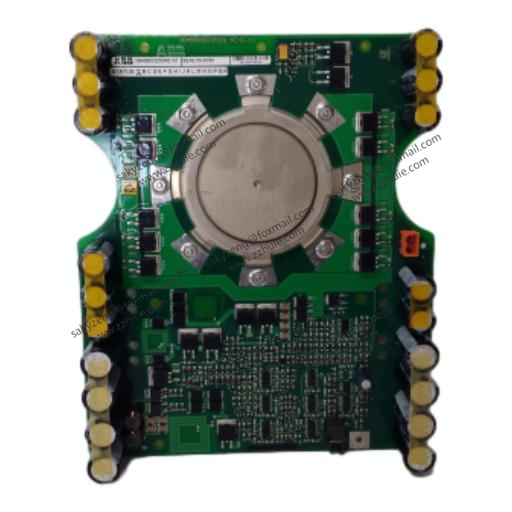

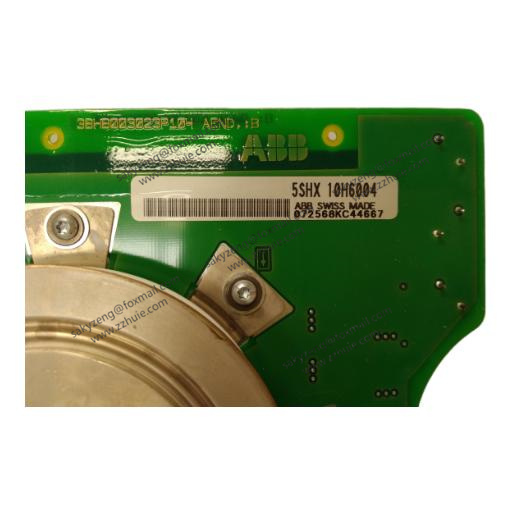

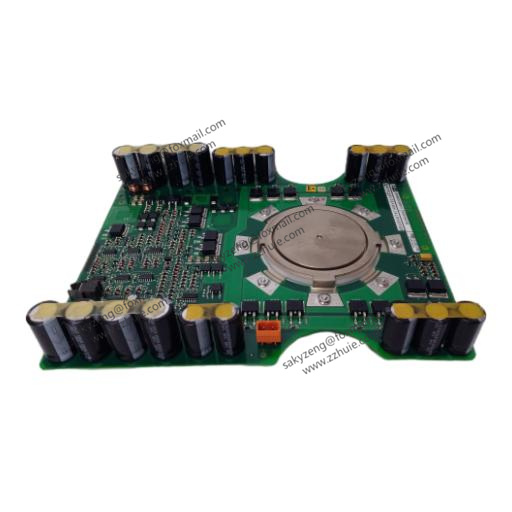

ABB 5SHX14H4502 3BHB003230R0101/5SXE05-0152 3BHB003023P201 IGCT

1. Product Name & Core Positioning

2. Technical Parameters

3. Functions & Application Scenarios

• 5SHX14H4502:
  Serves as the core power conversion unit, enabling AC-DC-AC energy transformation to drive medium-voltage motors. Supports four-quadrant operation (forward/reverse/braking/generating) and integrates freewheeling diodes for surge protection. Critical in high-power drives like rolling mill motors and compressor systems.
• 3BHB003230R0101 + 5SXE05-0152:
  The drive board provides precise gate signals and isolated power to the IGCT, while the interface module monitors real-time status (temperature, current) and uploads data to the main controller. Together, they form a closed-loop control system, supporting redundant configurations to prevent downtime in oil rigs or power plants.
• 3BHB003023P201:
  Processes external sensor signals (e.g., motor vibration, bearing temperature) and executes logic control (e.g., emergency shutdown when thresholds are exceeded). Integral in predictive maintenance for pumps, fans, and turbines in chemical plants.

4. Installation & Maintenance

• Installation Requirements:
• 5SHX14H4502 must be paired with ABB’s 3BHE039203R0101 water-cooling plate to maintain junction temperature <125°C; water flow ≥2L/min.
• 3BHB003230R0101 and 5SXE05-0152 require shielded wiring (distance from high-voltage cables ≥30cm) and single-point grounding (impedance <1Ω).
• 3BHB003023P201 should be mounted near sensors to minimize signal loss, with DIN rail fixing.
• Maintenance Features:
• Hot-swappable: 3BHB003230R0101 and 5SXE05-0152 can be replaced online (power off first).
• Self-diagnosis: LED indicators on 5SXE05-0152 and 3BHB003023P201 display power/communication/fault status for quick troubleshooting.
• Calibration:
  Parameters (e.g., speed thresholds, sensor offsets) are configured via ABB DriveWindow software; annual calibration recommended for 3BHB003023P201.

5. Model Explanation & Series Association

• Model Breakdown:
• 5SHX14H4502: "5SHX" = ABB high-power IGCT series; "14H" = 1400A rating; "4502" = 4500V blocking voltage.
• 3BHB003230R0101: "3BHB" = ABB control/drive series; "003230R0101" = specific revision for IGCT gate drive.
• 5SXE05-0152: "5SXE" = ABB signal interface series; "05-0152" = IGCT-compatible monitoring module.
• 3BHB003023P201: "3BHB" = control module series; "003023P201" = multi-sensor interface variant.
• Series Compatibility:
  Works with ABB ACS6000 medium-voltage drives, AC800M DCS, and third-party PLCs (e.g., Siemens S7-1200) via Modbus.

6. Datasheet & Technical Support

• Official Resources:
  Datasheets (including pinouts, wiring diagrams, and thermal curves) are available via ABB’s industrial support portal. Search part numbers (e.g., "5SHX14H4502") for detailed specs.
• Technical Assistance:
  Contact ABB Industrial Services with full model numbers for compatibility checks (e.g., with specific motor types) or to access ABB Ability™ remote monitoring tools.
