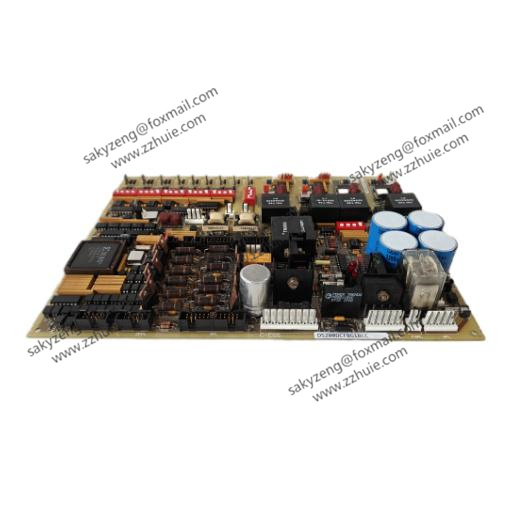

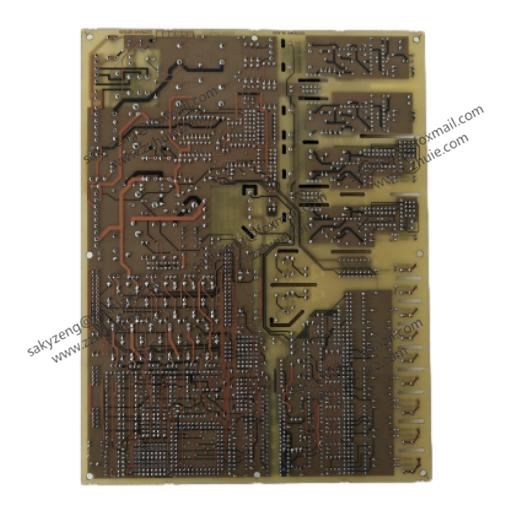

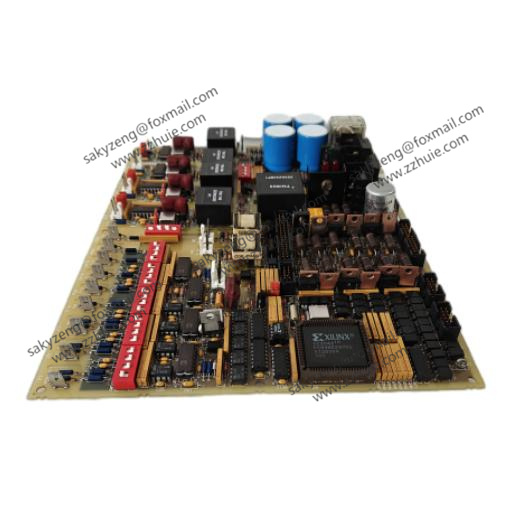

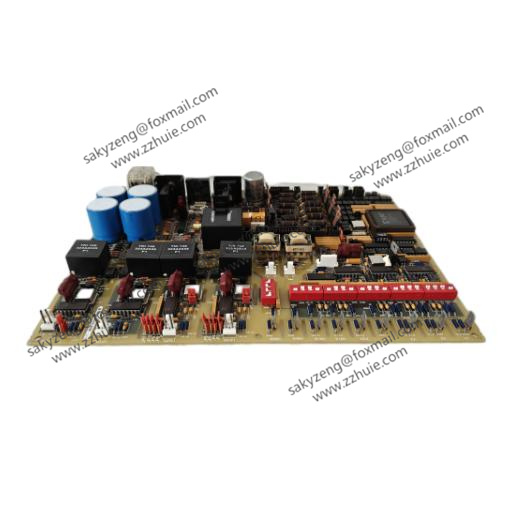

GE DS200FHVAG1ABA High Voltage Gate Interface Board (FHVA)

Product Name

Core Functions & Technical Positioning

1. SCR Gate Drive
• Isolates and amplifies low-power control signals into high-energy pulses suitable for triggering 77mm SCRs.
• Ensures synchronized firing of SCRs in series/parallel configurations, critical for achieving smooth start-up of gas turbines.
2. Voltage Monitoring
• Continuously measures the voltage across SCRs to detect anomalies (e.g., short circuits, open circuits).
• Sends fault signals to the control system if voltage thresholds are exceeded, preventing equipment damage.
3. Diagnostic Feedback
• Features a red LED indicator (C STAT) that illuminates when SCRs are blocking voltage and dims as conduction angle increases, providing visual status confirmation.

Technical Specifications

Key Design Features

1. Redundancy Support
• Dual power supplies for gate drive and monitoring circuits, ensuring continuous operation even if one power path fails.
• Redundant communication channels via fiber optic links, minimizing single points of failure.
2. Environmental Robustness
• Parylene coating provides 3x better moisture resistance than standard acrylic coatings, suitable for harsh environments (e.g., offshore platforms).
• Gold-plated connectors (P1-P2) with anti-oxidation treatment, supporting 20,000+ insertion cycles.
3. Safety Enhancements
• Built-in overvoltage protection (±15% tolerance) and transient voltage suppression (TVS) diodes.
• Isolation transformers rated for 10kV electrostatic discharge (ESD) protection.
