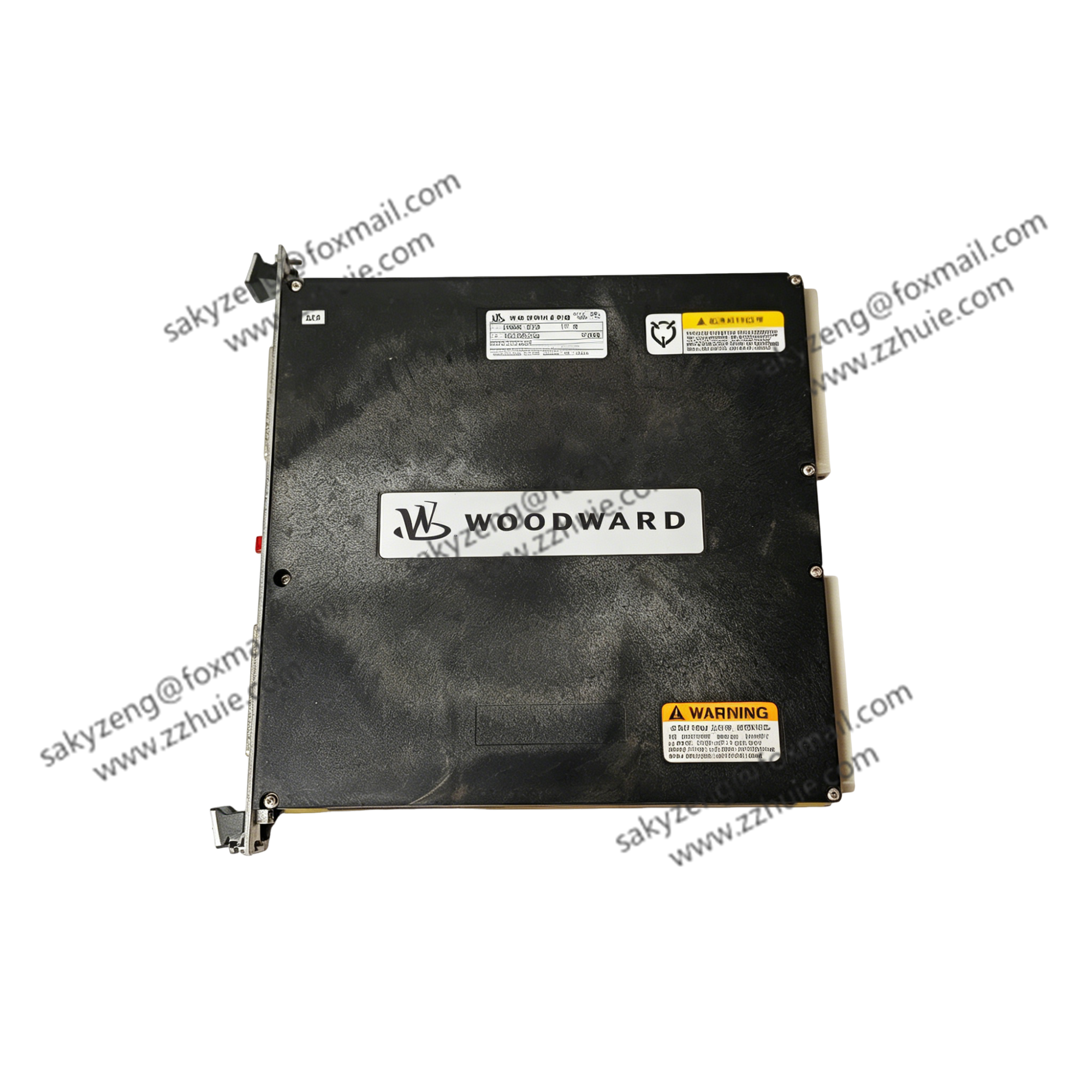

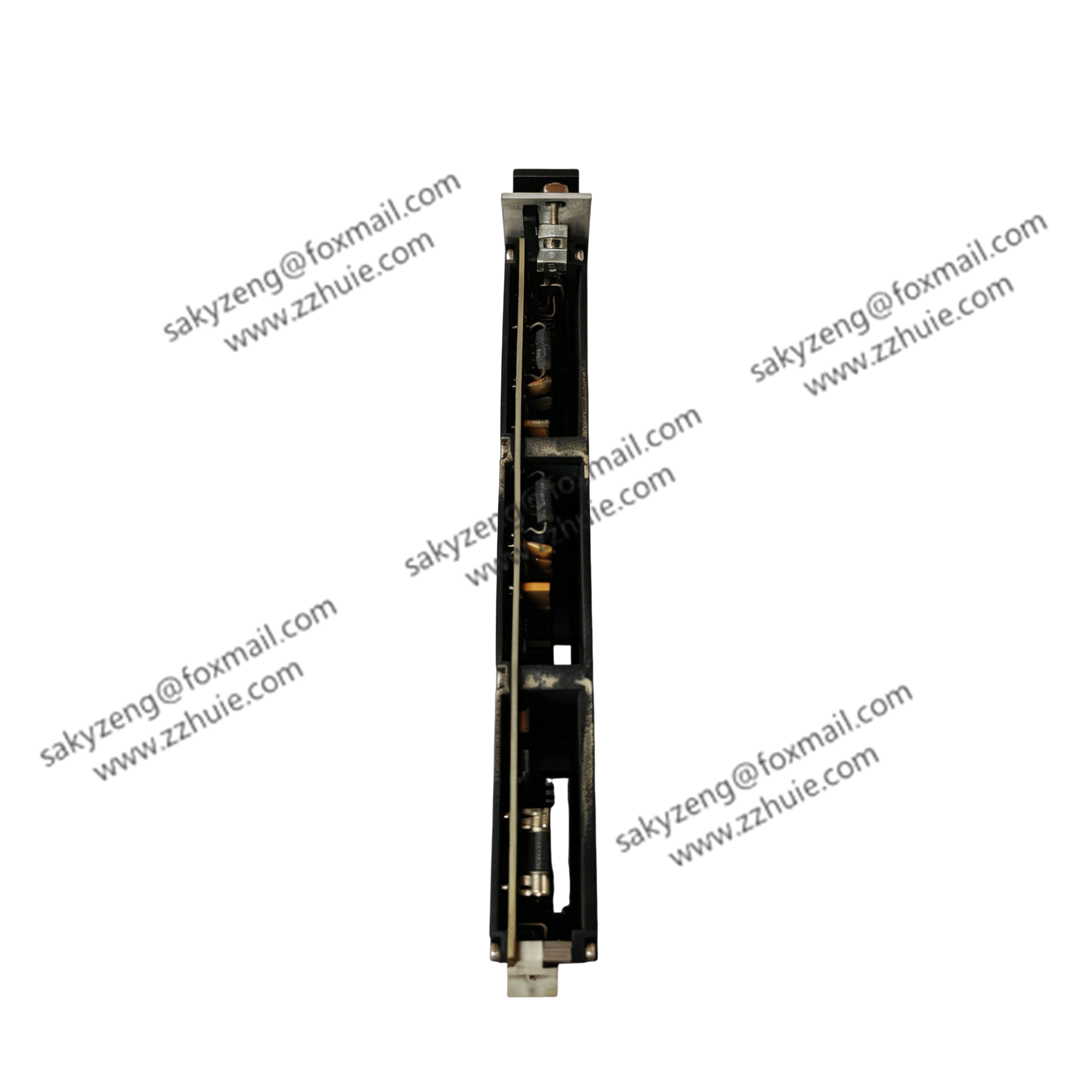

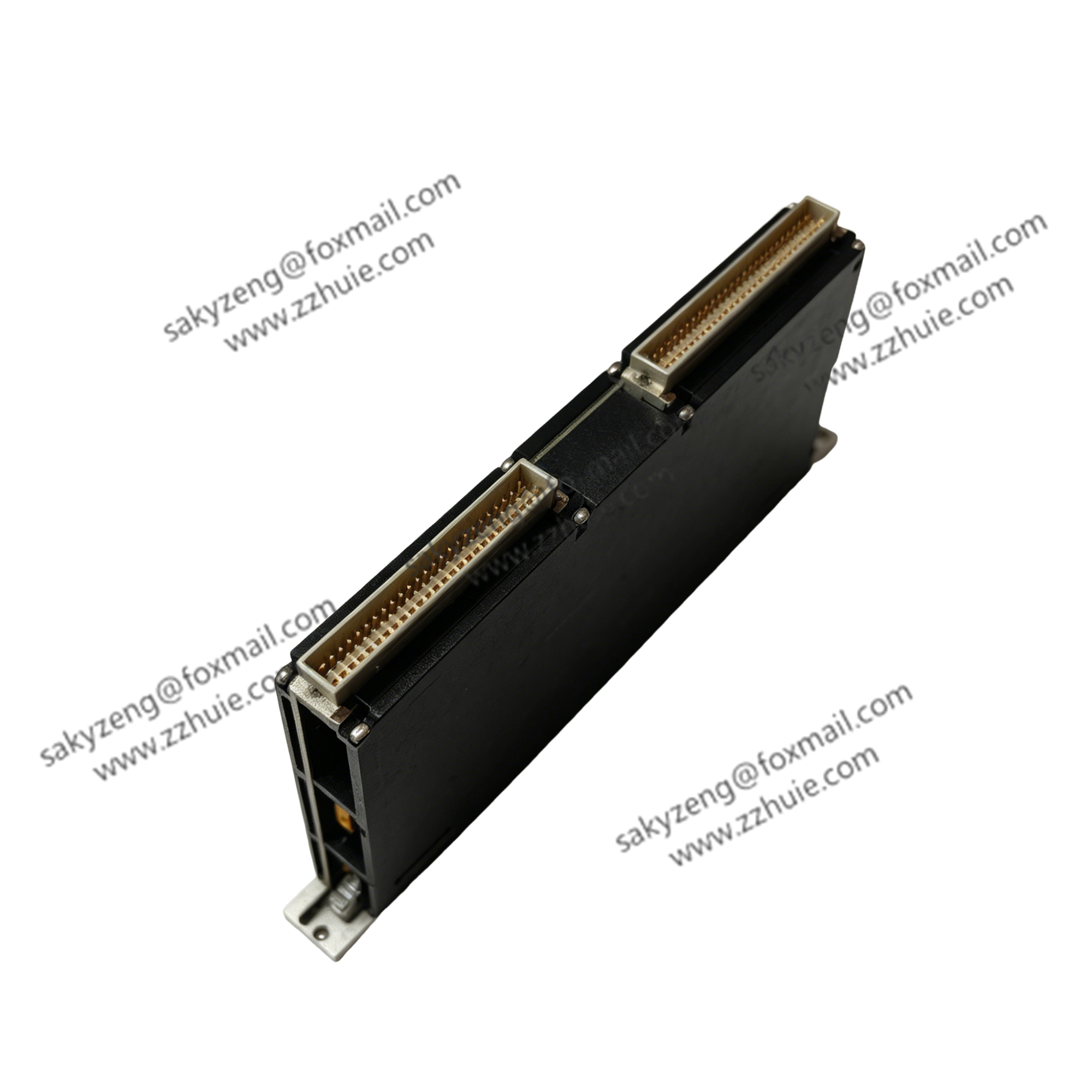

Woodward 5466-425 High Density Analog Input & Output Module

The Woodward 5466-425 is an original rack-mounted analog I/O module designed for Woodward MicroNet and NetCon turbine control platforms.

It receives analog signals of pressure, temperature, valve position from field transmitters and converts internal digital commands into standard

analog outputs to drive hydraulic actuators and fuel control valves. This module is commonly used as replacement spare parts for gas turbine,

steam turbine and generator governor control cabinets in power and petrochemical industries.

3. Technical Specifications

• Part Number: 5466-425
• Compatible System: Woodward MicroNet / NetCon rack system
• Channel Configuration: 24 analog input channels divided into two groups of 12 channels each
• Sampling Time: 1.8ms for group one, 3.7ms for group two
• Supported Signal: 4-20mA, 0~10VDC, ±10VDC
• Power Supply: 24VDC supplied from system backplane
• Operating Temperature: -40°C ~ +70°C
• Storage Temperature: -55°C ~ +85°C
• Mounting: Standard plug-in slot installation for control rack
• Weight: Approx. 0.62 kg
• Built-in Function: Channel self-diagnosis, open-circuit and short-circuit fault detection
