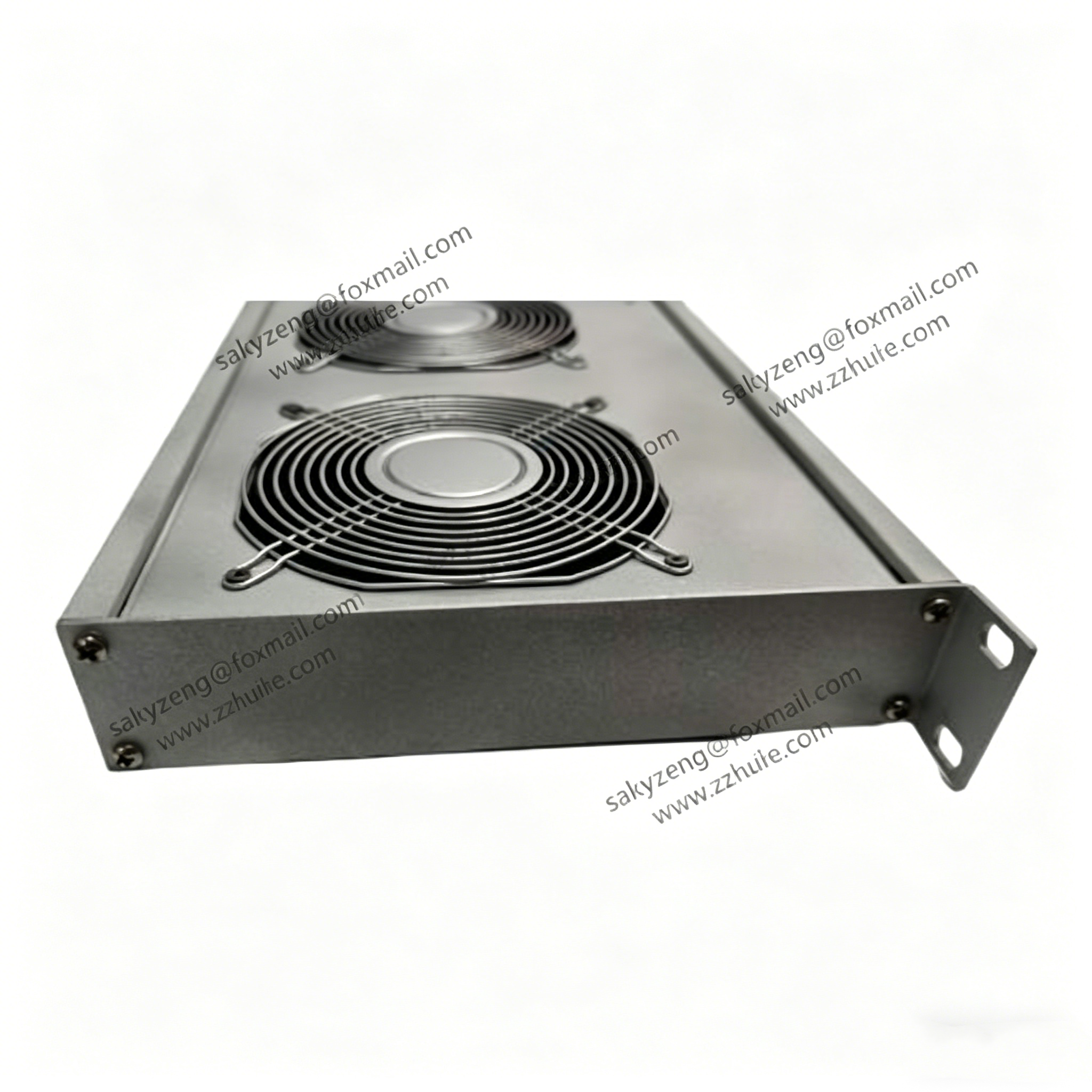

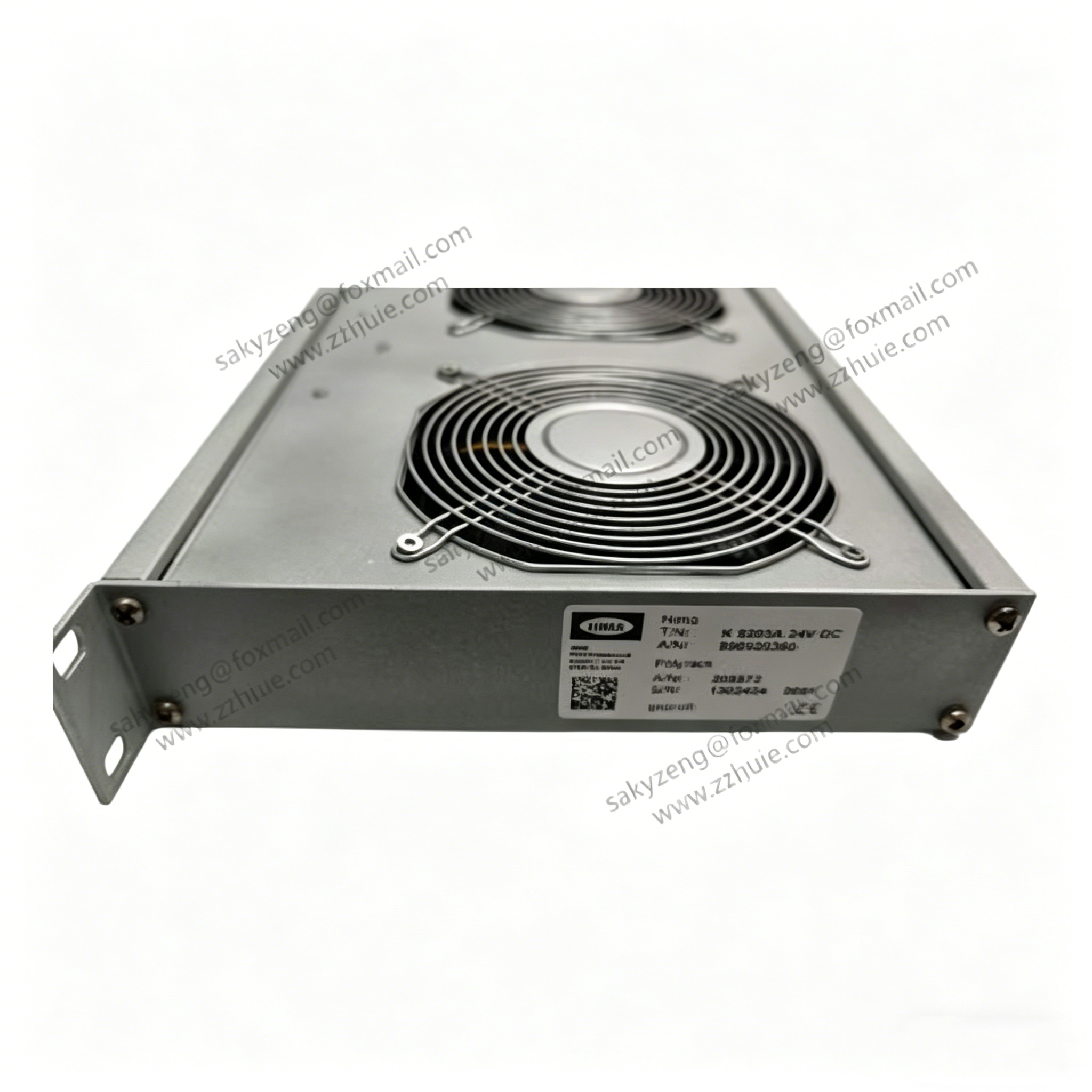

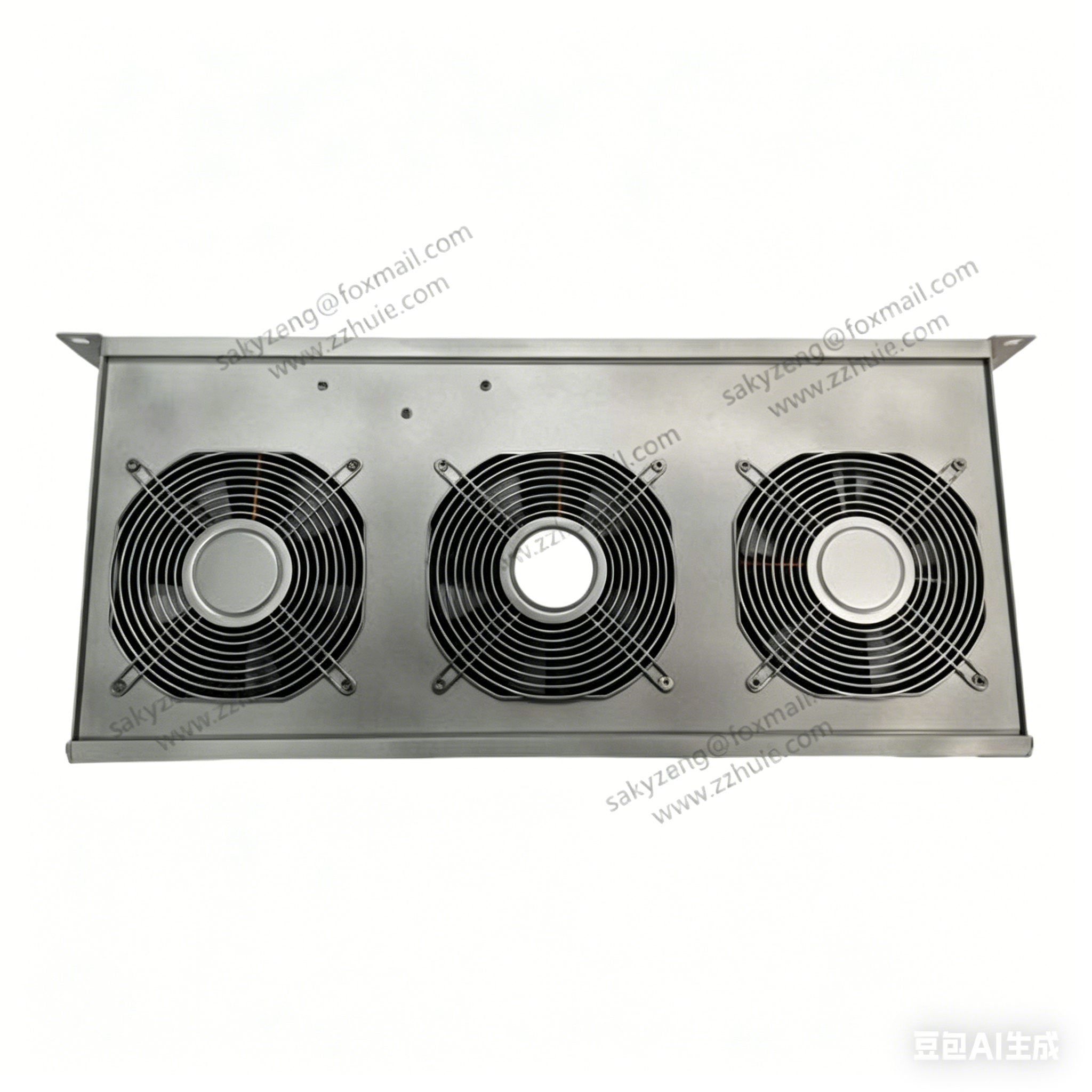

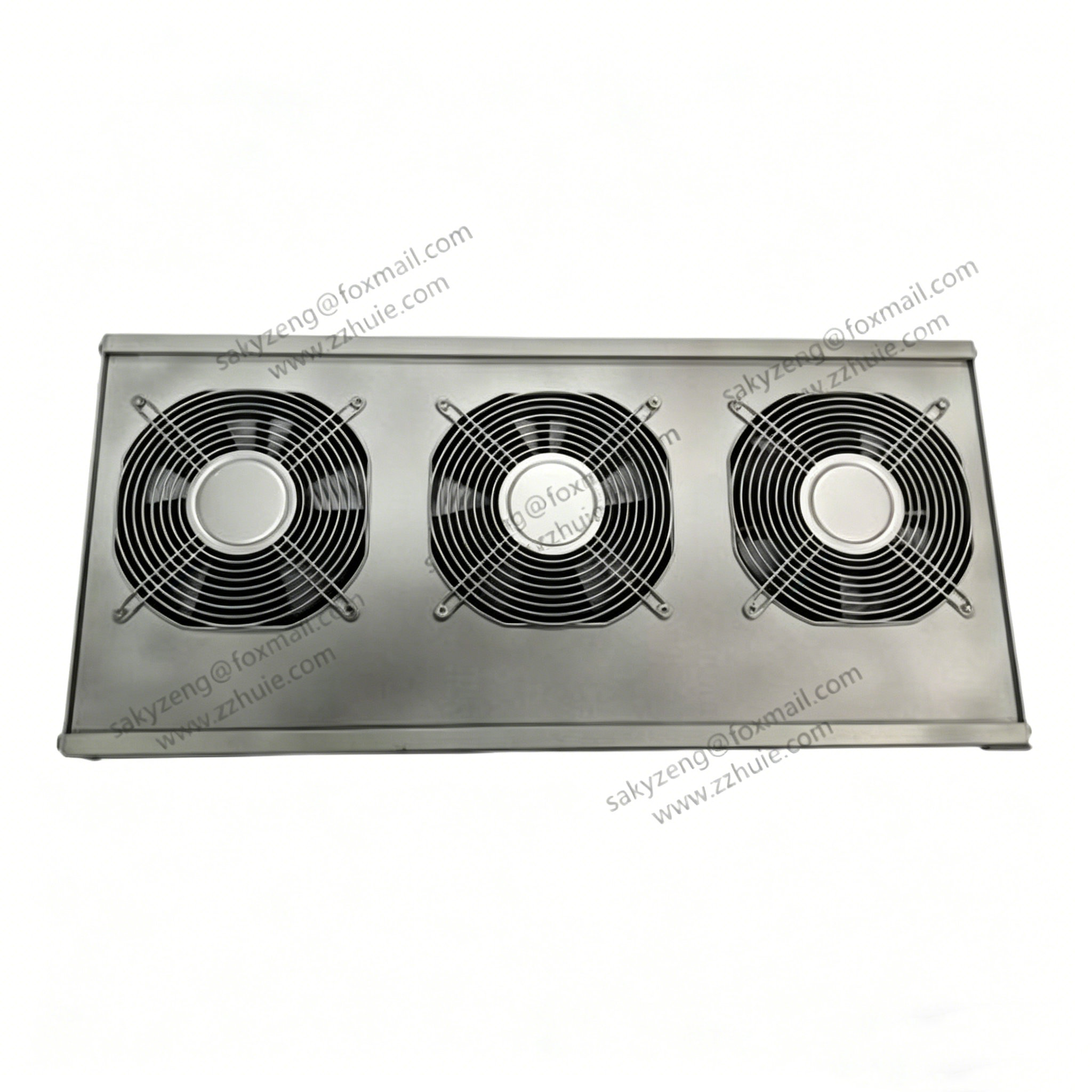

HIMA K9202 Safety Relay Module

HIMA K9202 (Order No. 996920202) is a multi-functional industrial module designed for safety instrumented systems (SIS) and control cabinet thermal management.

It serves dual roles: as a monitored safety relay for critical machine protection, and as a cabinet fan module for HIMA T4 control cabinets.

As a safety component, it monitors safety inputs (e.g., emergency stop buttons, safety door switches, light curtains) and safely de-energizes loads (contactors, valves)

to prevent hazards. As a fan module, it provides ventilation to maintain optimal cabinet temperature, ensuring reliable operation in harsh industrial environments.

Parameter Value

Order Number 996920202

Model K9202

Product Type Safety Relay Module / Cabinet Fan Module

Safety Integrity Level (SIL) SIL 3 / PL e / Cat. 4

Input/Output Monitored Safety Inputs; Safe Output for Load Control

Fan Specifications 120V AC, 60Hz; 0.83A; 10W; 150 m³/h airflow; 45 dB(A)

Communication PROFIBUS DP, PROFINET IO, Modbus TCP, Ethernet/IP

Protection Rating IP20; NE 21 (Hazardous Area Approval)

Operating Temperature -20°C to +60°C

Dimensions 240 × 120 × 60 mm (Fan Module)

Weight ~1.8 kg (Fan Module)

Certifications TÜV, UL, CE, cULus

Compatible Systems HIMatrix, HIMax SIS
