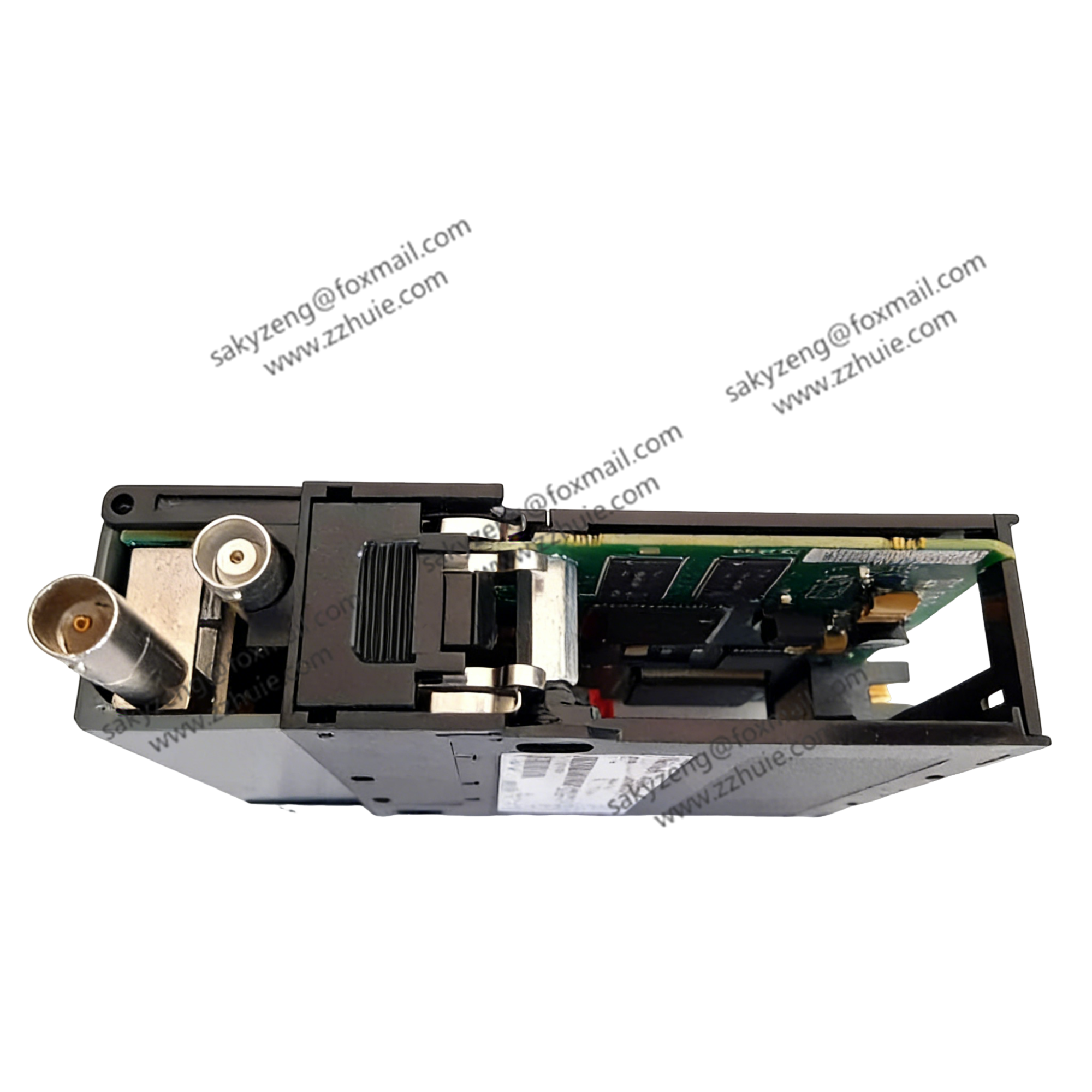

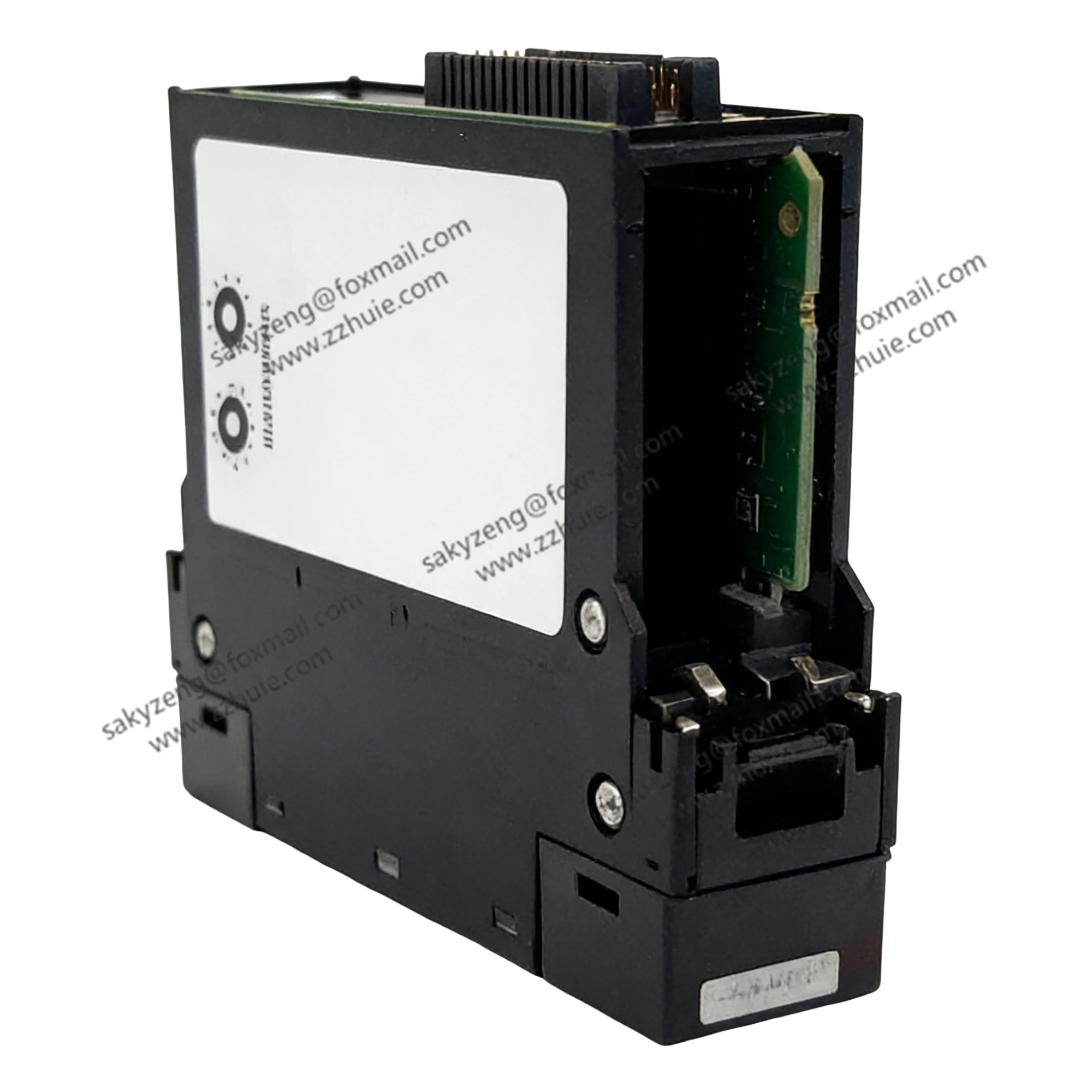

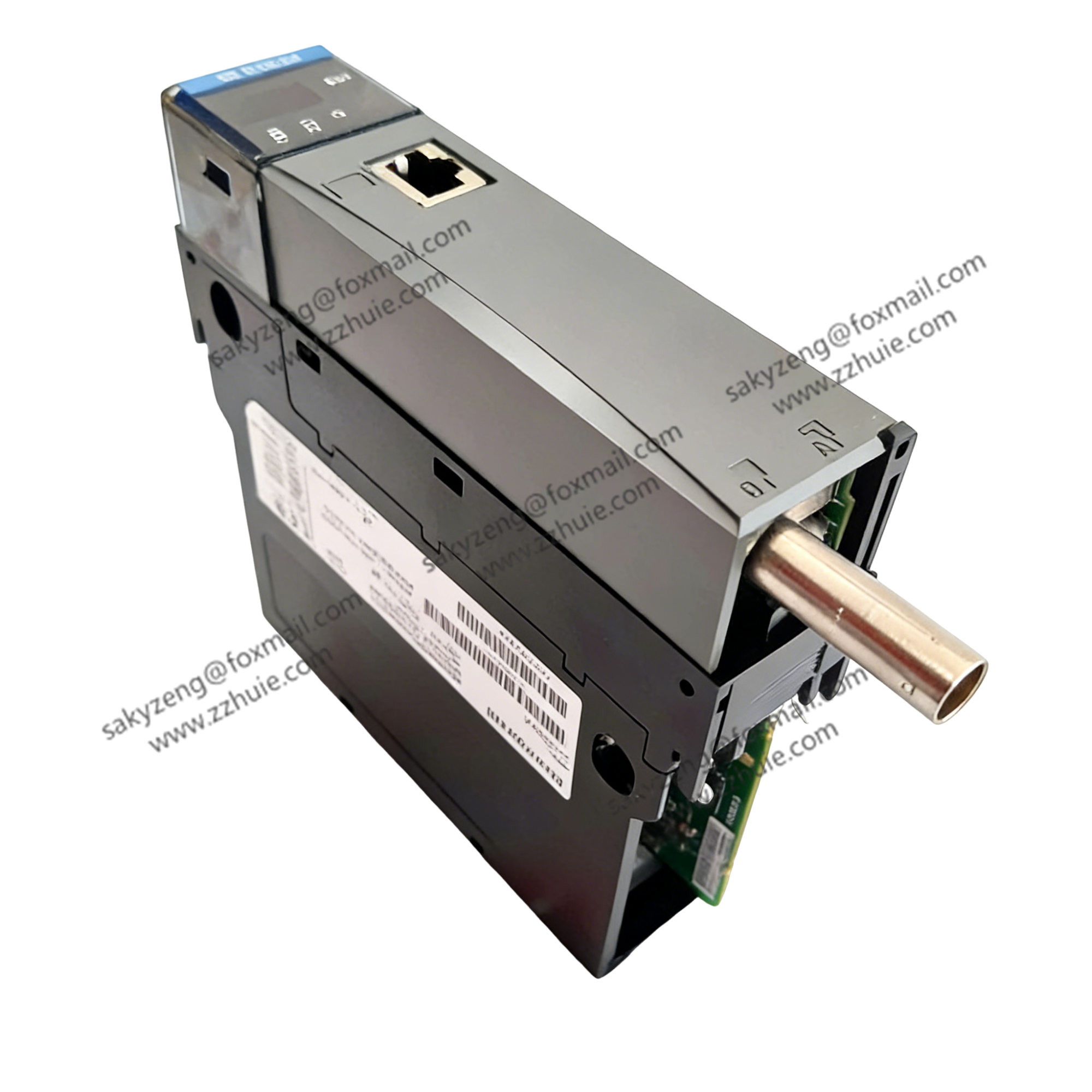

Honeywell TC-CCN014 Redundant Net Interface Module

·Redundant ControlNet: Dual network ports for automatic failover; no communication loss on single link failure.

· System Compatibility: Integrates with Honeywell C200, TDC 3000, and Experion PKS systems.

· High Reliability: Industrial-grade design for continuous operation in harsh environments.

· Plug-in Installation: Standard rack-mount for easy deployment and replacement.

· Diagnostics: Built-in status monitoring and fault reporting for network health.

4. Technical Specifications  (Accurate Data)

Parameter Value

Part Number TC-CCN014

Type Redundant Net Interface Module (ControlNet)

Network Protocol ControlNet (primary)

Redundancy Dual-port, automatic failover

Compatible Systems Honeywell C200, TDC 3000, Experion PKS

Power Supply 24 V DC (from system backplane)

Power Consumption < 5 W

Operating Temp -40°C to +85°C

Dimensions 3.8 × 16.8 × 13.2 cm (1.5" × 6.6" × 5.2")

Weight 0.3 kg (10.2 oz)

Mounting Standard Honeywell DCS rack / slot mount

Protection Industrial-grade, conformal coating

Certifications CE, UL, CSA (industrial control standards)

Applications Oil & gas, power, chemical, pulp & paper, manufacturing
