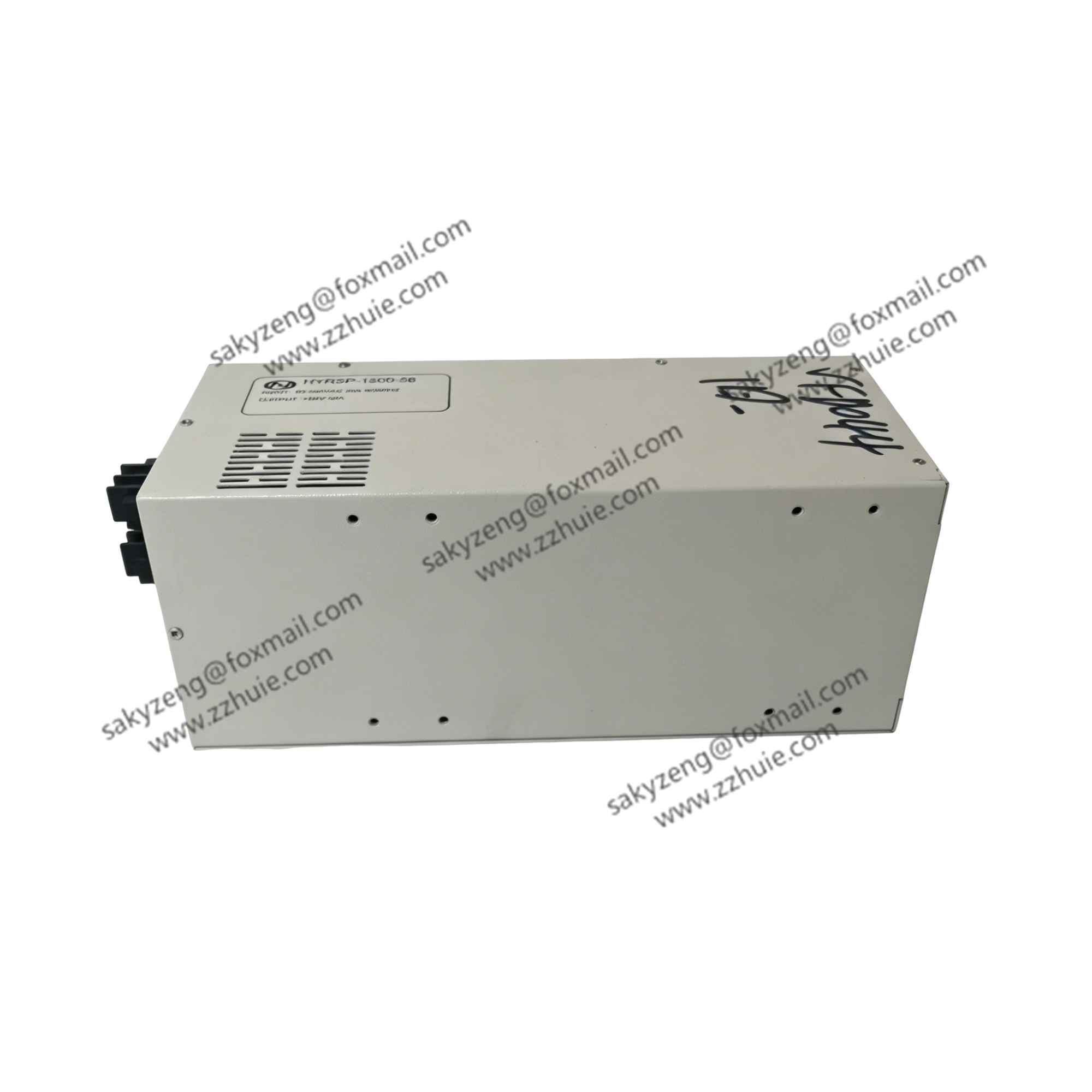

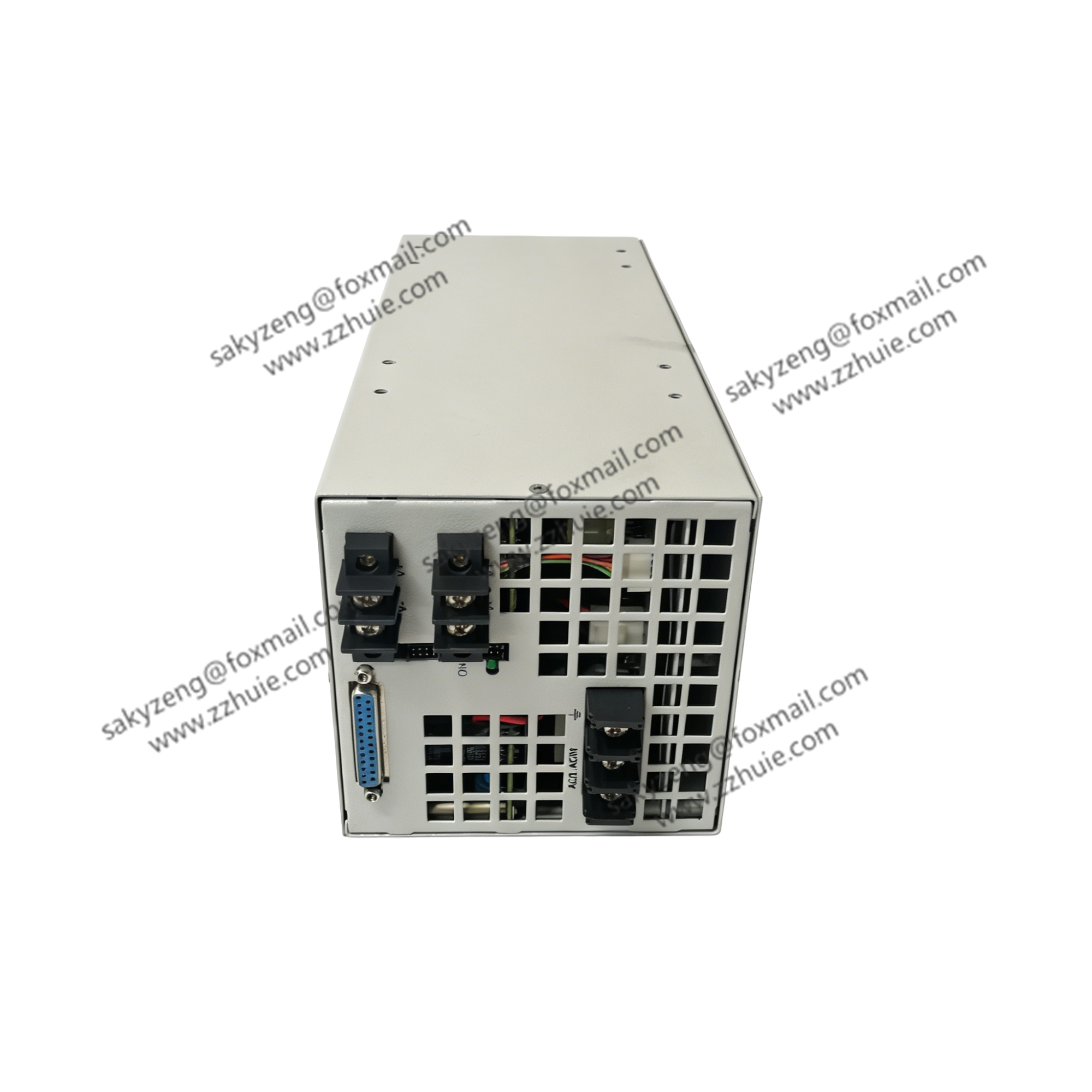

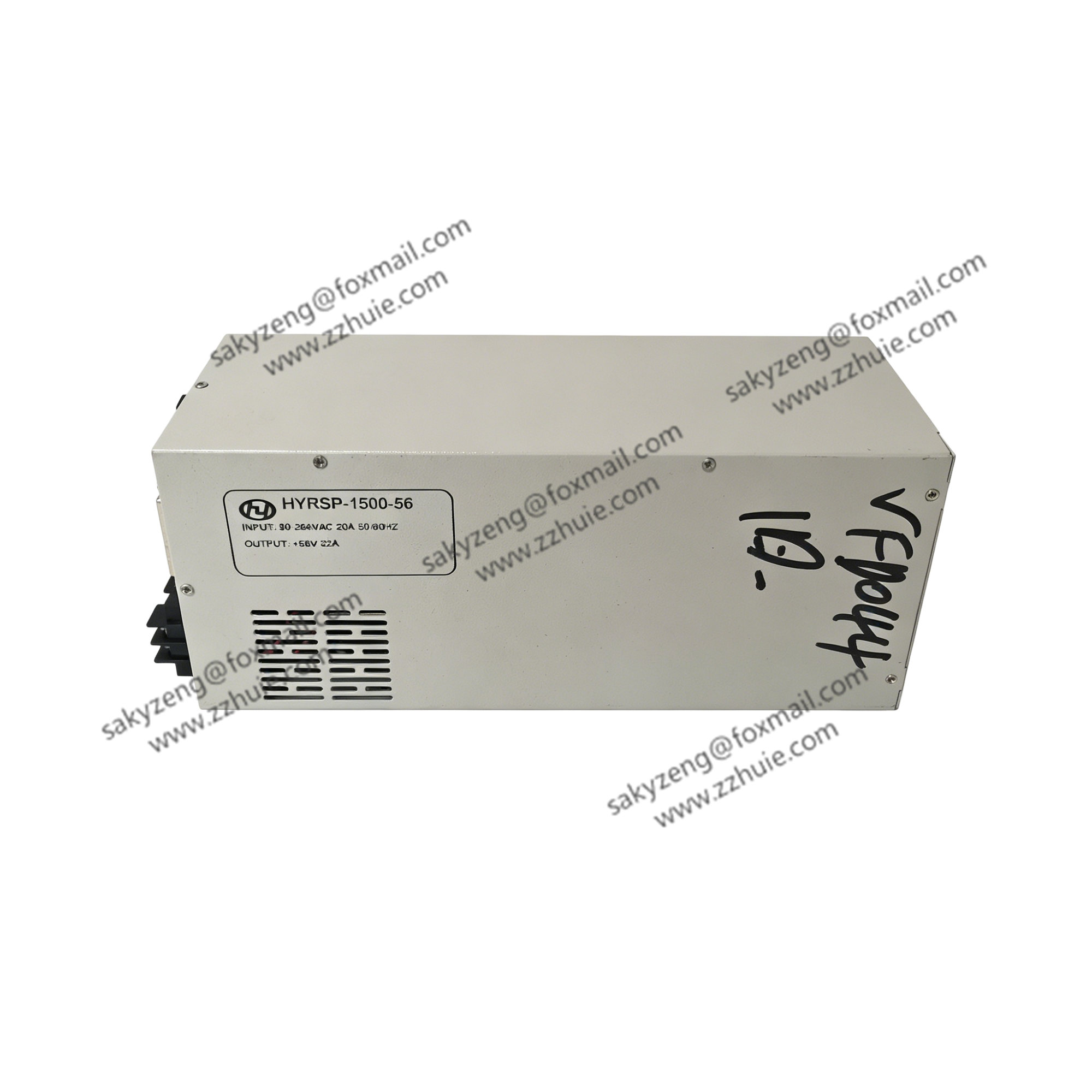

PIONEER MAGNETICS HYRSP-1500-56 Power Supply Module

The PIONEER MAGNETICS HYRSP-1500-56 is a rugged, high-efficiency AC-DC power supply designed for industrial automation,

process control, and high-reliability machinery. It delivers 1500W continuous power at 56V DC from a universal AC input, offering tight regulation,

low noise, and comprehensive protection. Ideal for powering motors, actuators, and heavy-load industrial equipment in harsh environments.

3. Technical Specifications

Part Number: HYRSP-1500-56

Manufacturer: Pioneer Magnetics

Type: AC-DC Industrial Power Supply

Input Voltage: 100–240 VAC, 50/60 Hz (universal)

Output Voltage: 56 VDC (fixed)

Output Power: 1500 W (continuous)

Output Current: Up to 26.8 A

Efficiency: >90% (full load)

Regulation: ±0.5% (line/load)

Protection: Short-circuit, overload, overvoltage, overtemperature

Operating Temp: -40°C to +85°C

Cooling: Integrated fan (variable speed)

Mounting: 19” rack-mount or chassis

Dimensions: 200 × 100 × 50 mm (approx.)

Weight: 1.5 kg (approx.)

Certification: CE, RoHS
