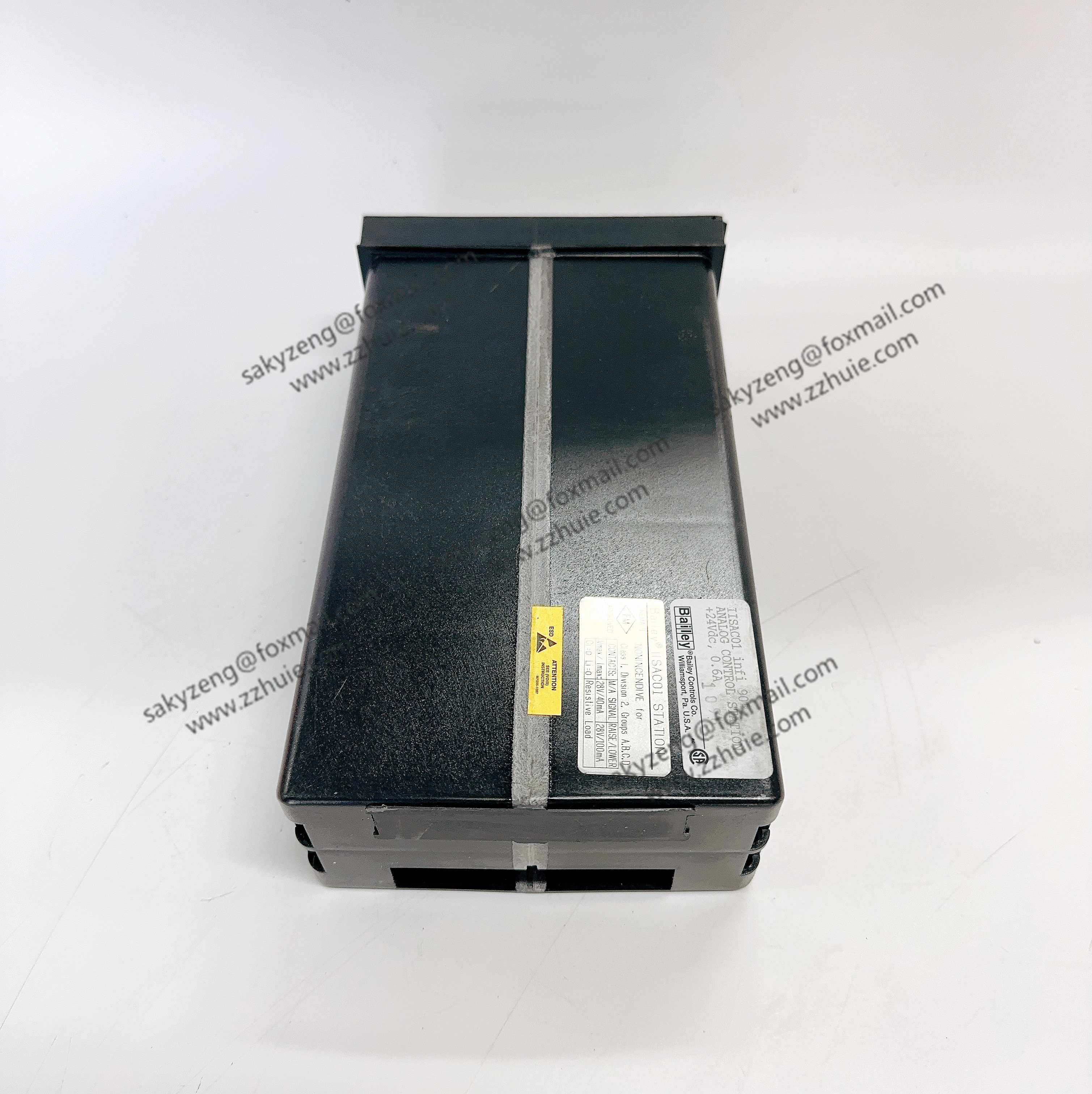

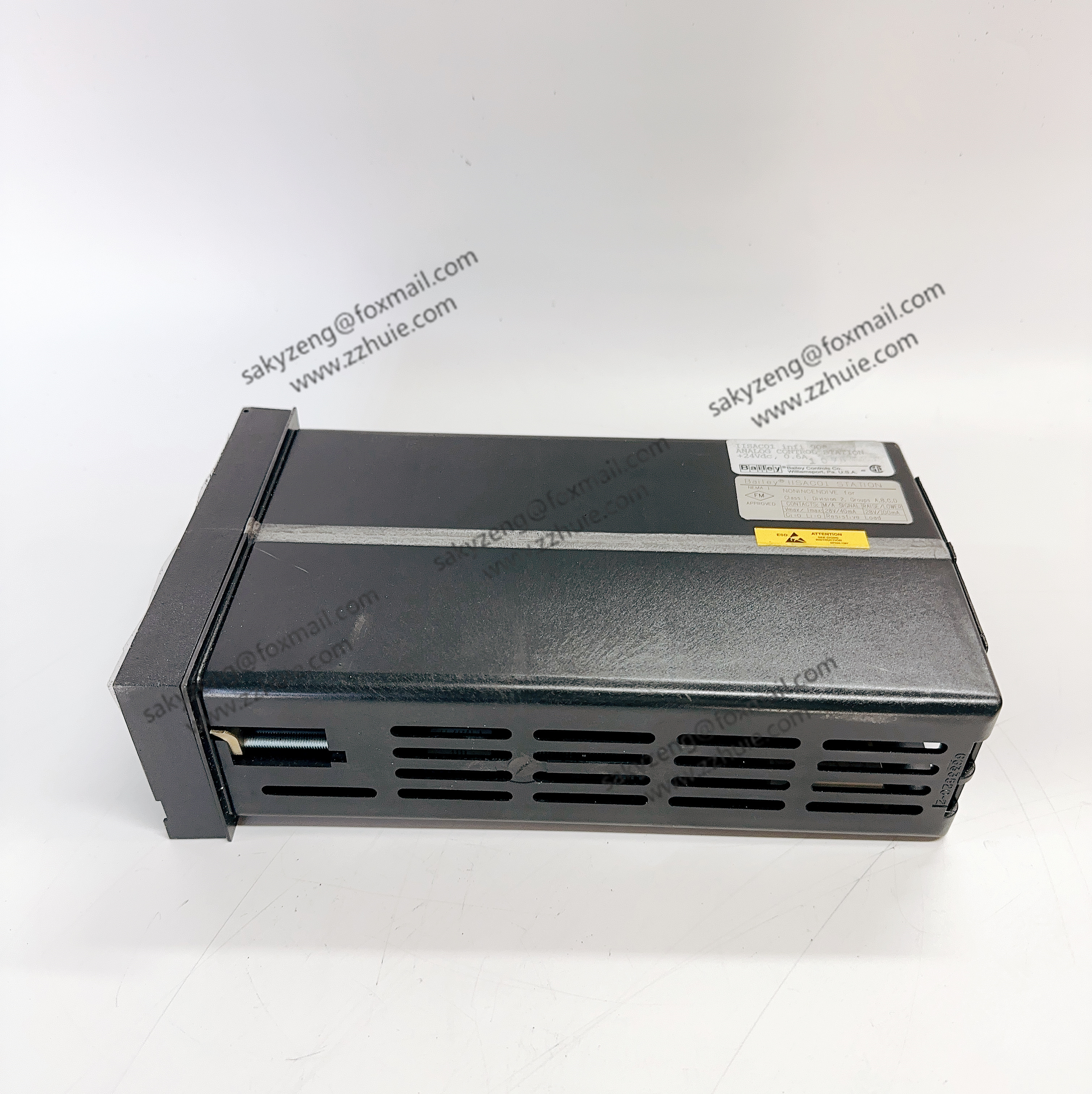

ABB IISAC01 | Simulation control station

Brand: ABB

Model: ABB IISAC01 | Simulation control station

Origin: Switzerland

Warranty: 365 days

Quality: new/second-hand

Delivery method: express delivery

Telephone ：+86 18020721390

WeChat：+86 18020721390Email：sakyzeng@foxmail.com

product details

ABB IISAC01: Name, Data Sheet & Description

1. Name

ABB IISAC01 is commonly referred to as the Analog Control Station, a key component of ABB’s Infi 90 series of industrial control systems.

2. Key Data Sheet Specifications

Parameter	Details
Brand	ABB
Country of Origin	Sweden
Product Type	Analog Control Station
Supply Voltage	Minimum 21.6 VDC, Maximum 27.0 VDC
Power Consumption	540 mA at 24 VDC
Mounting Type	Flush panel mounting
Analog Output Current Range	3 to 21 mA
Maximum Load Impedance	600 Ω
Maximum Inductance	600 mH
Output Accuracy	±2.0% of full scale at 25°C
D/A Resolution	8-bit
Analog Input Voltage Range	Maximum +0.75 VDC to +5.25 VDC
Input Impedance	Greater than 10 MΩ
Input Accuracy	1.5% of full scale at 25°C
A/D Resolution	8-bit
Normal-Mode Rejection	Minimum 75 dB at 60 Hz
Common-Mode Rejection	Minimum 90 dB at 60 Hz
Common-Mode Voltage	Maximum ±5 VDC
Operating Ambient Temperature	5°C to 40°C
Operating Ambient Humidity	20% to 80% (non-condensing)
Storage Humidity	10% to 95% (non-condensing)
Atmospheric Pressure	Sea level to 3 km
Communication Interface	RS-485 serial port, baud rate 5 or 40 kbaud
Dimensions (W×H×D)	72 mm × 144 mm × 381 mm

3. Core Description

ABB IISAC01 is an analog control station belonging to ABB’s Infi 90 series, specifically designed for single-loop process control and monitoring in industrial settings. It establishes communication with Harmony controllers via modules such as CIO-100, IMC IS 12, or IM QRS 12, serving as a human-machine interaction (HMI) and control interface for real-time process adjustment.

Key design features and functions include:

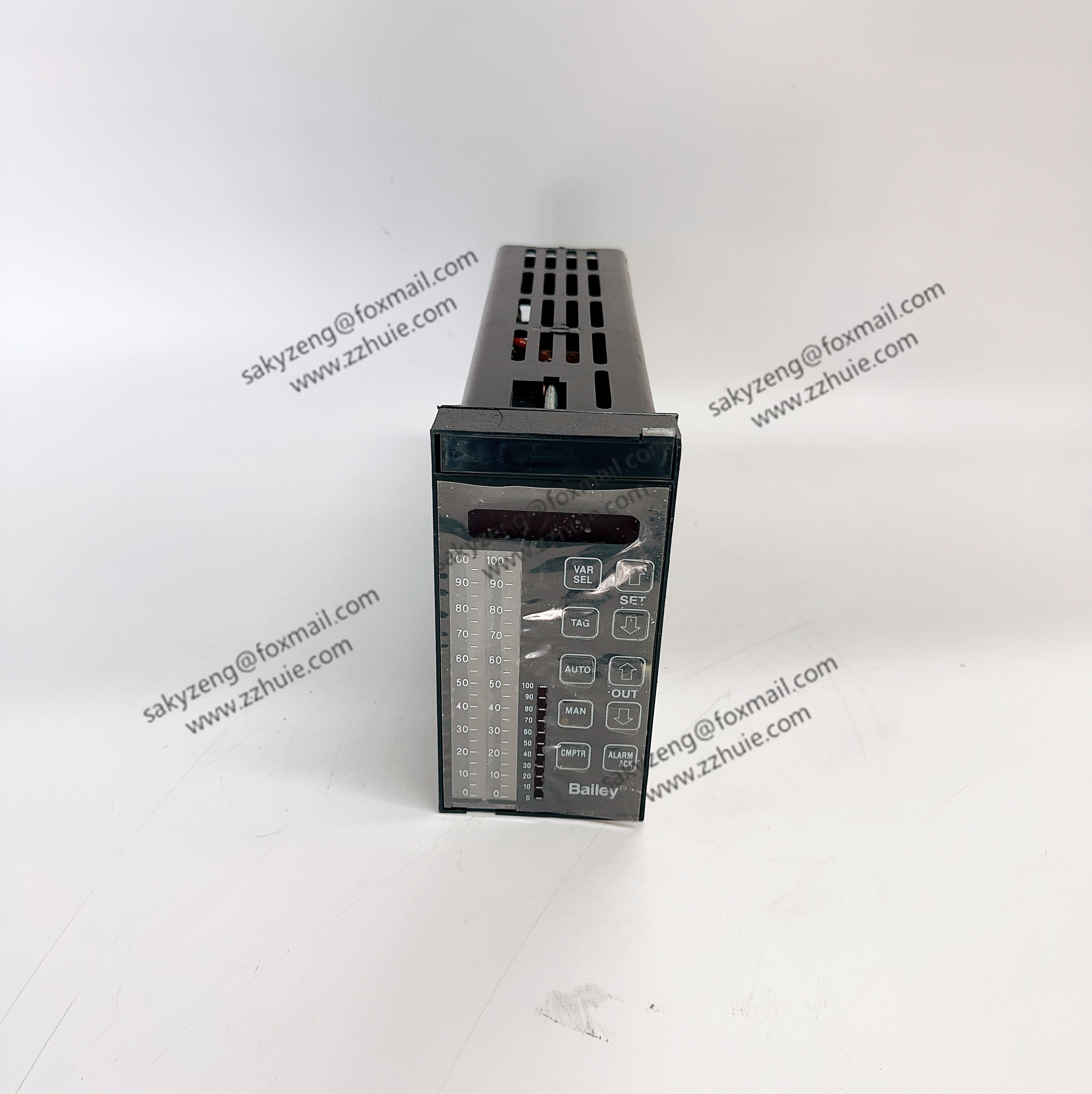

Visual Display System: Equipped with 3 gas plasma bar graphs for intuitive status monitoring:

200-segment bars for process variable (PV) and setpoint (SP) display, with a resolution of 0.5% (enabling precise tracking of process fluctuations);
A 100-segment bar for output (OP) display, with a resolution of 1.0% (clearly showing control signal output levels);
An 8-character, 14-segment alphanumeric display that provides system status information, error codes, or process labels for enhanced operational clarity.
