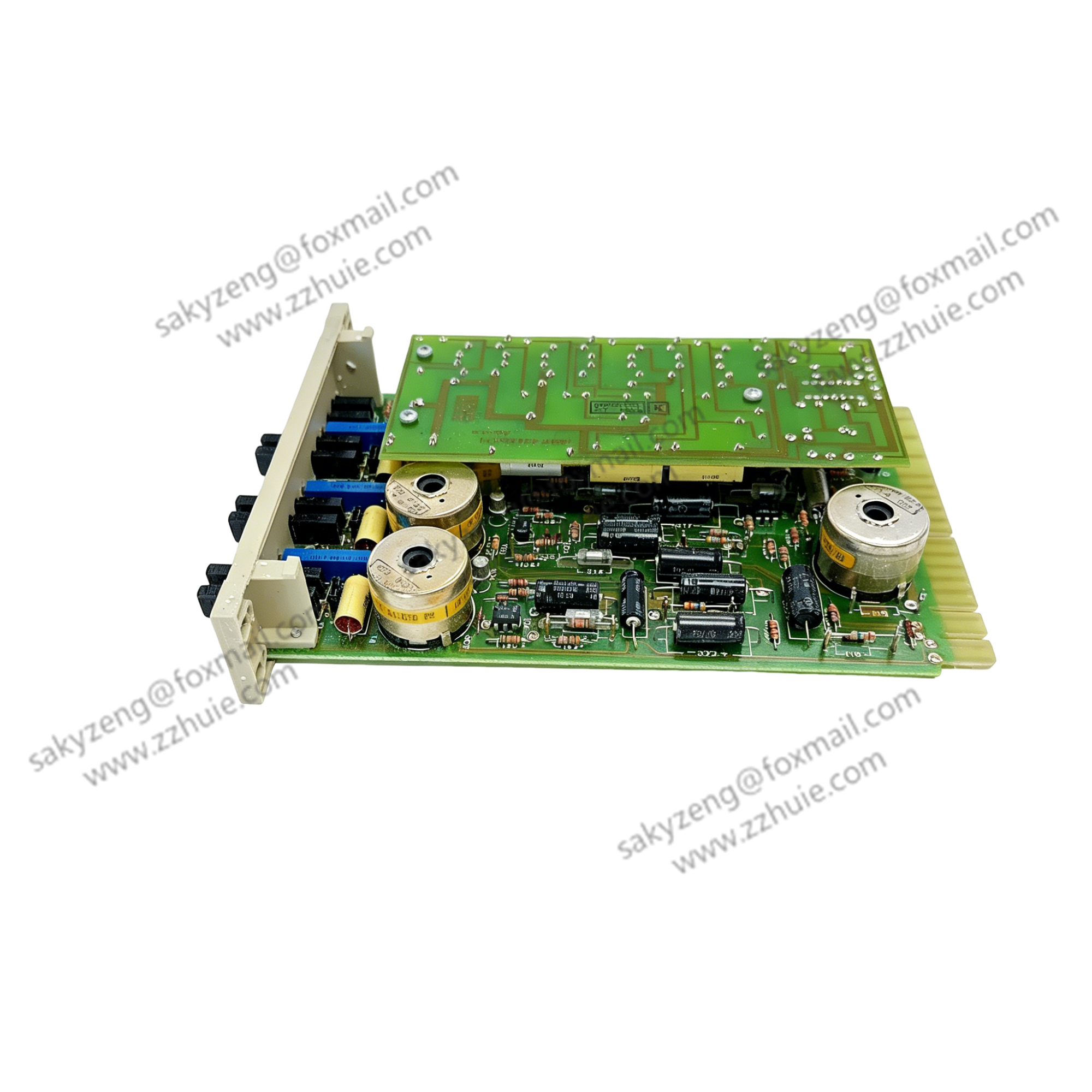

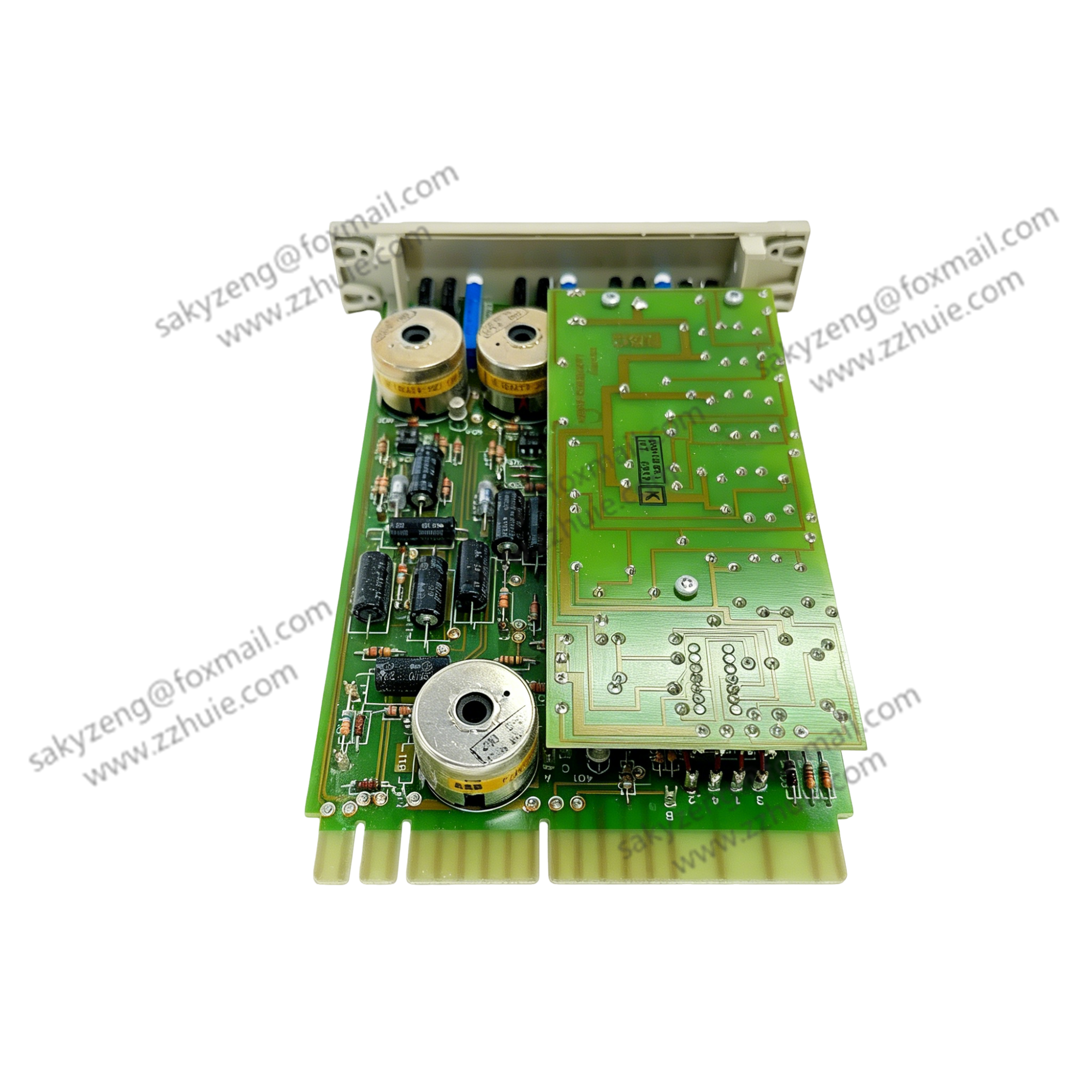

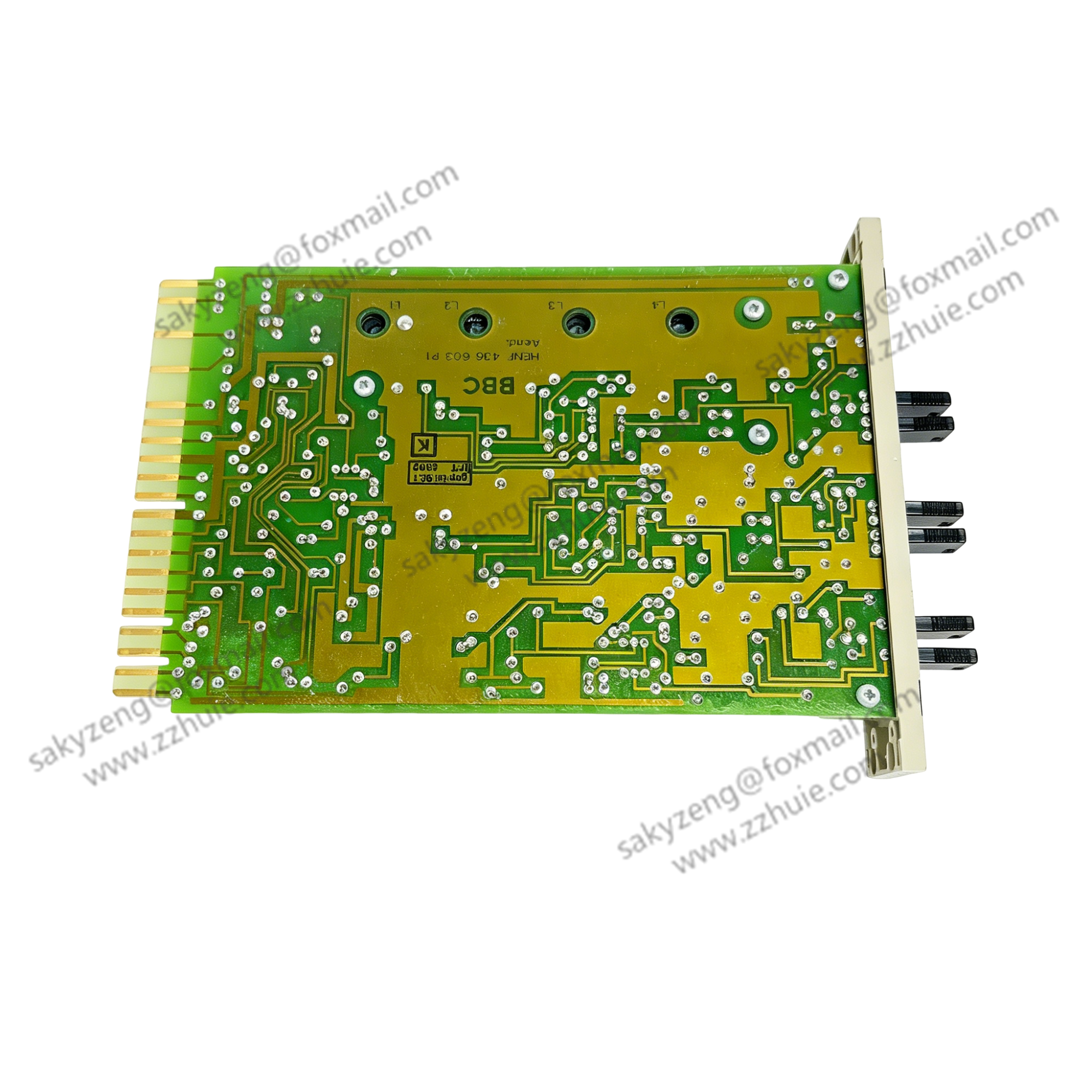

ABB G3EB HENF315768R1 Analog Control / I/O Module

ABB G3EB HENF315768R1 is a high-reliability analog input/output (I/O) module used in

ABB Bailey Symphony / INFI 90 DCS and related industrial automation systems. It provides accurate signal conditioning,

conversion, and isolation for analog process signals (voltage/current), enabling seamless interface between

field sensors/actuators and the control system. Widely deployed in power generation, chemical, oil & gas,

and metallurgy plants for process monitoring and closed-loop control.

3. Technical Specifications

Part Number: G3EB HENF315768R1

Manufacturer: ABB (Bailey)

Type: Analog I/O / Control Module

Compatible System: ABB Symphony, INFI 90 DCS

Power Supply: 24 VDC (±15% tolerance)

Signal Type: Analog voltage/current input/output

Isolation: Galvanic isolation between field and control sides

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: 5%–95% non-condensing

Mounting: Standard rack-mount

Weight: Approx. 0.4–0.5 kg

Certification: CE, UL, CSA
