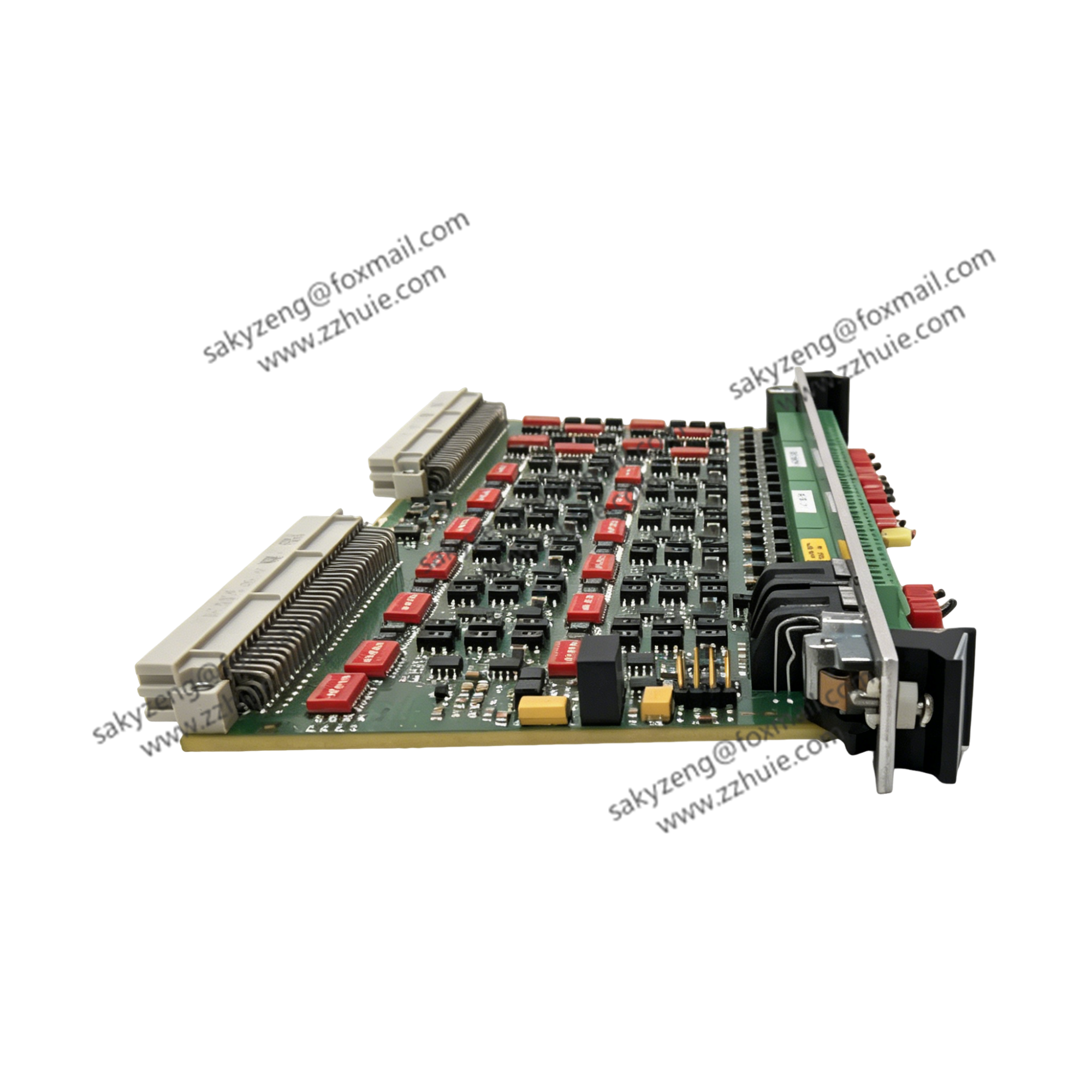

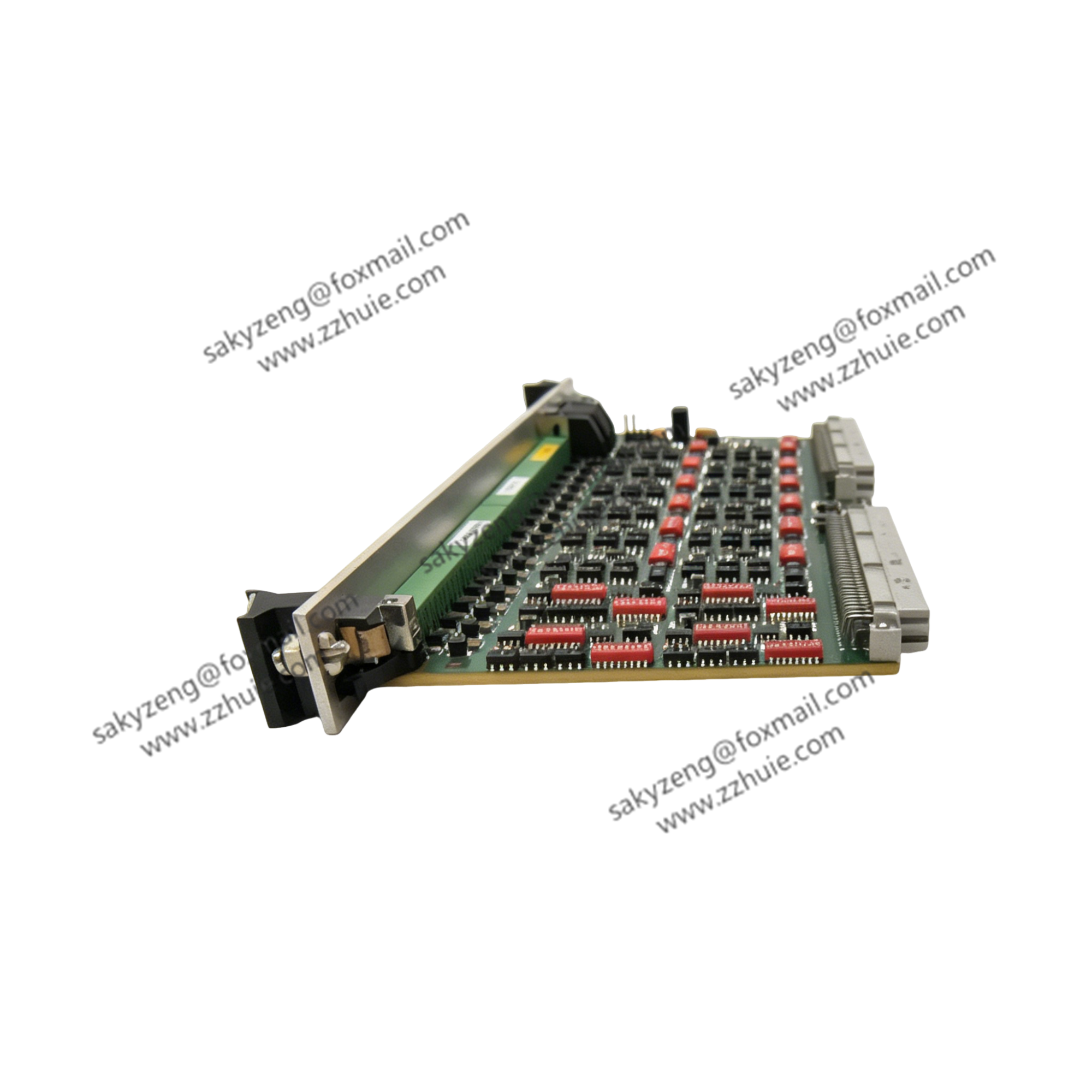

VIBRO-METER VM600-CSA Signal Conditioning Module 204-040-100-211

VM600-CSA 204-040-100-211 is a high-performance signal conditioning and monitoring module for the VIBRO-METER VM600 rack-based condition

monitoring system (by Meggitt). It acts as a front-end signal processor, conditioning and interfacing vibration, displacement, speed,

and temperature sensor signals to the VM600 monitoring/protection cards (e.g., MPC4, IOC16T). It provides sensor power supply, signal amplification, filtering,

and isolation, ensuring reliable, high-fidelity data acquisition for critical rotating machinery protection and predictive maintenance in power, oil & gas, and heavy industry.

3. Technical Specifications

• Part Number: VM600-CSA (204-040-100-211)
• Manufacturer: VIBRO-METER (Meggitt)
• System Compatibility: VM600 Mk2, ABE04X/ABE055 racks
• Function: Multi-channel signal conditioning, sensor power, isolation & monitoring
• Inputs: Vibration (acceleration/velocity/displacement), eddy current (proximity), RTD/TC, 4–20mA
• Signal Processing: Programmable gain, low-pass/band-pass filtering, 24-bit ADC
• Sensor Supply: ±24VDC, 4–20mA excitation, configurable
• Isolation: Channel-to-channel, galvanic isolation, high EMC immunity
• Communication: VME bus (backplane), Modbus RTU (optional)
• Power Supply: 24VDC (19.2–28.8VDC), ~120mA
• Operating Temperature: -40°C ~ +70°C
• Dimensions: 175 × 88 × 25 mm (standard VM600 card size)
• Weight: Approx. 0.4 kg
• Certification: CE, UL, CSA, RoHS
