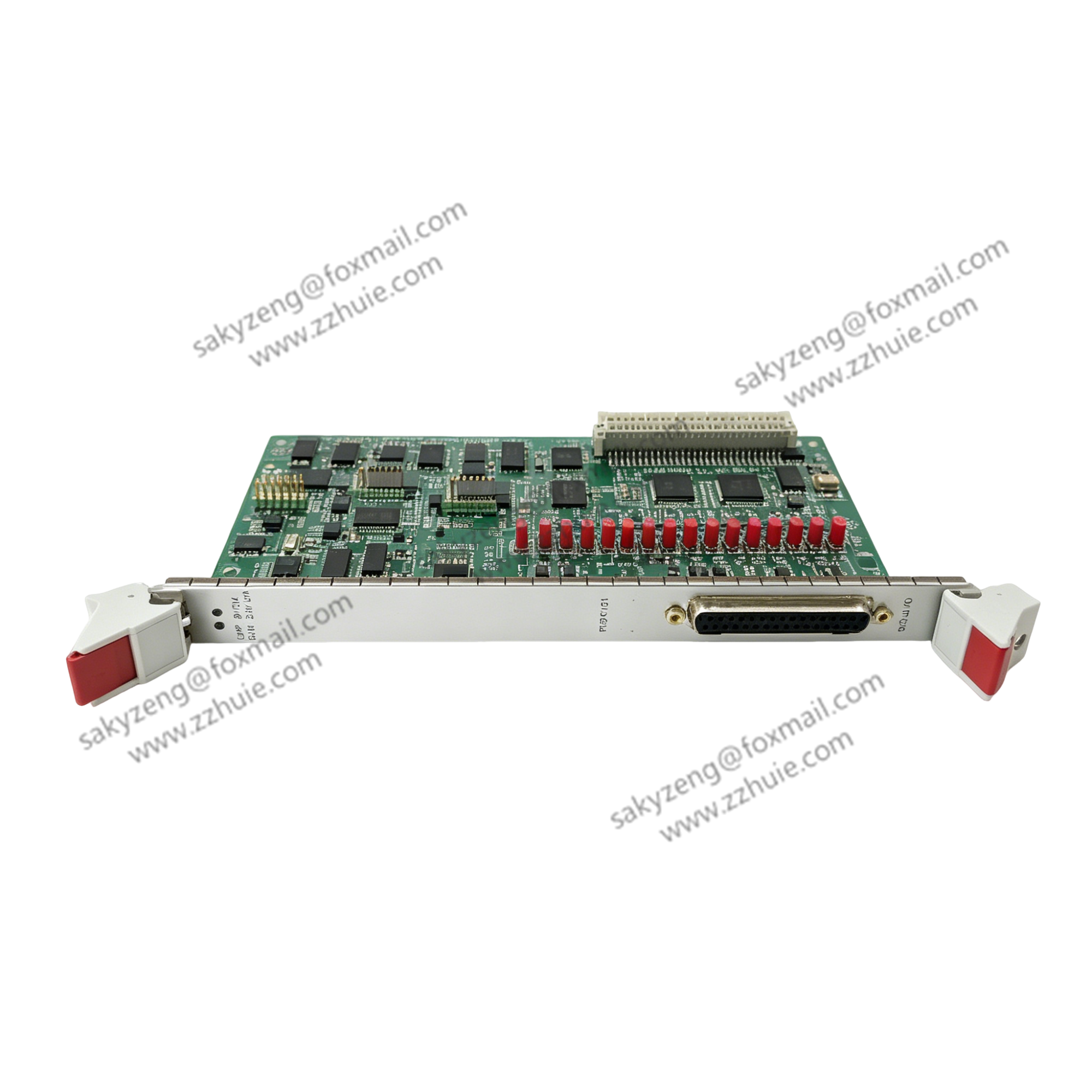

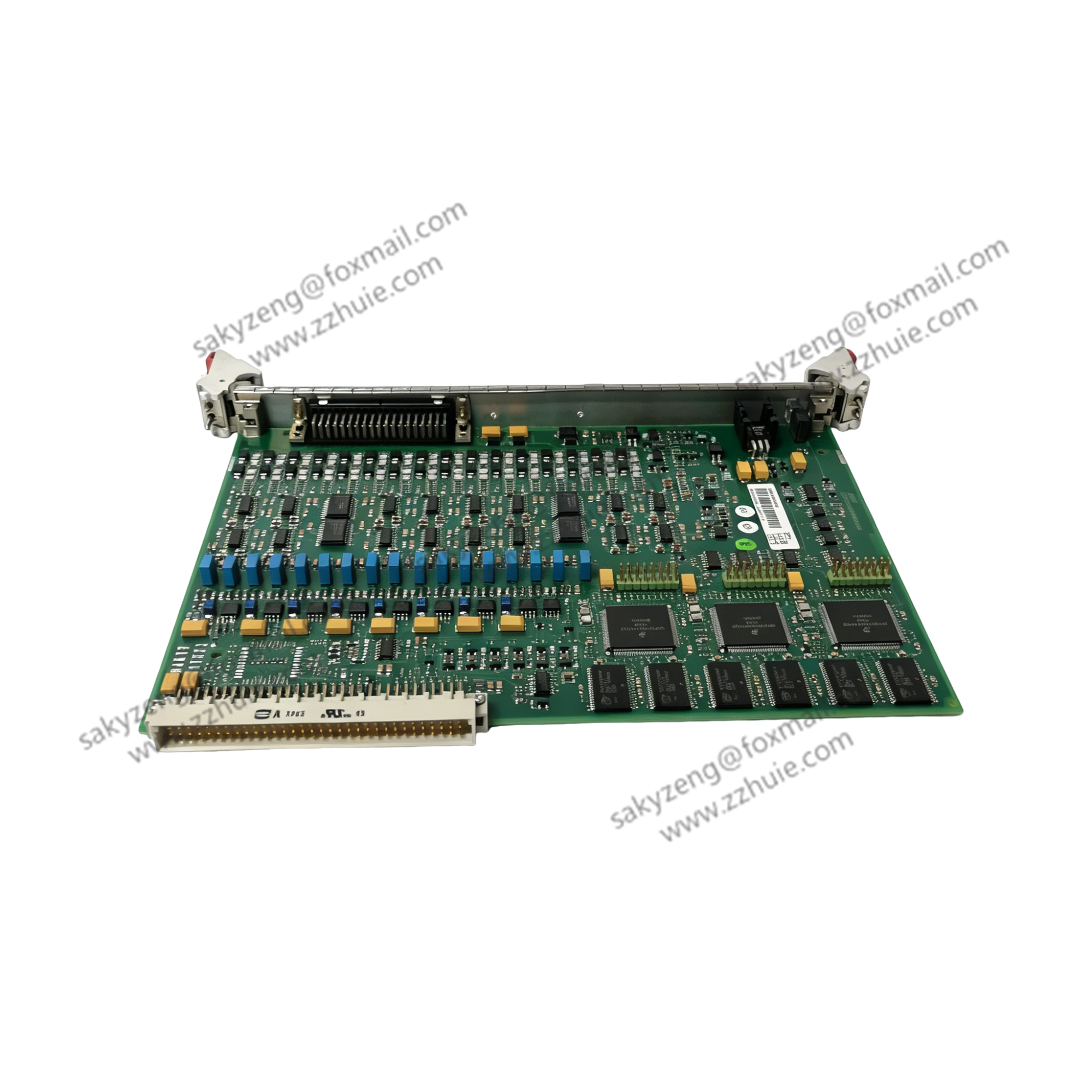

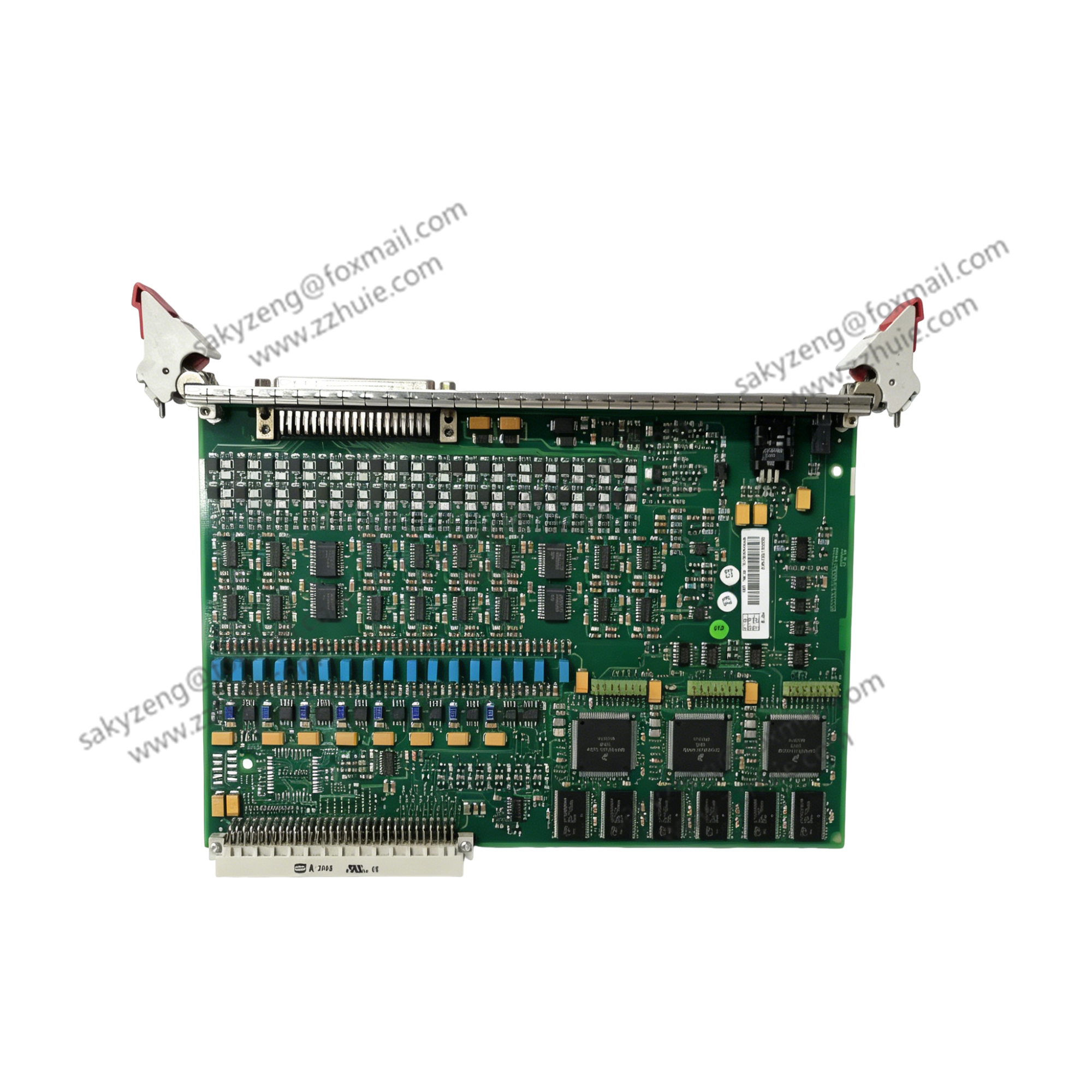

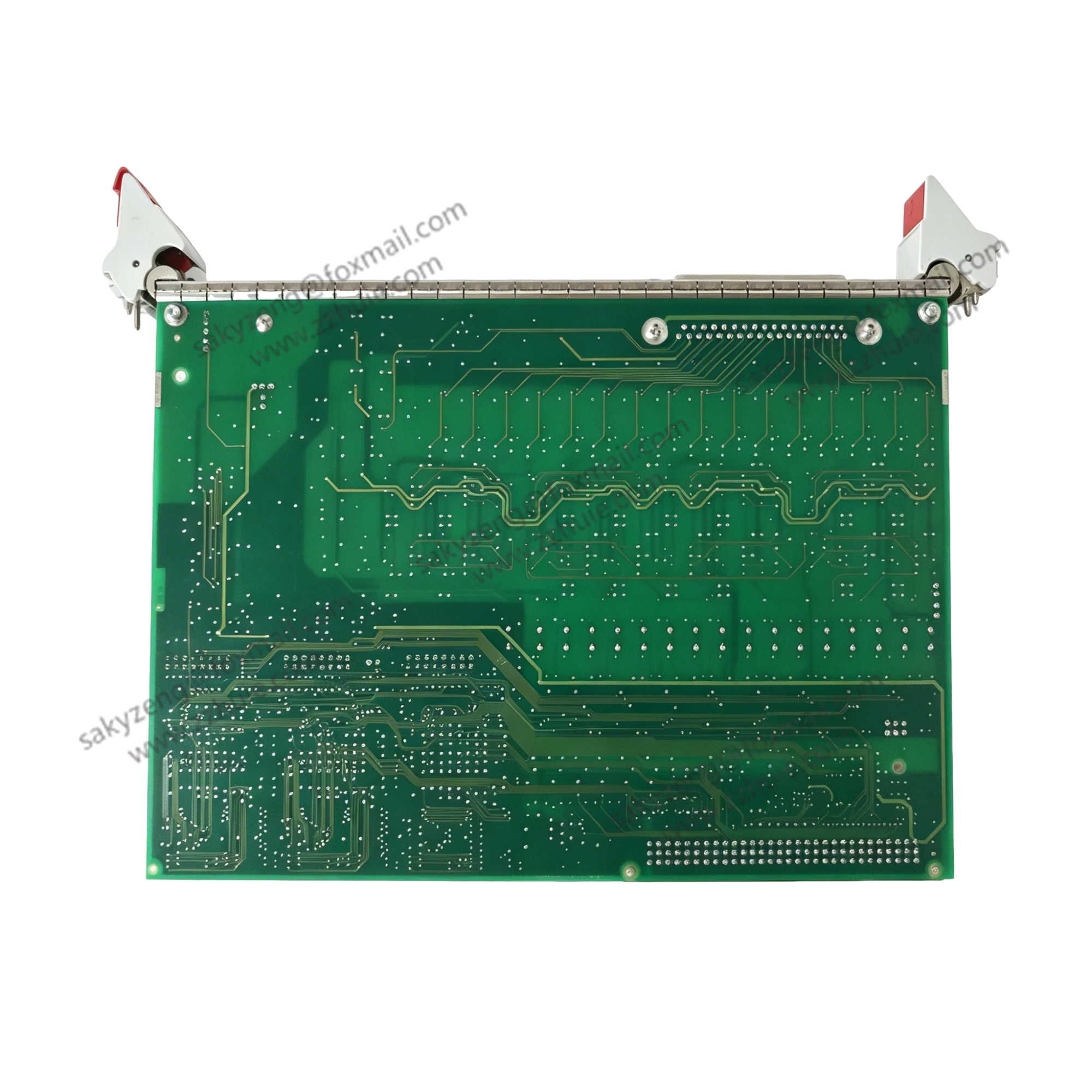

ABB PFSK151 (3BSE018876R1) PROFIBUS-DP

ABB PFSK151 with material number 3BSE018876R1 is a dedicated fieldbus communication expansion module for ABB AC800M controller under System 800xA distributed control platform.

It works as PROFIBUS-DP slave gateway, realizing high-speed cyclic data exchange between AC800M CPU and external PROFIBUS-DP master hosts, third-party PLC, variable frequency drives,

remote I/O stations and intelligent field instruments.

This module plugs into the CPU base unit expansion slot, processes protocol packaging, data buffering and signal isolation independently to reduce main CPU communication load. It supports

standardized PROFIBUS-DP cyclic input/output data transmission, diagnosis message upload and bus fault monitoring. With complete electrical isolation design between internal controller bus

and field bus side, it effectively suppresses ground loop interference and surge damage. It is a key spare part for communication expansion, bus fault maintenance and system retrofit in petrochemical,

power, metallurgy and water treatment automation projects.

Technical Specifications

Part Number: PFSK151

Material Code: 3BSE018876R1

Manufacturer: ABB, Origin: Sweden

Communication Protocol: PROFIBUS-DP Slave

Supported Baud Rate: 9.6kbit/s ~ 12Mbit/s auto-adaptive

Bus Interface: Isolated RS485 PROFIBUS terminal connector

Internal Bus: Compatible with AC800M controller internal expansion bus

Max Process Data Length: Configurable input & output cyclic data length

Station Address Range: 1 ~ 126 software configurable

Isolation Design: Galvanic isolation between field side and controller internal circuit

Mounting Mode: Plug-in expansion module for AC800M CPU base

Power Supply: Powered by controller backplane internal power

Operating Temperature: -20℃ ~ +60℃

Humidity: 5%–95% Non-Condensing

Protection Class: IP20 (Cabinet internal installation)

Net Weight: Approx. 0.18kg

Engineering Tool: Compact Control Builder M programming & configuration software

Compliance Standard: IEC 61158 PROFIBUS standard, CE, UL certification
