ELAU MAX4 /11/03/016/08/1/1/00 | Multi axis motion controller

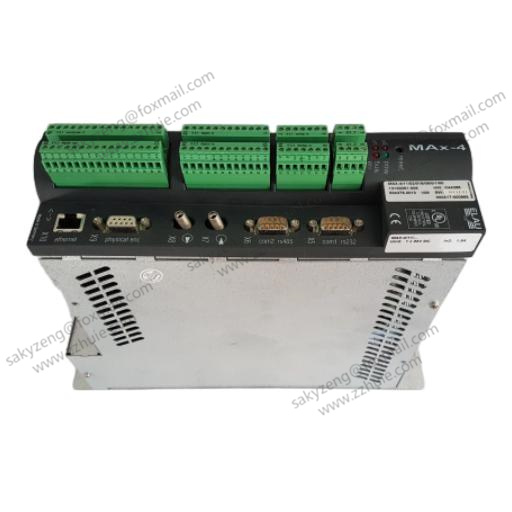

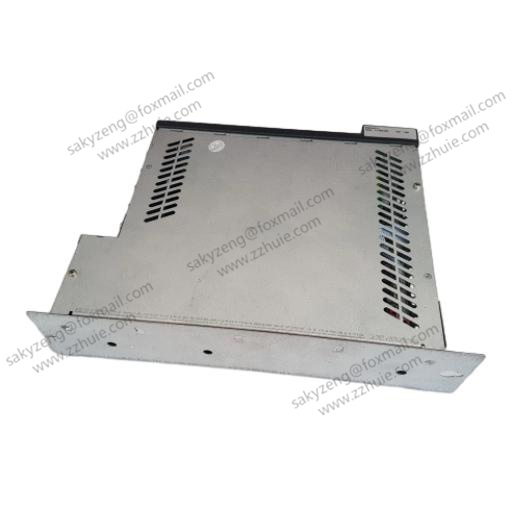

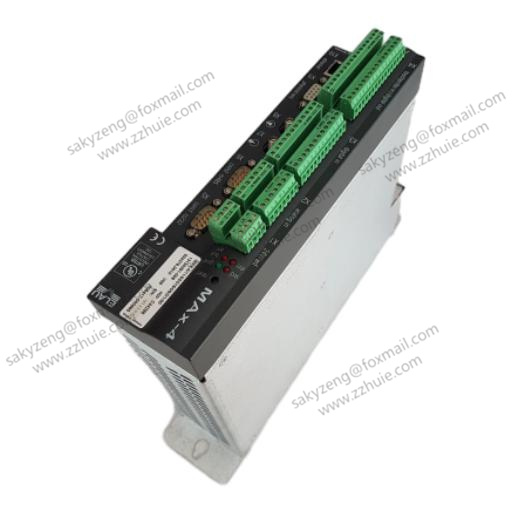

ELAU MAX4 /11/03/016/08/1/1/00 PacDrive Multi - Axis Motion Controller (Schneider Electric, Made in Germany)

Core Attribute: Original German industrial - grade multi - axis motion controller of Schneider ELAU PacDrive MAX4 series. Core function is high - precision multi - axis synchronous control, suitable for

high - speed production lines such as packaging and printing. It can drive 8 - axis servo, support SERCOS real - time bus and PROFIBUS - DP, with high dynamic response and stable communication capabilities.

It is the core control unit of PacDrive automation system and a key spare part for high - speed production equipment in food packaging, pharmaceutical and other industries.

（I）Core Technical Specifications

1. Electrical Parameters

- Processor: Protive T5, 128MB memory, supporting complex motion control algorithms

- Axis Control Capacity: Drives up to 8 servo axes, compatible with MC - 4 series motor controllers, supporting multi - axis synchronization

- Communication: Integrated SERCOS fiber optic real - time bus (4MBaud), PROFIBUS - DP master station, RJ - 45 Ethernet interface, supporting TCP/IP remote diagnosis

- Power Supply: 24VDC (18-30VDC compatible), typical current 1.5A, supporting 24V digital input/output

- Signal: Supports digital I/O and analog I/O expansion, compatible with fieldbus expansion modules

2. Environmental & Physical Parameters

- Environment: Operating 0℃~+55℃, storage - 25℃~+70℃; Humidity 5% - 95%RH (non - condensing), IP20 protection

- Specifications: Standard DIN rail mounting, approx. 120×80×60mm, net weight approx. 2.2kg, hot - swap supported

- Indication: Multi - state LED lights, real - time display of operation, communication and fault status

3. Core Features

- Multi - axis Synchronization: SERCOS bus ensures inter - axis synchronization accuracy, suitable for high - speed positioning and trajectory control

- Remote Diagnosis: Supports TCP/IP remote status monitoring and troubleshooting, reducing maintenance costs

- Compatibility: Compatible with EPAS - 4 programming environment (IEC 1131-3 standard), suitable for all PacDrive series components

（II）Product Attributes & Certification

- Origin: Made in Germany, serial number traceable, no domestic OEM

- Certification: CE, UL industrial electrical safety standards compliant, suitable for global industrial scenarios

- Warranty: 12 - month original factory warranty, 6 - month industrial channel warranty, global warranty supported

（III）Applications & Compatibility

1. Compatible Equipment

Compatible with PacDrive MAX4 system, MC - 4 motor controllers, SB series servo motors, PFEA series amplifiers, and can be matched with high - speed production equipment such as packaging machines

and printing machines.

2. Application Industries/Scenarios

- Industries: Food packaging, pharmaceutical, printing, electronic manufacturing and other high - speed production lines

- Scenarios: Multi - axis synchronization of high - speed packaging machines, overprinting accuracy control of printing machines, precise positioning of pharmaceutical equipment, etc.

（IV）Purchase & Usage Notes

- 1. Specific to MAX4 series, purchase with complete model and confirm firmware version (e.g., 00.11.09)

- 2. For model selection, match the number of axes (≤8) and fieldbus type, and prefer original MC - 4 motor controllers

- 3. Installation needs to match DIN rail, SERCOS fiber optic connection should be dust - proof and moisture - proof, and the system needs EPAS - 4 programming configuration

- 4. Original factory purchase cycle is 4-6 weeks, domestic industrial channels deliver in 1-3 days, sufficient stock available
