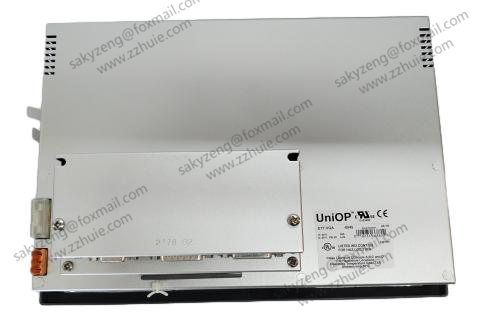

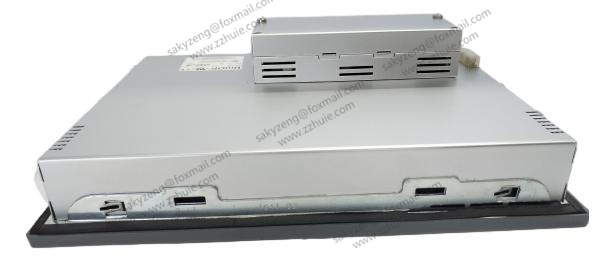

UNIOP ETT-VGA-0045 10.4-inch VGA TFT Resistive Touch Industrial Operator Panel HMI

Product Description

ETT-VGA-0045 is a classic discontinued VGA-grade HMI from Italy UNIOP ETT series, 10.4-inch 640×480 color TFT screen with resistive touch and physical function keys.

It realizes real-time process data display, parameter modification, alarm management and manual machine control, equipped with multi serial ports + Ethernet, compatible with Siemens,

Rockwell, Modbus and mainstream PLC protocols. Built-in CF card storage, RTC clock and alarm recording, front IP65 dust/waterproof aluminum panel, widely used in packaging,

printing, plastic machinery as maintenance replacement spare.

Technical Specifications

PN: ETT-VGA-0045, Manufacturer: UNIOP (Italy)

Display: 10.4" TFT, VGA 640×480, 256 colors, CCFL backlight

Touch: Resistive touch, glove operable

Operation: 8 physical function keys + touch screen

Power: 24VDC, power consumption ~12W

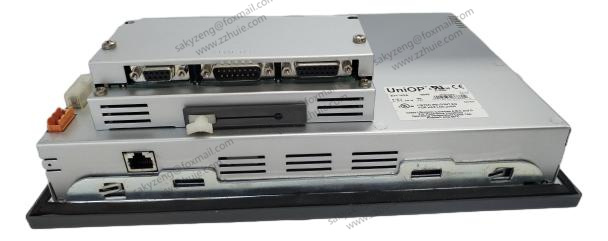

Interfaces: RS232/485 serial, Ethernet RJ45, CF card slot, printer port

Memory: 8MB program storage, 16KB recipe memory, 1024 alarm records

Mount: Cabinet embedded panel mounting

Protection: Front IP65, rear IP20

Temp: 0℃ ~ +50℃ operation; -20℃ ~ +70℃ storage

Weight: ~1.8kg; Configuration software: UniOP Designer

Key Features

VGA high resolution screen, clear trend curves and complex process graphics display.

Rich communication protocols, one screen connects multiple brands of PLC controllers.

CF card one-click project backup, fast debugging after screen replacement.

Front IP65 waterproof/oil-proof, adapts dusty, splash workshop environment.

Built-in RTC + alarm/event log, convenient post-fault troubleshooting analysis.

Physical keys + touch dual operation, stable for frequent on-site manual operation.

Replaceable CCFL backlight, low long-term maintenance cost.

Mature industrial hardware, stable 24-hour continuous production operation.

5. Application Scope

On-site operation panel for injection molding, blow molding, extrusion plastic machinery

Packaging, printing, textile winding production line process monitoring touch screen

Food pharmaceutical filling, cutting equipment local manual control terminal

Old automation equipment renovation, fault screen replacement and spare inventory backup

Water treatment, small chemical batching system local operation monitoring unit
