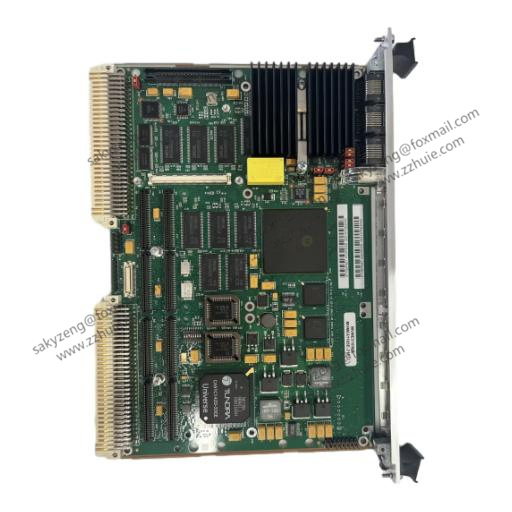

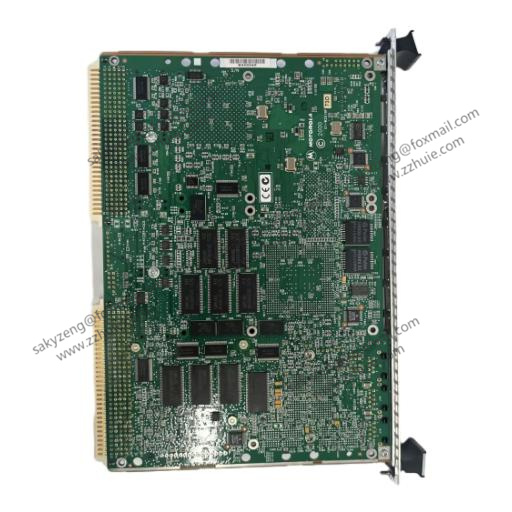

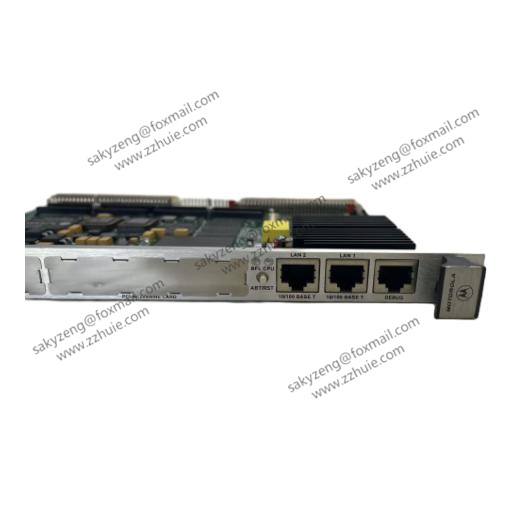

MOTOROLA MVME51105E-2161 Single Board Computer

Description

1. Core Hardware Specifications

• · Processor: Powered by a PowerPC® 750FX or MPC8548E processor, with a main frequency of 700 MHz, enabling efficient processing of real-time control and data acquisition tasks.
• · Memory: Equipped with 128 MB DDR SDRAM and 128 MB flash memory as standard; the DDR SDRAM can be expanded up to a maximum of 2 GB to meet large-scale data processing needs. It also includes 17 MB of dedicated flash memory for system firmware and configuration storage.
• · I/O Interfaces: Features a rich set of built-in interfaces, including Ethernet ports (for network communication), USB ports (for peripheral connection), serial ports (for legacy device communication), CAN bus ports (for industrial fieldbus control), SCSI interface (for high-speed storage expansion), and GPIO pins (for flexible digital signal input/output). Additionally, it has a CompactFlash slot for portable storage expansion.

2. Environmental & Mechanical Features

• · Operating Temperature Range: -20°C to 71°C, making it suitable for harsh operating environments such as industrial workshops, outdoor control cabinets, and mobile equipment.
• · Dimensions: 233 mm × 170 mm × 86 mm, conforming to the VME bus standard, ensuring compatibility with standard VME chassis for easy integration into existing systems.

3. Software Compatibility

4. Application Fields

• · Industrial automation (e.g., production line control, robotic control systems)
• · Medical equipment (e.g., high-precision diagnostic devices)
• · Defense & aerospace systems (e.g., on-board control modules)
• · Transportation (e.g., railway signal control, automotive test platforms)
• · Data acquisition & monitoring systems (e.g., remote industrial sensor data collection)
