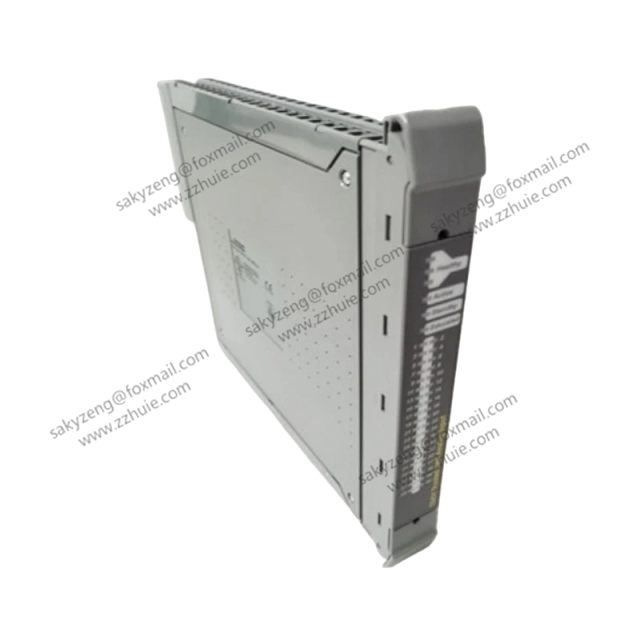

ICS TRIPLEX T8403 Trusted TMR 40-Channel 24VDC Digital Input Safety Module

Product Description

T8403 is a high-density triple modular redundant (TMR) discrete input card for ICS Triplex Trusted SIL3 safety control platform, dedicated to collecting 24VDC field switch, limit, valve feedback, fire & gas detector and emergency interlock signals.

Every single of the 40 channels adopts fully triplicated independent circuit design with hardware voting logic; single channel or partial circuit fault will not cause signal loss or safety system trip, eliminating single-point failure risk.

Each channel features 2500V reinforced galvanic isolation to block ground loop, surge and EMI interference from harsh industrial field wiring. Built-in high-precision 1ms resolution SOE sequence-of-event timestamp recording, which supports post-fault accident trace analysis.

The module supports hot-swap online replacement without shutting down the whole SIS safety rack, greatly reducing plant maintenance downtime. It is the core spare part for overhaul of aging Trusted safety systems in petrochemical, power and offshore energy industries.

Technical Specifications

PN: T8403, Manufacturer: ICS Triplex / Rockwell Automation, UK

Safety Certification: IEC 61508 SIL 3, IEC 61511, Category 4

Channel Count: 40 isolated digital input channels

Nominal Input Signal: 24VDC wet contact signal

Per Channel Input Current: 2mA typical @24VDC

Input Impedance: 1.5 kΩ

Galvanic Isolation: 2500 Vrms channel-to-backplane isolation

Signal Response Time: Typical 2ms

SOE Timestamp Resolution: 1ms high precision

Backplane Power: Supplied via Trusted rack backplane

Mount: Standard Trusted rack plug-in, hot-swappable

Operating Temperature: 0℃ ~ +60℃

Storage Temperature: -40℃ ~ +85℃

Humidity: 5%–95% non-condensing, conformal coated PCB

Weight: ~0.7kg

Dimension: 140 × 127 × 25 mm

Supporting Software: Trusted Engineering Tool

Key Features

Full TMR triple redundant hardware architecture for all 40 channels, automatic fault voting ensures continuous safe signal acquisition.

High-density 40-channel design saves cabinet rack slots, lowers overall system cabinet investment.

Independent reinforced isolation per channel, effectively suppresses field surge, ESD and electromagnetic interference.

Built-in comprehensive self-diagnosis: open circuit, short circuit, channel drift and backplane communication fault detection.

1ms accurate SOE event logging records all signal state changes for post-shutdown root cause analysis.

Hot-swap capability allows module replacement while SIS safety system remains online.

Front panel LED indicators for power, run, fault and individual channel status for quick on-site troubleshooting.

Full compatibility with all Trusted TMR CPU, analog I/O and communication modules for integrated SIS/ESD/FGS layout.

Application Scope

Emergency Shutdown (ESD) system digital signal acquisition module for refinery & chemical plant reactors

Fire & Gas (FGS) detection and interlock signal input board for LNG terminals and offshore platforms

Thermal power plant boiler BMS, gas turbine safety interlock valve feedback monitoring unit

Hazardous chemical storage tank area safety switch and alarm signal collection spare part

Metallurgy, cement kiln high-temperature equipment safety protection discrete input rack card

Global aging ICS Triplex Trusted TMR safety system overhaul, spare inventory and safety cabinet upgrade
