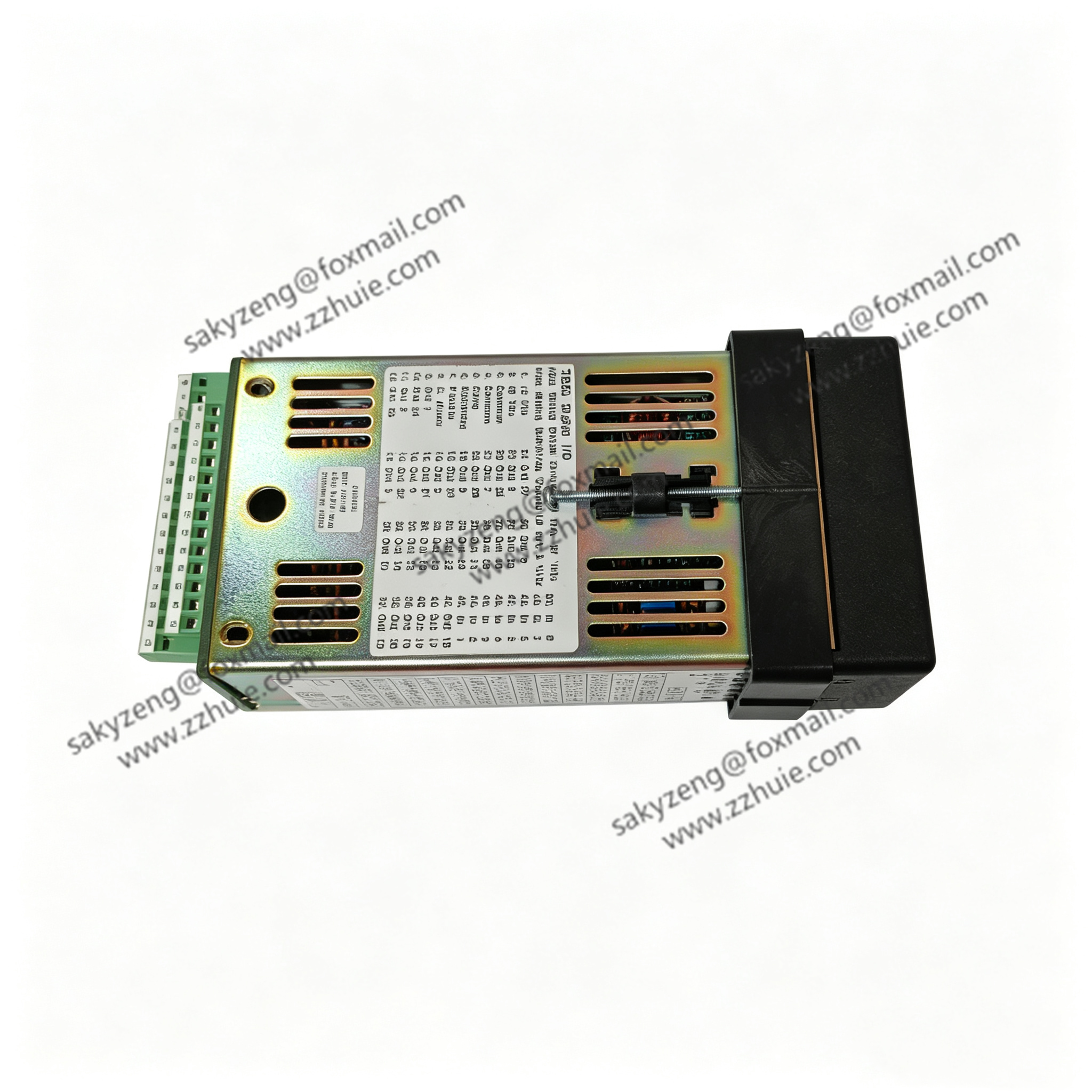

WATLOW ANAFAZE CLS216 105996005 16-Channel Multi-Loop PID Temperature Controller

Product Description

CLS216 (part number 105996005) belongs to Watlow Anafaze CAS200 CLS200 series, a 16-loop compact multi-loop temperature controller for industrial thermal processes.

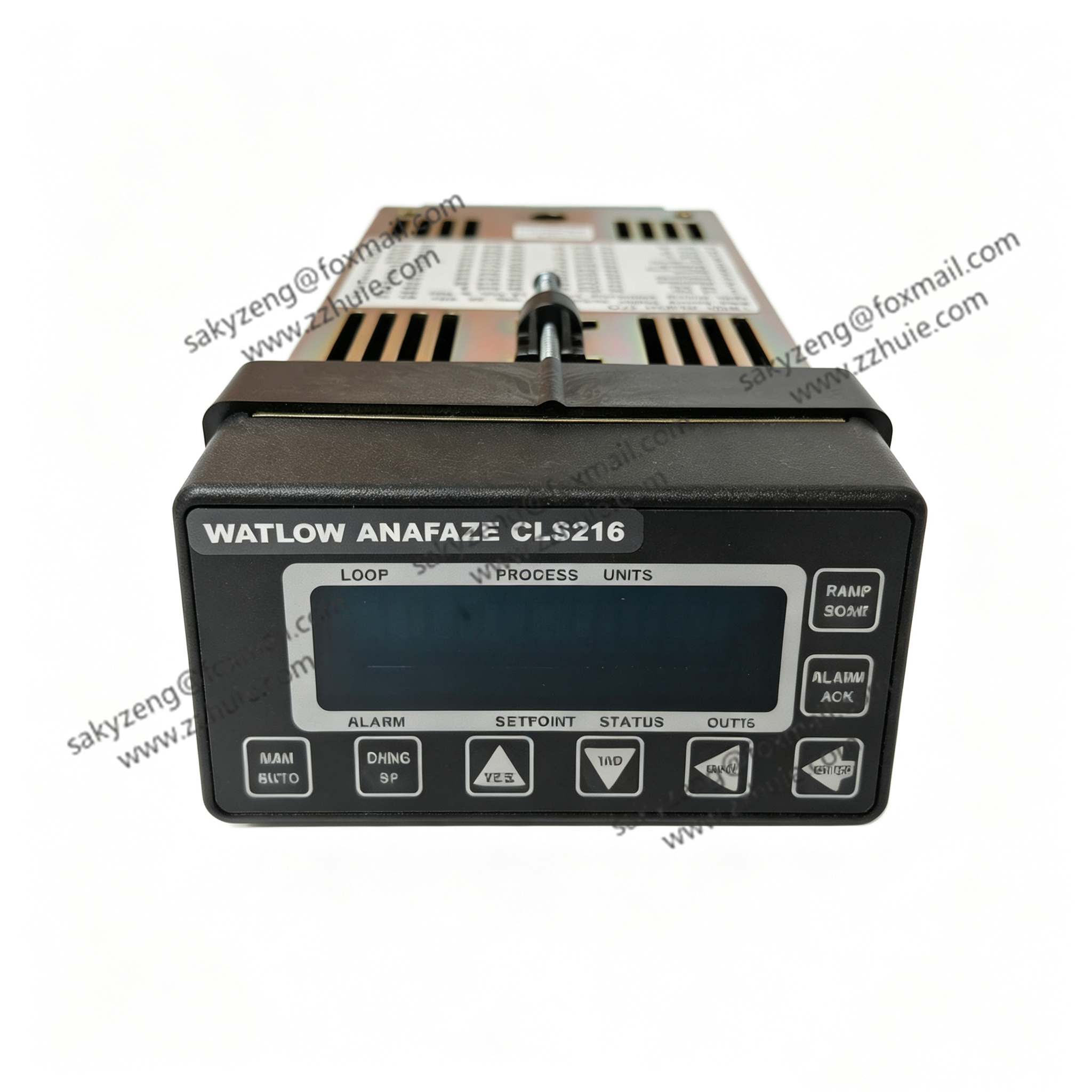

It supports universal sensor inputs including thermocouples, PT100 RTD, 4–20mA and 0–5V analog signals, with independent PID auto-tuning for each loop. Equipped with built-in LCD display and physical operation keys for on-site parameter setup, ramp/soak curve programming and alarm checking.

It provides RS232/RS485 Modbus RTU communication to connect HMI or upper monitoring systems. DIN rail modular installation, widely used as maintenance spare for heat treatment furnaces, plastic molding, semiconductor thermal equipment and drying lines.

Technical Specifications

PN: 105996005, Model: CLS216, Brand: Watlow Anafaze, USA

Control Loops: 16 independent PID heat/cool control loops

Analog Input: 16 channels, universal sensor compatible

Accuracy: ±0.1% full span, 14-bit high resolution A/D conversion

Power Supply: 15–24VDC, max 1A power draw

Communication: RS232, RS485 Modbus RTU

Mount: DIN rail modular rack installation

Operating Temp: 0℃ ~ +60℃

Humidity: 5%–95% non-condensing

Certification: CE, UL industrial compliance

Key Features

16 independent control loops, high density to save cabinet installation space.

Universal analog input compatible with all mainstream temperature transmitters.

Auto-tuning PID algorithm ensures stable precise thermal regulation.

Custom ramp & soak temperature profile for batch thermal production.

Complete alarm logic for overheat, sensor break and loop deviation faults.

Modbus RTU communication for remote data reading and parameter modification.

Local LCD display with shortcut keys for quick on-site debugging.

Rugged metal housing for long-term continuous industrial operation.
