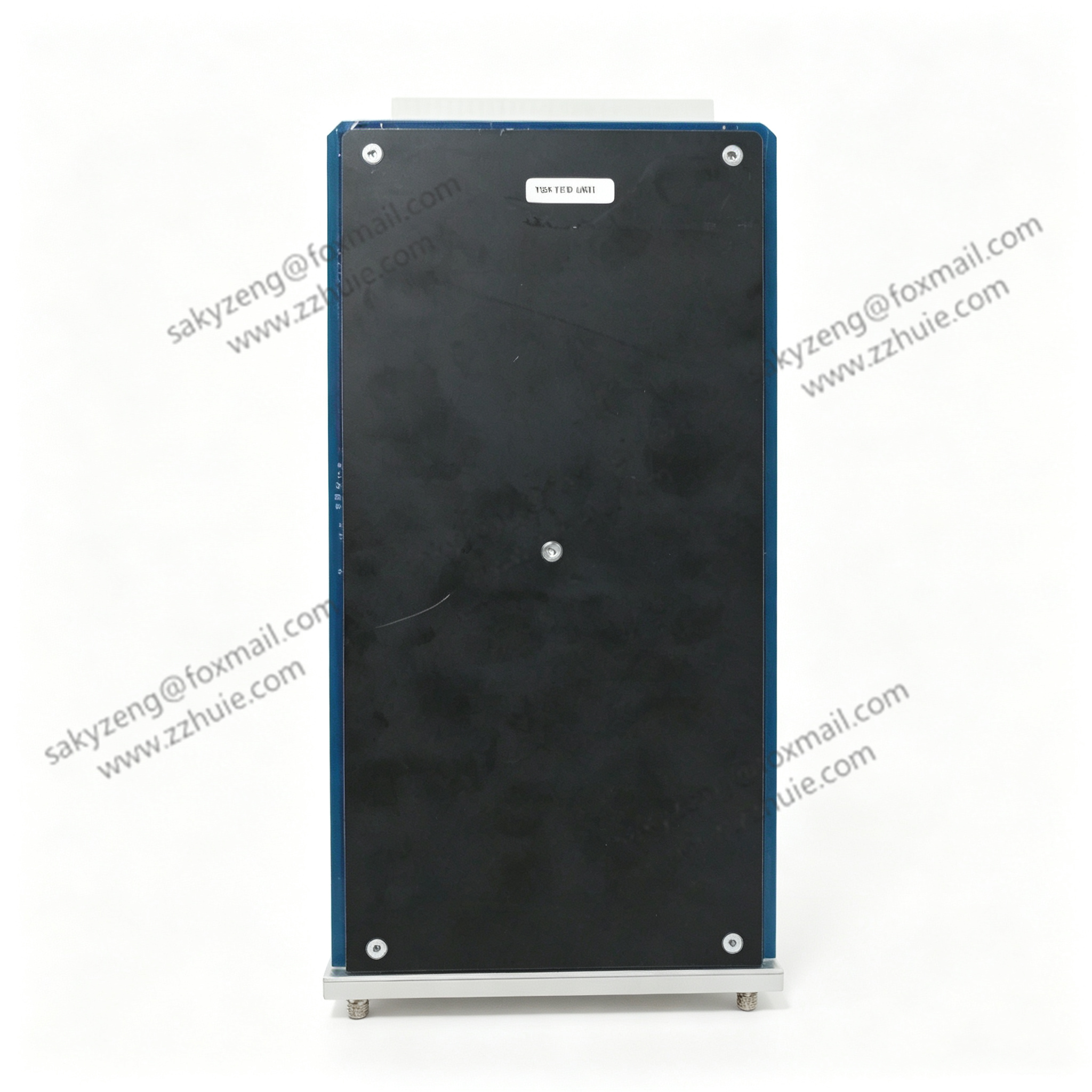

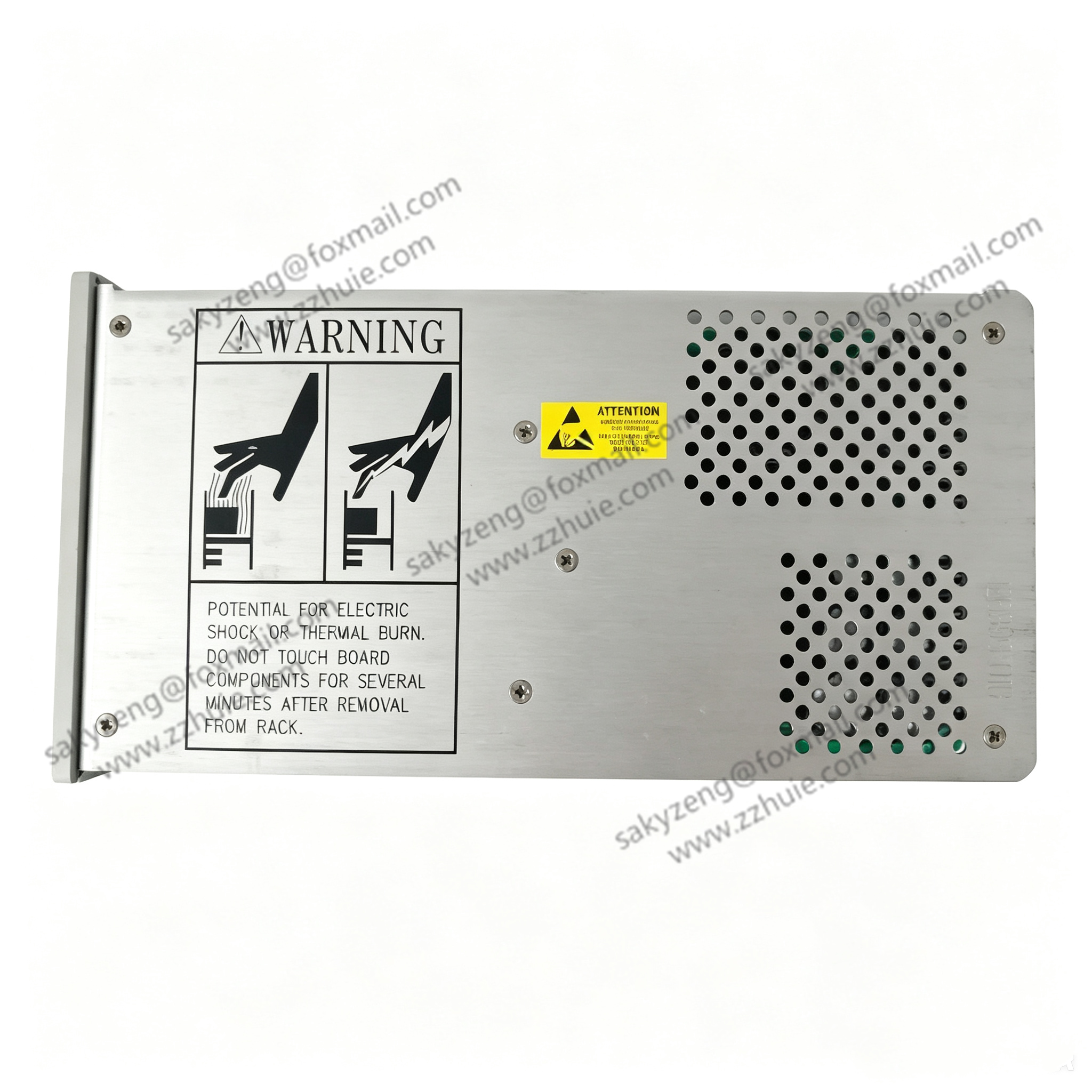

Bently Nevada 3500/65 145988-02 16-Channel Temperature Monitor Module for 3500 Rack System

Product Description

3500/65 (PWA part number 145988-02) is a dedicated temperature monitoring card for Bently 3500 series machinery protection rack, manufactured in USABaker Hugh....

It supports 16 mixed temperature signal inputs, compatible with 3/4-wire RTD and isolated tip thermocouples (E/J/K/T type). The module processes field temperature signals, compares readings against user-defined alarm thresholds, and sends data to the rack CPU & System 1 monitoring software.

It supports TMR triple redundant installation for critical turbine safety systems with fault voting logic to avoid single-point failure. Standard single-slot rack plug-in design, widely used as maintenance spare for gas/steam turbines, compressors and power generation equipment.

Technical Specifications

PN: 3500/65, PWA:145988-02, Brand: Bently Nevada, USA

Channels: 16 universal temperature input channels

Supported Sensors: Pt100 RTD (3/4-wire), isolated tip TC E/J/K/T

Power Consumption: Nominal 3W

Input Impedance: Over 1MΩ per channel

Front Panel LEDs: OK, TX/RX, Bypass status indicators

Configuration Tool: 3500 Rack Configuration Software

Operating Temp: -40℃ ~ +85℃

Humidity: 5%–95% non-condensing, conformal coated PCB

Weight: ~0.91kg

Compatibility: Full 3500 rack series, TMR redundant architecture supported

Key Features

16 high-density temperature channels to monitor bearing, casing and winding temperature of rotary machines.

Mixed RTD & thermocouple input flexibility for various industrial temperature measurement points.

Built-in high/low temperature alarm logic with programmable threshold values.

TMR triple redundant voting function for high-reliability power plant safety systems.

Strong anti-interference circuit with high input impedance to eliminate field signal noise.

Clear front LED indicators for fast on-site fault inspection.

Low power consumption for long-term 24/7 continuous operation.

Hot-swappable single-slot design for online maintenance without rack shutdown.
