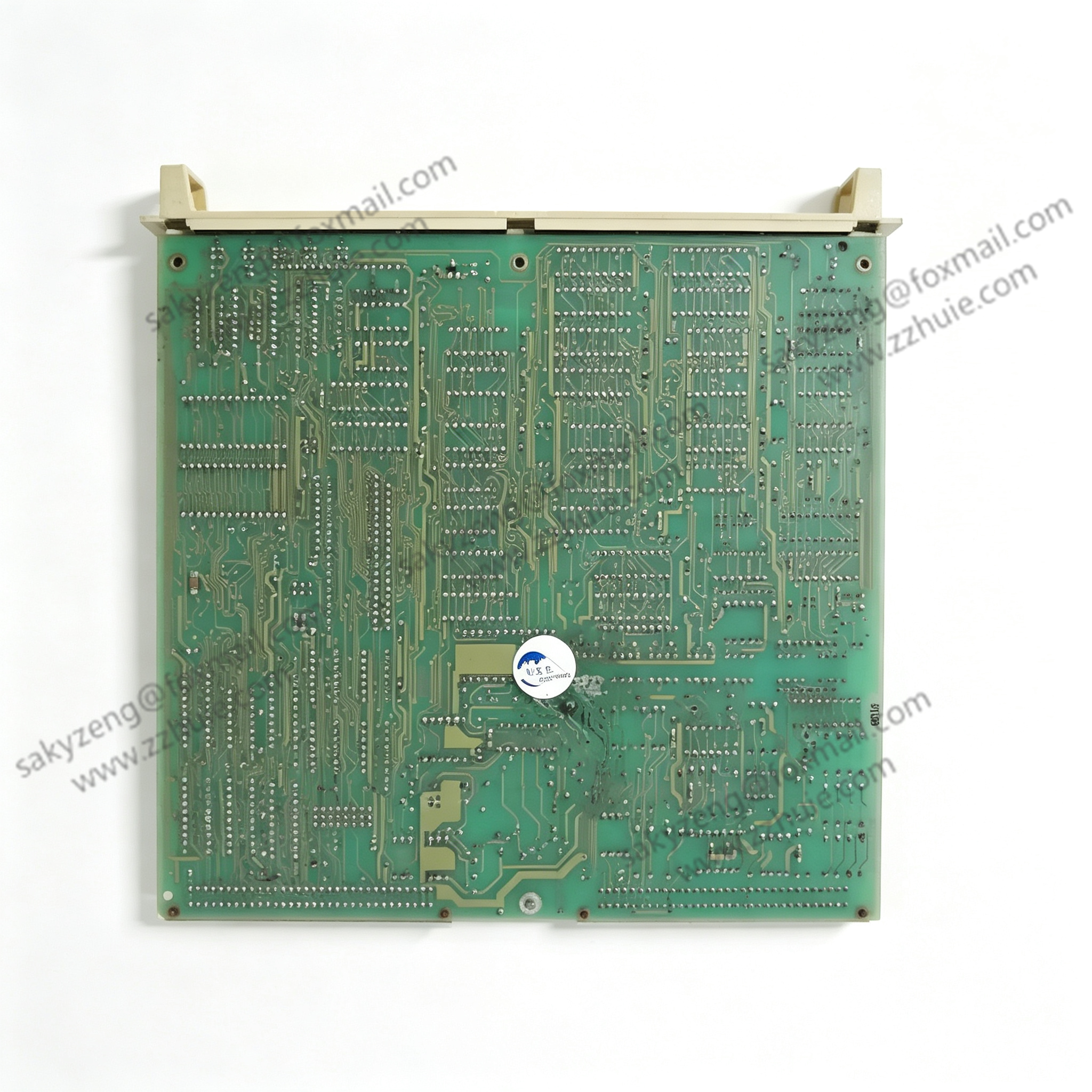

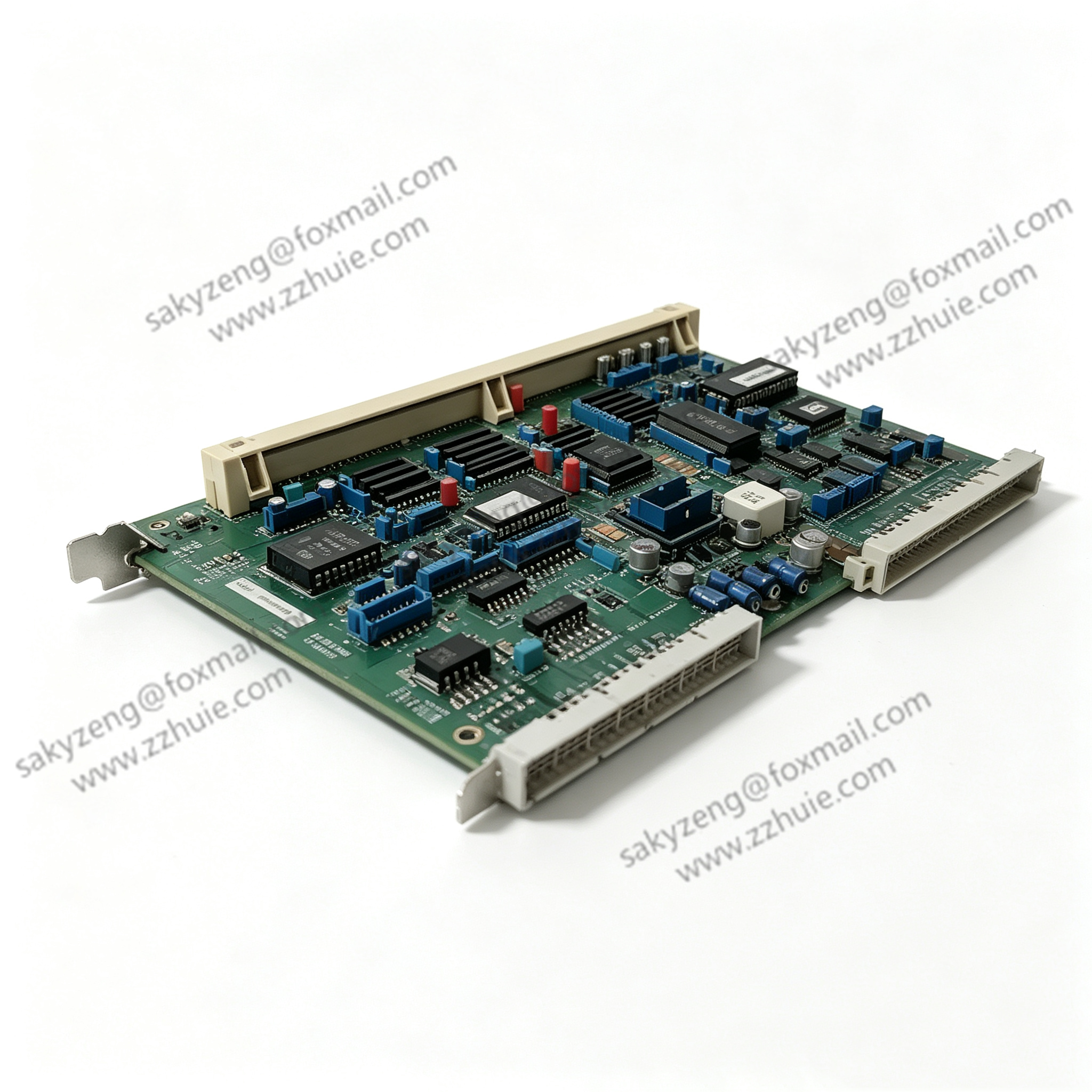

ABB DSDP140B 57160001 Multi-Function Pulse Counter & Positioning Control Module

Product Description

DSDP140B with base part number 57160001 is a dedicated high-speed pulse counter and positioning control board for ABB Advant Controller 400 / MasterPiece 200 control systems, manufactured in Sweden.

It integrates pulse encoder input, digital DI/DO and analog AO all-in-one circuit, supporting single-axis closed-loop positioning control for servo motors, stepping drives, flow pulse meters and rotary encoders. The module receives differential pulse signals from incremental encoders, calculates real-time position, speed and cumulative count, and outputs analog setpoint or switch signals to drive actuators.

Optocoupler galvanic isolation separates field circuit and controller backplane to eliminate ground loop interference. Equipped with complete channel self-diagnosis for wire break, short circuit and pulse signal loss, standard rack plug-in installation matching ABB subrack chassis, widely applied as maintenance spare for metallurgy, printing, packaging, paper making and machinery automation lines.

Technical Specifications

Model: DSDP140B, Base PN: 57160001 (suffix variants: -ACX, -PU, -ACT)

Brand: ABB, Origin: Sweden

Pulse Input: 3-channel differential encoder input, max 80kHz, ±15mA signal level

Digital I/O: 2 points 24VDC DI, 4 points 24VDC DO

Analog Output: 1 channel AO, 11bit+sign resolution, 0–10V / 0–±20mA configurable

Logic Power: Supplied via rack backplane 5VDC

Field Signal Level: 24VDC digital circuit

Isolation: Optocoupler isolation between field and internal logic

Operating Temp: -20℃ ~ +60℃

Humidity: 5%–95% non-condensing, conformal coated PCB

Weight: ~0.34kg

Compatible System: Advant Controller 410/450, MasterPiece 200 racks

Mount: Standard single-slot subrack plug-in design

Key Features

All-in-one positioning board combining pulse counting, digital I/O and analog output for single-axis motion closed-loop control.

High-speed differential encoder input up to 80kHz, accurate for high-speed positioning and speed measurement.

Multi-type signal output to match servo drives, valves and relay actuators simultaneously.

Full galvanic opto-isolation effectively suppresses industrial EMI and long cable ground drift.

Built-in self-diagnosis detects encoder disconnection, channel short circuit and signal abnormality instantly.

DIP switch address setting on board for flexible multi-module rack expansion.

Compact single-slot design saves cabinet space for multi-axis motion control cabinets.

Industrial anti-corrosion coated PCB for stable 24/7 continuous operation in harsh workshop environments.
