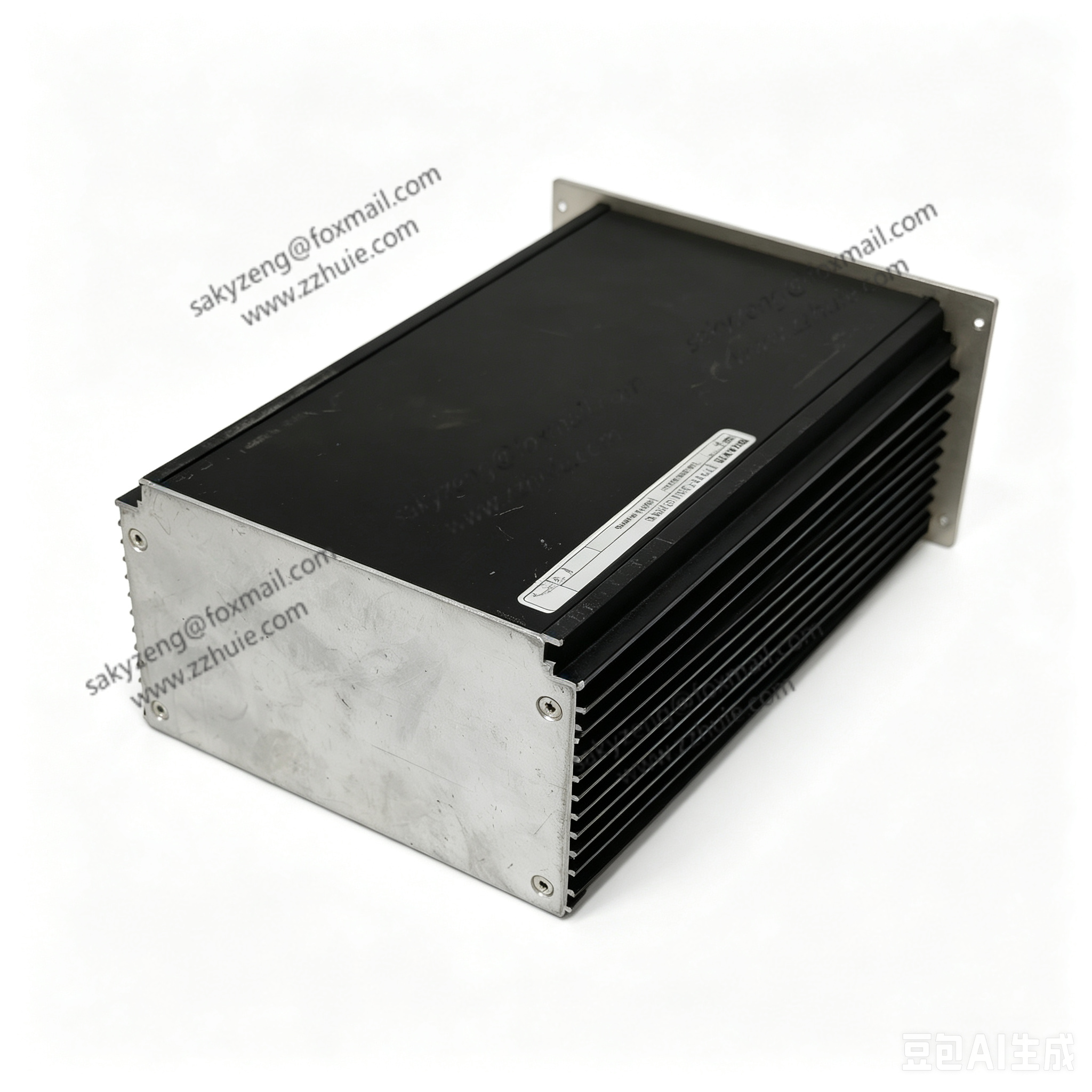

Rexroth VT-HNC100-1-23/W-08-P-0 Single Hydraulic Axis Digital NC Motion Controller with PROFIBUS DP

Product Description

VT-HNC100-1-23/W-08-P-0 belongs to Rexroth Indramat VT-HNC100 series, a dedicated digital NC axis controller optimized for electro-hydraulic proportional and servo valve closed-loop control,

manufactured in Germany.

Model code breakdown:

VT-HNC100-1：Single hydraulic axis control

23：Hardware version 23 series

W：Wall-mounted metal housing

08：8-channel digital input/output terminal block

P：PROFIBUS DP fieldbus interface

0：Standard firmware without extra sensor options

Equipped with 32-bit MC68376 industrial processor and professional hydraulic control algorithms, it realizes high-precision position, speed, pressure and force composite closed-loop

control for hydraulic cylinders, built-in friction compensation, valve dead zone correction and vibration suppression to eliminate hydraulic hysteresis.

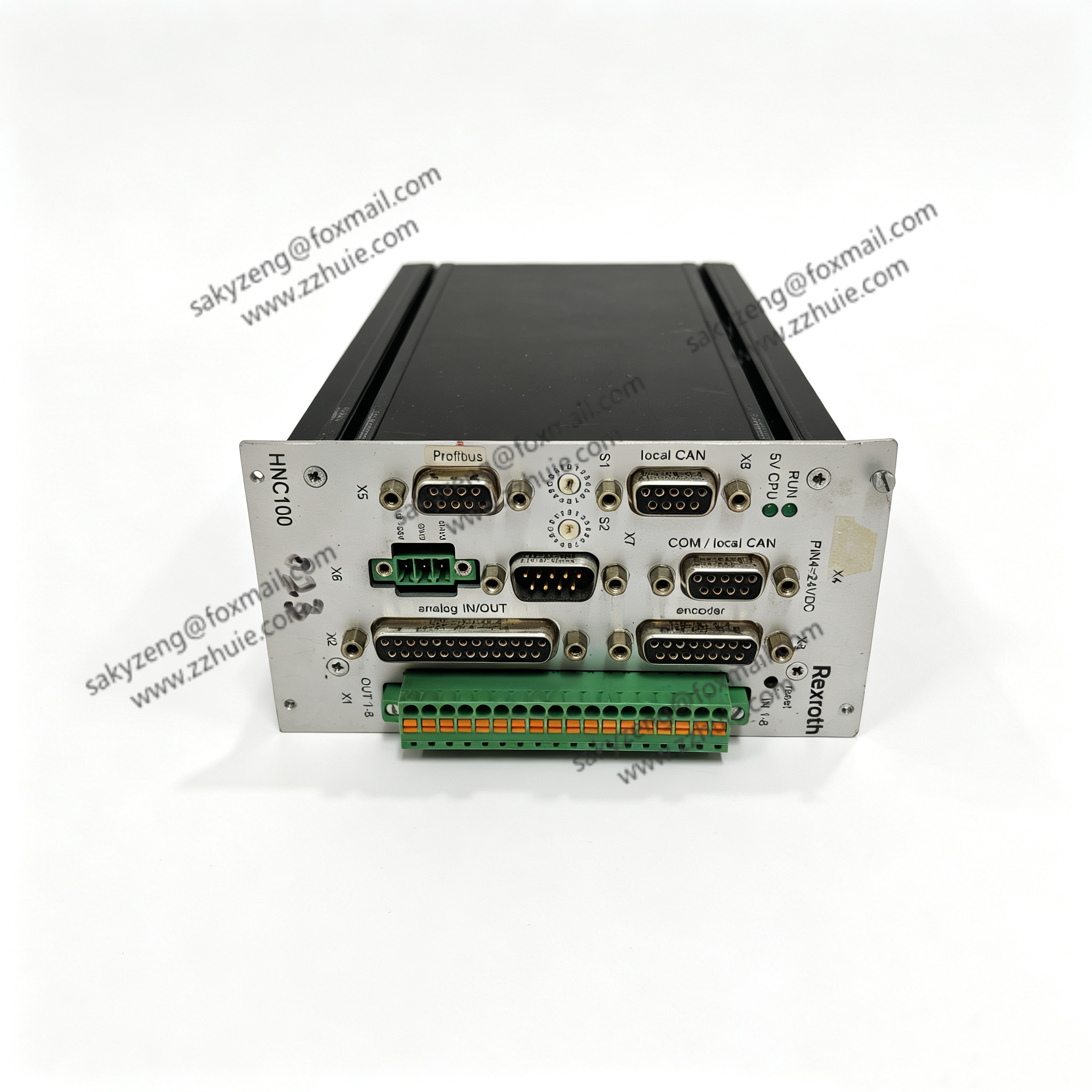

It supports incremental encoder and SSI absolute transducer position feedback, outputs ±10V / 4–20mA signals to drive hydraulic servo valves. The front PROFIBUS DP DB9 port connects

upper PLC for real-time data exchange, while RS232 debug port works with WIN-PED software for programming, parameter calibration and fault diagnosis.

All field signals adopt galvanic isolation to resist EMI and ground loop interference. The unit features passive convection cooling and conformal coated PCB, widely used as maintenance spare

for hydraulic presses, injection molding machines, material test benches and heavy-duty fluid power automation lines.

Technical Specifications

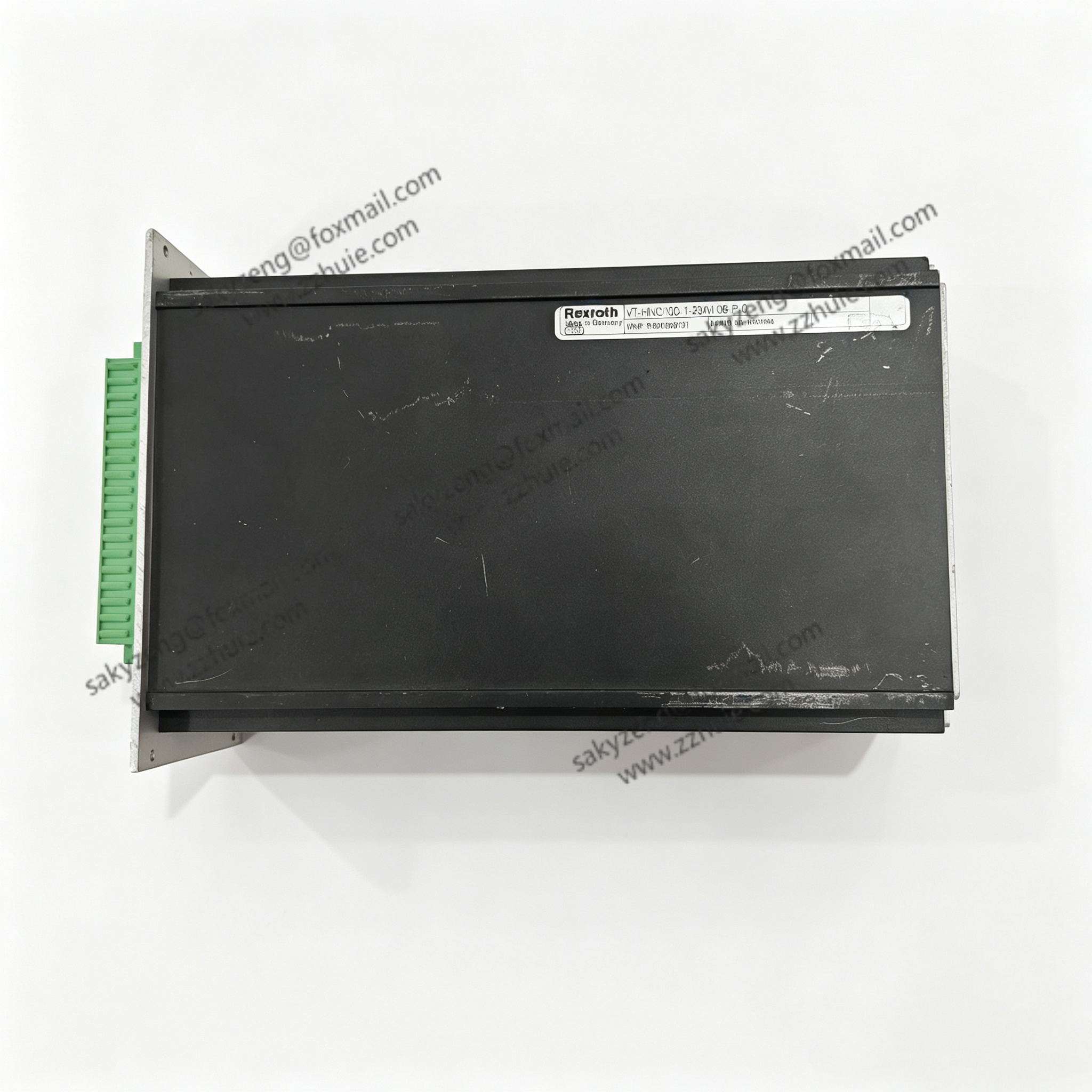

Model: VT-HNC100-1-23/W-08-P-0, Material No.: R00958999

Brand: Bosch Rexroth Indramat, Origin: Germany

Controlled Axis: 1 independent hydraulic axis

Processor: 32-bit MC68376 industrial CPU

Memory: 256KB RAM, 1MB Flash EPROM, 8KB EEPROM

Digital I/O: 8 shared DI/DO channels, max 30mA per channel

Analog Interfaces

4 × ±10V analog voltage input

2 × 4–20mA analog current output, max load 500Ω

Servo valve drive: ±10V / 4–20mA configurable

Position Feedback: Incremental encoder (max 250kHz), SSI transducer compatible

Communication Interfaces

PROFIBUS DP DB9 port, baud rate up to 12Mbps, master/slave mode

RS232 service port for WIN-PED configuration and fault log reading

Power Supply: 18–36VDC (nominal 24VDC), power consumption ~8W

Mounting: W type wall bracket installation

Dimensions: 71 × 155 × 204 mm

Net Weight: ~1.0 kg

Protection Class: IP20 (cabinet/indoor installation only)

Operating Temp: 0℃ ~ +50℃ full load

Storage Temp: -20℃ ~ +70℃

Humidity: 5%–95% non-condensing, conformal coated PCB

Certifications: CE industrial EMC compliance

Key Features

Specialized hydraulic control algorithm library with position/pressure dual closed-loop, feedforward compensation and anti-vibration function for high-precision hydraulic forming equipment.

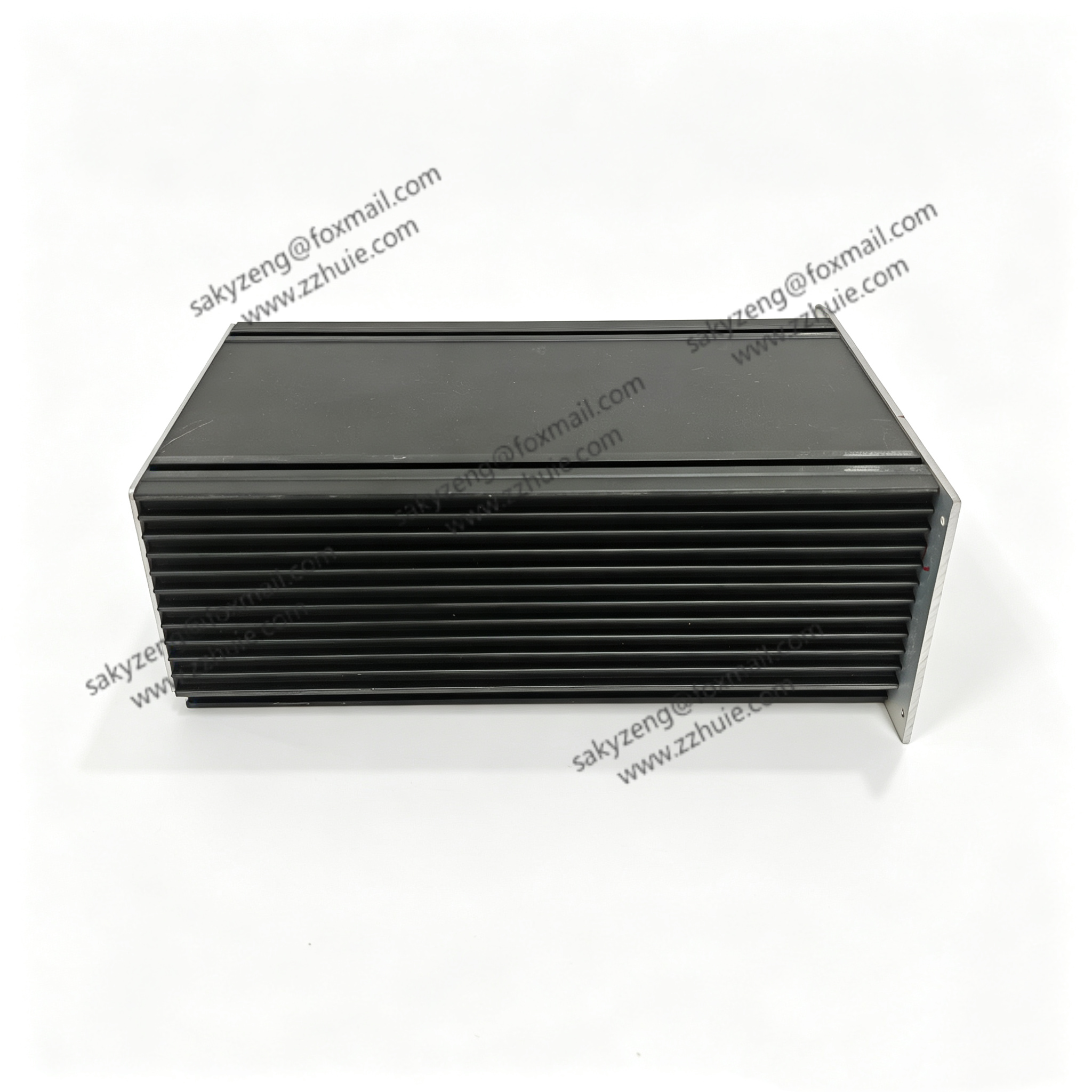

Fan-free wall-mounted cooling housing, fewer vulnerable parts and convenient retrofitting for aging hydraulic machinery.

Integrated PROFIBUS DP bus, seamless communication with mainstream PLCs to transmit motion commands and upload pressure, position and alarm data remotely.

8-channel digital I/O terminals for limit switch, safety interlock and valve status feedback, simplifying on-site wiring layout.

RS232 local debug port supports one-click parameter backup, motion curve monitoring and direct fault code reading for easy field commissioning.

Full galvanic isolation for all analog and digital signals to block strong electromagnetic interference and ground loop drift from hydraulic equipment.

Comprehensive self-diagnosis detects encoder disconnection, valve short circuit, overtravel and bus failure, with front panel LED indicators for quick troubleshooting.

Rugged conformal coated PCB with anti-vibration design, supporting stable 24/7 continuous long-term operation under complex industrial temperature and humidity conditions.
