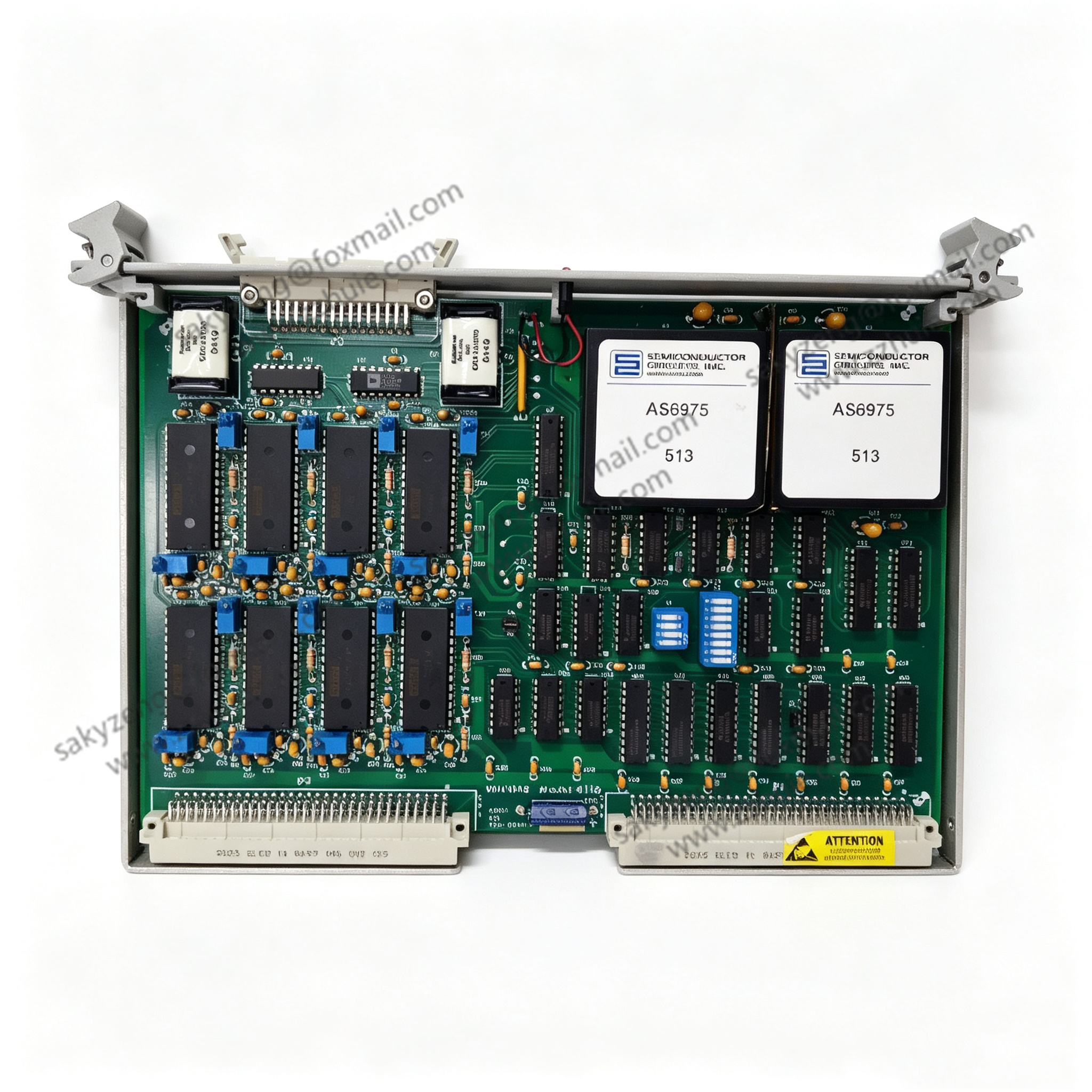

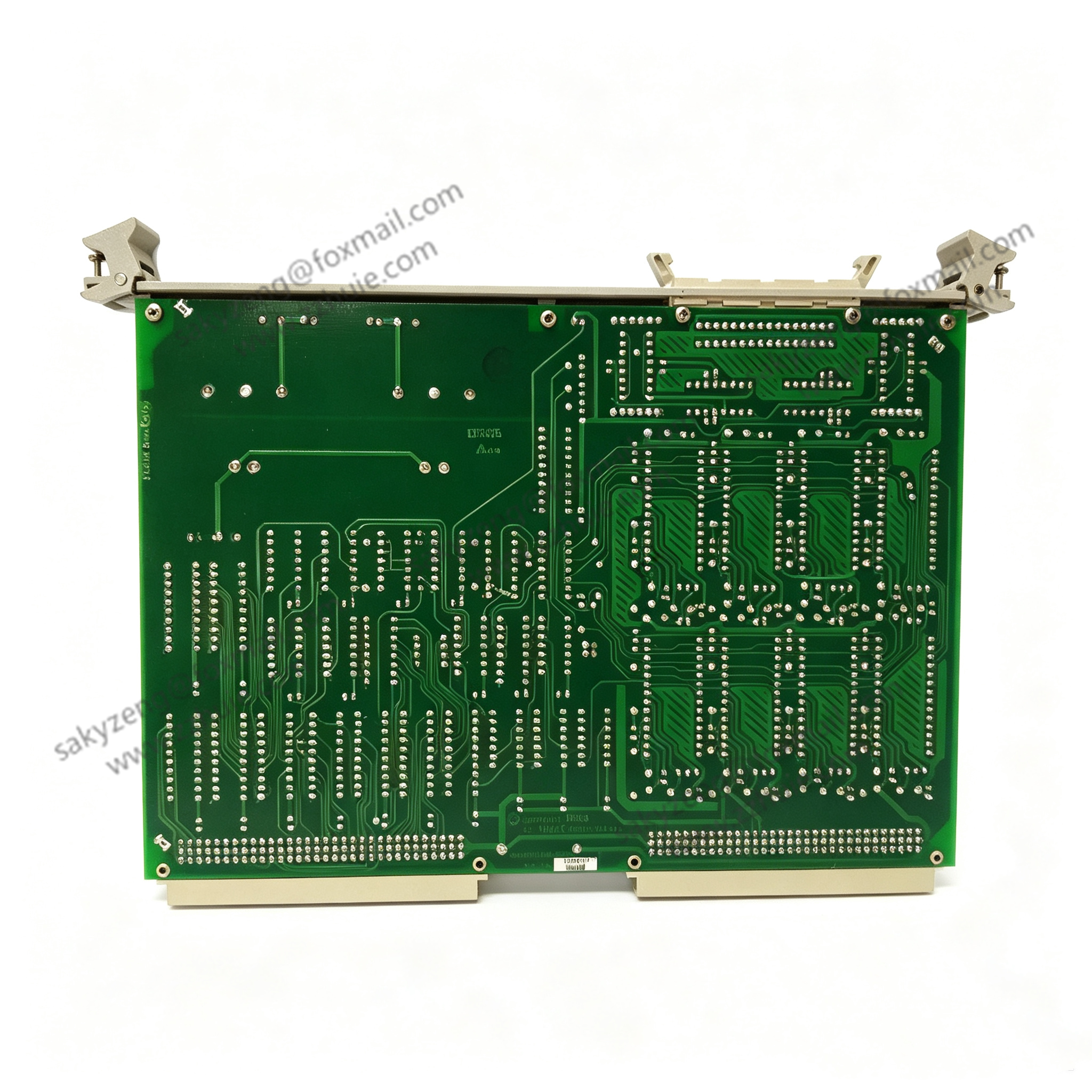

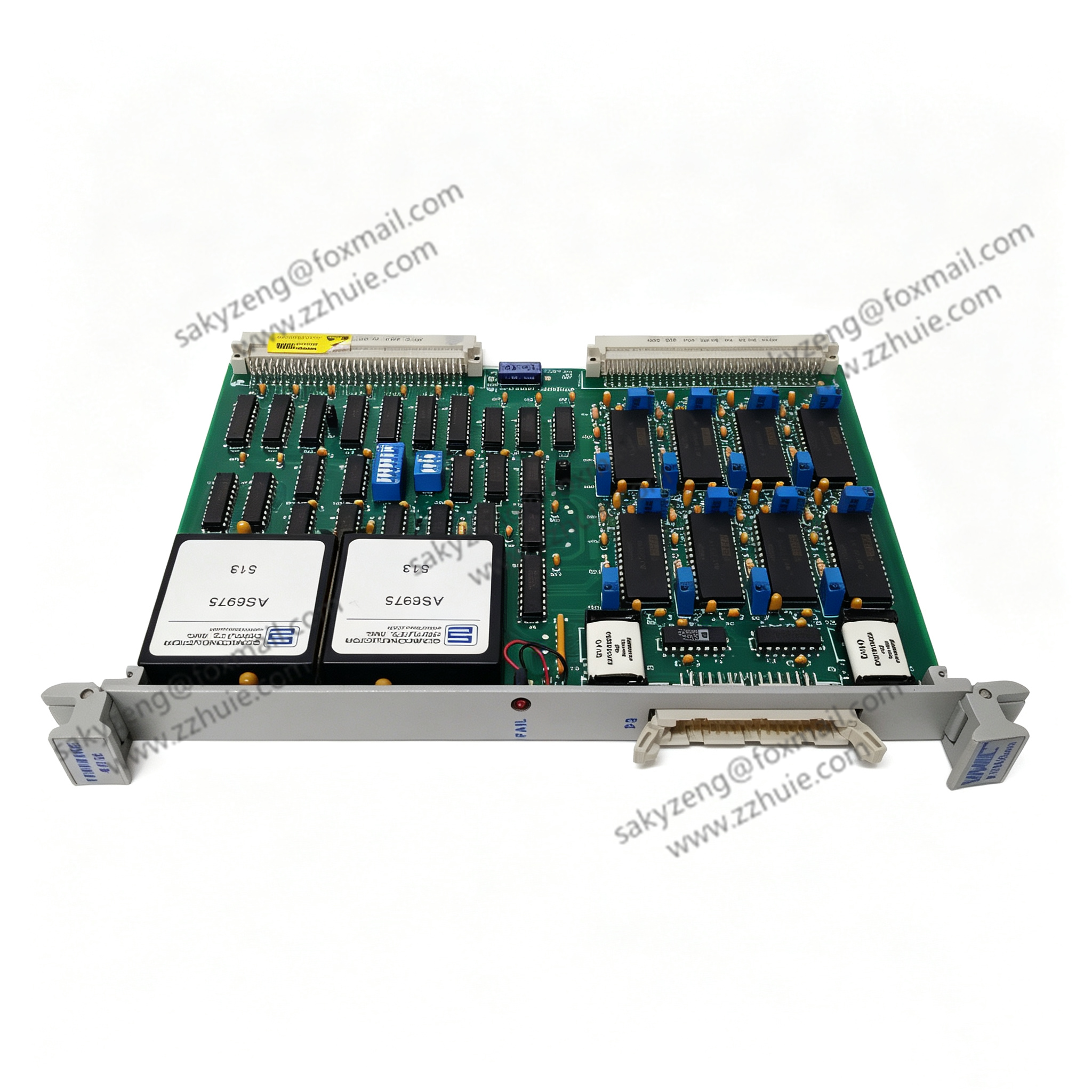

GE VMIVME-4116 Double Eurocard VMEbus 8-Channel 16-Bit Isolated Analog Output DAC Module

Product Description

VMIVME-4116 originates from VMIC and later acquired by GE Intelligent Platforms (now Abaco Systems), a standard double-height 6U VMEbus digital-to-analog conversion board for industrial test measurement, aerospace and embedded VME control systems.

It integrates 8 independent 16-bit monolithic DAC channels, converting digital commands from VME CPU into stable ±10V buffered analog voltage signals to drive actuators, test benches, valve positioners and signal simulation equipment. Each channel adopts double-buffered data latch architecture, supporting synchronous full-channel simultaneous update to eliminate output glitch during multi-point setpoint adjustmentManualsLib.

The board supports offset binary and two’s complement data coding, with high linearity conversion and fast settling performance. A front-panel FAIL LED indicates power, channel fault and bus communication anomalies. Equipped with industrial DIN-type external connector for field wiring, it also provides multiplex programmable output signals for calibrating and testing analog input acquisition boards such as VMIVME-3100/3200 series.

Conformal coated PCB, wide temperature operating range, fully compliant with VMEbus standard P1/P2 backplane interface. It is an end-of-life legacy spare widely used in military test equipment, power plant monitoring systems and industrial automatic calibration platforms.

Technical Specifications

Model: VMIVME-4116, Brand: GE / VMIC / Abaco Systems, Origin: USA

Form Factor: Double Eurocard 6U VMEbus

Analog Output Channels: 8 independent isolated DAC channels

DAC Resolution: 16-bit per channel

Output Voltage Range: -10 V ~ +10 V buffered voltage

Output Drive Capacity: 5mA load per channel

Resolution: 305 µV per LSB

Settling Time: Within 10µs to 0.001% full scale

Data Coding: Offset binary / Two’s complement configurable via jumper

Data Latch: Double-buffered design for synchronous multi-channel update

VME Interface: VMEbus P1/P2 connector, burst data transmission up to 1MB/s

Power Supply: +5V logic power, ±15V analog power via backplane

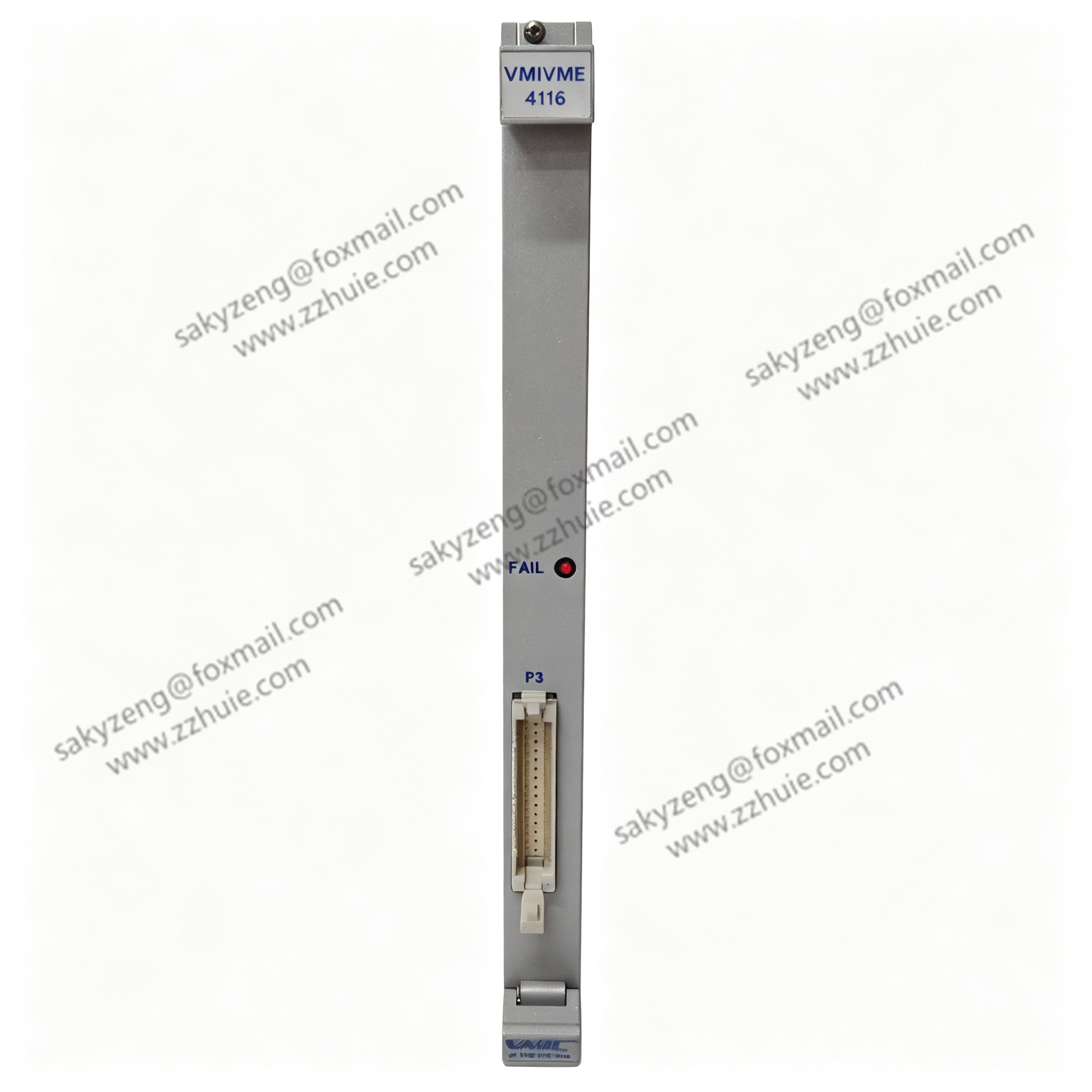

Indicator: Front panel FAIL fault status LED

External Connector: High-reliability DIN output terminal connector

Operating Temperature: -20℃ ~ +70℃

Humidity: 5%–95% non-condensing, conformal coated circuit board

Net Weight: Approx. 0.5kg

Status: Discontinued EOL legacy module

Key Features

8-channel independent 16-bit high-precision DAC for analog signal generation and precise process control.

Double-buffered latch design enables synchronized simultaneous update of all 8 channels to avoid signal distortion.

Buffered ±10V voltage output with strong load driving capability, compatible with most industrial test and control actuators.

Dual coding modes (offset binary / two’s complement) flexible for different VME host software programming.

Built-in multiplex test signal output function for calibrating matching VME analog input acquisition boards.

Front panel fault LED allows direct on-site inspection without upper computer diagnosis tools.

Standard VMEbus double Eurocard plug-in design, compatible with all mainstream VME chassis and CPU boards.

Rugged industrial anti-vibration PCB coating, suitable for long-term continuous operation in aerospace, military and power test environments.
