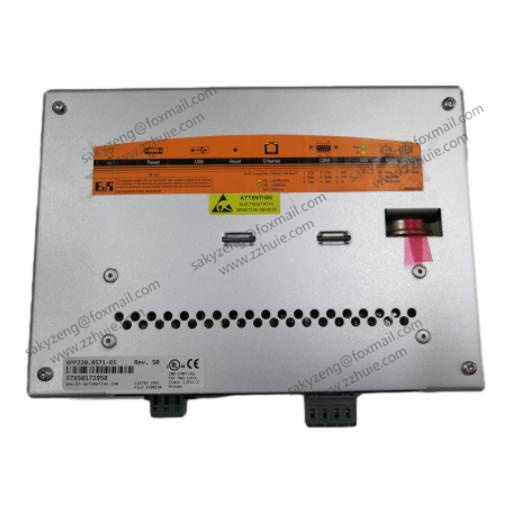

B&R 4PP220.0571-R5 Industrial touch panel

Product Name

Product Description

Specific Parameters

• Display: 5.7-inch QVGA (320×240 pixels) monochrome LCD with resistive touchscreen, enabling precise operation in industrial environments114.
• Processor: Geode SC 2200 processor with 266 MHz clock speed, supporting real-time control tasks1.
• Memory: 64 MB SDRAM (system memory) and 256 KB SRAM (data cache) for program storage and data processing114.

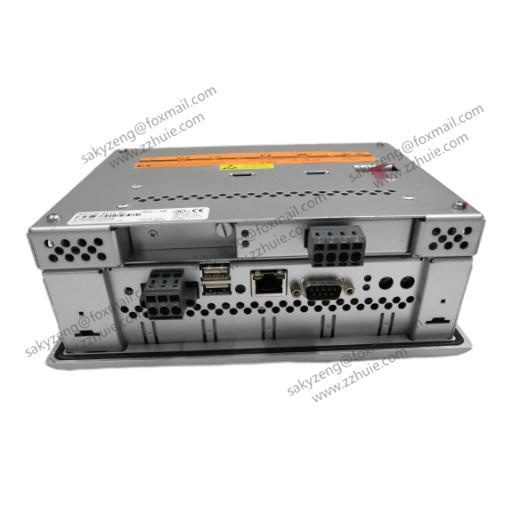

• Communication Interfaces: 1×10/100 Mbps Ethernet, 1×RS232, 2×USB 2.0, supporting industrial protocols such as Modbus RTU and EtherNet/IP113.
• Expansion: 1×APCI slot for communication modules or function cards, and CompactFlash (CF) slot for data storage114.
• Power Supply: 24 VDC (±25% tolerance), typical power consumption 12 W, maximum 17 W, with built-in overvoltage protection1.
• Mechanical Specifications: Metal housing, dimensions 150 mm×100 mm×50 mm, weight ~0.8 kg, compatible with DIN rail or panel mounting114.
• Environmental Parameters: Operating temperature 0°C to 50°C, storage temperature -20°C to 70°C, humidity 5%-95% (non-condensing), vibration resistance IEC 60068-2-6 (10-500 Hz)1.

Product Performance

• Integrated Design: Combines HMI interface and PLC control functions into a single unit, reducing system complexity and hardware costs. Programming is unified via B&R Automation Studio313.
• Reliable Communication: Supports multiple industrial communication protocols for seamless integration with PLCs, drives, and sensors, enabling real-time data transmission and remote monitoring13.
• Wide Temperature Operation: With an operating temperature range of 0°C to 50°C and IP65 protection, it ensures stable performance in high-temperature and dusty environments, suitable for factory floors and logistics warehouses114.
• Data Storage: Built-in CF card slot for storing historical data, recipe files, and system logs, facilitating data traceability and fault analysis1.
• Maintainability: Modular design allows quick replacement of faulty components, minimizing downtime. Program updates and configuration backups are 便捷 via USB 接口
