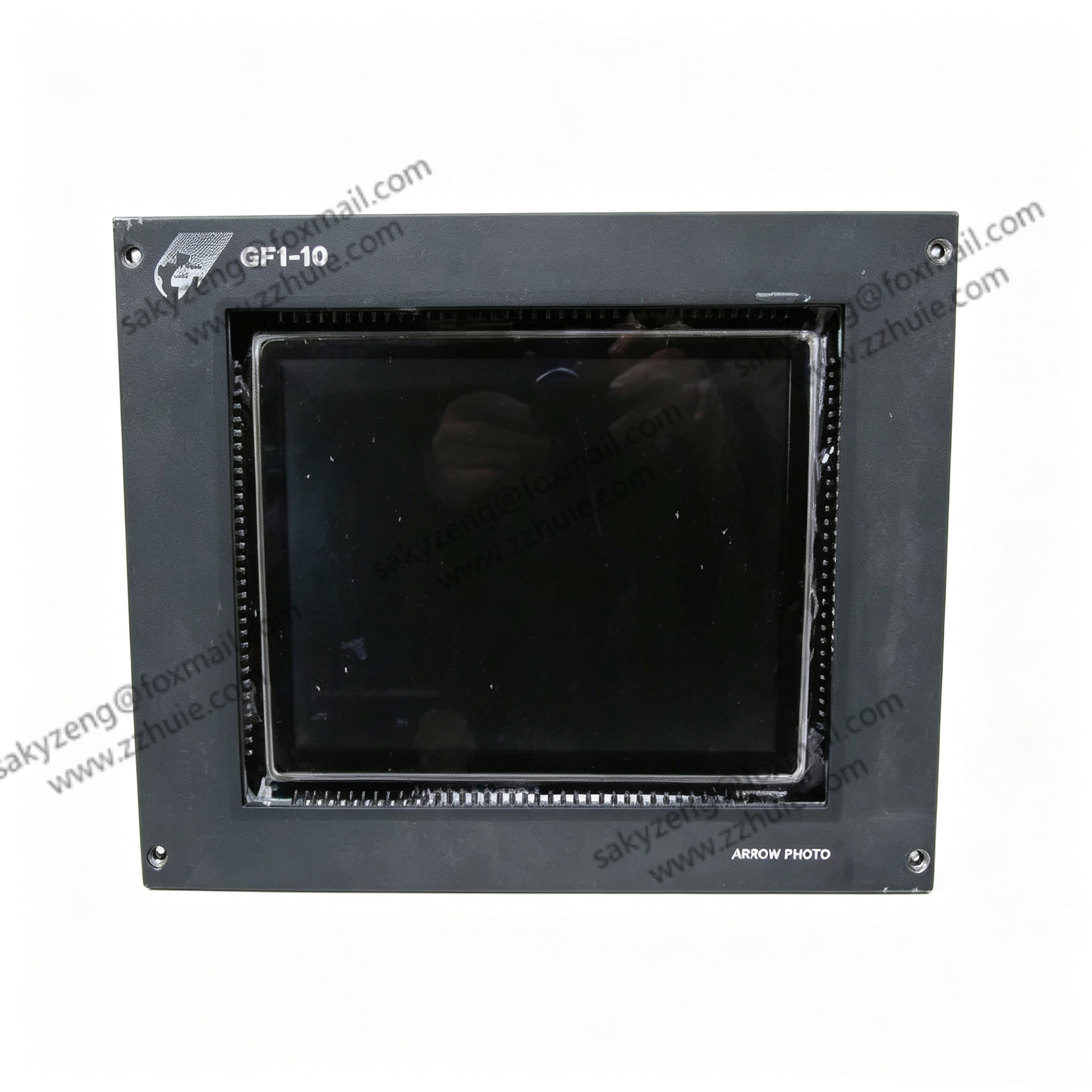

Eaton GF1-10TVD-102 10-inch Fanless Industrial Touch HMI Panel

Product Description

GF1-10TVD-102 belongs to Eaton MICRO PANEL GF series fanless touch screen, designed for factory and light hazardous process control.

It uses passive cooling without fan, equipped with resistive touch screen and multi communication ports including Ethernet, RS485 and USB. It supports Modbus TCP/RTU,

stores alarms and recipes via CF card, front IP65 dustproof & waterproof, ATEX Zone22 certified, conformal coated PCB as standard replacement spare for packaging and chemical control cabinets.

Technical Specifications

Model: GF1-10TVD-102, Brand: Eaton

Display: 10-inch TFT color resistive touch screen

Cooling: Fanless passive convection cooling

Power Supply: 24VDC wide range DC input

Communication Interfaces

Dual RJ45 Ethernet ports

RS232 / RS485 serial terminals

USB host port for program upload/download

Internal CF card storage slot

Supported Protocols: Modbus TCP, Modbus RTU, Profibus DP

Protection Grade: Front IP65, rear IP20

Safety Certification: ATEX Zone 22, CE, UL

Operating Temperature: -10℃ ~ +55℃ full load

Storage Temperature: -20℃ ~ +70℃

Humidity: 5%–95% non-condensing, conformal coated PCB

Mounting: Cabinet door embedded installation

Net Weight: Approx. 1.5kg

Shell Material: Aluminum alloy front frame, industrial plastic rear housing

Key Features

Fanless passive cooling design eliminates fan failure risk for dusty workshop long-term operation.

10-inch resistive touch supports glove operation, clear display under strong light control room environment.

Multi-protocol communication ports connect Eaton PLC, inverters and third-party field instruments.

Built-in CF card local storage records historical alarms, trend curves and batch production recipes.

ATEX Zone22 explosion-proof certification applicable to light dust hazardous production workshops.

Front IP65 dustproof and splash-proof design resists industrial dust and liquid splashing.

Compact embedded cabinet door installation, easy one-to-one spare replacement on site.

Anti-vibration conformal coated PCB ensures stable 24/7 continuous operation.
