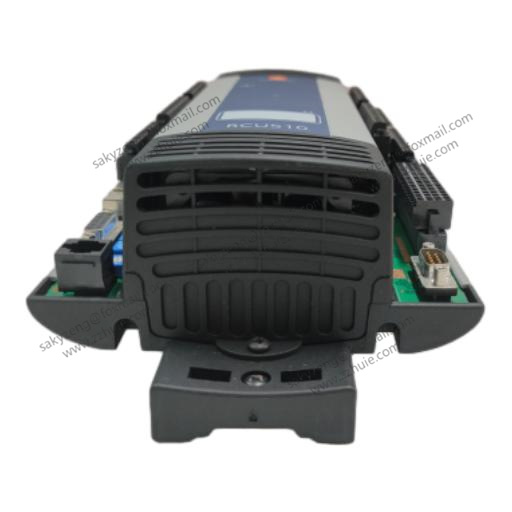

KONGSBERG RCU510 Remote Control Unit
| Parameter | Technical Specifications |
|---|
| Processor | 32-bit CPU running at 400MHz, supporting real-time data processing and multitasking15. |
| Memory | 32MB 64-bit SDRAM (with ECC) and 16MB flash memory for program storage and data caching5. |
| Power Supply | 24V DC (±15%), typical power consumption 20W, with wide voltage adaptability15. |
| I/O Channels | 20 configurable I/O channels (AI/AO/DI/DO) supporting current, voltage, PT100, and potentiometer signals; 4 relay outputs5. |
| Communication Interfaces | 7 RS-232/422/485 serial ports (2 isolated), dual Ethernet (10/100Mbps), and dual CAN/Pro bus interfaces (with adapter cards)5. |
| Operating Temperature | -20°C to 60°C, suitable for harsh industrial environments15. |
| Protection Level | IP20 (indoor), with optional modules for dust or moisture resistance5. |
| Dimensions | 425mm×885mm×748mm (with mounting bracket), weight ~14.55kg5. |
The KONGSBERG RCU510 is a remote control unit designed for industrial automation and marine equipment control, integrating high-performance processing and multi-protocol communication to enable precise remote monitoring and control of machinery15. Key features include:
- Multi-Scenario Adaptability: Supports remote data acquisition and command execution in marine automation systems, industrial robotics, and material handling equipment. Wireless communication enhances operational safety by reducing human exposure to hazardous areas15.
- Flexible Expansion: Offers extensive I/O channels and configurable interfaces compatible with analog, digital, and bus protocols. Expandable via adapter cards for CAN, Profibus, and other industrial buses to meet complex integration needs5.
- Reliability: Utilizes low-power architecture (20W typical), wide temperature range (-20°C to 60°C), and IP20 protection. Self-diagnostic capabilities ensure stable operation in high-temperature, vibration-prone environments15.
- User-Friendly Design: Features an intuitive HMI for parameter adjustment, real-time status monitoring, and fault alerts, minimizing operational complexity and maintenance costs5.
Part of KONGSBERG’s marine equipment control module series, the RCU510 complements models like RCU501 and RCU502, with applications spanning marine power systems, industrial production lines, and port automation
![]()
