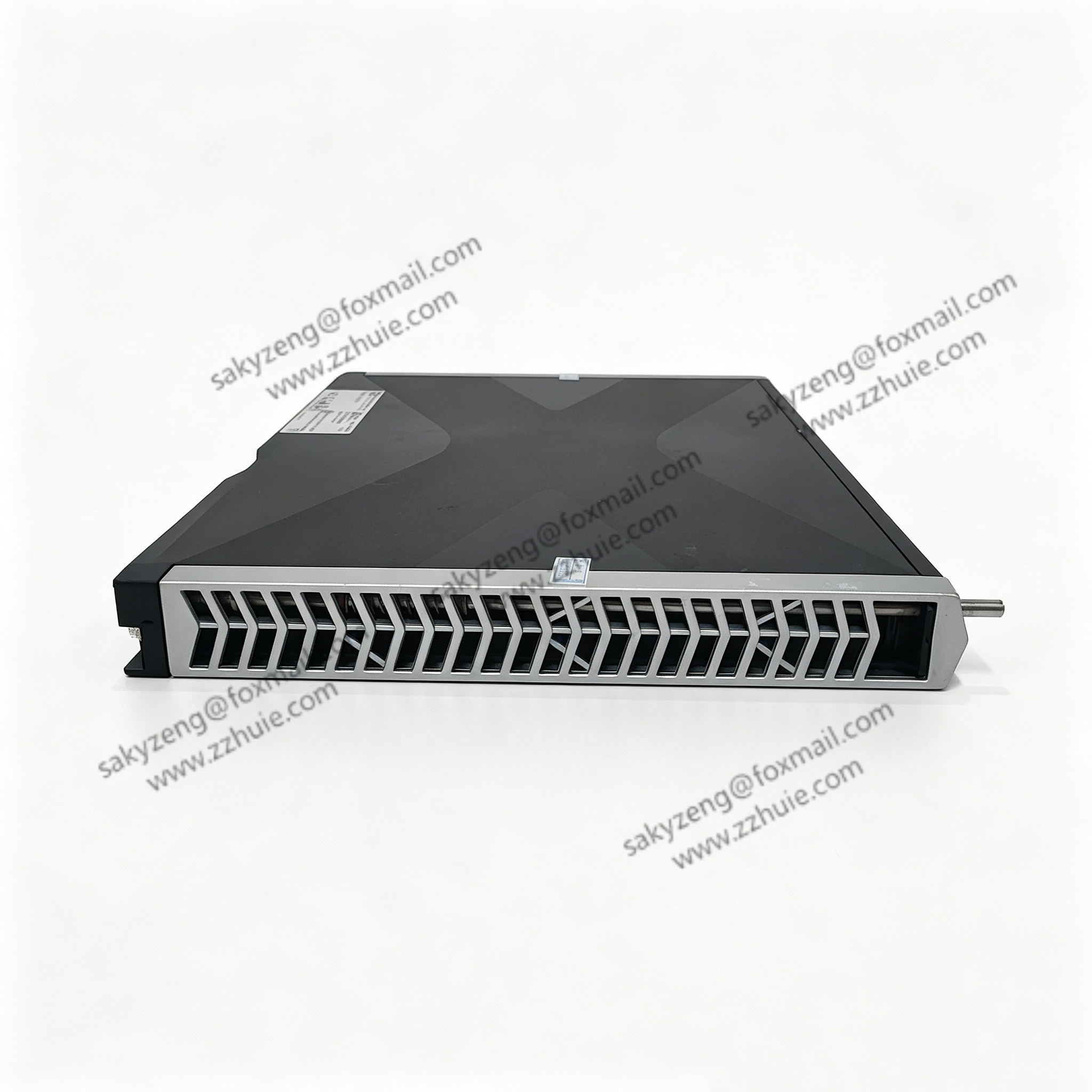

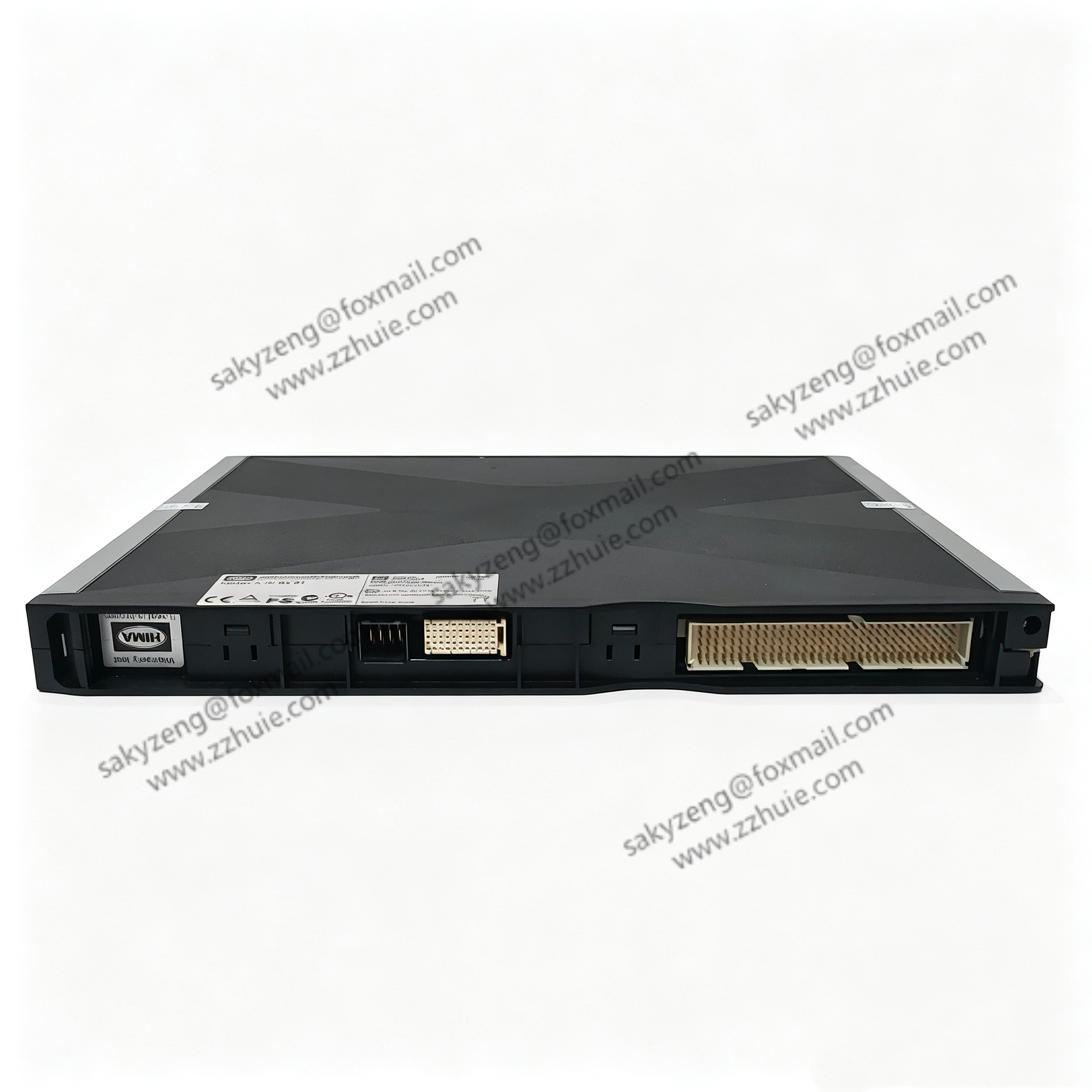

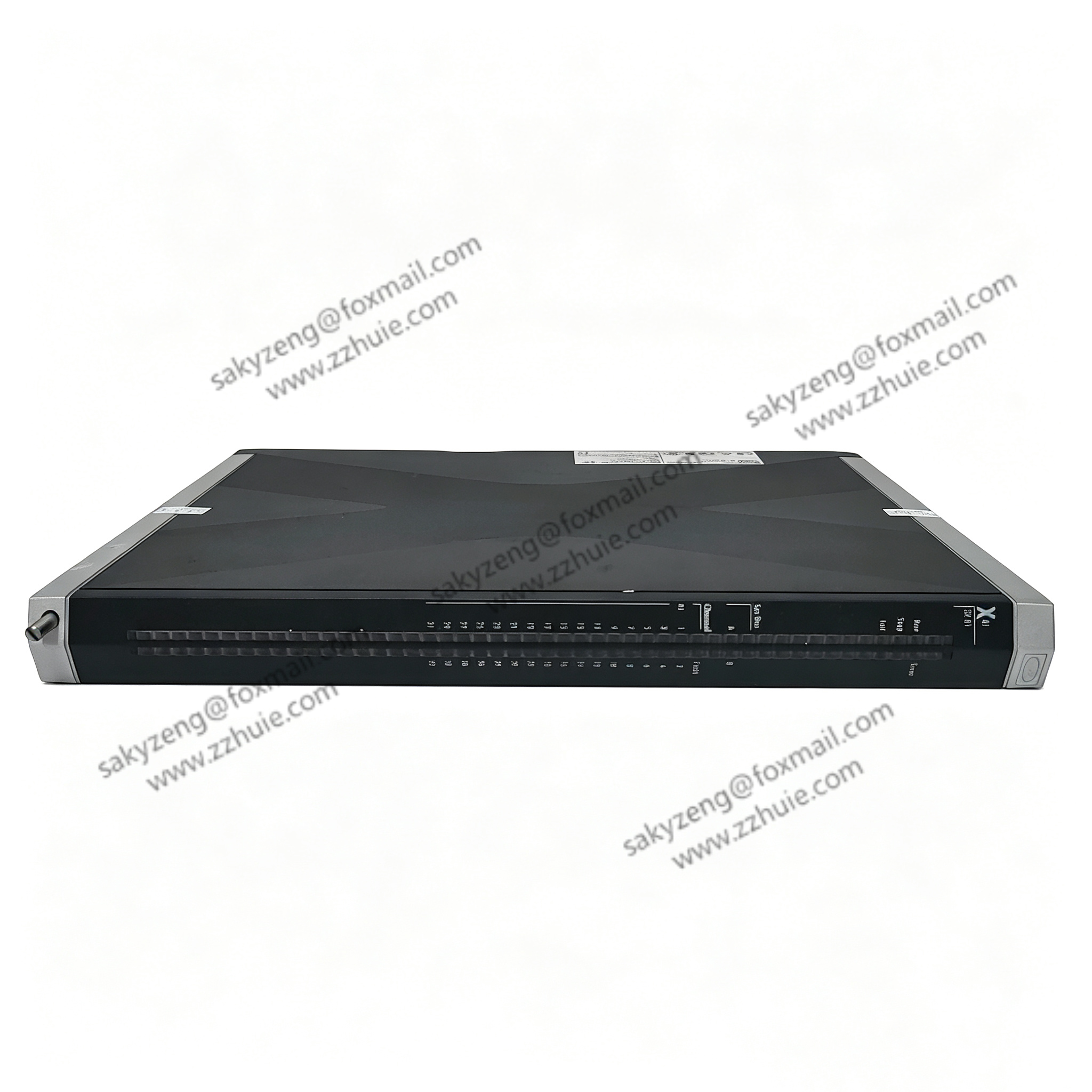

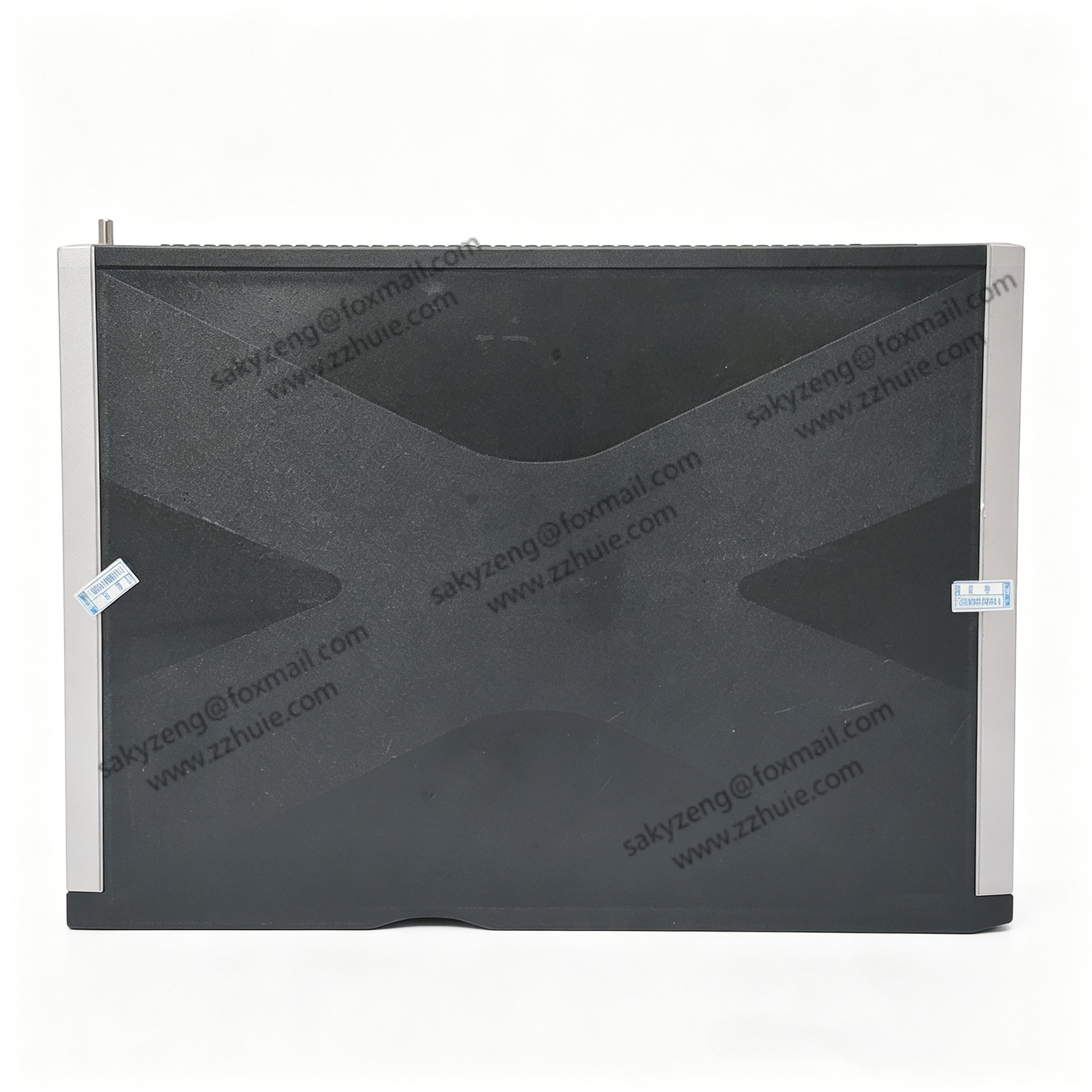

HIMA X-AI3201 32-Channel SIL3 HART Analog Input Module

Product Description

X-AI3201 is HIMA X-series high-density safety analog input module for H51q/H41m safety controllers.

It collects 4–20mA HART signals from pressure, temperature and flow transmitters, each channel with independent isolation and sensor fault diagnosis. Connects to main CPU

via dedicated X-Bus safety bus, conformal coated PCB, single-slot rack plug-in design, core spare for ESD, FGS and SIS safety instrument systems.

Technical Specifications

Model: X-AI3201, Brand: HIMA, Origin: Germany

Input Channels: 32 independent analog input channels

Supported Signal: 4–20mA with transparent HART communication

Measurement Accuracy: ±0.05% full scale

Safety Grade: SIL3 IEC61508, PL e ISO13849

Communication Bus: HIMA X-Bus safety real-time bus

Channel Protection: Per-channel galvanic isolation, wire break & overrange detection

Power Supply: 24VDC rack backplane power supply

Operating Temperature: -20℃ ~ +60℃ full load

Storage Temperature: -40℃ ~ +85℃

Humidity: 5%–95% non-condensing, conformal coated PCB

Protection Class: IP20 cabinet installation only

Mounting: Standard single slot plug-in for X-series safety rack

Net Weight: Approx. 1.4kg

Certifications: CE, TÜV safety certification

Key Features

32-channel high-density layout reduces rack occupation for large-scale SIS measurement points.

Built-in HART demodulator reads transmitter diagnostic data without extra gateway equipment.

Independent channel isolation eliminates ground loop interference and cross-channel signal crosstalk.

Full self-diagnosis detects open circuit, short circuit and signal overrange for safety interlock alarm.

TÜV certified SIL3 safety integrity, applicable to high-risk petrochemical and power plant ESD systems.

Dedicated X-Bus synchronous bus ensures real-time safe data transmission between I/O and safety CPU.

Front panel LED indicators display channel running and fault status for fast on-site troubleshooting.

Anti-vibration coated PCB and rugged metal housing, stable 24/7 continuous safety system operation.
