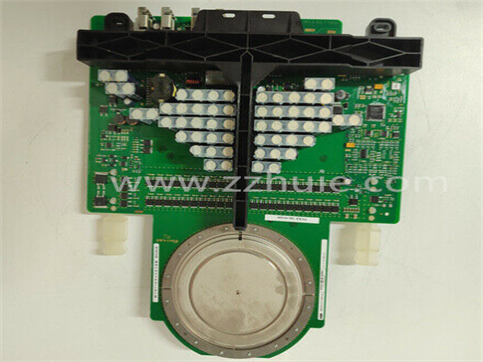

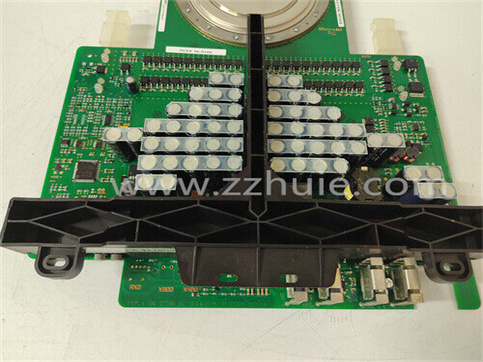

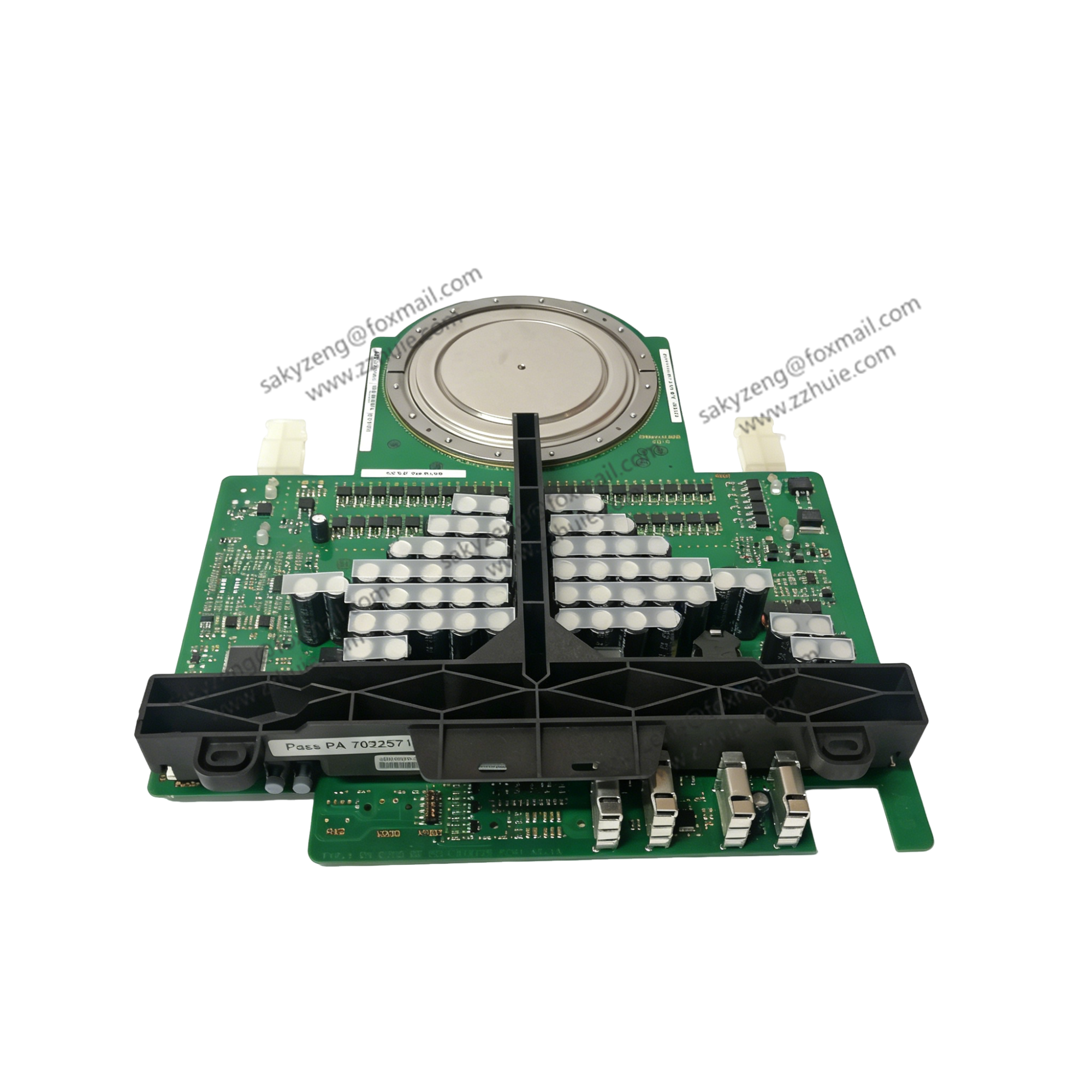

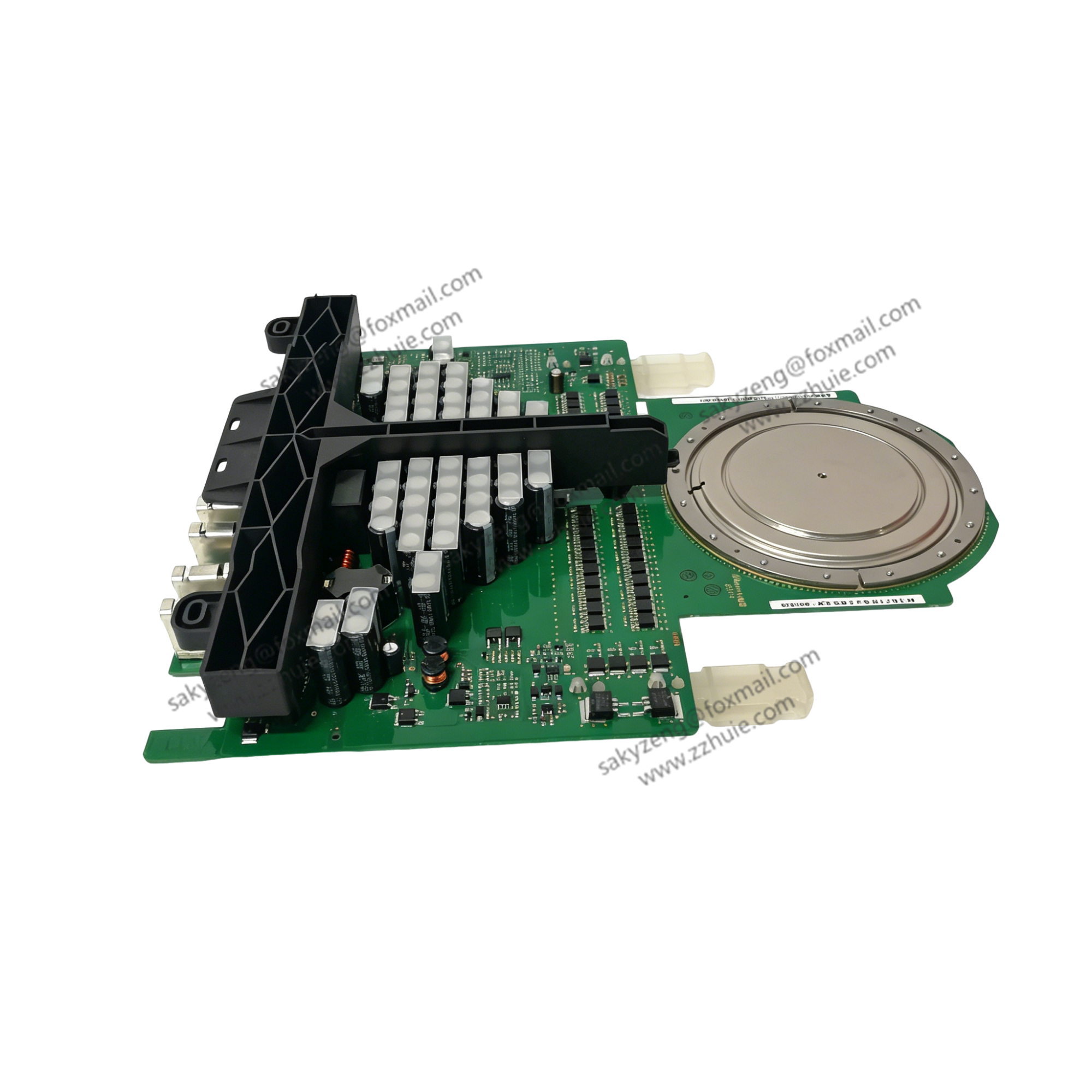

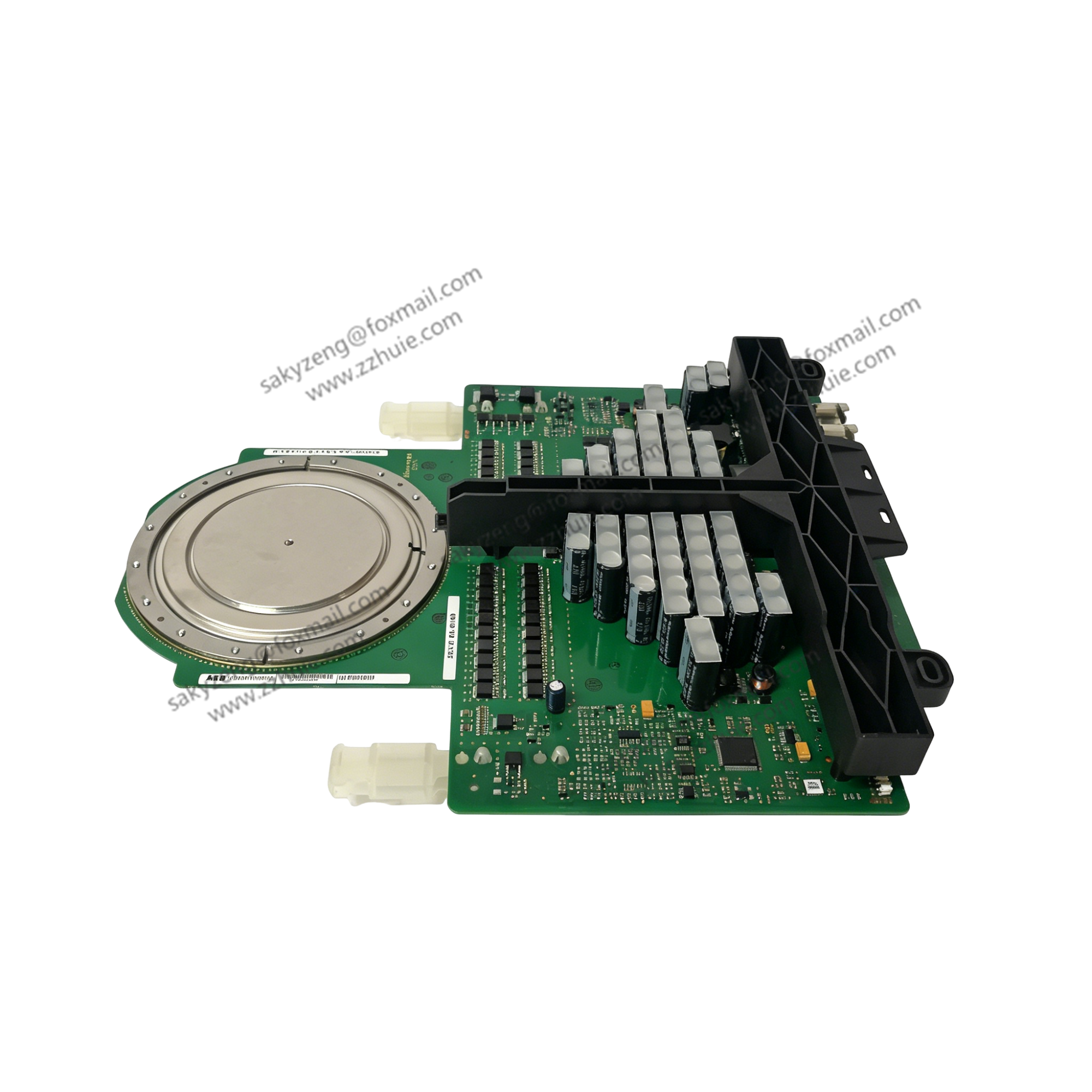

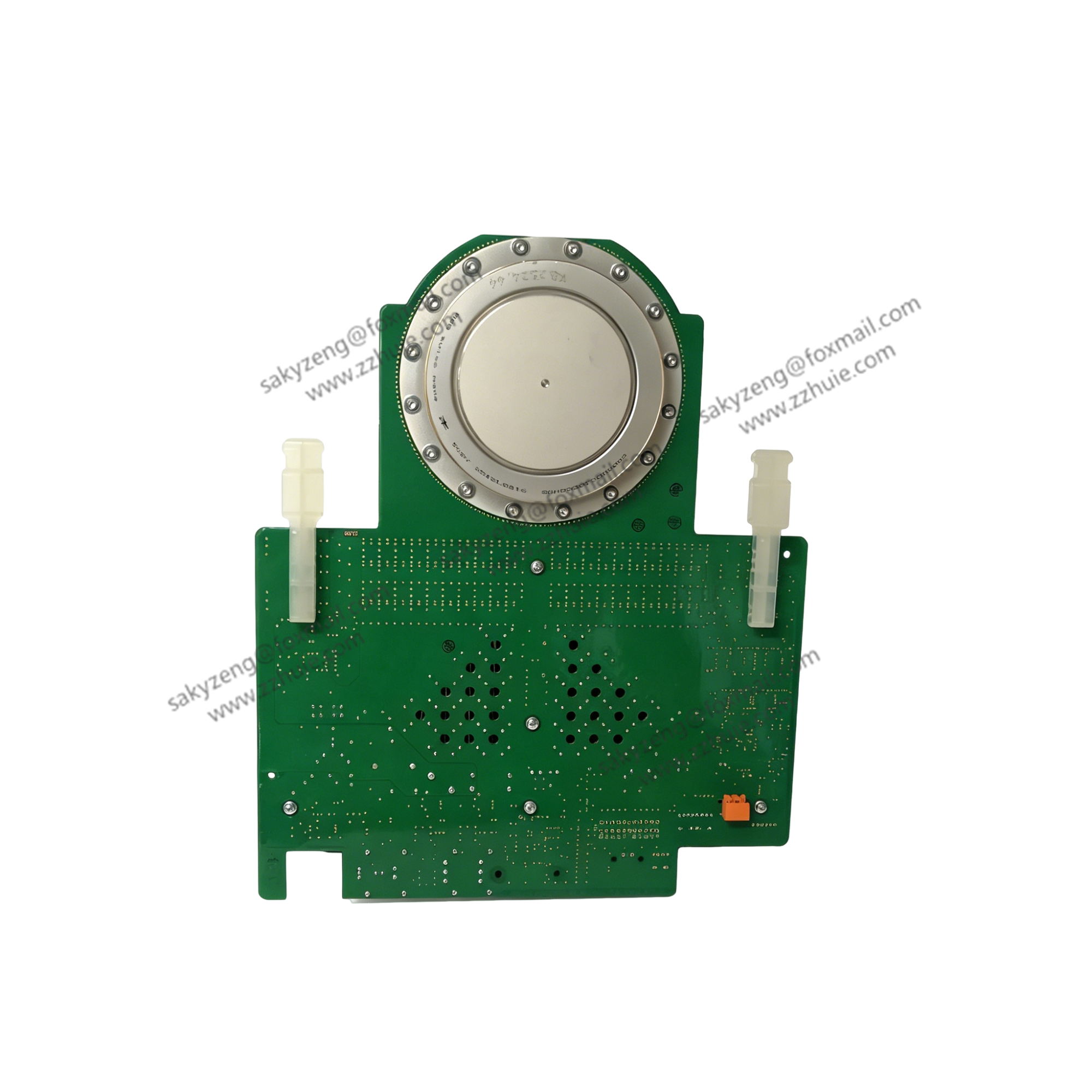

ABB 5SHY3545L0016 3BHB020720R0002 Integrated Gate Commutated Thyristor(IGCT) Power Module

5SHY3545L0016 is ABB high-power IGCT module integrated with built-in gate driver circuit, matched with control board 3BHB019719R0101/GVC736BE101.

It combines low conduction loss of thyristor and fast switching performance of IGBT, widely used in medium voltage inverter, high-power frequency converter,

HVDC and wind power converter for power switching and energy conversion in power plant, metallurgy and new energy industry.

3. Technical Specifications

• Part Number:5SHY3545L0016, paired PN:3BHB019719R0101、GVC736BE101
• Manufacturer:ABB
• Device Type:IGCT Integrated Power Module with Gate Drive
• Rated DC Voltage:4400V
• Rated Turn-off Current:1850A
• Max Peak Withstand Voltage:9000V
• Working Power Supply:24VDC±10% for driver board
• Operating Temperature:-40℃ ~ +70℃
• Storage Temperature:-40℃ ~ +85℃
• Module Dimension:240×180×60mm
• Net Weight:Approx 2.8kg
• Certification:CE,IEC,SIL3 Safety Grade
