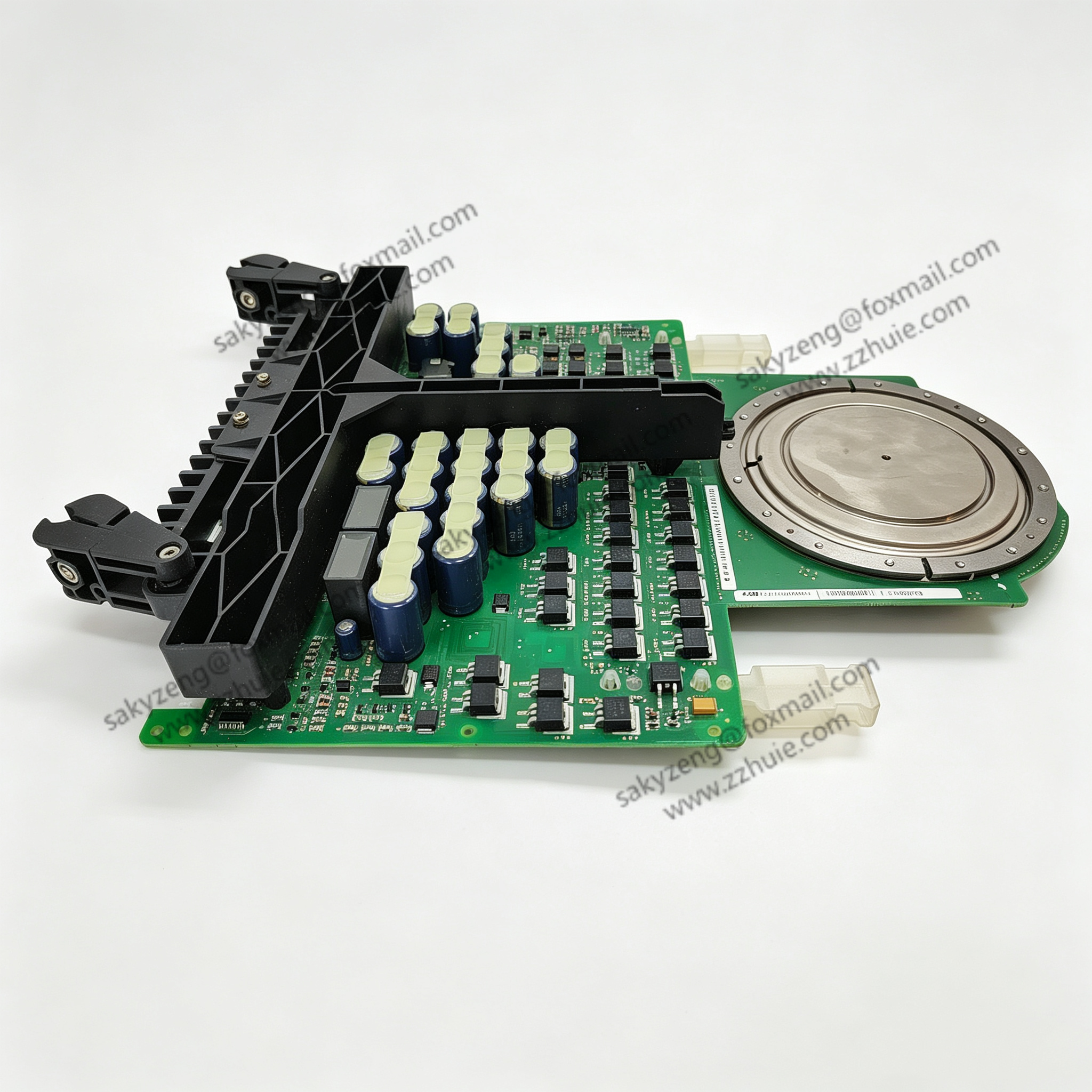

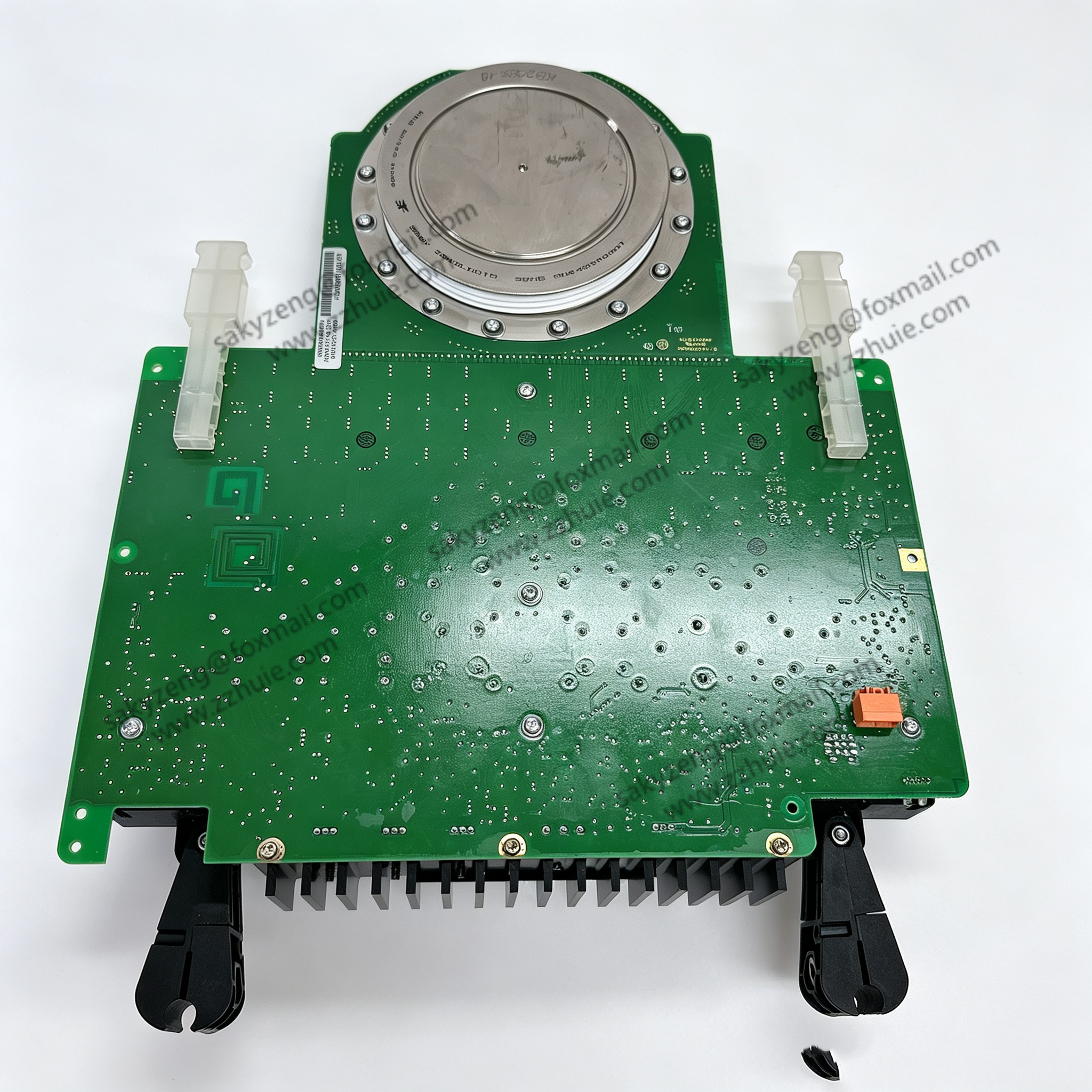

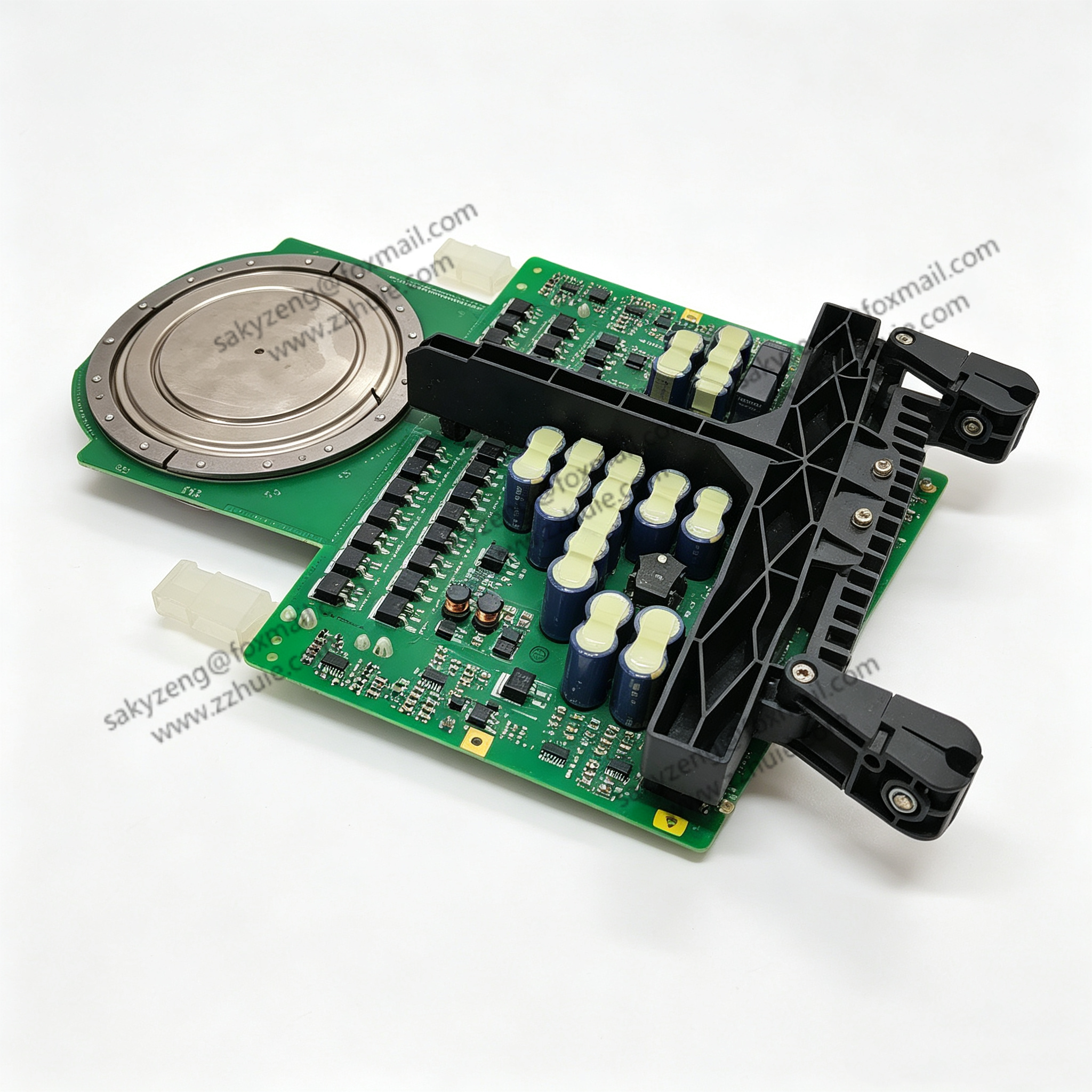

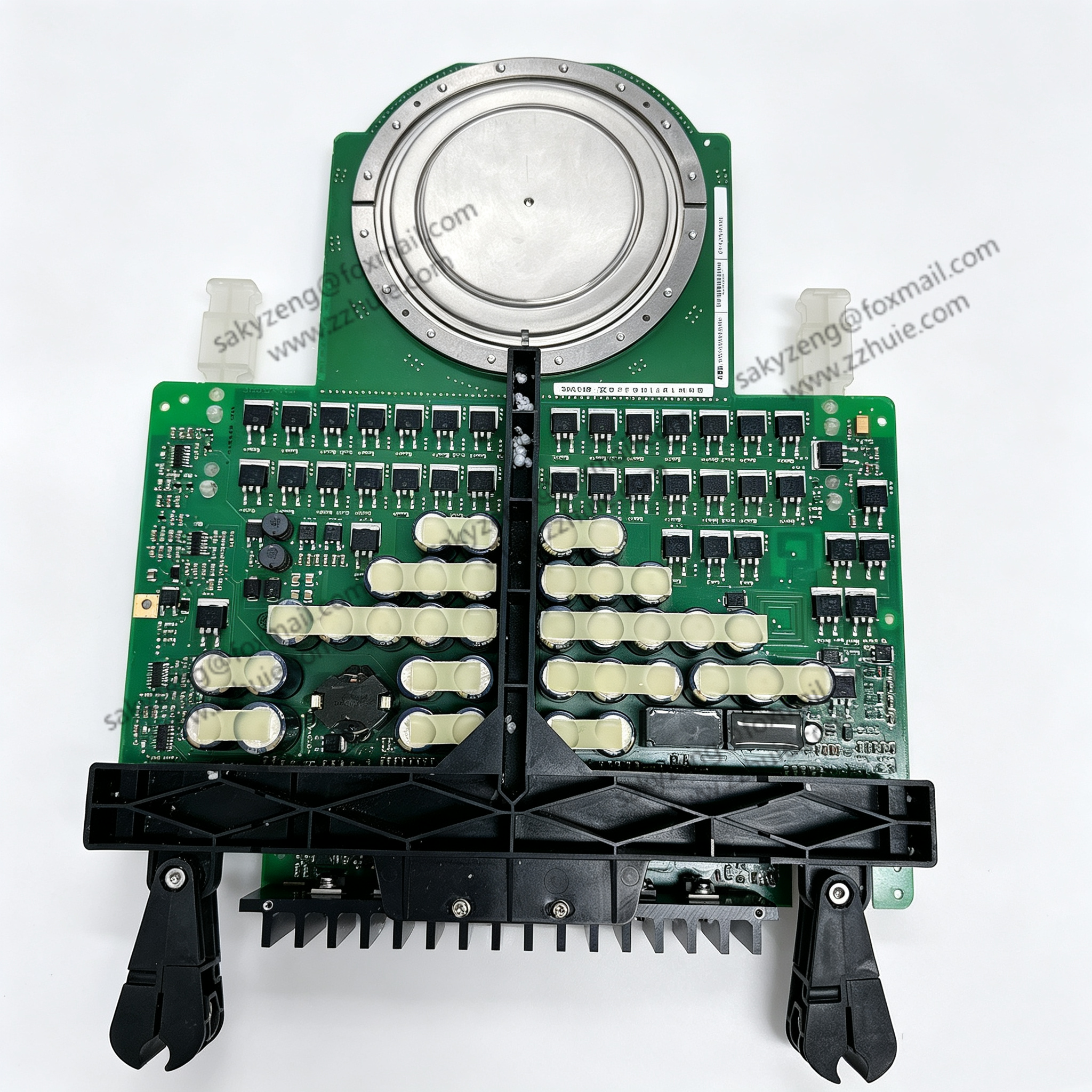

ABB 5SHY3545L0010 3BHB013088R0001 High Power Press-pack IGCT Module

Product Description

5SHY3545L0010 (3BHB013088R0001) is ABB high-performance integrated gate-commutated thyristor (IGCT) press-pack power module. It integrates IGCT chip, anti-parallel

freewheeling diode and gate drive interface, designed for medium voltage power conversion equipment. It features snubberless operation, fast controllable turn-off and low conduction loss,

widely adopted in medium voltage inverters, static var compensators and energy conversion systems.

Technical Specifications

• Rated blocking voltage: 4500V
• Repetitive peak current: 3500A
• Package: Press-pack housing
• Max junction temperature: 125°C
• Cooling: Liquid cooling / forced air cooling
• Optical fiber gate control interface

• Origin: Switzerland

•

Key Features
