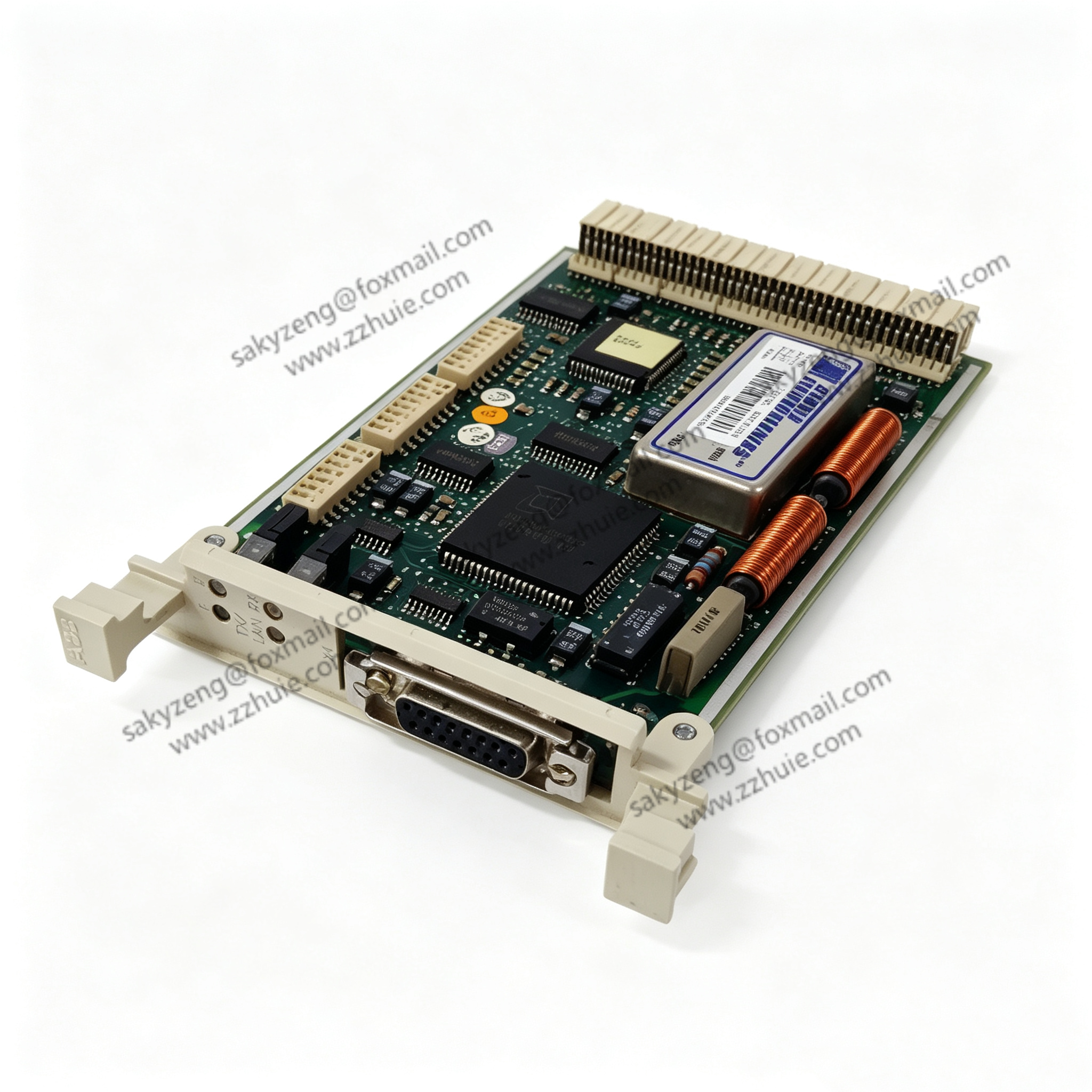

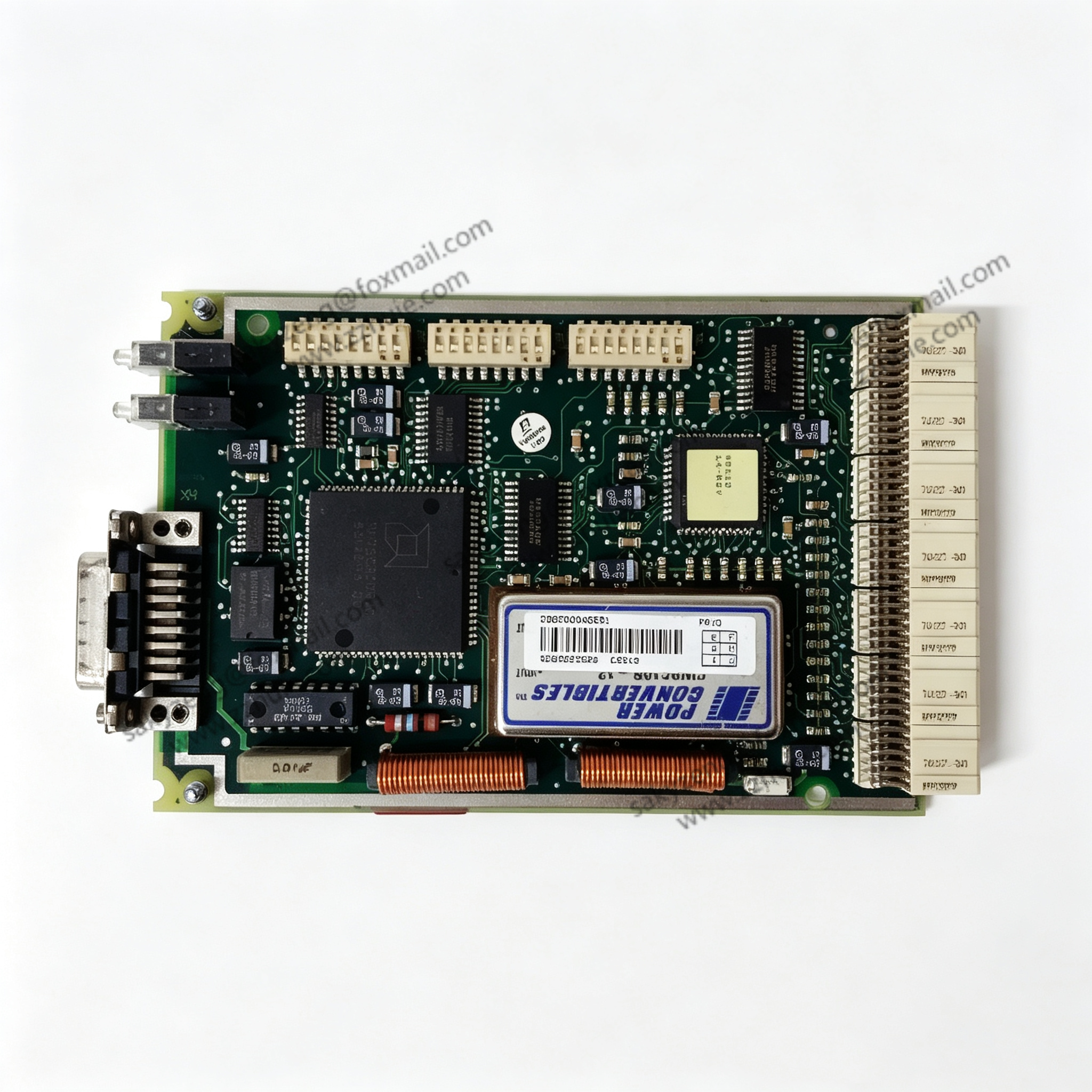

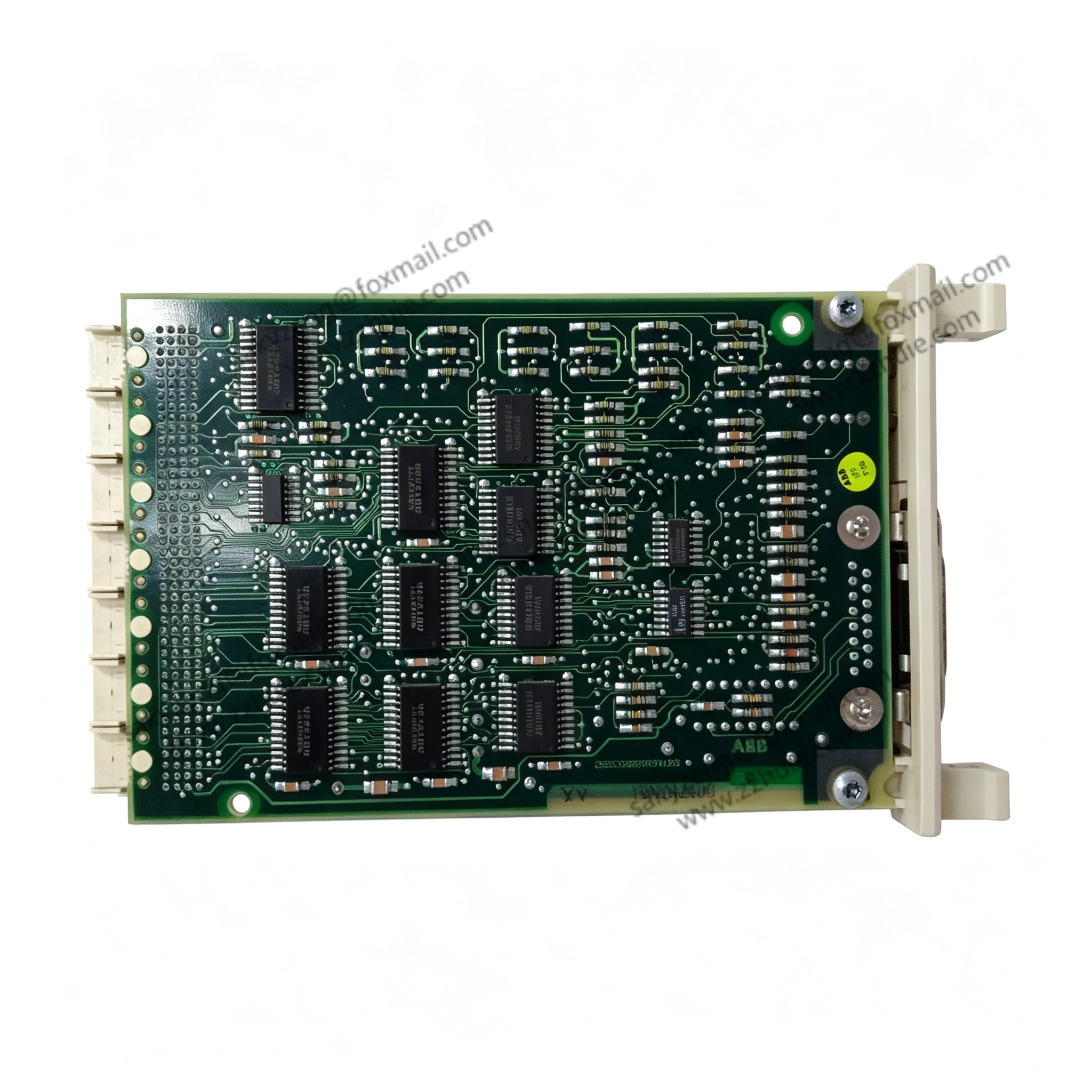

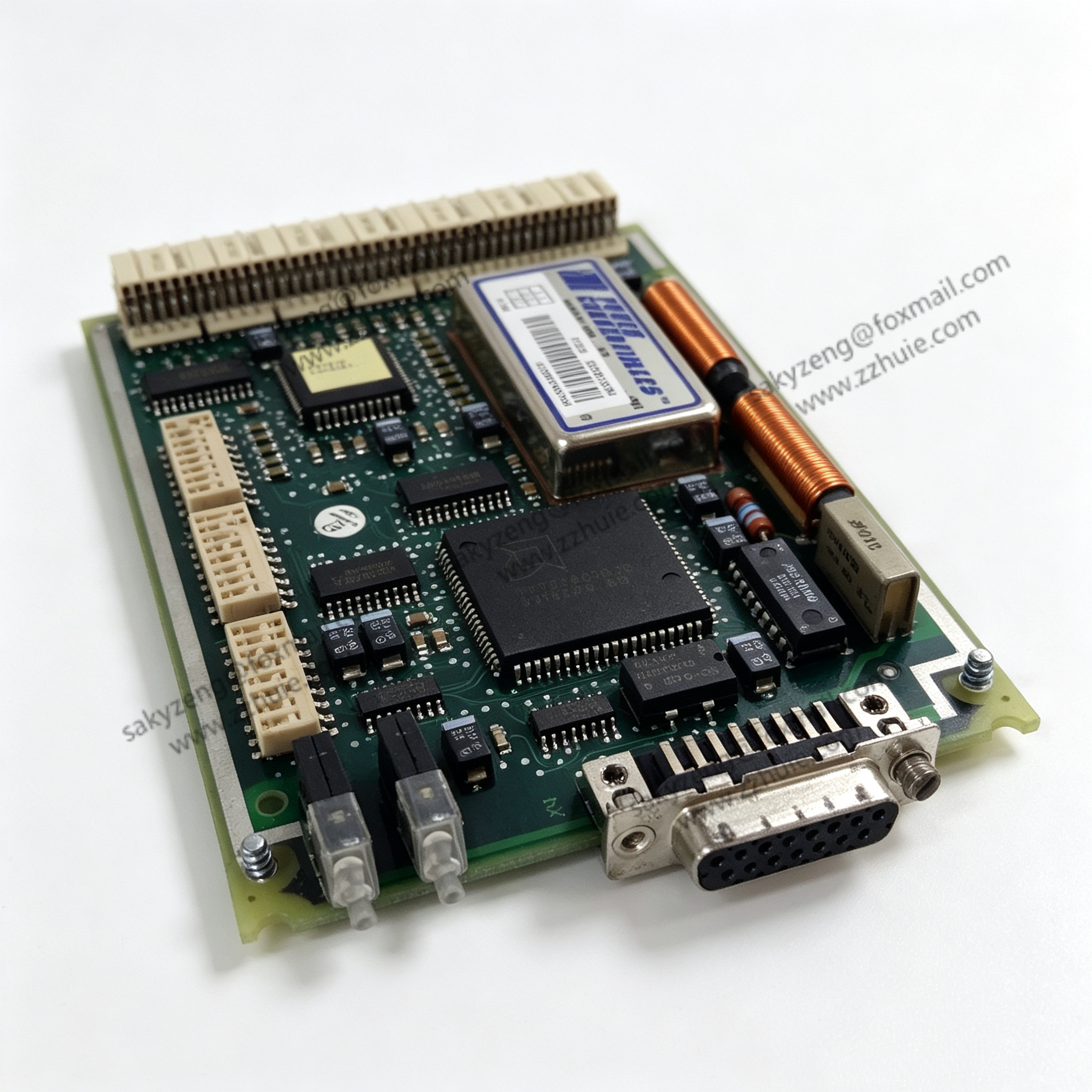

ABB CS513 3BSE000435R1 IEEE 802.3 LAN Communication Module

Product Description

Technical Specifications

• Model: CS513, ABB Material No.: 3BSE000435R1
• Brand: ABB, Origin: Switzerland
• Standard: IEEE 802.3 LAN communication standard
• Bus Mode: MasterBus 300 / MasterBus 300E selectable
• Compatible Controller: AC410, AC450, AC460 Advant Controller
• Installation Method: Plug-in slot inside controller rack
• Power Supply: Supplied through backplane bus
• Power Consumption: Max 8W
• Operating Temperature: -25℃ ~ +55℃
• Storage Temperature: -40℃ ~ +85℃
• Ambient Humidity: 5%–95% non-condensing environment
• Protection Class: IP20 (for cabinet internal installation)
• Net Weight: Approx. 0.20kg

• Certifications: CE, IEC industrial EMC certification

•

Key Features

1. Complies with IEEE 802.3 industrial Ethernet standard, stable and reliable data transmission.
2. Supports MasterBus 300 / 300E dual bus modes, flexible configuration via DIP switch.
3. Dedicated design for ABB Advant OCS AC400 series controllers, seamless system matching.
4. Compact plug-in structure, easy installation and replacement inside controller rack.
5. Complete hardware self-diagnosis function, LED indicator for rapid fault location.
6. Excellent industrial anti-electromagnetic interference performance, adapting to harsh control room environment.
7. Realizes communication connection between controller, SCADA host and distributed control nodes.

8. Long lifecycle legacy DCS spare part, widely applied in traditional process industry upgrading and maintenance.
