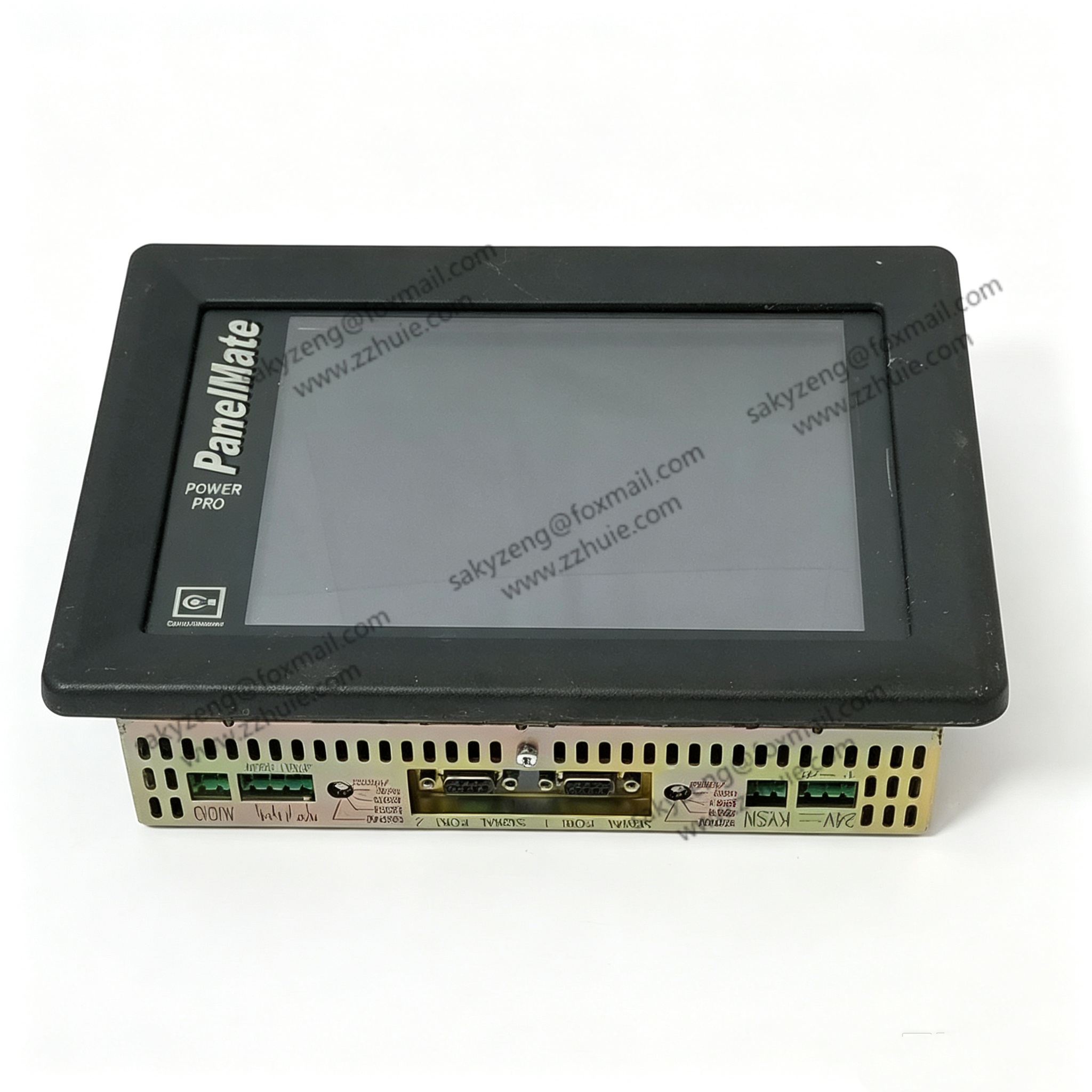

Cutler‑Hammer 1785T‑PMPP‑1700 8‑inch Industrial HMI Touch‑Screen

Product Description

Technical Specifications

• Full Model:1785T‑PMPP‑1700, part‑code 92‑01942‑01
• Brand: Cutler‑Hammer (Eaton Corporation), Origin: United‑States
• Product Series: PanelMate PowerPro 1700
• Display Screen: 8‑inch TFT color‑display, 640 × 480 resolution
• Touch‑screen Type: 4‑wire analog resistive touch panel, glove‑operable
• Rated Supply Voltage: 24 VDC
• Rated Operating‑Current:1.1 A, Max. Power Consumption 28 W
• On‑board Memory:32 MB RAM +128 MB Flash storage
• Serial Interfaces: Dual configurable RS232 / RS422 / RS485 ports
• Optional Expansion Cards: Modbus‑Plus, Profibus‑DP, DeviceNet, DH+ communication adapter
• Installation Method: Cabinet panel flush‑mount installation
• Front‑panel Protection Rating: IP65
• Operating‑Temperature:‑10℃ ~ +55℃
• Storage‑Temperature:‑40℃ ~ +85℃
• Ambient Humidity:5%–95% non‑condensing industrial‑grade
• Net Weight: Approx.1.3 kg
• Certifications: CE, UL, RoHS‑compliant, industrial EMC certification

Key Features

1. 8‑inch high‑definition TFT screen delivers clear data‑reading under complicated workshop‑site lighting conditions.
2. Wear‑resistive resistive touch panel supports operation with thick work‑gloves.
3. Multiple optional field‑bus adapters enable communication with mainstream‑brand PLC hardware.
4. Dual configurable serial ports satisfy multi‑device serial‑bus data‑transmission demands.
5. IP65 waterproof‑and‑dust‑proof front‑panel fits humid and dusty factory environments.
6. Abundant flash‑memory space for storing operating‑recipes, historical‑fault logs and screen‑project files.
7. Compact flush‑mounted housing saves inner‑cabinet installation‑space.
8. Mature‑built hardware‑self‑diagnosis function accelerates daily inspection and breakdown troubleshooting.
