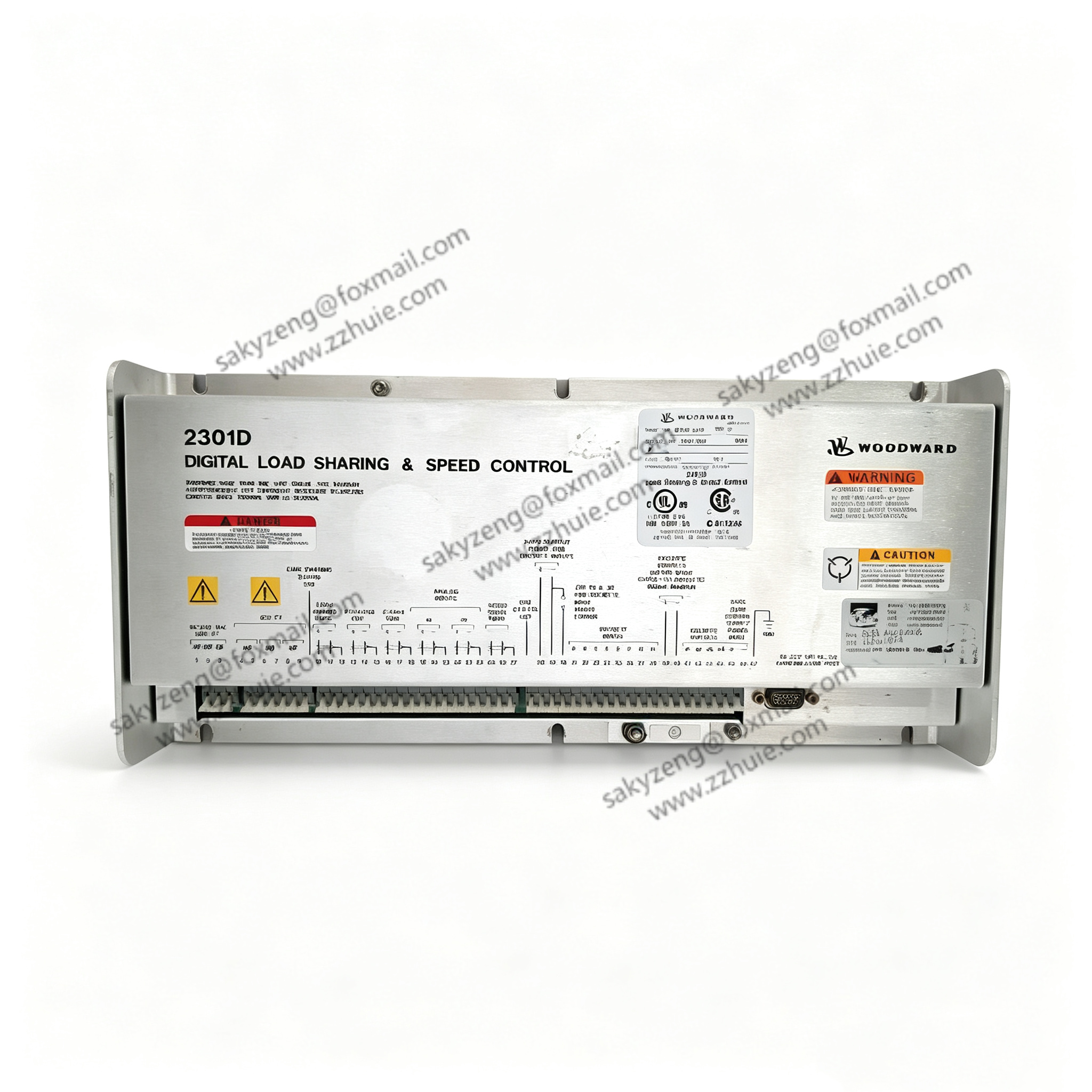

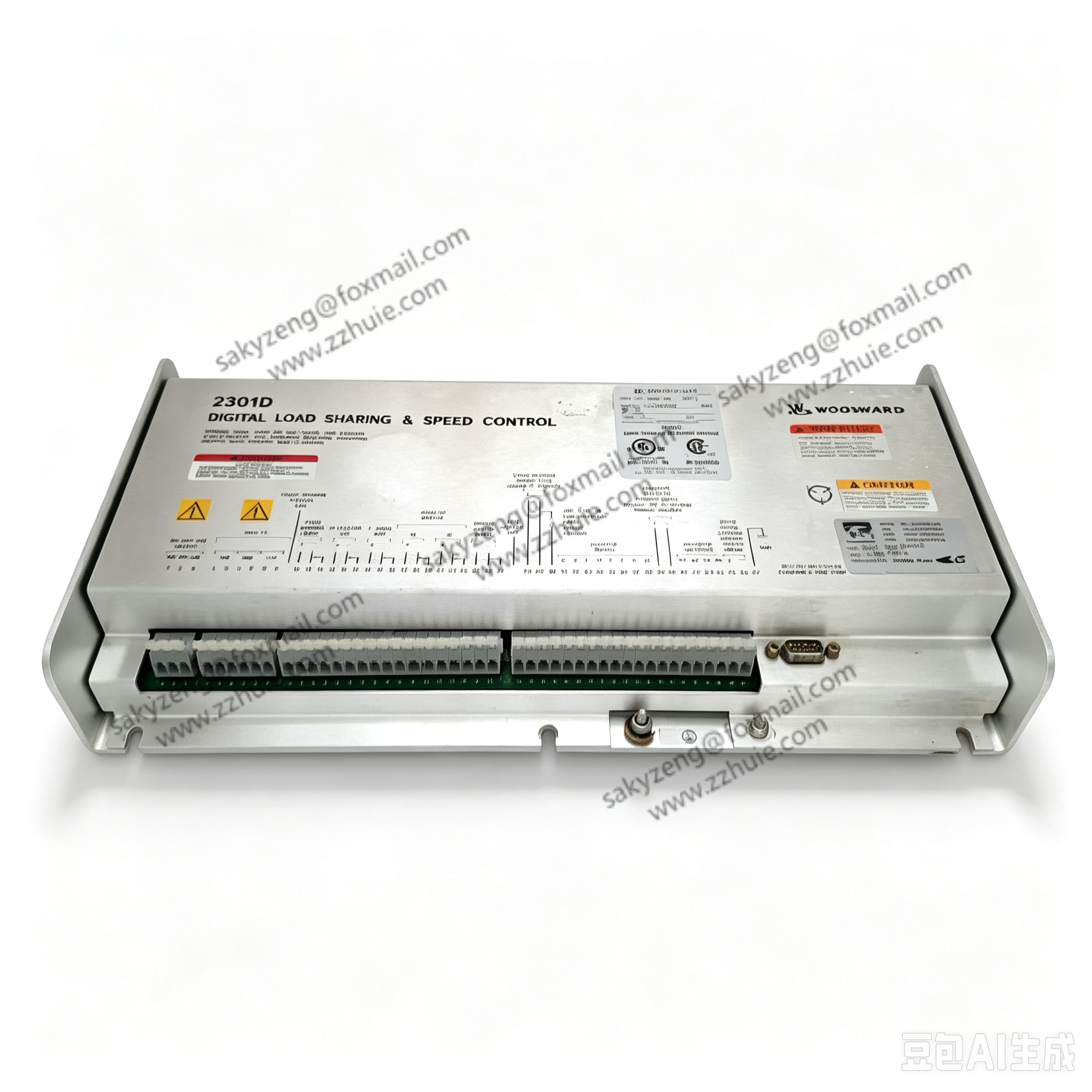

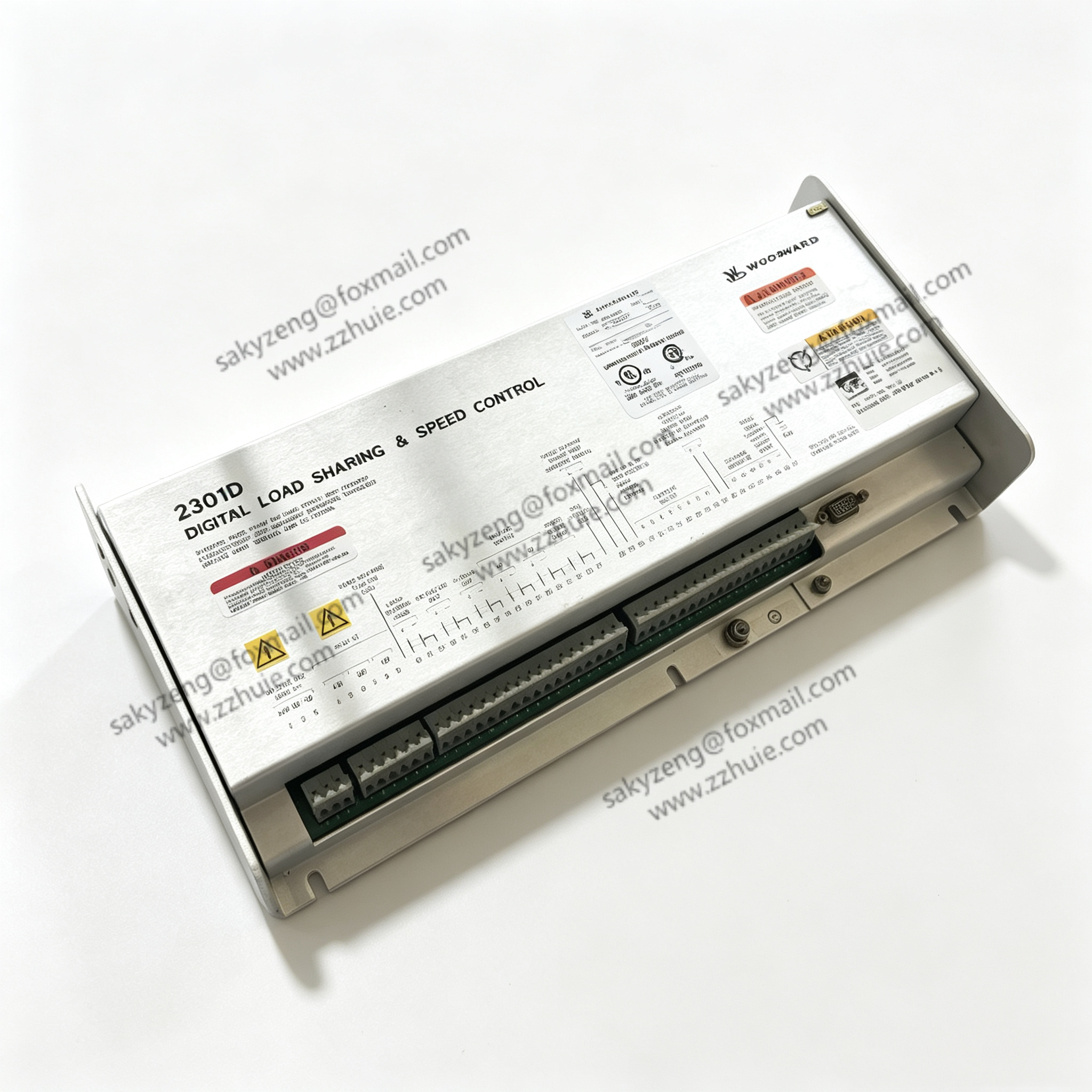

Woodward 8273‑140 2301D‑EC Digital Speed and Load‑Sharing Controller

Product Description

8273‑140 is the 2301D‑EC microprocessor‑based digital governor from Woodward. It is specially designed for generator‑sets driven by diesel engines, gas engines and turbines.

The unit executes closed‑loop speed regulation and parallel generator load distribution, supports parameter configuration through upper‑computer software, and can adapt to multiple engine

speed ranges. The sturdy metal chassis delivers shock‑resistant performance for power‑plant and marine harsh‑condition working environments.3. Technical Specifications

Full Model: 8273‑140

Brand: Woodward, Origin: United‑States

Product Series: 2301D‑EC governor series

Operating Power Supply: 18‑32 VDC, rated 24 VDC

Adjustable Speed Range: 50‑10000 RPM

Speed‑control Precision: ±0.1%

Droop Setting Range: 0‑10 % adjustable

Actuator Output: 0‑10 VDC analogue control signal

Communication Interface: RS232, RS485, Modbus‑RTU protocol

Installation Type: Wall‑mount metal casing

Operating‑Temperature: ‑20℃ ~ +70℃

Ambient Humidity: 5%–95% non‑condensing

Built‑in Protection: over‑voltage, under‑voltage, over‑temperature and fault diagnosis

Certifications: CE, UL, industrial EMC certification

Key Features

High‑precision PID closed‑loop speed stabilisation and multi‑generator‑set load‑sharing management

Optimised speed‑signal filter, anti‑vibration and anti‑interference for magnetic pickup pulse signals

Flexible software parameter setup without hardware modification

Complete built‑in self‑diagnosis and real‑time fault‑alarm function

Shock‑proof aluminium‑alloy housing, fit for marine, oil‑field and stationary power‑generation equipment

Stable analogue actuator drive output for fuel‑control actuators

Convenient serial‑port debugging and data‑monitoring function

Compact wall‑mounted structure, easy for cabinet installation and maintenance
