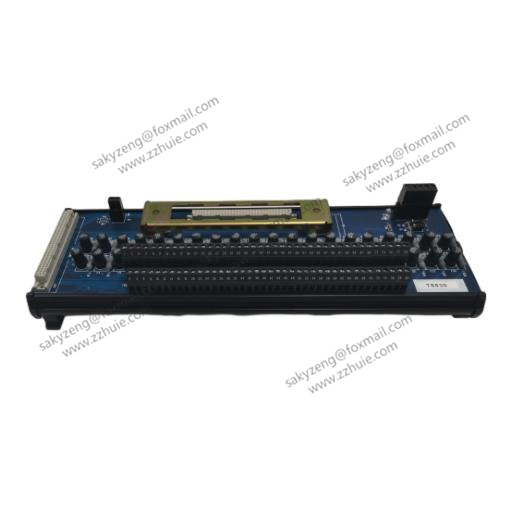

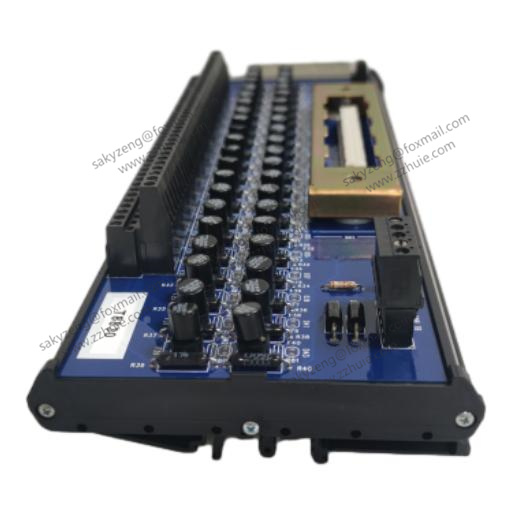

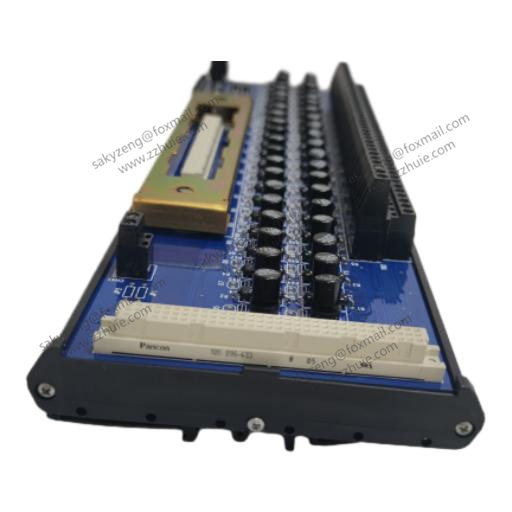

ICS Triplex T8830 Module

（I）Core Technical Specifications

1. Core Interface & Channel Parameters

• Number of Channels: 40 independent analogue input channels, supporting multi-channel parallel data transmission to meet the signal acquisition needs of medium and large-scale systems
• Connection Method: Supports industry-standard 2-wire field device connections, adapting to common analogue signal type field devices such as 4-20mA or 0-10V
• Channel Protection: Equipped with fused field power supply for each channel, fusing current 50mA per loop, effectively protecting field devices and system safety
• Special Interface: Integrates SmartSlot connection interface, supporting "one-to-many" hot replacement of input modules without interrupting system operation during replacement
• Signal Isolation: An electrical isolation design is adopted between channels and the system, the isolation voltage meets industrial safety standards, effectively suppressing Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), and ensuring the stability of analogue signal transmission and the accuracy of data acquisition

2. Environmental & Physical Parameters

• Environment: Operating temperature range 0℃~+60℃, storage temperature -25℃~+70℃; Relative humidity 10%-95%RH (non-condensing); Vibration resistance complies with IEC 60068-2-6 standard, shock resistance complies with IEC 60068-2-27 standard, adapting to harsh industrial environments with high dust, high humidity and strong interference
• Physical Specifications: Standard DIN rail compatible design, dimensions (H×W×D) approximately 31.8mm×168mm×147mm, weight approximately 0.9kg, compact structure saving installation space
• Power Input: 24V DC power supply, applicable voltage range 18V DC~32V DC, field power supply consumption 0.25W (LED power indicator only), low power consumption and high stability

3. Core Features

• High Reliability: Adopting industrial-grade high-stability components, passing rigorous Environmental Stress Screening (ESS) tests such as temperature cycling, humidity aging, vibration and shock, with excellent Mean Time Between Failures (MTBF) performance, suitable for 24/7 long-term continuous operation needs in high-risk industrial scenarios such as power and oil and gas
• Easy Installation: Compatible with standard DIN rail mounting, with simple and standardized wiring terminals, enabling quick on-site deployment, reducing installation man-hour costs and avoiding wiring errors
• Intuitive Monitoring: On-board LED power status indicator, which can real-time and intuitively monitor the integrity of field power supply, facilitating quick fault location
• Flexible Maintenance: Supports hot replacement of input modules, combined with SmartSlot interface design, maintenance process does not affect normal system operation, improving operation and maintenance efficiency; fused protection design simplifies fault diagnosis process

（II）Product Attributes & Certification

• Origin: Made in USA, unique and traceable serial number, original factory production without OEM, strictly following ISO 9001 quality management system standards
• Certification: Passed CE and UL 508 industrial control equipment safety certifications, complying with EN 55011/EN 55022 electromagnetic compatibility standards, meeting safety and EMC specifications in major industrial regions around the world, suitable for various industrial application scenarios globally
• Warranty: 12-month original factory quality guarantee, 12-month industrial channel warranty, supporting original factory professional technical maintenance, debugging and calibration services, sufficient stock in domestic channels
