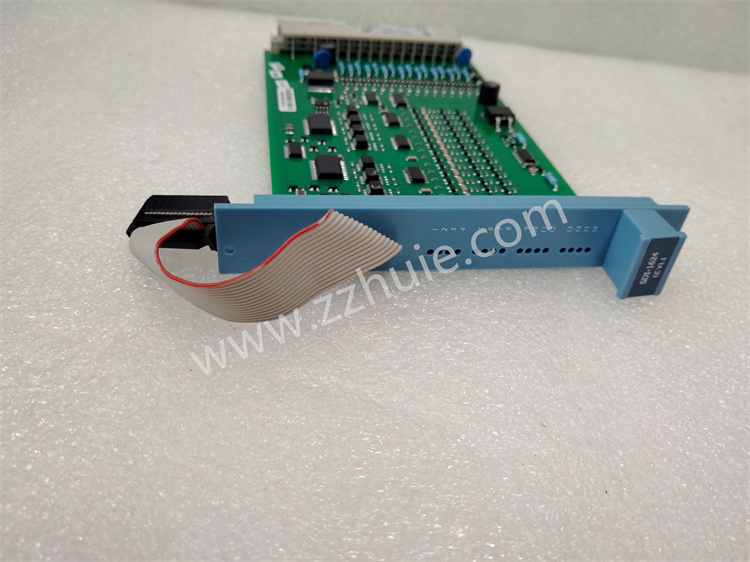

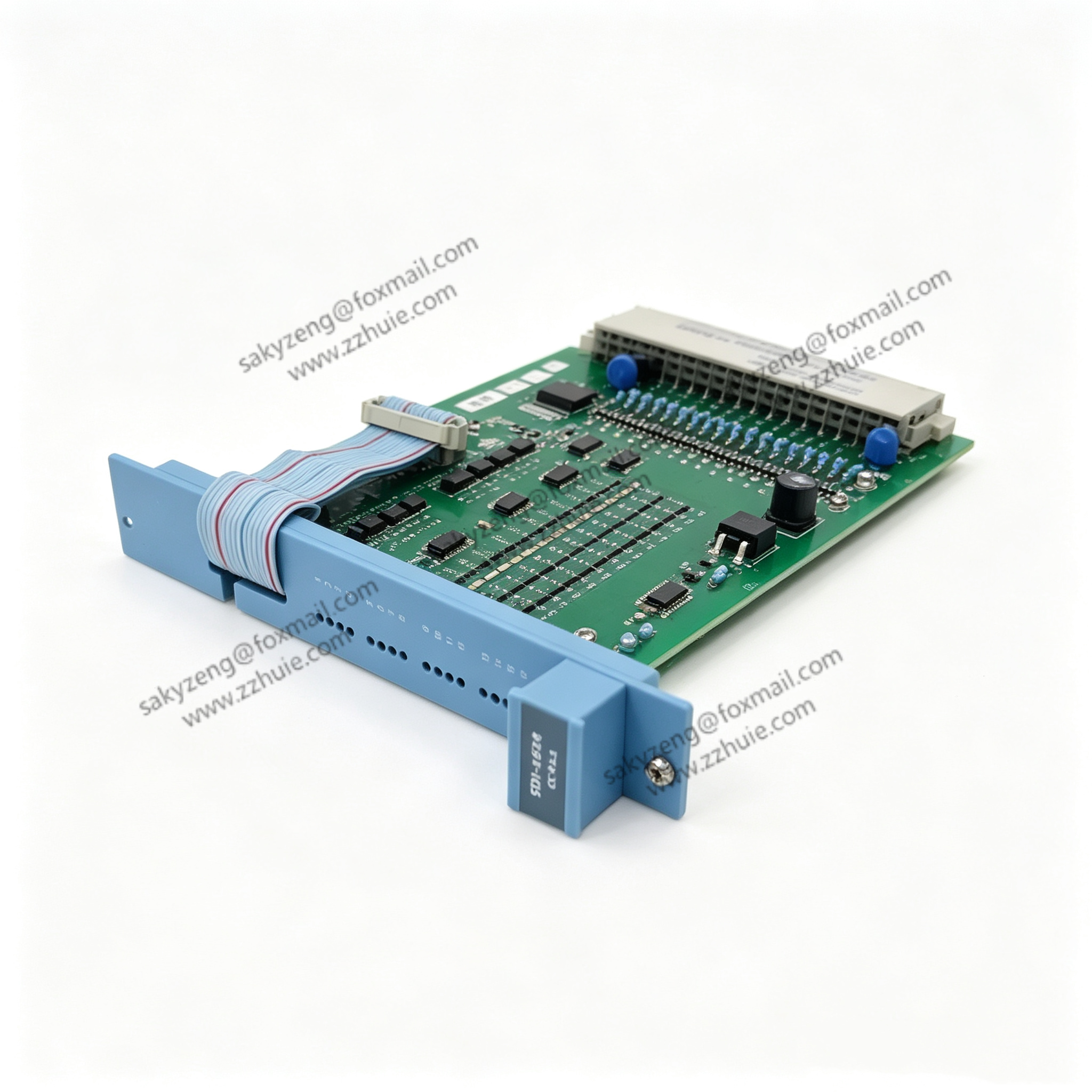

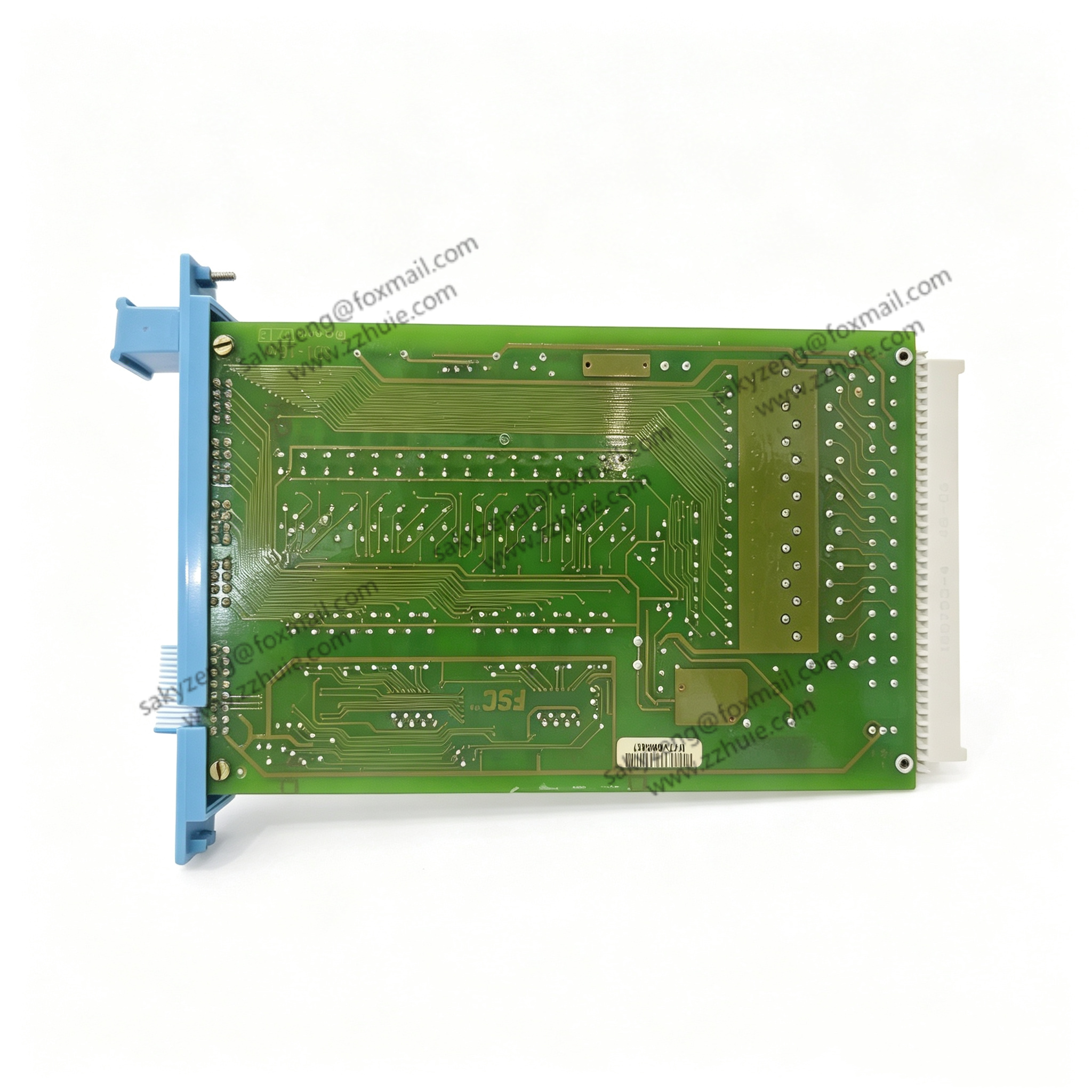

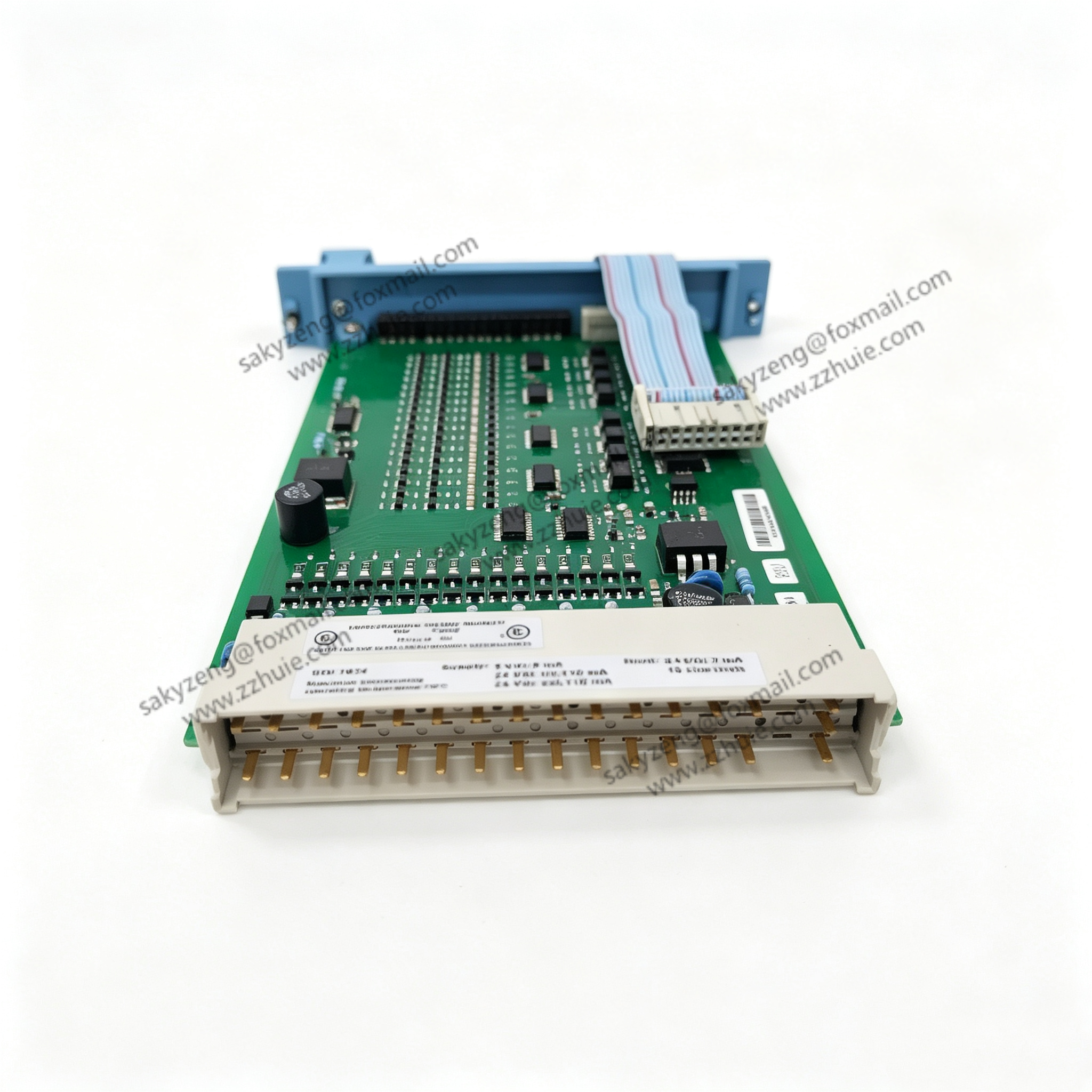

Honeywell FC‑SDI‑1624 16‑Channel Safety Digital Input Module

Product Description

FC‑SDI‑1624 is a 16‑channel safety digital input module for Honeywell Safety Manager (FSC) fail‑safe control system. It acquires 24‑volt discrete switch‑state signals from field devices such as

emergency stop buttons, pressure switches, level switches and valve limit switches, and transmits validated data to the main safety controller via redundant safety bus. It meets IEC‑61508 SIL‑3

requirements and is widely deployed in oil‑refineries, natural‑gas processing plants, petrochemical complexes, offshore platforms and burner‑management systems for critical safety‑interlock

applications.

Technical SpecificationsFull Model: FC‑SDI‑1624 Brand: Honeywell, Origin: United‑States Product Series: Safety Manager (FSC) safety‑instrumented system Digital Input: 16‑channel isolated 24 VDC safety digital input Input Type: Sink / source configurable, dry‑contact or NAMUR NE43 compliant System Bus: Redundant FSC safety communication bus Rated Working Voltage: 24 VDC field‑signal power supply Power Consumption: ≤8 W typical Channel Diagnostics: Per‑channel open‑circuit, short‑circuit and cross‑fault detection Installation Form: Hot‑swappable rack‑slot card installation Operating‑Temperature: 0℃ ~ +55℃ Storage‑Temperature: ‑40℃ ~ +85℃ Ambient Humidity: 5%–95% non‑condensing industrial‑grade Safety Integrity Level: IEC‑61508 SIL‑3 certified Average‑Time‑Between‑Failures: MTBF＞100000 working hours Certifications: CE, UL, TÜV SIL‑3, ATEX, industrial EMC certification

Key Features16‑channel high‑density safety digital input reduces required rack slot count SIL‑3 certified fail‑safe architecture for critical emergency‑shutdown and interlock control Redundant safety‑bus communication eliminates single‑point‑of‑failure risk Per‑channel diagnostic coverage detects open‑circuit, short‑circuit and cross‑fault conditions NAMUR NE43 compliant input supports standard field sensor wiring Hot‑swap supported for on‑line module replacement without shutting down the safety system Strong electromagnetic‑interference resistance adapts to harsh petrochemical plant environments Compact plug‑in card‑type structure saves inner installation space of SIS cabinet racks
