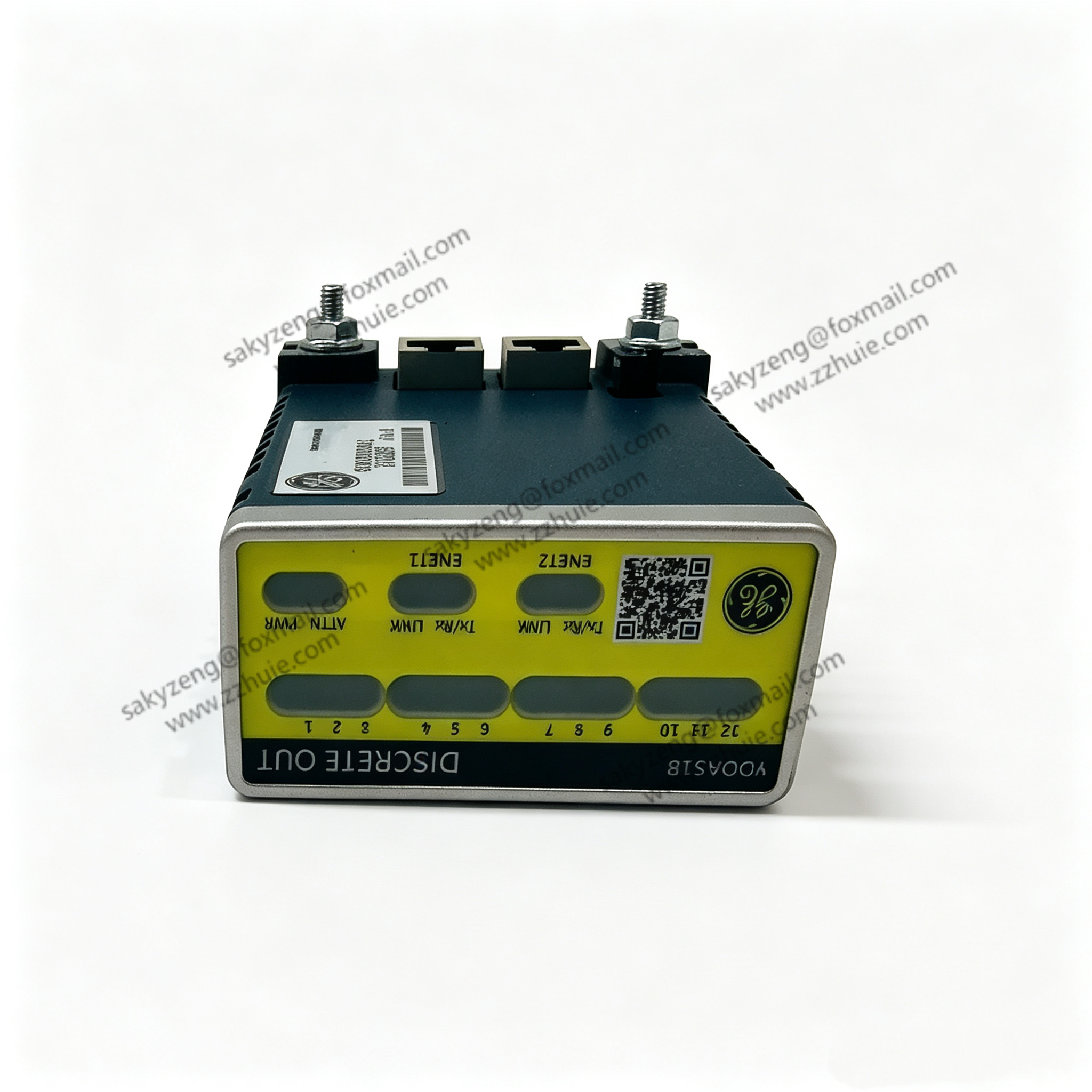

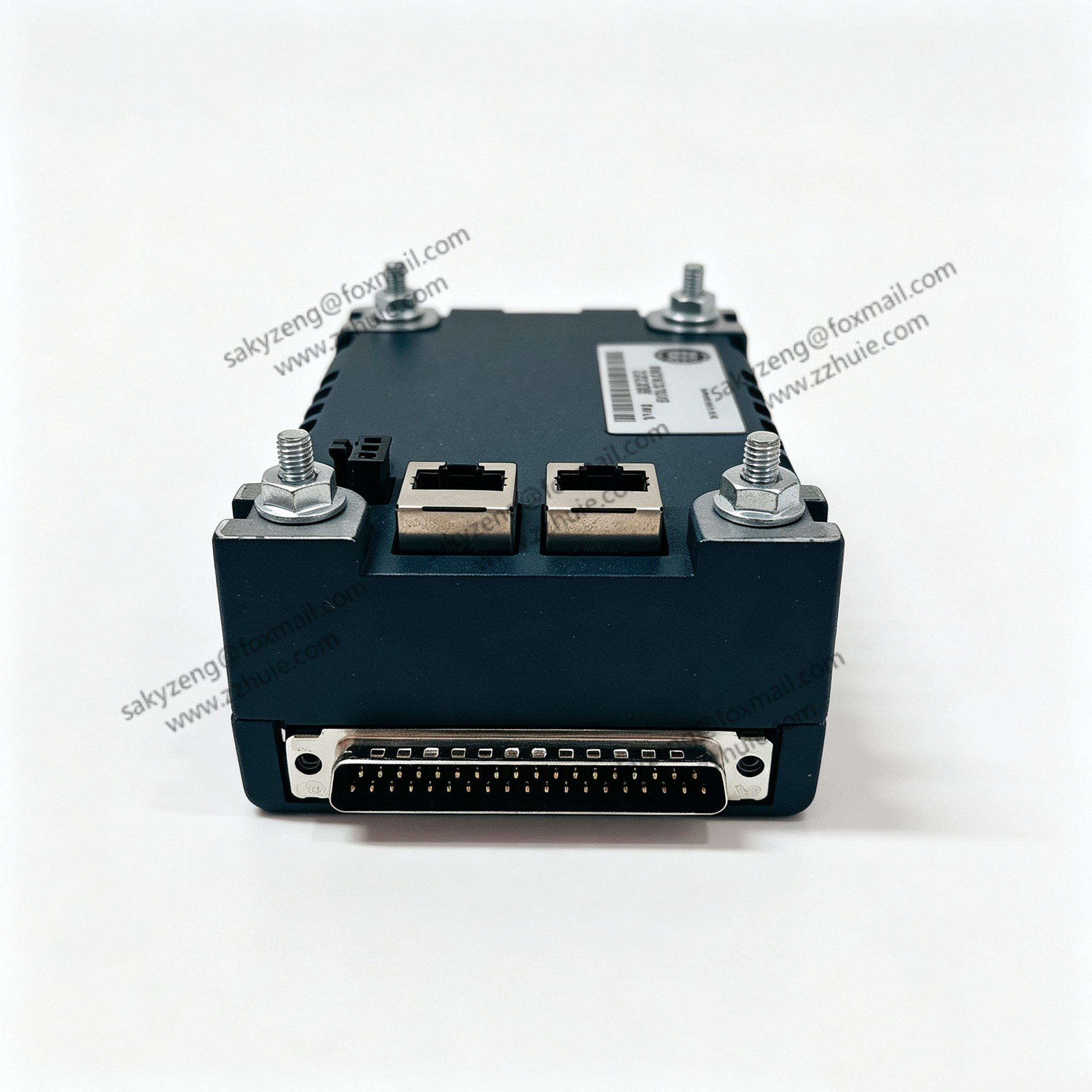

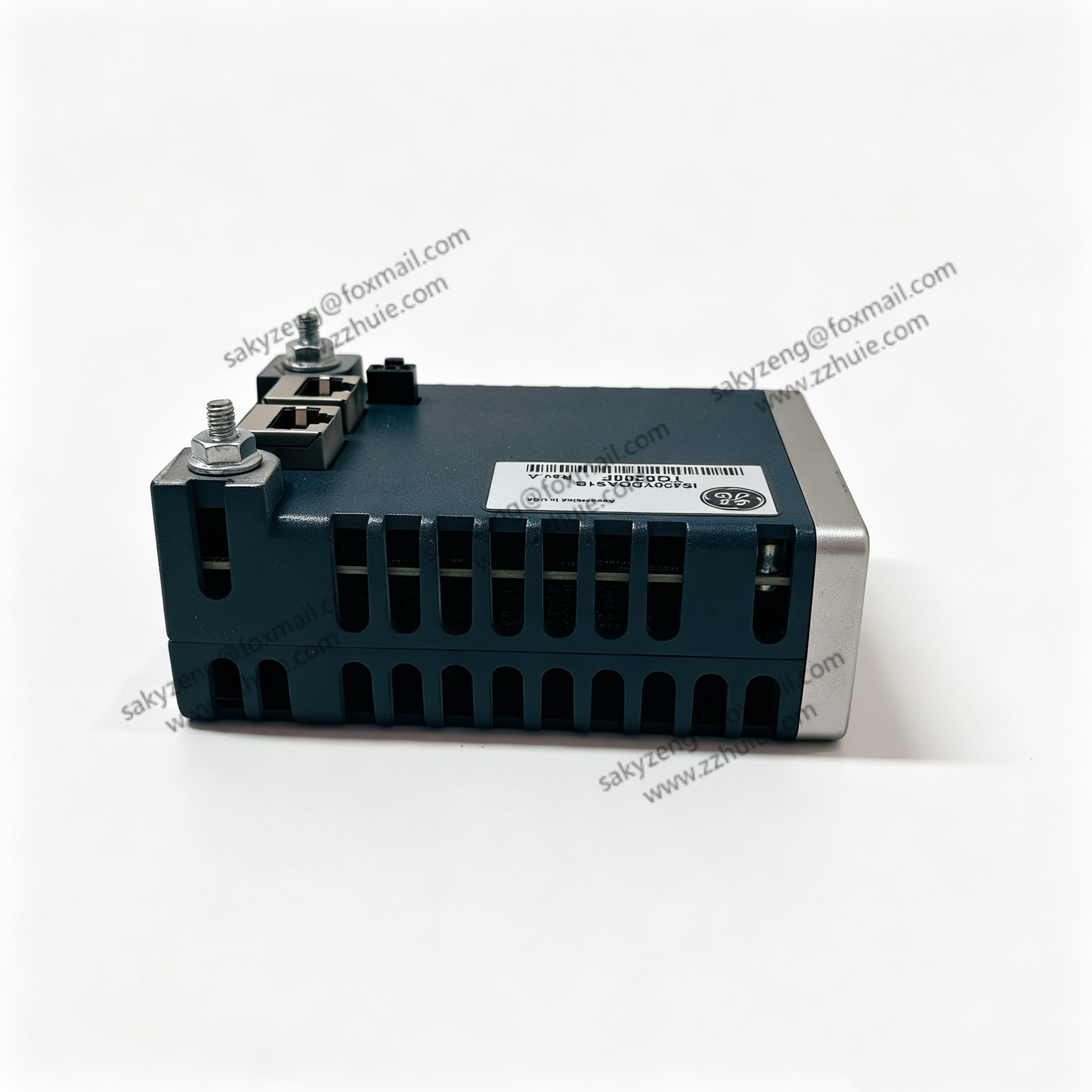

GE IS420YDOAS1B YDOA Discrete Output I/O Pack for Mark VIe Turbine Control System

Product Description

IS420YDOAS1B is the YDOA discrete output I/O pack for GE Mark VIe Speedtronic turbine control system. It communicates with Mark VIe controller via dual Ethernet IONet, provides 12‑channel discrete output driving

signals to external terminal board through DB37 connector, supports relay feedback signal detection. Compatible with ControlST configuration software, S‑type conformal coating for harsh plant cabinet environment.

Widely deployed on gas turbine, steam‑turbine, generator protection, compressor anti‑surge control cabinets in power plant and oil‑gas industry.

Technical SpecificationsFull Model: IS420YDOAS1B Brand: GE Vernova, Origin: USA Applicable System: GE Mark VIe / Mark VIeS Speedtronic Turbine Control Module Type: YDOA Discrete Output I/O Pack Output Channel: 12‑channel discrete output Channel Load: Max 2A per channel Communication Interface: Dual RJ45 Ethernet IONet Field Connector: DB37 D‑SUB for connecting discrete output terminal board Power Supply: 24 VDC Typical Power Consumption: 5.3 W Galvanic Isolation: 1500V RMS channel‑to‑bus isolation Software Compatibility: ControlST V06.01 and above Firmware Requirement: V05.00 or later Conformal Coating: S‑style conformal coating Operating‑Temperature: ‑40℃ ~ +70℃ Storage‑Temperature: ‑40℃ ~ +85℃ Ambient Humidity: 5%‑95% non‑condensing industrial‑grade Dimension: 82.55 × 41.91 × 121.43 mm Net Weight: Approx. 0.34 kg Certifications: CE, UL, IEEE C37.90 power‑industry certification

Key Features12‑channel discrete output pack, drives external relays, solenoid valves and interlock circuits for turbine safety logic Dual Ethernet IONet interface, redundant network communication improves system reliability DB37 interface mates with matching discrete output terminal board, supports relay feedback diagnosis S‑type conformal coating, anti‑humidity, anti‑dust, anti‑corrosion for power‑plant cabinet environment Front‑panel LED status indicators for network, power and channel fault quick diagnosis Hot‑swap capable, allows module replacement without system shutdown Fully compatible with ControlST software for configuration, monitoring and fault troubleshooting Strict factory burn‑in test, designed for continuous critical power‑generation control loops
