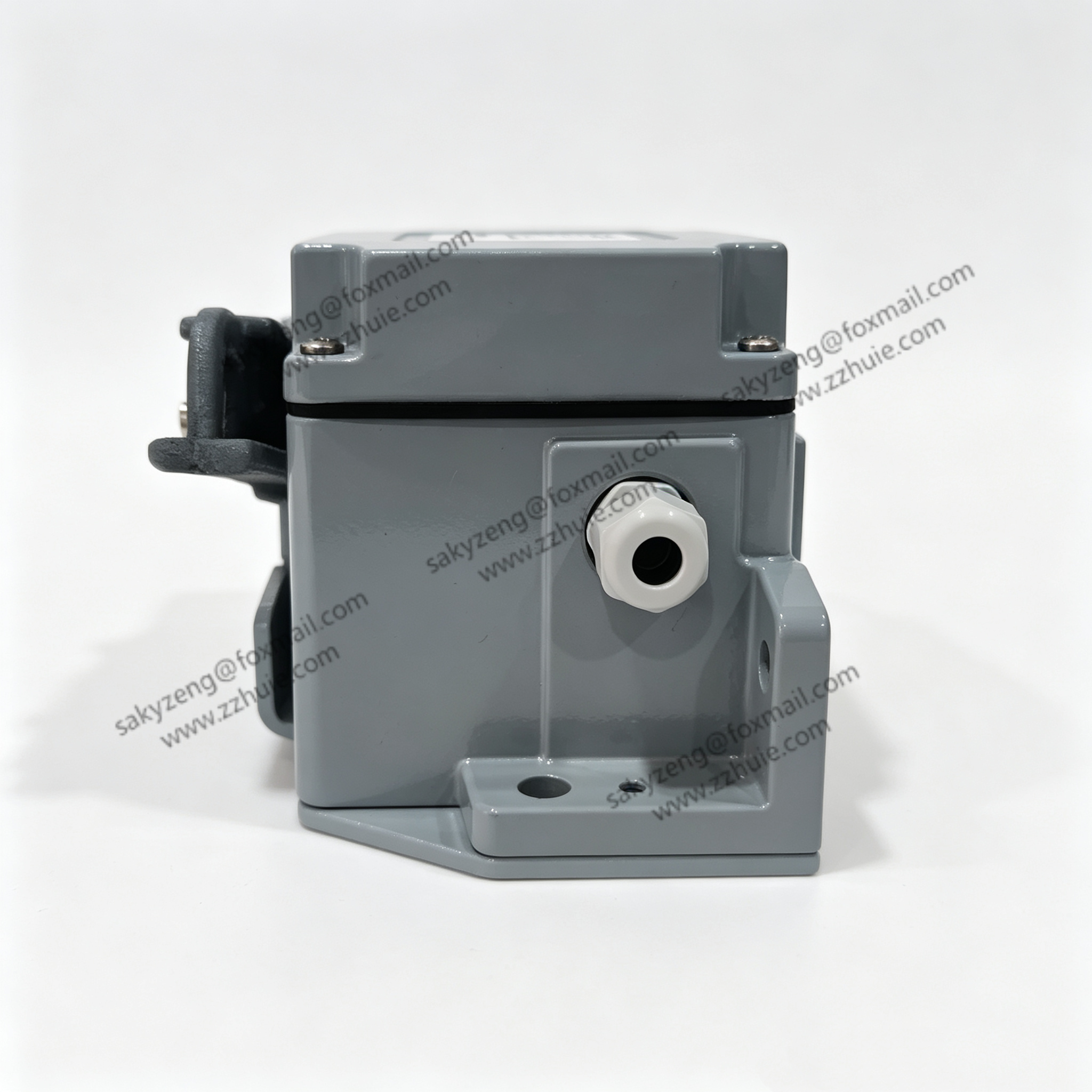

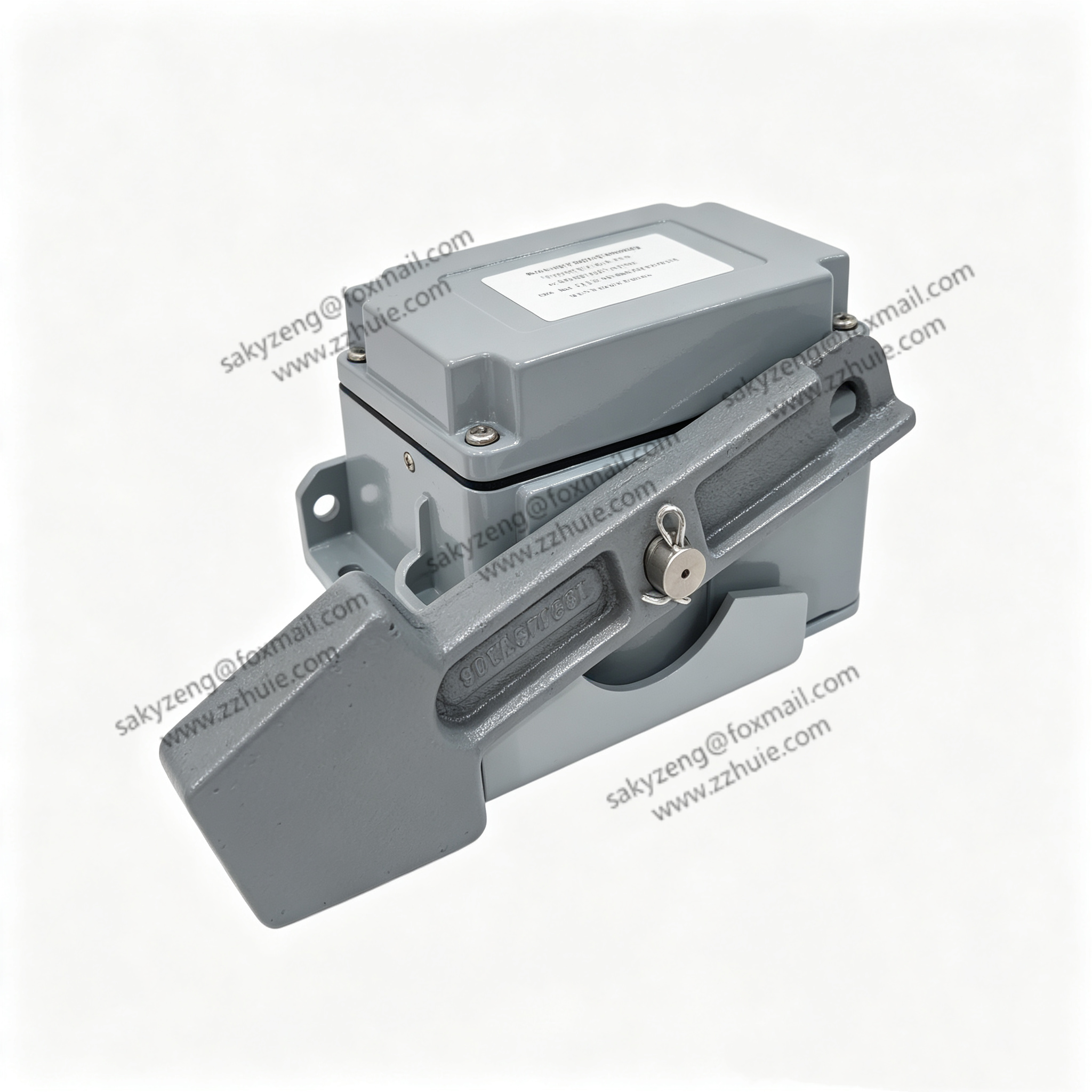

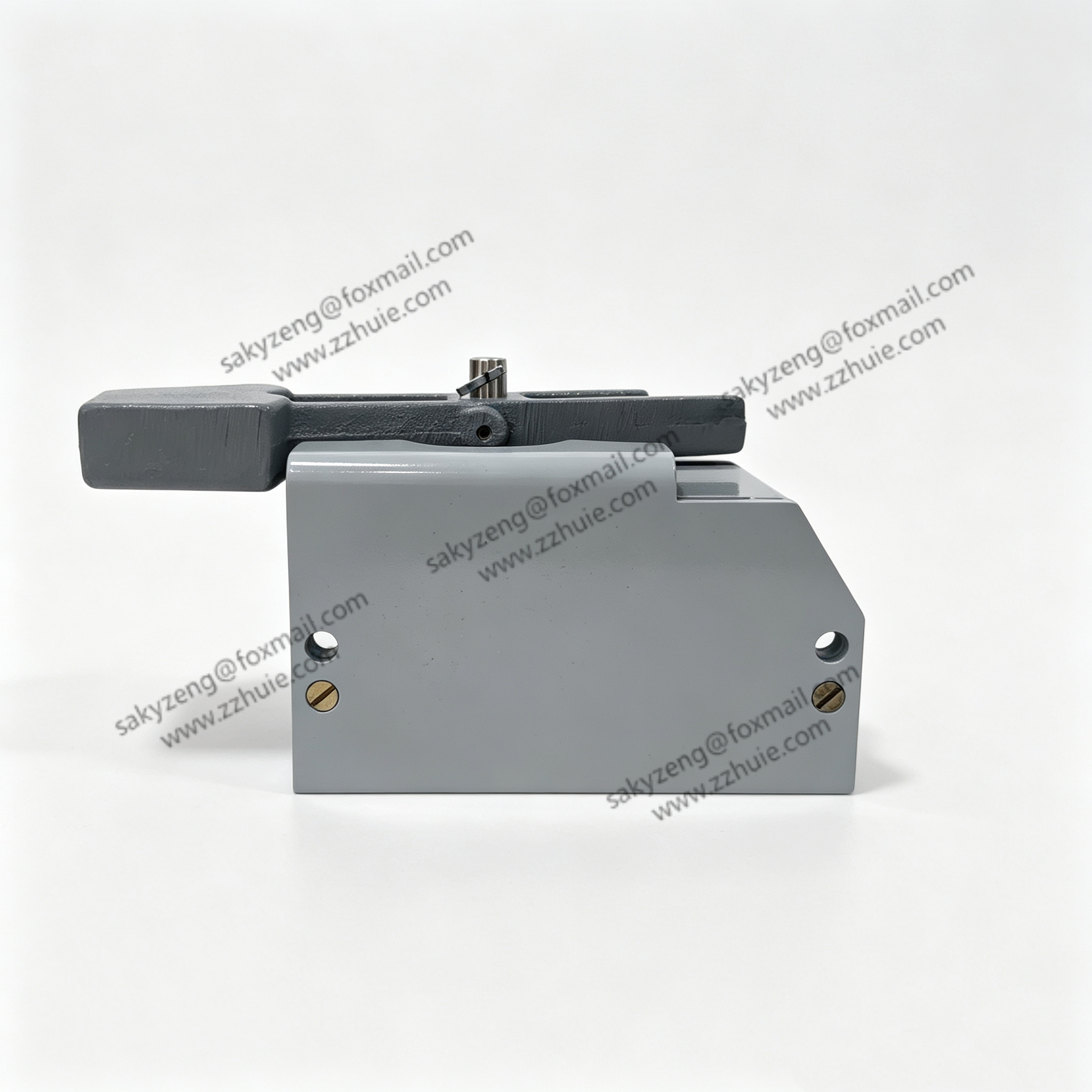

GE IC9445C208 Rotary Cam Limit Switch

Product Description

IC9445C208 is a heavy‑duty shaft‑driven rotary cam limit switch from GE IC9445 series. It is mechanically coupled to rotating shafts of cranes, hoists, winches and conveyor equipment,

triggering electrical contact outputs at preset angular positions to restrict travel range, prevent over‑winding and execute safety stop commands. Multiple adjustable cam discs allow users to set

independent switching‑points for multi‑stage position control. Widely used in port machinery, steel‑plant overhead cranes, mine hoisting gear and material‑handling safety‑control circuits.

Technical Specifications

• Full Model: IC9445C208
• Brand: General Electric, Origin: United‑States
• Product Type: Rotary cam‑type limit switch
• Actuation: Shaft‑driven rotary input
• Cam Quantity: Multiple independently‑adjustable cam profiles
• Contact Rating: 15 A continuous, 25 A inrush, up to 600 V AC/DC
• Mechanical Lifespan: Over 10 million operating cycles
• Electrical Lifespan: Over 250 000 cycles @15 A, 250 VAC
• Housing: Cast‑aluminum rugged enclosure
• Protection Class: IP66 / IP67 dust‑proof and water‑resistant
• Operating‑Temperature: ‑40℃ ~ +85℃
• Storage‑Temperature: ‑40℃ ~ +85℃
• Mounting: Standard flange‑mount installation

• Certifications: UL, CE, industrial crane‑safety compliance

•

Key Features

1. Multiple freely‑adjustable cam wheels to set several independent position‑trigger points
2. Heavy‑duty cast‑aluminum housing resists shock, vibration and harsh outdoor workshop conditions
3. High‑current switching contacts directly drive safety‑stop and main‑contactor circuits
4. Positive‑break contact design guarantees reliable circuit disconnection for safety‑critical applications
5. Wide voltage tolerance up to 600 V, compatible with most industrial crane control voltages
6. Flange‑mounted shaft‑coupling structure, simple mechanical connection to drive‑shafts
7. Long mechanical service‑life suitable for 24‑hour continuous heavy‑cycle material‑handling equipment
8. Mature legacy spare‑part for overhead cranes, hoists, winches and conveyor travel‑limiting systems
