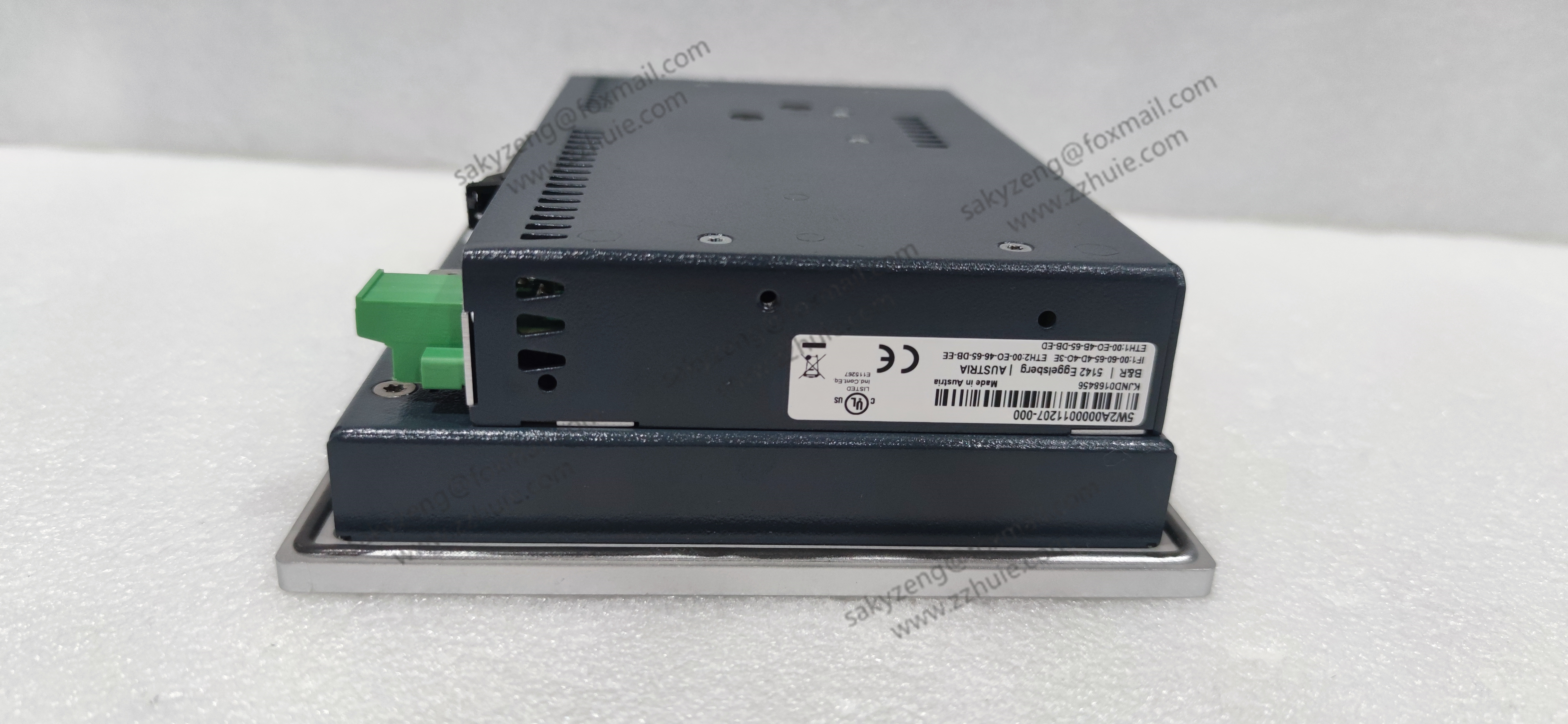

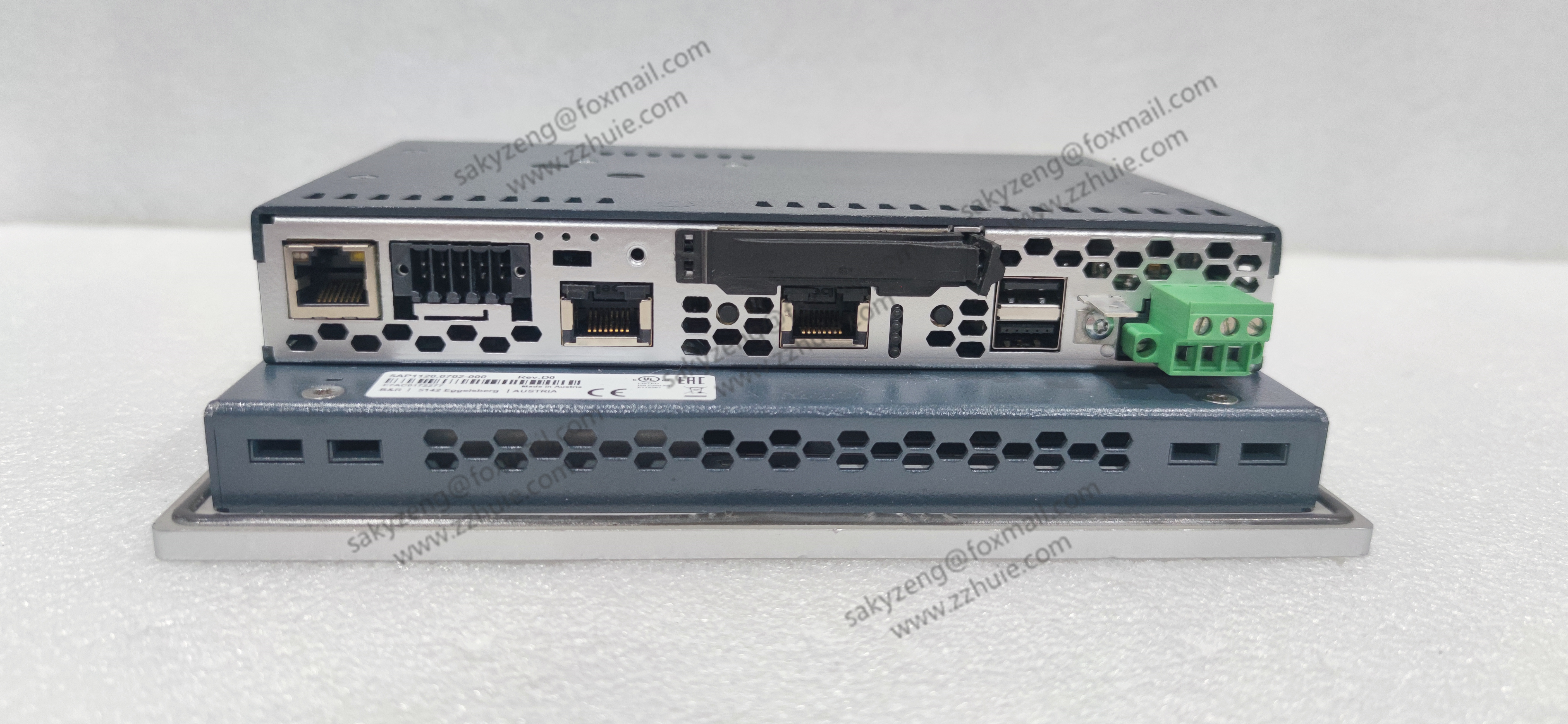

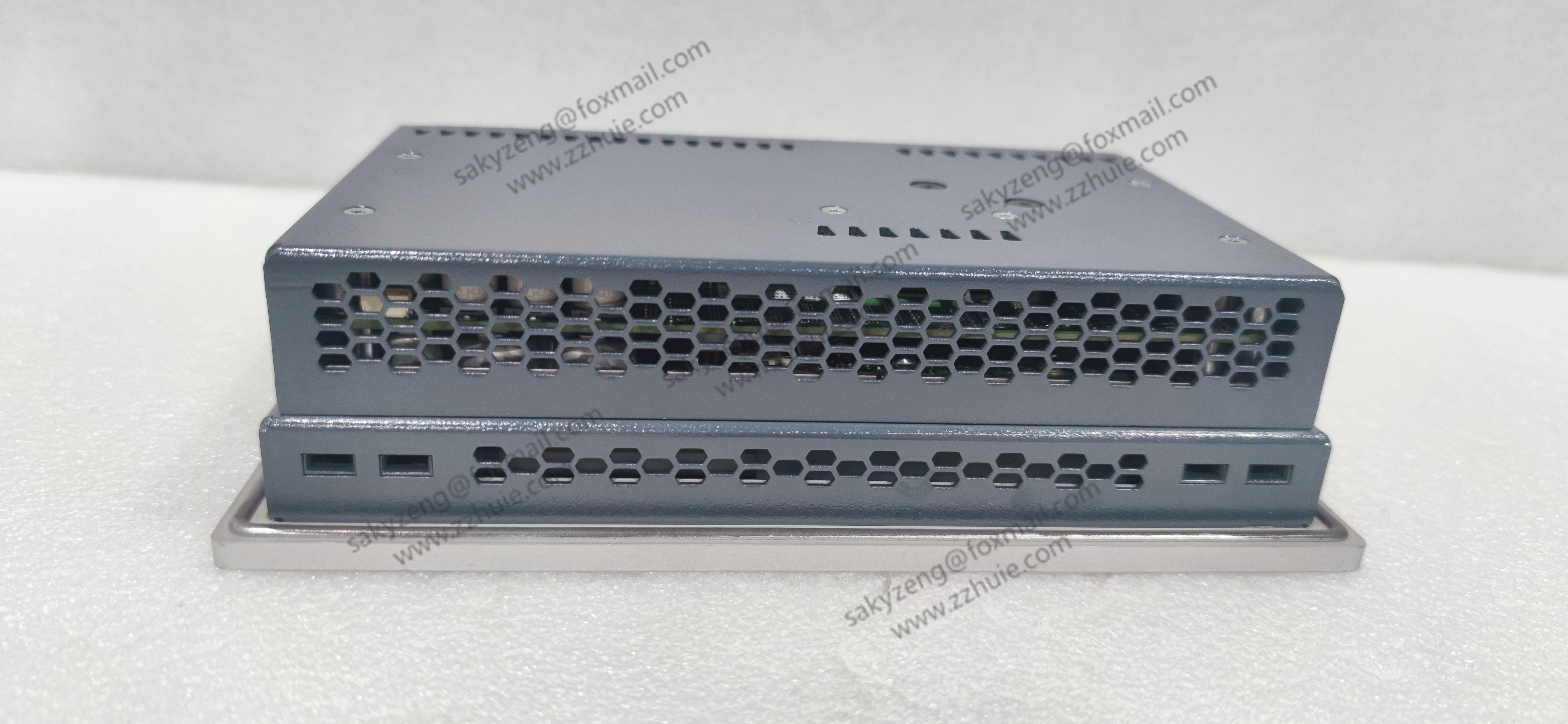

B&R 5AP1120.0702-000 Industrial Color Touch Screen Panel (AP1000 Series)

An industrial-grade color touch screen panel of B&R AP1000 series, adopting Thin Film Transistor (TFT) LCD technology. Core function: Human-Machine Interface (HMI) for industrial automation systems, realizing equipment status monitoring, parameter setting and control command input. With high protection level, stable display performance and strong environmental adaptability, it is suitable for control cabinet integrated installation. It is an ideal supporting panel for industrial computers such as PPC2100, and widely used in various industrial automation scenarios.

（I）Core Technical Specifications

1. Display & Touch Parameters

- Display Technology: TFT color LCD, 7-inch screen diagonal, WVGA resolution 800×480 pixels

- Display Performance: Supports 16.7 million colors, contrast ratio 600:1, brightness 80-500 cd/m², backlight half-brightness life 50,000 hours

- Touch Type: AMT single-point touch, analog resistive type, precise and sensitive operation

- Product Identification: B&R ID code 0xE7AC, Pollution Degree 2 (EN 61131-2 standard)

2. Environmental & Physical Parameters

- Environment: Indoor use, maximum operating temperature 60℃, maximum relative humidity 90%; Resistant to non-conductive pollution

- Protection Class: Front IP65 (water jet protection), IP20 at the back when integrated with link module/system unit

- Physical Specifications: Built-in 3mm gasket, polyester keyboard cover, weight 900g, suitable for control cabinet installation

3. Core Features

- High Durability: Manufactured with industrial-grade materials, excellent protection performance, suitable for harsh industrial environments

- Clear Display: High resolution and contrast, rich colors, ensuring visual effect of monitoring data

- Strong Compatibility: Perfectly compatible with B&R PPC2100 industrial computer and 5PP520.0702-00 module

（II）Product Attributes & Certification

- Origin: Made in Austria, serial number traceable, original factory production without OEM

- Certification: Compliant with EN 61131-2 standard, with industrial electrical safety certification, suitable for global industrial scenarios

- Warranty: 12-month original factory warranty, 6-12-month industrial channel warranty, supporting professional technical maintenance and debugging
