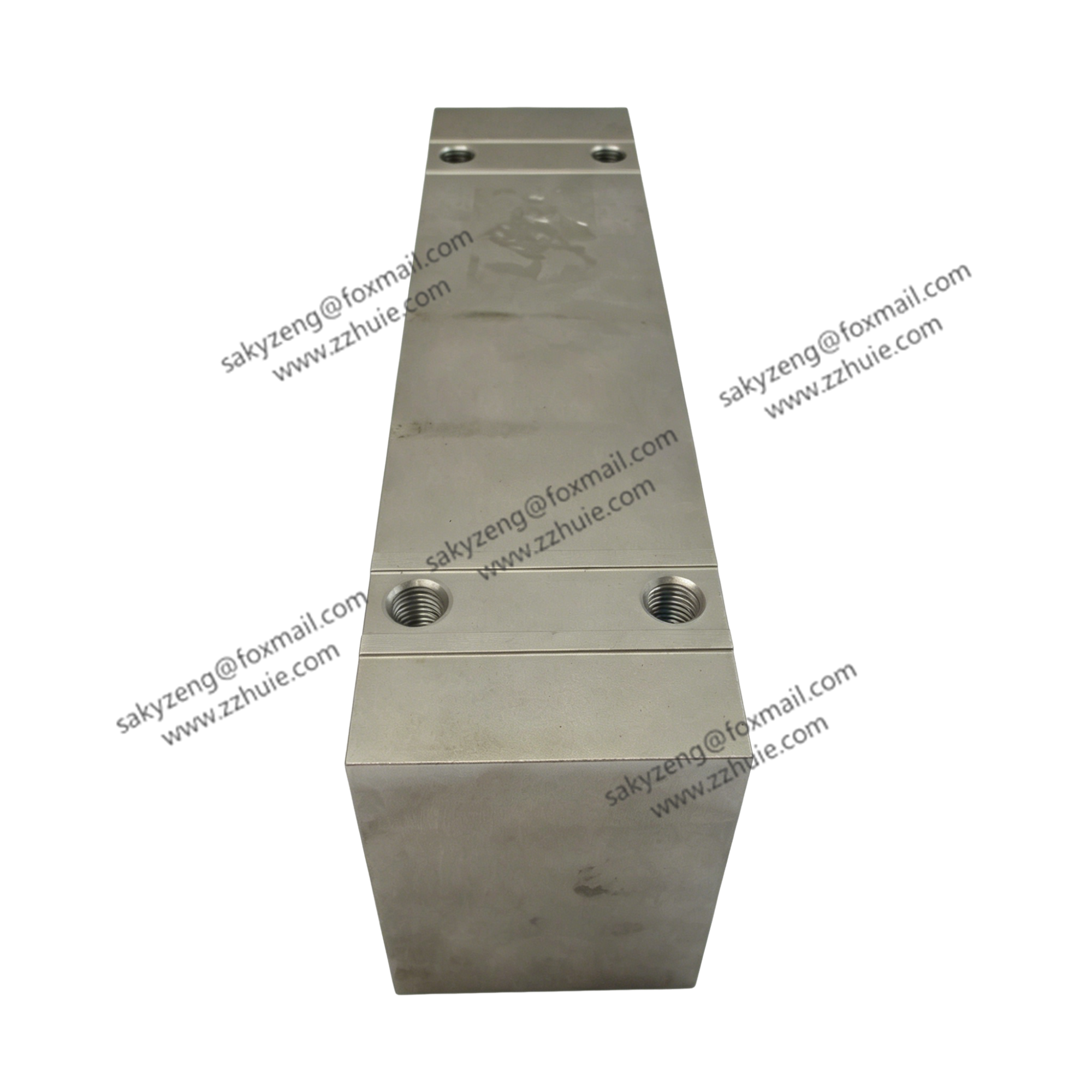

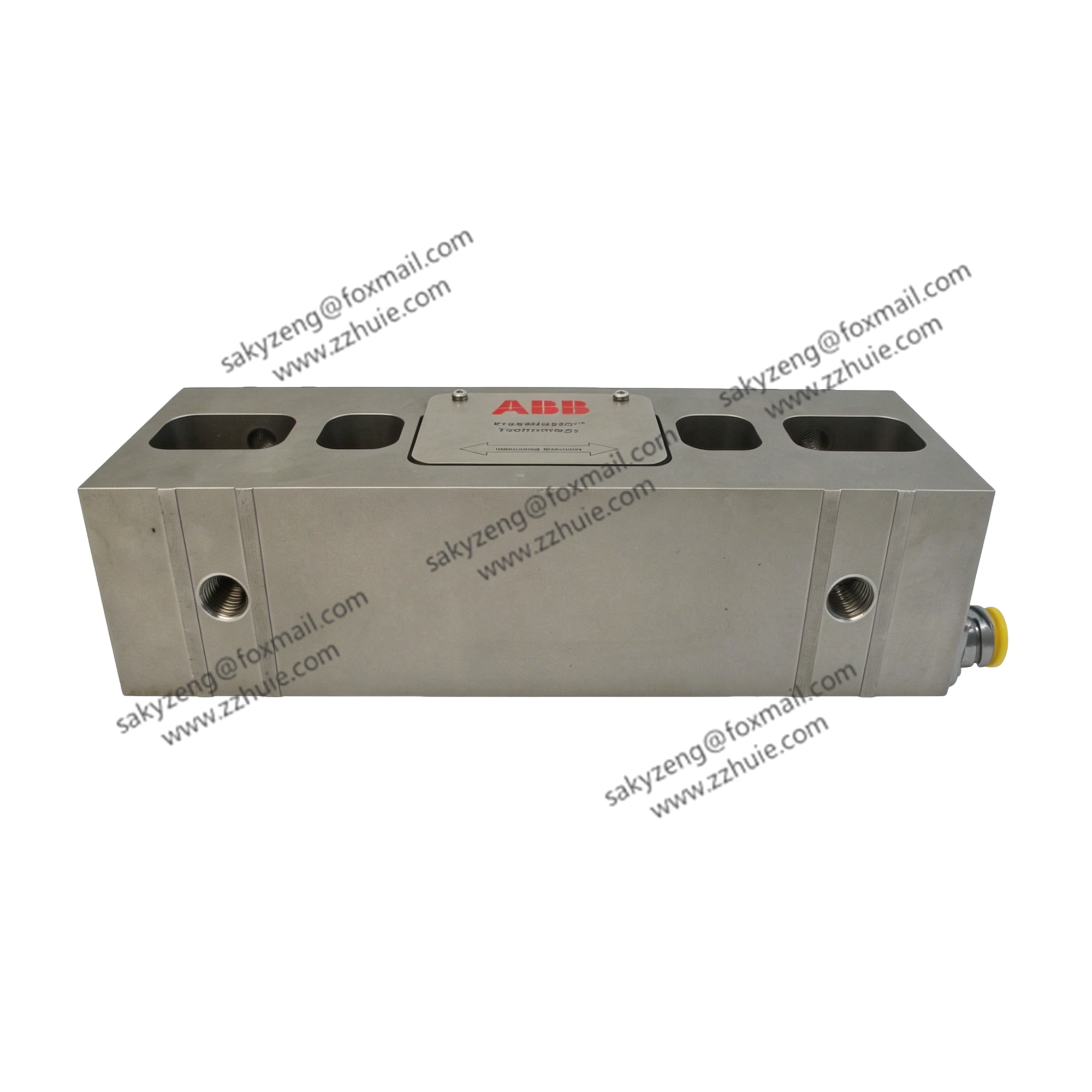

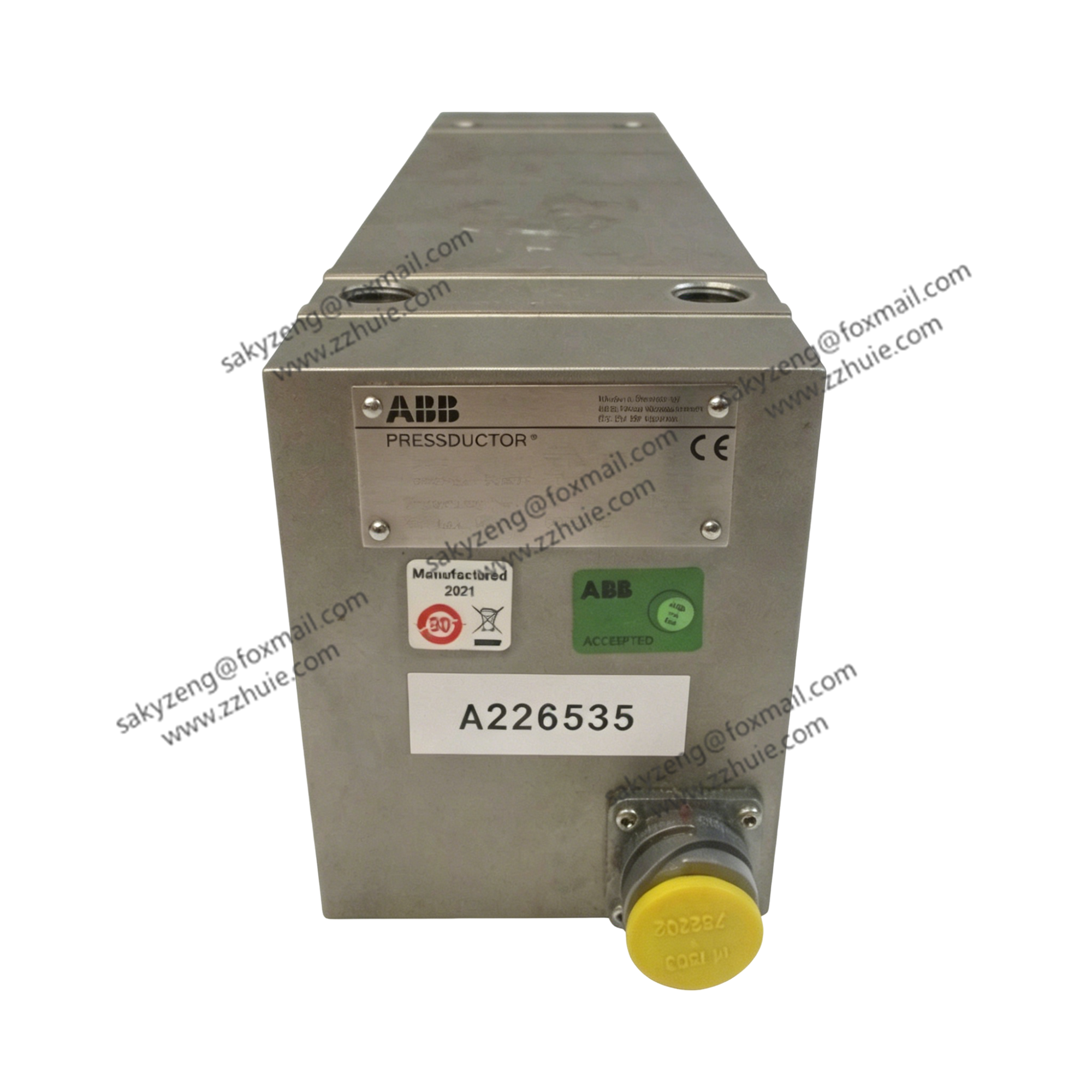

ABB PFTL101B 3BSE004203R1 Load cell

ABB PFTL101BE 3BSE004203R1is a high-precision, mill-duty horizontal force sensor from ABB's Pressductor® (magnetoelastic/piezomagnetic) technology platform.

Designed as a PillowBlock (bearing block) load cell, it is engineered for accurate web tension measurement in harsh industrial environments, particularly in paper machines,

metal processing, and textile lines. The 'BE' designation signifies a robust, IP66-rated construction with a fixed cable connection, ideal for dry sections, high dust, and vibration-prone areas.

Part Number: PFTL101BE

Standard Rating: 2.0 kN (2000 N)

Order Code: 3BSE004214R1

Series: PFTL 101 (Pressductor PillowBlock)

Type: Horizontal force / tension load cell

Principle: Magnetoelastic (Pressductor / Piezomagnetic)

Accuracy Class: 0.5%ABB Group

Non-linearity: < ±0.02% FS

Repeatability: < ±0.01% FS

Overload Capacity: 500% (10 kN)ABB Group

Output Signal: 330Hz AC (mV/V) – requires PFEA signal conditioner

Supply: Typically 10-30V DC (via PFEA module)

Material: Stainless Steel (1.4104 / AISI 430F)

Protection Rating: IP66 (dust-tight, jet water proof)ABB Group

Cable: Fixed, sealed connection (not plug-in)ABB Group

Operating Temp: -40°C to +75°C

Weight: ~2.5 kg

Mounting: Pillow block (for guide rollers)
