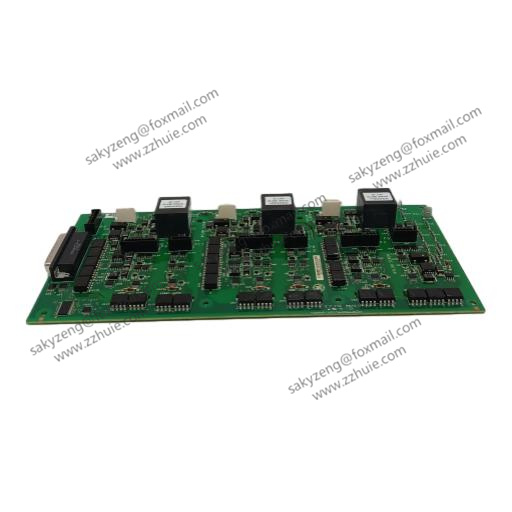

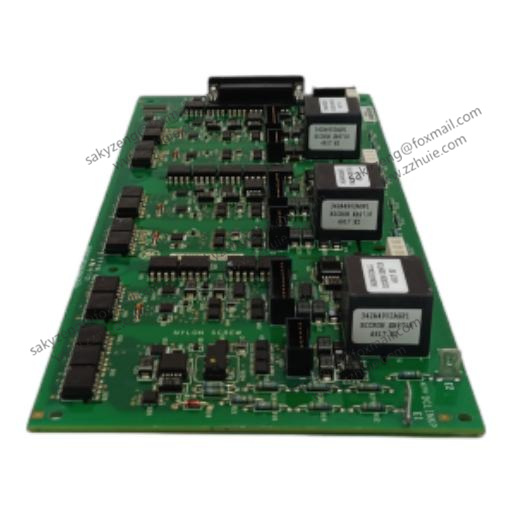

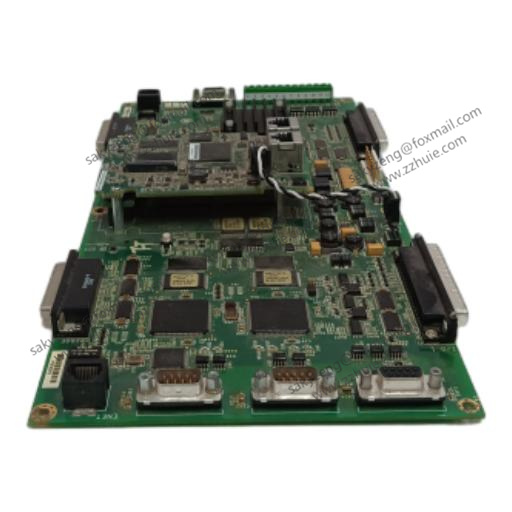

GE IS210AEAAH1BBA | RST analog I/O board

Brand: GE

Model: GE IS210AEAAH1BBA | RST analog I/O board

Origin: Switzerland

Warranty: 365 days

Quality: new/second-hand

Delivery method: express delivery

Telephone ：+86 18020721390

WeChat：+86 18020721390Email：sakyzeng@foxmail.com

product details

IS210AEAAH1BBA is an RST analog I/O board manufactured by General Electric (GE) of the United States, belonging to the Mark V series and specifically designed for gas turbine control systems.

Core Functions
The core function of this board is to scale and condition a wide range of analog signals, including LVDT (Linear Variable Differential Transformer) inputs, servo valve outputs, thermocouple inputs, 4-20mA input/output, vibration inputs, relay driver outputs, pulse inputs, voltage inputs, as well as generator and line signals. For example, it can scale and condition 4-20mA input signals such as compressor stall detection signals and fuel flow pressure signals, ensuring that the signals meet the processing standards of the gas turbine control system.
Signal Transmission & Connection Logic
It realizes signal transmission and equipment interconnection through a variety of specific connectors, each with a clear division of labor. For instance:

The 3PL connector is responsible for writing the conditioned signals to the STCA board, and also enables data bus connection among STCA, TCQA and TCQE boards in the core, thereby transmitting the conditioned signals to the COREBUS.
The JE connector is used to send and receive generator, line signals, etc. with the TCQC board, and also carries the input of the power supply monitor.
The JF connector receives LVDT/LVDR position inputs from the JFR connector of the TBQC terminal board.
The JG connector is connected to ±10V DC input and vibration input signals.

Hardware Configuration Features
The board is equipped with hardware jumpers such as J1, J2, J5 and J6 for specific function configuration. Among them:

J1 and J2 can be used to select the mA output circuit.
J5 and J6 can configure the mA output current range (20mA or 200mA optional).
In addition, J7 can perform board testing through the RS232 port, and J8 is used to start the oscillator.
This hardware configuration design enables the board to adapt to different working conditions and improves the flexibility of use.

Application Scenarios
As a key spare part of the gas turbine control system, it is an important link for signal processing in the Mark V series gas turbine control system. By accurately processing various analog signals, it ensures the stable operation of core links of the gas turbine such as fuel supply, operation status monitoring and fault early warning. It is widely used in industrial fields relying on gas turbines, such as energy and electric power industries.
