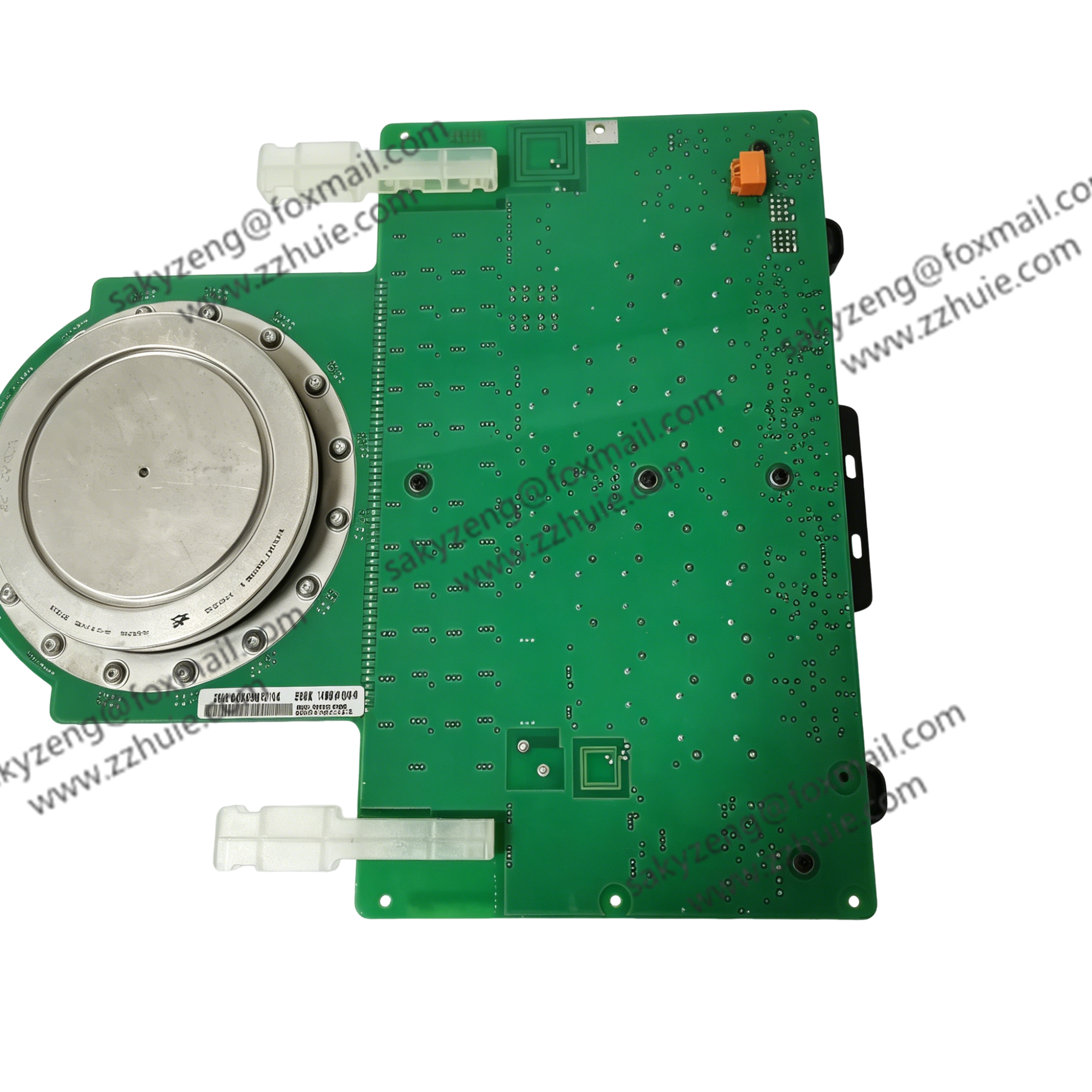

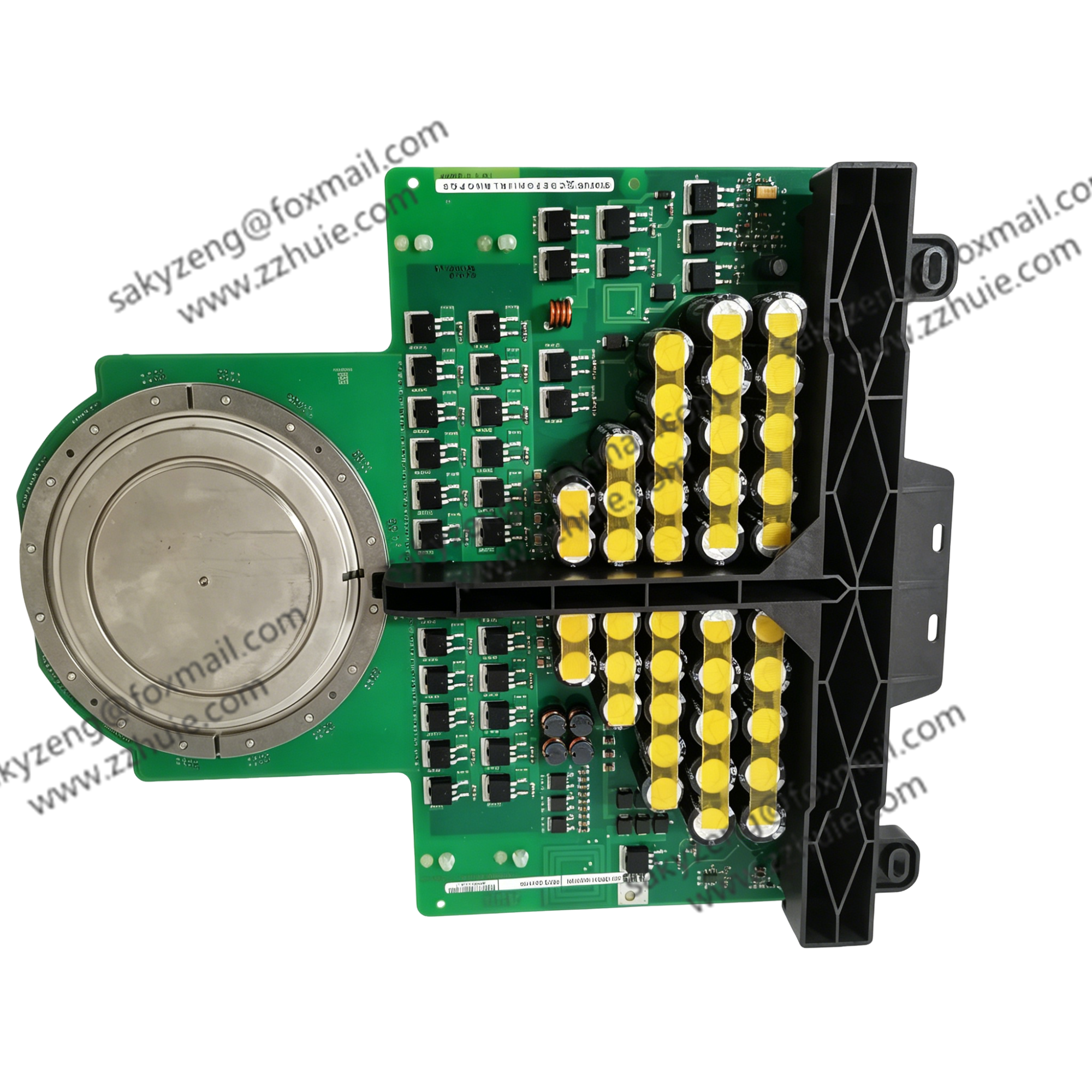

ABB 5SHX1960L0004 IGCT Integrated Gate Commutated Thyristor Module (Match with GDU 3BHL000390P0104)

5SHX1960L0004 is original ABB high-power IGCT semiconductor device, core power switching component exclusively for

ABB ACS1000 & ACS2000 3.3kV medium voltage inverter power unit. It combines thyristor high voltage endurance and IGBT fast switching performance,

converts DC bus into variable-frequency AC for high-voltage motor drive; always used paired with dedicated gate drive unit 3BHL000390P0104,

optical fiber isolation for trigger signal transmission and fault feedback. Widely used for spare replacement on petrochemical compressor, large fan,

water pump, steel rolling mill medium voltage frequency converter maintenance.3. Core Technical Specifications Part No: 5SHX1960L0004 Type: IGCT Integrated Gate Commutated Thyristor Rated Voltage: 6500V (6.5kV) Nominal On-state Current: 1900A Matched Gate Driver: 3BHL000390P0104 (original dedicated GDU) Trigger Interface: Fiber optic communication, isolated design Operating Junction Temp: -40℃ ~ +125℃ Mounting: Press-fit water-cooled radiator installation Isolation Withstand Voltage: ≥15kV Compatible Inverter: ABB ACS1000, ACS2000 (3.3kV grade) Net Weight: Approx 2.6kg
