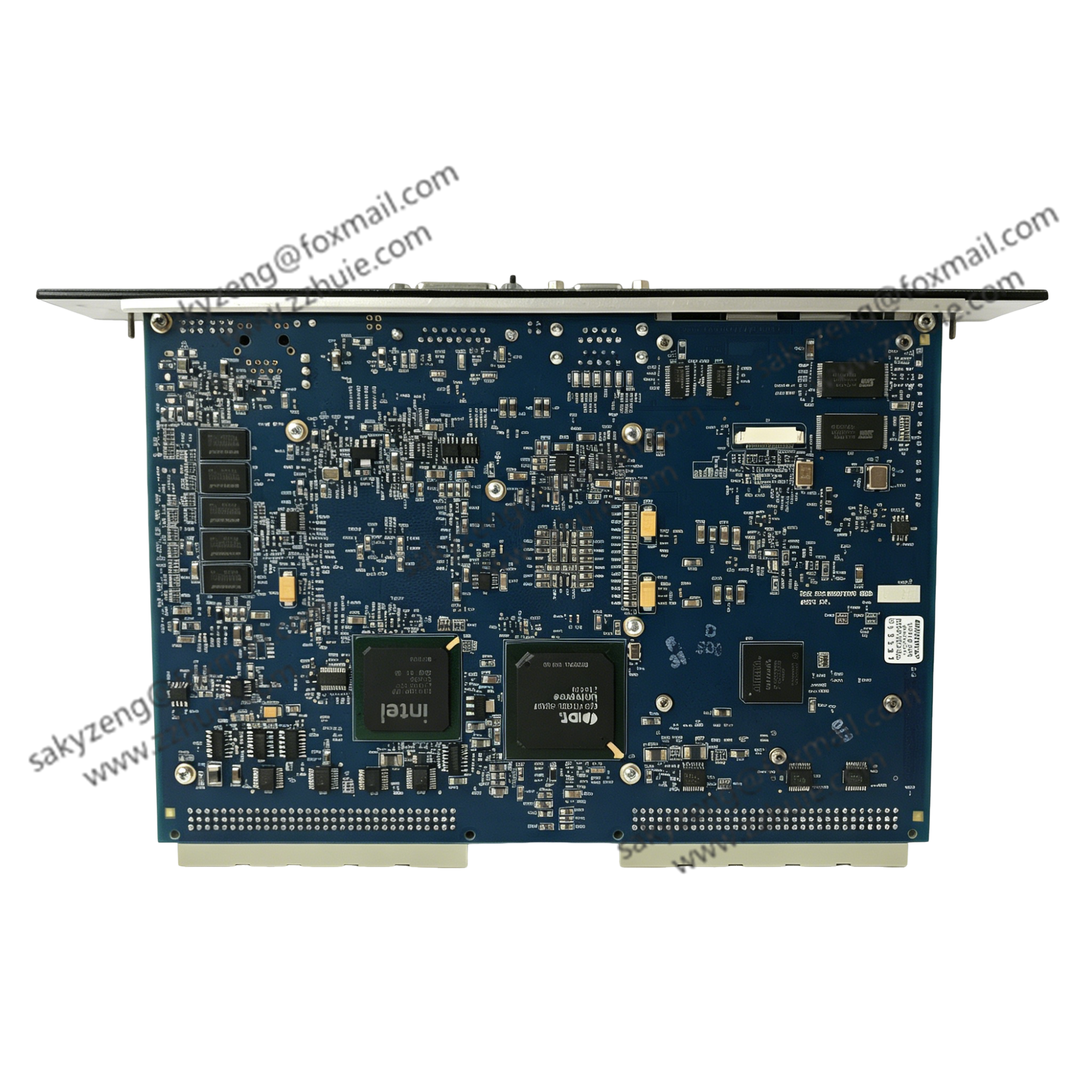

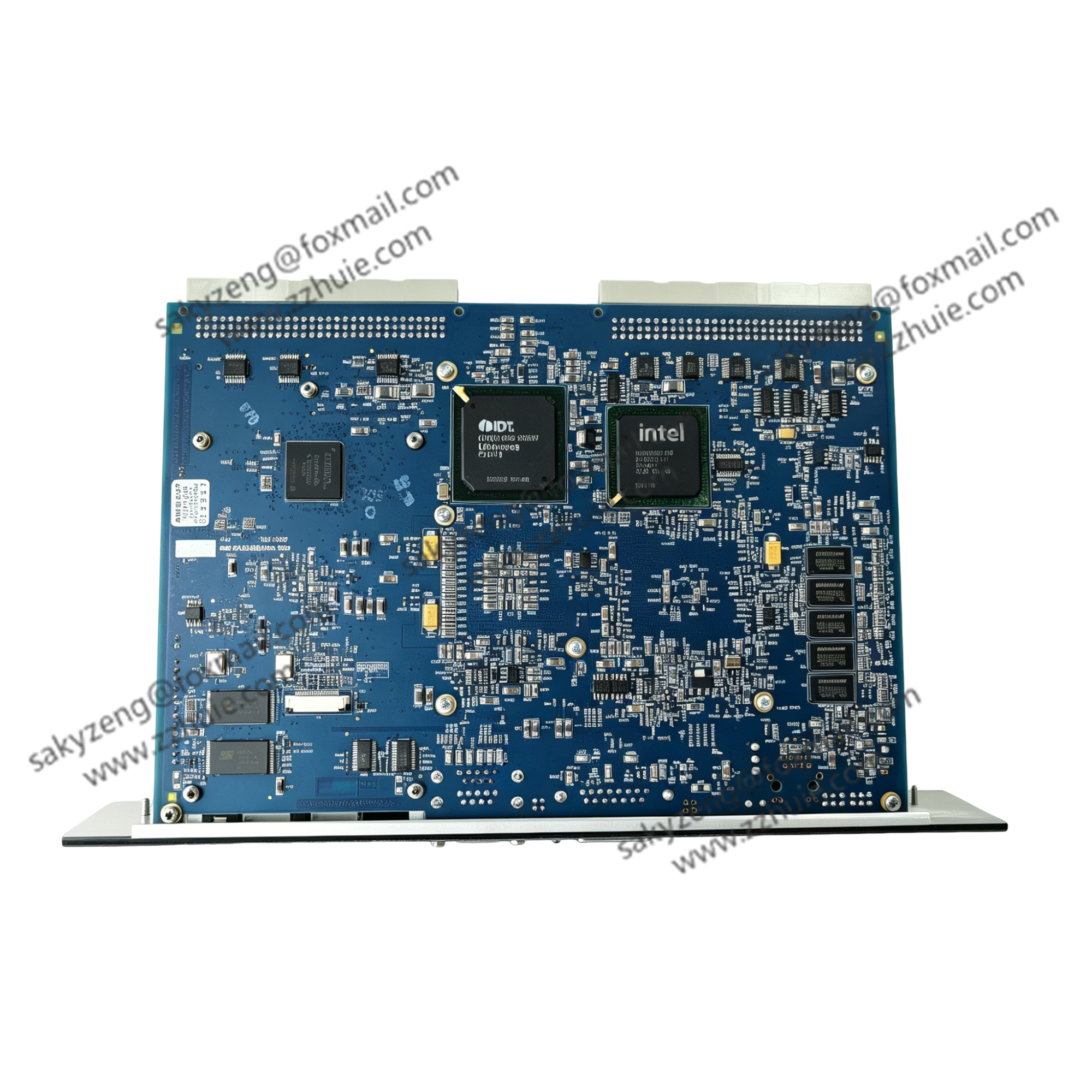

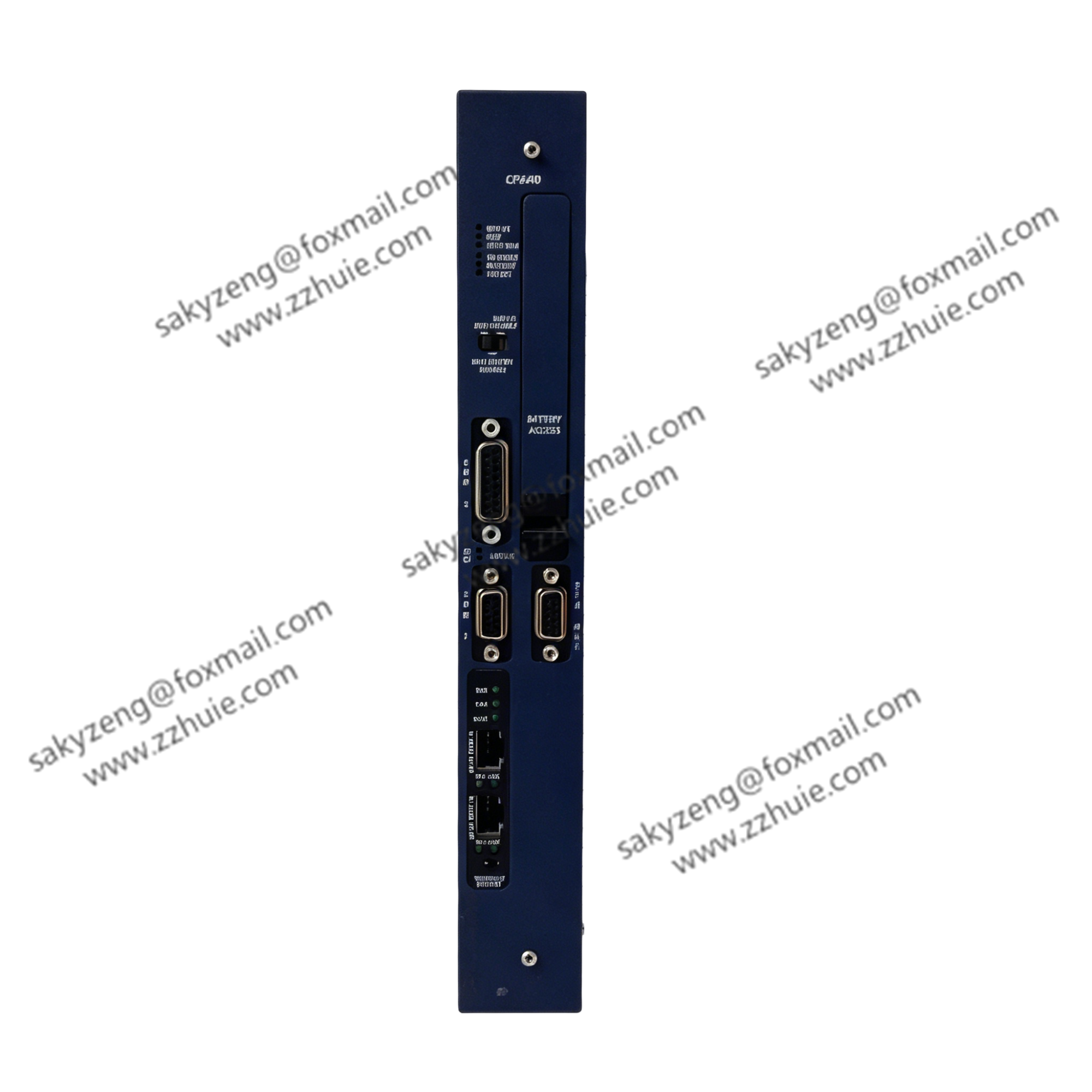

GE IC698CPE040-FJ PACSystem CPU Module 1.8 GHz

GE IC698CPE040-FJis a high-performance CPU module for the GE Fanuc (now Emerson) RX7i PACSystem PLC series.

Based on a 1.8 GHz Pentium‑M processor, it serves as the core controller for large-scale industrial automation, process control,

and motion control applications. It executes complex control logic, manages extensive I/O, and communicates with HMI, SCADA,

and other networked devices. The module uses the VME64 backplane standard for high-speed communication with I/O and specialty modules.

3. Technical Specifications

• Part Number: IC698CPE040-FJ
• Manufacturer: GE Fanuc / Emerson
• Series: RX7i PACSystem
• Processor: Pentium‑M @ 1800 MHz
• User Memory: 64 MB battery-backed RAM
• Flash Memory: 64 MB non‑volatile user flash
• Backplane: VME64 Standard (ANSI/VITA 1)
• Ethernet: 10/100 Mbps, auto‑sensing, half/full duplex
• Serial Ports:
• RS‑232 ×2 (firmware & station management)
• RS‑485 ×1 (Modbus RTU, SNP, Serial I/O)
• I/O Capacity: Up to 32K discrete bits / 32K analog words
• Program Blocks: Up to 512 blocks, max 128 KB/block
• Power Consumption:
• 5 VDC: 6.8 A
• ±12 VDC: 0.003 A each
• Dimensions: ~200 × 150 × 20 mm
• Weight: ~1.8 kg
• Operating Temperature: 0°C to +60°C
• Certification: CE, UL, RoHS
