ABB 3BHB019719R0101 5SHY4045L0001 | Integrated Gate Converter Thyristor (IGCT)

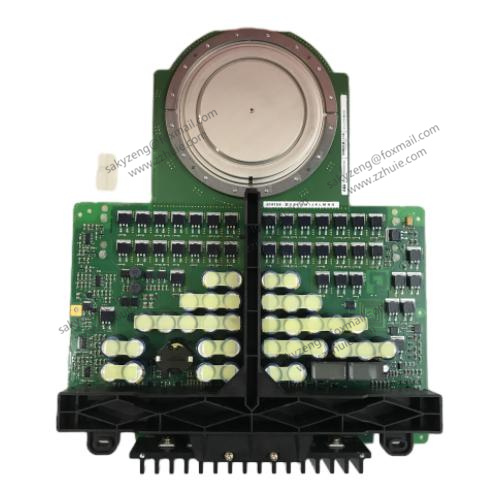

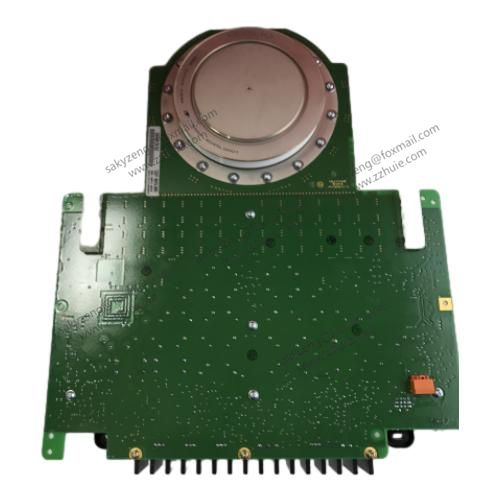

ABB 3BHB019719R0101 5SHY4045L0001 Integrated Gate Converter Thyristor (IGCT) is a high-power semiconductor switching device composed of a GCT (Gate Converter

Thyristor) and an integrated gate driver circuit.

· Strong current carrying capacity: able to carry large currents and meet the needs of high-power circuits.

· On state voltage reduction: In the conducting state, the voltage drop is relatively low, which can reduce conduction losses and improve energy utilization efficiency.

· Good shutdown performance: Internally, the anode current is turned off in transistor mode to avoid the occurrence of "GTO" state. During the shutdown process, a higher

 anode voltage rise rate is allowed, and the shutdown action is reliable. The turn off time of the circulation can be reduced to within 1 μ s, and the gate turn off charge is low,

· which can significantly reduce the gate drive power.

· Application: Widely used in high-power medium voltage converters, such as equipment in industries such as steel manufacturing, power generation (including thermal power,

 hydropower, nuclear power, wind power, etc.), gas supply, glass manufacturing, papermaking, machinery manufacturing, electronics manufacturing, automobile manufacturing, aviation manufacturing, chemical manufacturing, coal mining and beneficiation, oil and gas mining and beneficiation, metal and non-metal mining and beneficiation, etc.
