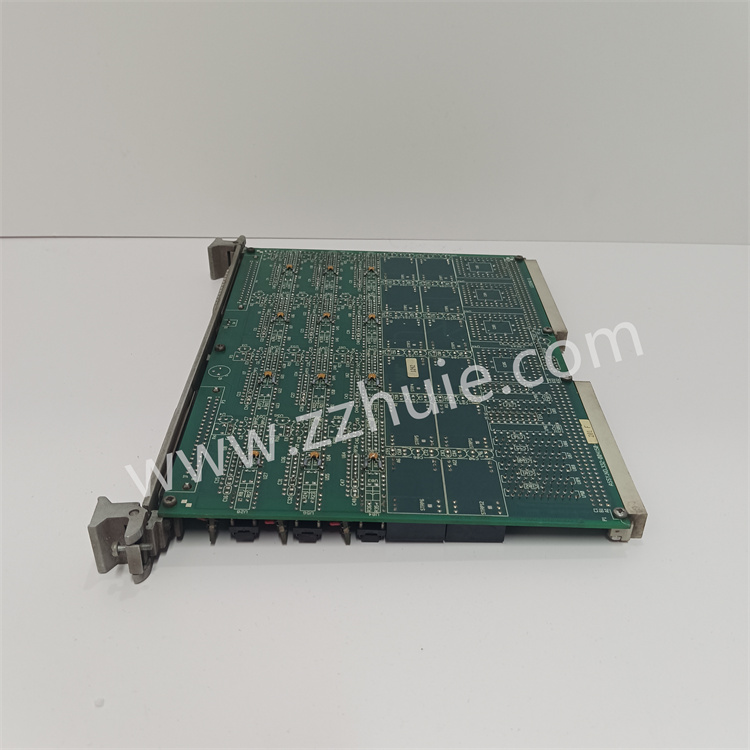

GE VMIVME4150 | Isolated analog output board

· The name of the VMIVME4150 is Isolated Analog Output Board, a module produced by GE (formerly VMIC) for industrial automation control systems. Below is its detailed

description:

· Channels and Isolation: Provides 12 isolated, high-quality 12-bit analog output channels, each electrically isolated from other channels and the VME bus with an isolation

capability of ±1000V.

· Output Range: The bipolar voltage output range can be selected as ±2.5V, ±5V, or ±10V, while the unipolar voltage output range can be set to 0 to 2.5V, 0 to 5V, or 0 to 10V.

The load capability of the voltage output is 10mA across the full 10V range. Additionally, current loop outputs are available in the ranges of 4 to 20mA, 0 to 20mA, or 5 to 25mA.

Accuracy: The voltage output accuracy is 0.05%, and the current loop output accuracy is 0.08%.

· Configuration options: There are three configurations available—4-channel, 8-channel, and 12-channel.

· Additional Features: Optical data coupling provides complete current isolation, while static read-back data registers simplify program control. It includes a front-panel entry

for convenient on-site connections. The voltage output can be connected or disconnected under program control, aiding in system testing.
