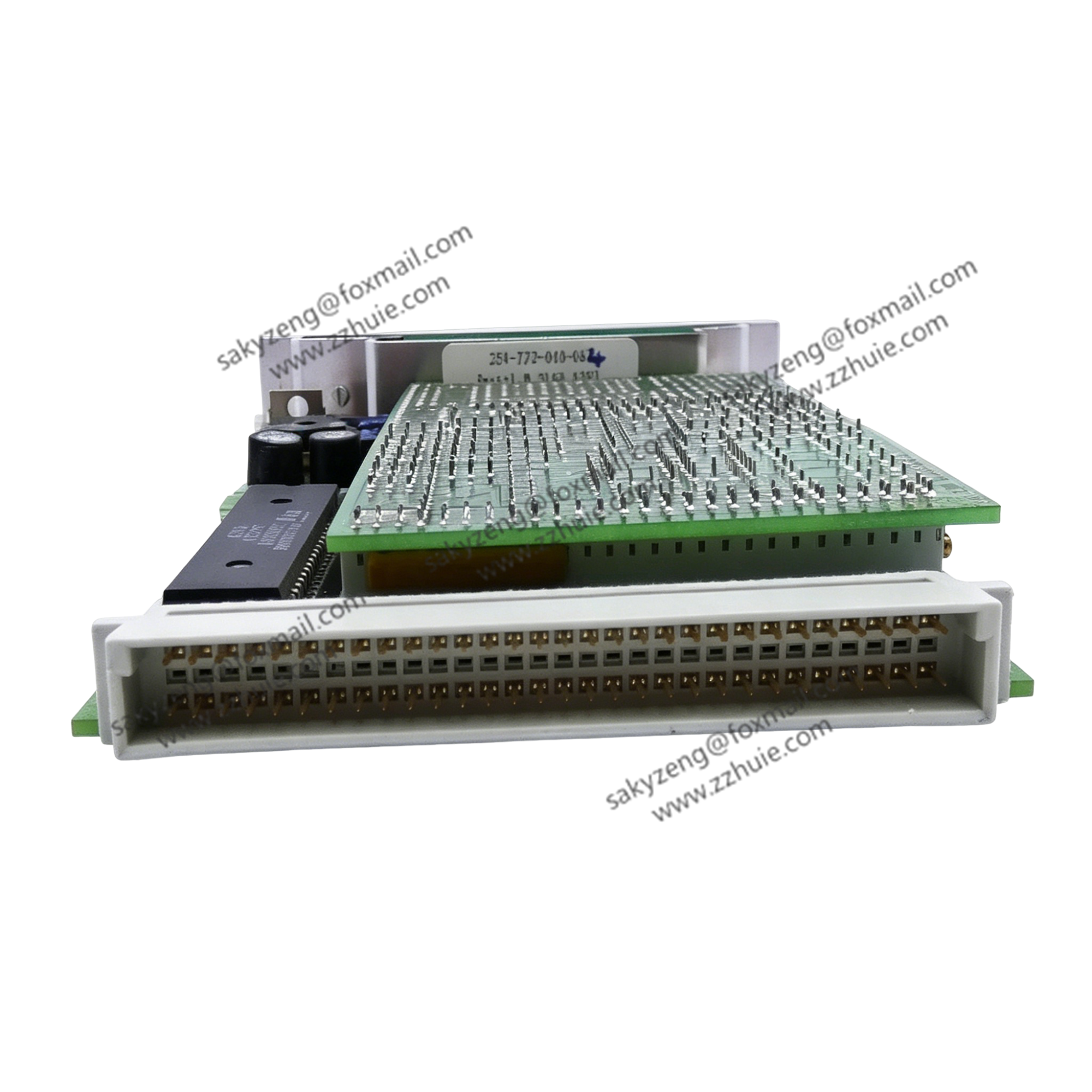

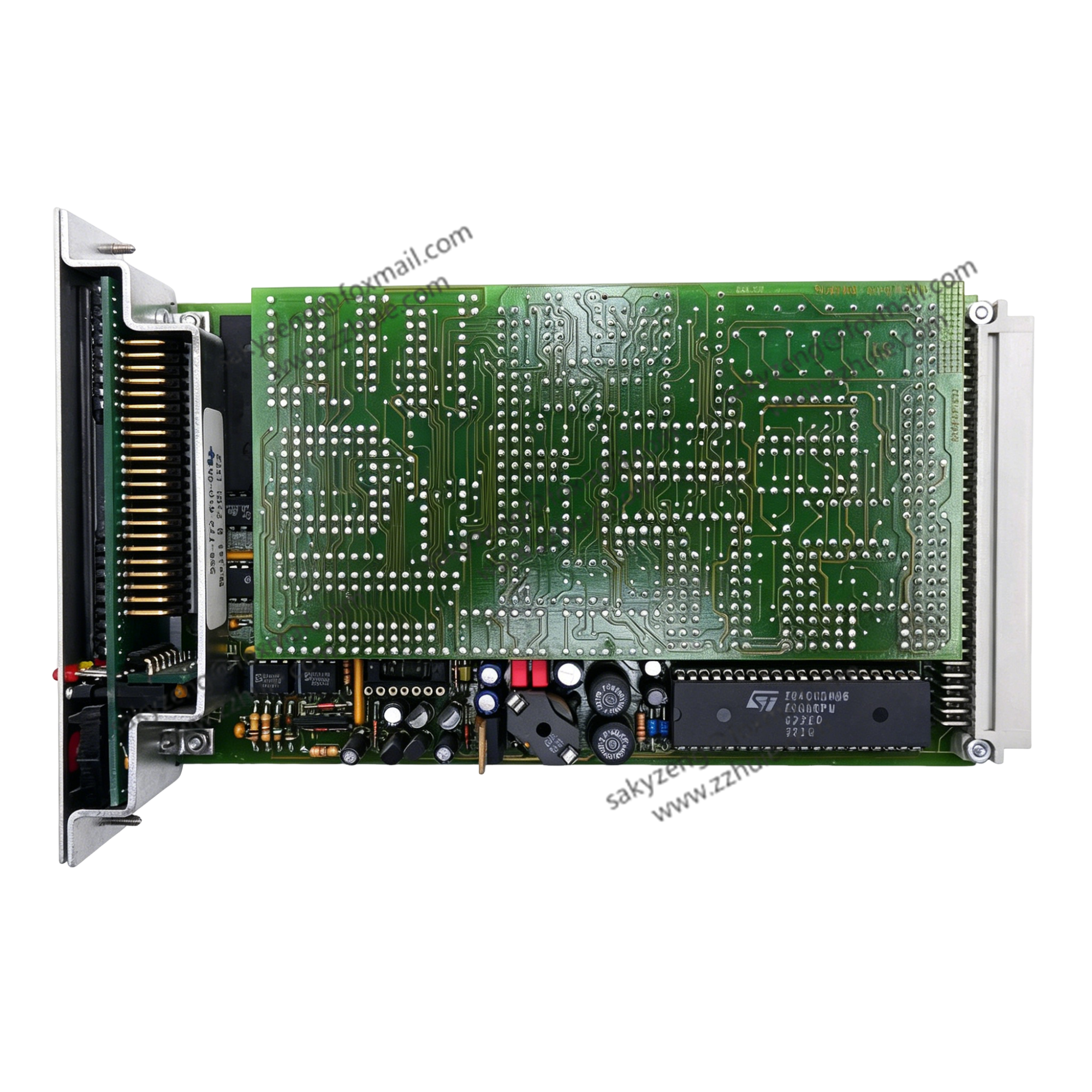

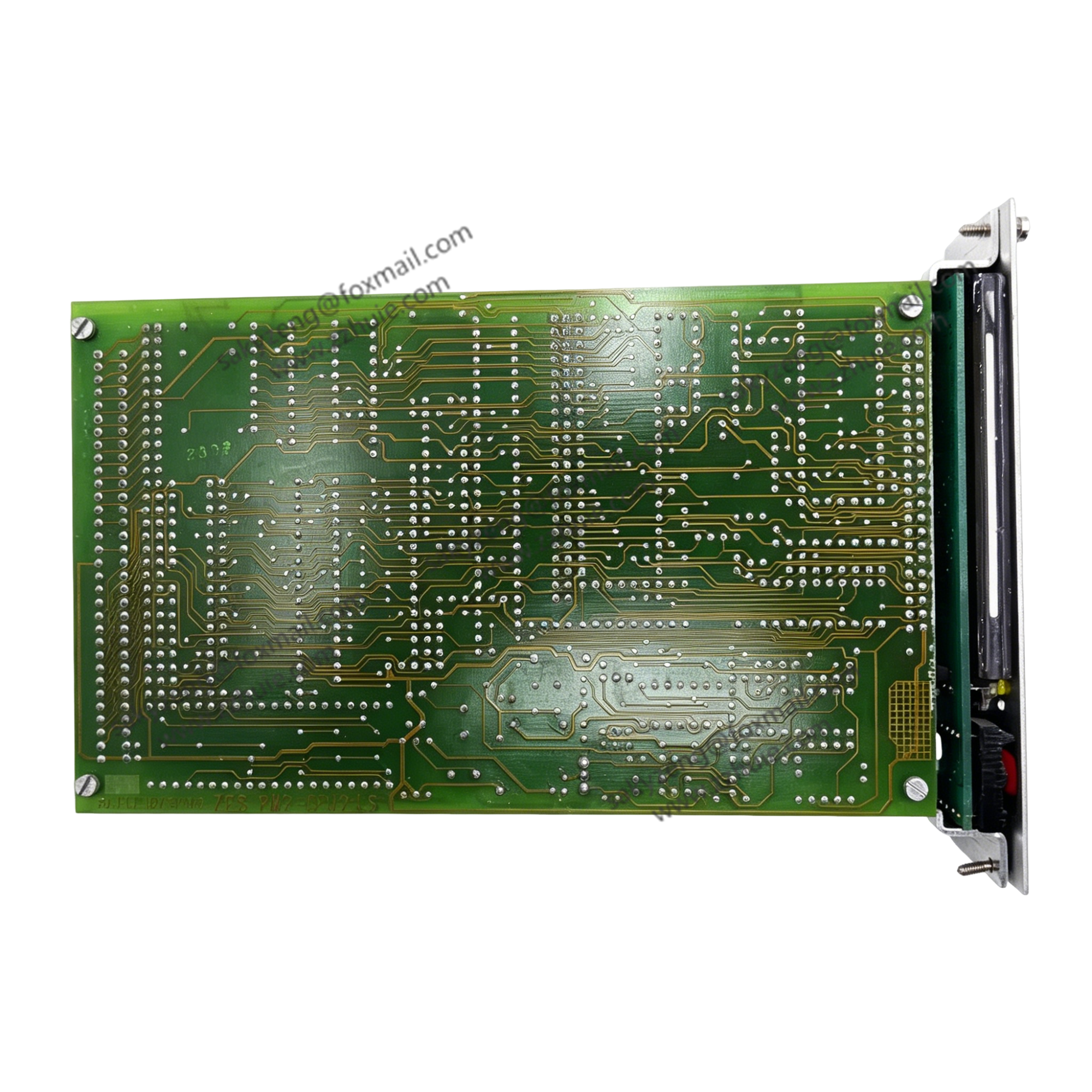

Vibro-Meter 200-566-000-112 IOCN Digital Input & Output Communication Module for VM600 Machinery Vibration Monitoring Rack

Vibro-Meter 200-566-000-112 (IOCN) is a high-performance communication and I/O expansion module for the VM600 machinery protection and condition monitoring system.

It serves as a critical interface, enabling seamless data exchange between the VM600 monitoring racks and external control systems (DCS/PLC/SCADA) or networks.

This module is essential for real-time data transmission, remote configuration, and alarm handling in industrial rotating equipment monitoring applications.

ParameterValue

Part Number 200-566-000-112

Model IOCN (Input/Output Communication Network)

System Compatibility VM600 Series (VM600 Mk2, MPC4, IOC4)

Power Supply 24 V DC (from VM600 rack backplane)

Power Consumption ≤ 19 W (typical)

Communication Interfaces Ethernet (TCP/IP), RS485

Protocols Modbus TCP/IP, Profibus DP

I/O Features Digital I/O expansion, high electrical isolation

Operating Temperature -20°C to +70°C

Storage Temperature -40°C to +85°C

Humidity 5–95% non-condensing

Dimensions Standard 6U VM600 rack card

Weight ~0.5 kg

Certifications CE, RoHS compliant

Protection ClassIP20 (rack-mounted)
