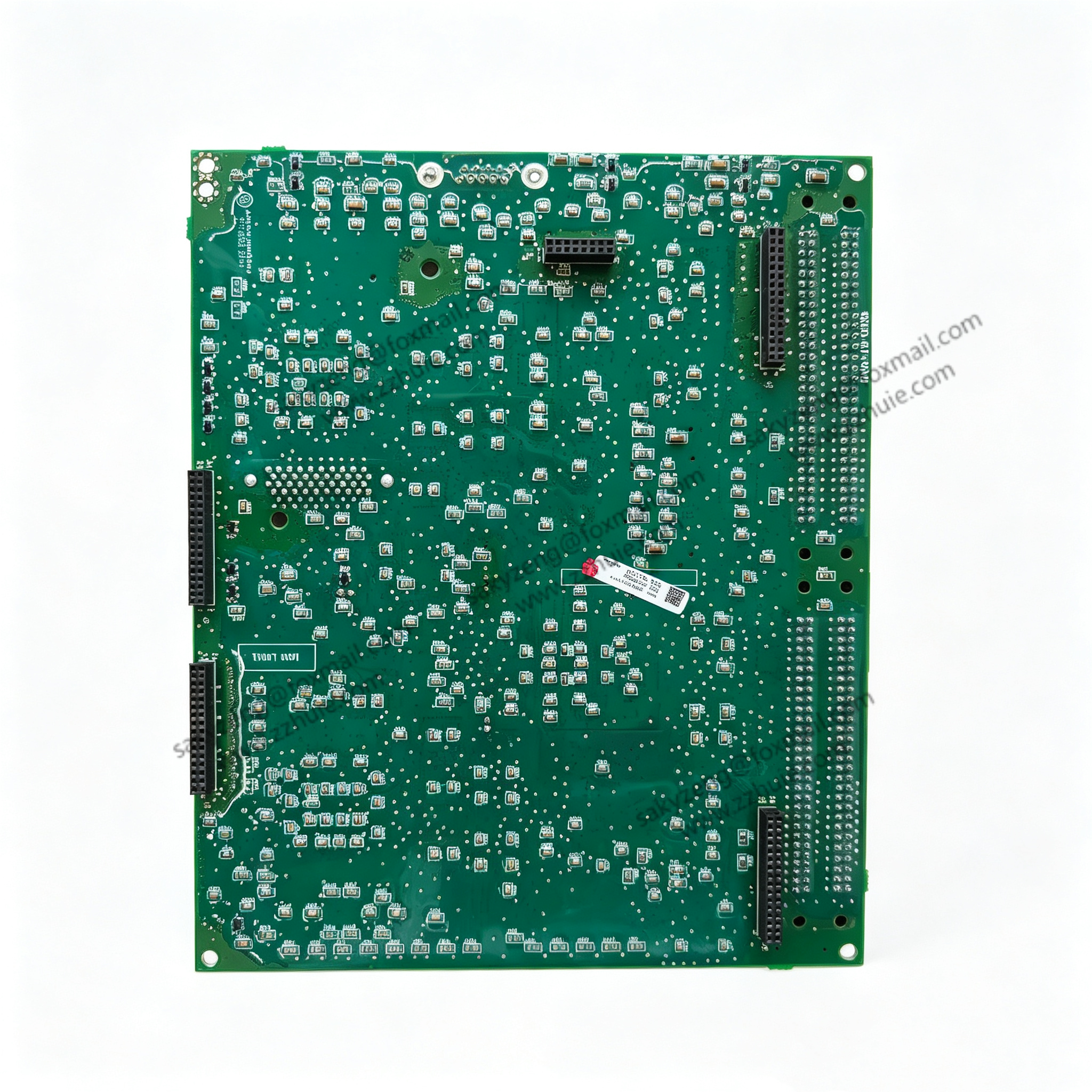

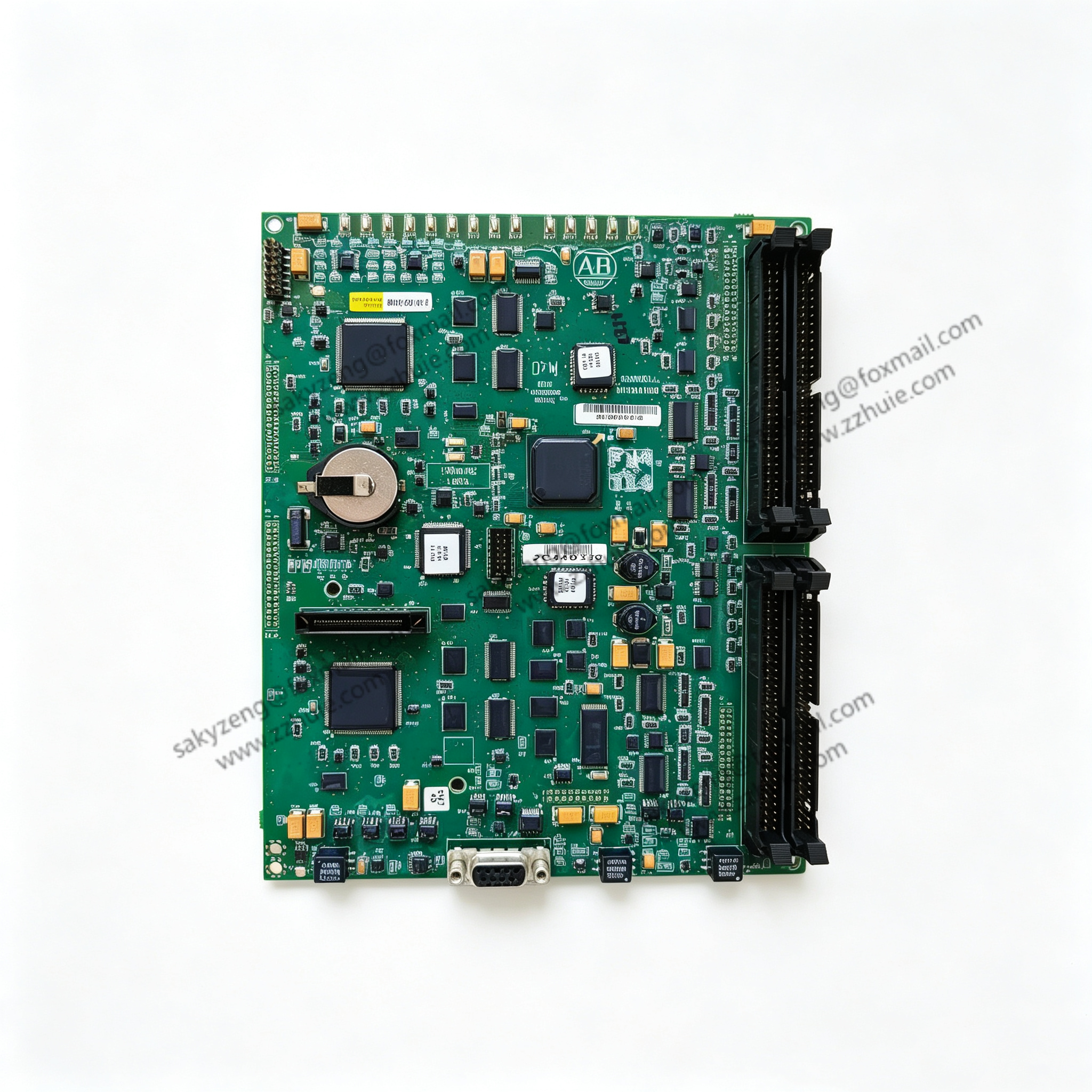

Allen‑Bradley 80190‑580‑01‑R Drive Processor Module

Product Description

80190‑580‑01‑R is a conformal‑coated drive processor main‑control board (DPM) dedicated to the Rockwell PowerFlex 7000 series medium‑voltage AC variable‑frequency drives. Acting as the

central processing unit of the MV drive, it executes motor closed‑loop control algorithm, process fault monitoring, parameter storage and upper‑level communication interaction. The PCB is covered

with protective conformal coating to resist moisture, dust, corrosive gas and temperature fluctuation inside high‑power drive cabinets. Widely used in large‑size fan, pump and compressor

medium‑voltage variable‑speed systems for power‑plants, cement, mining and petrochemical industries.

3. Technical Specifications

• Full Model: 80190‑580‑01‑R
• Brand: Allen‑Bradley / Rockwell Automation, Origin: United‑States
• Compatible Equipment: PowerFlex 7000 Series A Medium‑Voltage AC Drive
• Product Type: DPM (Drive Processor Module) main‑control PCB
• Coating: Conformal protective coating for harsh industrial environments
• On‑board Connectors: 4 male connectors, 14‑pin header, one I/O data port
• Operating‑Temperature: ‑40℃ ~ +70℃
• Storage‑Temperature: ‑40℃ ~ +85℃
• Ambient Humidity: 5%‑95% non‑condensing
• Interrupt Rating: 300 DC
• Environmental Rating: NEMA 4X
• Net Weight: Approx. 0.20 kg

• Certifications: UL, CE, industrial EMC compliance

•

4. Key Features

1. Core processor board for PowerFlex7000 medium‑voltage drives, undertakes all main motor‑control logic
2. Conformal coating provides excellent protection against humidity, dust, corrosive fumes inside drive cabinet
3. Multiple built‑in connectors realize high‑speed data exchange with power‑unit and signal‑acquisition boards
4. Real‑time drive fault diagnosis, alarm logging and parameter‑configuration storage function
5. Field‑replaceable plug‑in component, convenient on‑site maintenance and drive fault recovery
6. Optimized hardware layout with strong anti‑interference performance for high‑power MV‑drive cabinet environment
7. Industrial‑grade long‑life electronic components for long‑term continuous heavy‑duty operation
8. Standard spare‑part for PowerFlex 7000 medium‑voltage variable‑frequency‑drive overhaul projects
